Eligibility Checklist

Checklist Configuration:

Attributes:

• Each checklist consists of multiple attributes, where each attribute represents a specific question or input field.

• Attributes may have associated codes (e.g., SMC1, SMC1.YES.SM1).

Points Mapping:

Each possible response to an attribute (for example: YES, NO, NOT_SELECTED) is mapped to specific points for different flows.

Precedence Questions:

• Some attributes are designated as precedence attributes.

• Precedence attributes determine the priority flow when multiple flows are eligible.

Flow Types:

Common flow types include:

• TO_ADMINISTER

• BENEFICIARY_REFUSED

• BENEFICIARY_REFERRED

Checklist Configuration Process:

• Define the checklist attributes and associate them with codes.

• Map each possible response of an attribute to flow points.

• Identify precedence attributes and configure precedence mapping.

• Define precedence flow logic (e.g., YES maps to TO_ADMINISTER, NO maps to BENEFICIARY_REFUSED).

Example:

"ServiceDefinition": {
        "tenantId": "mz",
        "code": "SMC Campaign.ELIGIBILITY.DISTRIBUTOR",
        "isActive": true,
        "additionalFields": {
            "schema": "ServiceDefinition",
            "version": 1,
            "fields": [
                {
                    "key": "precedenceFlow",
                    "value": "SMC1.YES.SM1"
                },
                {
                    "key": "flow",
                    "value": [
                        {
                            "type": "TO_ADMINISTER",
                            "minScore": 5
                        },
                        {
                            "type": "BENEFICIARY_REFUSED",
                            "minScore": 3
                        },
                        {
                            "type": "BENEFICIARY_REFERRED",
                            "minScore": 7
                        }
                    ]
                }
            ]
        },
        "attributes": [
            {
                "tenantId": "mz",
                "code": "SMC1",
                "dataType": "SingleValueList",
                "values": [
                    "YES",
                    "NO",
                    "NOT_SELECTED"
                ],
                "isActive": true,
                "required": true,
                "order": 1,
                "additionalFields": {
                    "schema": "ServiceAttribute",
                    "version": 1,
                    "fields": [
                        {
                            "key": "pointsMapping",
                            "value": {
                                "YES": {
                                    "TO_ADMINISTER": 0,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 10
                                },
                                "NO": {
                                    "TO_ADMINISTER": 2,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 0
                                }
                            }
                        },
                        {
                            "key": "helpText",
                            "value": "SMC1.HELP"
                        }
                    ]
                }
            },
            {
                "tenantId": "mz",
                "code": "SMC1.YES.SM1",
                "dataType": "SingleValueList",
                "values": [
                    "YES",
                    "NO",
                    "NOT_SELECTED"
                ],
                "isActive": true,
                "required": true,
                "order": 2,
                "additionalFields": {
                    "schema": "ServiceAttribute",
                    "version": 1,
                    "fields": [
                        {
                            "key": "pointsMapping",
                            "value": {
                                "YES": {
                                    "TO_ADMINISTER": 0,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 10
                                },
                                "NO": {
                                    "TO_ADMINISTER": 2,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 0
                                }
                            }
                        },
                        {
                            "key": "helpText",
                            "value": "SMC1.YES.HELP"
                        }
                    ]
                }
            },
            {
                "tenantId": "mz",
                "code": "SMC2",
                "dataType": "SingleValueList",
                "values": [
                    "YES",
                    "NO",
                    "NOT_SELECTED"
                ],
                "isActive": true,
                "required": true,
                "order": 3,
                "additionalFields": {
                    "schema": "ServiceAttribute",
                    "version": 1,
                    "fields": [
                        {
                            "key": "pointsMapping",
                            "value": {
                                "YES": {
                                    "TO_ADMINISTER": 0,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 10
                                },
                                "NO": {
                                    "TO_ADMINISTER": 2,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 0
                                }
                            }
                        },
                        {
                            "key": "helpText",
                            "value": "SMC2.HELP"
                        }
                    ]
                }
            },
            {
                "tenantId": "mz",
                "code": "SMC3",
                "dataType": "SingleValueList",
                "values": [
                    "YES",
                    "NO",
                    "NOT_SELECTED"
                ],
                "isActive": true,
                "required": true,
                "order": 4,
                "additionalFields": {
                    "schema": "ServiceAttribute",
                    "version": 1,
                    "fields": [
                        {
                            "key": "pointsMapping",
                            "value": {
                                "YES": {
                                    "TO_ADMINISTER": 0,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 10
                                },
                                "NO": {
                                    "TO_ADMINISTER": 8,
                                    "BENEFICIARY_REFUSED": 0,
                                    "BENEFICIARY_REFERRED": 0
                                }
                            }
                        },
                        {
                            "key": "helpText",
                            "value": "SMC3.HELP"
                        }
                    ]
                }
            }
        ]
    }

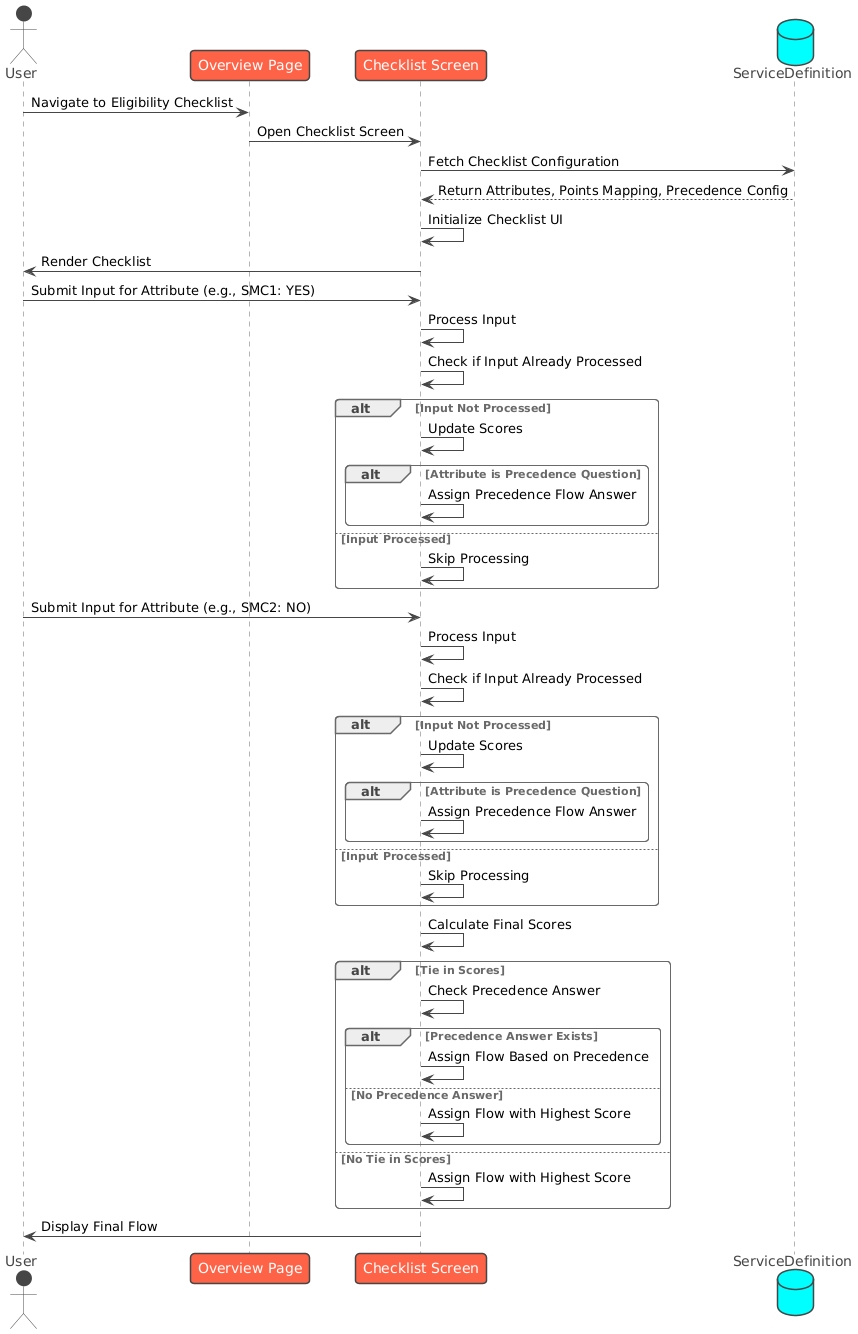

Processing Inputs:

For each attribute in the checklist:

• Retrieve the user input.

• Generate a unique key (e.g., SMC1_YES) to avoid duplicate processing.

• Check if the input has already been processed to prevent double counting.

Update Scores:

For each response:

• Retrieve the corresponding flow points from the mapping of the points.

• Update the scores for each flow type by adding the mapped points.

Handle Precedence:

• If the attribute is a precedence attribute and an input is provided

  • Record the precedence flow answer.

• Skip precedence attributes if no input is provided.

Final Flow Assignment:

• Calculate the total scores for all flows based on user inputs.

• If there is a tie in scores between flows:

  • Check for precedence answers and assign the flow based on the precedence mapping.

  • If no precedence answer exists, assign the flow with the highest score.

• If no tie exists, directly assign the flow with the highest score.
