# Stock

## Overview

Stock is the **supply-chain ledger** for a health campaign. Every time a commodity (vaccine, bed net, deworming tablet) moves — received into a warehouse, sent to a facility, handed out to a household, lost, or adjusted — Stock records one row for that movement. It also stores **physical-count reconciliations** so a facility's book stock can be checked against what's actually on the shelf.

In short: *"what did we have, where did it go, and does the count still add up?"*

## Business Flow

* **During campaign setup**, opening stock is received into central/warehouse facilities.
* **During the campaign (runtime)**, field workers and storekeepers record transfers (warehouse → facility → sub-facility) and distributions (facility → beneficiary). Every hand-out of a commodity is a stock **OUT** transaction.
* **Periodically**, a storekeeper does a physical count and submits a **reconciliation** so discrepancies (theft, breakage, miscount) surface early.
* The numbers feed the **dashboards** (via the transformer → Elasticsearch) so programme managers can see stock-on-hand and consumption per facility.

## Key APIs / Entry Points

Base path `/stock/v1` (transactions) and `/stock/reconciliation/v1` (counts). Each entity has single + bulk create/update/delete, and a search.

Transaction endpoints record commodity movements. Reconciliation endpoints record physical stock counts.

| Endpoint                                            | Purpose                                                                                           |
| --------------------------------------------------- | ------------------------------------------------------------------------------------------------- |
| `POST /stock/v1/_create`, `/bulk/_create`           | Record a stock movement (single or bulk).                                                         |
| `POST /stock/v1/_update`, `/bulk/_update`           | Correct a movement.                                                                               |
| `POST /stock/v1/_delete`, `/bulk/_delete`           | Soft-delete a movement.                                                                           |
| `POST /stock/v1/_search`                            | Find movements (by facility, sender/receiver, product variant, **campaignNumber**, since-time …). |
| `POST /stock/reconciliation/v1/_create` … `_search` | Same shape for physical-count reconciliations.                                                    |

**Kafka entry points (async).** Bulk requests land on `create-stock-bulk-topic` / `update-…` / `delete-…` (and the reconciliation equivalents) and are processed by the service's own consumer. Persisted results go out on `save-stock-topic` / `update-stock-topic` / `delete-stock-topic` (+ reconciliation topics) for the persister and transformer.

**Swagger contract:**

{% embed url="<https://editor.swagger.io/?url=https://raw.githubusercontent.com/egovernments/health-campaign-services/v1.0.0/docs/health-api-specs/contracts/stock.yml>" %}

#### Kafka topics

<table><thead><tr><th>Topic</th><th width="165.421875">Dir</th><th>Purpose</th></tr></thead><tbody><tr><td><code>create-stock-bulk-topic</code></td><td>in</td><td>Bulk stock-movement create requests</td></tr><tr><td><code>update-stock-bulk-topic</code></td><td>in</td><td>Bulk stock-movement update requests</td></tr><tr><td><code>delete-stock-bulk-topic</code></td><td>in</td><td>Bulk stock-movement (soft) delete requests</td></tr><tr><td><code>create-stock-reconciliation-bulk-topic</code></td><td>in</td><td>Bulk reconciliation create requests</td></tr><tr><td><code>update-stock-reconciliation-bulk-topic</code></td><td>in</td><td>Bulk reconciliation update requests</td></tr><tr><td><code>delete-stock-reconciliation-bulk-topic</code></td><td>in</td><td>Bulk reconciliation delete requests</td></tr><tr><td><code>save-stock-topic</code></td><td>out</td><td>Persist new stock rows (persister + transformer)</td></tr><tr><td><code>update-stock-topic</code></td><td>out</td><td>Persist stock updates</td></tr><tr><td><code>delete-stock-topic</code></td><td>out</td><td>Persist stock soft-deletes</td></tr><tr><td><code>save-stock-reconciliation-topic</code></td><td>out</td><td>Persist new reconciliations</td></tr><tr><td><code>update-stock-reconciliation-topic</code></td><td>out</td><td>Persist reconciliation updates</td></tr><tr><td><code>delete-stock-reconciliation-topic</code></td><td>out</td><td>Persist reconciliation deletes</td></tr></tbody></table>

## Dependencies

* **idgen** — generates stock record IDs.
* **facility** — validates the facility a movement is for.
* **product** — validates the product variant being moved.
* **project / project-facility** — optional link of a movement to a project's facility.
* **health-services-common / -models** — shared clients, validators, POJOs.
* **Kafka** — async create/update/delete pipeline.
* **egov-persister** (deployed via the `configs/` repo) — actually writes the rows to Postgres off the `save-*` topics.
* **transformer → Elasticsearch** — builds the dashboard read-model from the same topics.
* **Redis** — caching used by the shared repository layer.

## Process Flow

Writes are **asynchronous**: the API validates, enriches and acknowledges, then a Kafka consumer persists. The service does not write Postgres directly — it emits a `save-*` event that **egov-persister** turns into a row, while the **transformer** indexes the same event into Elasticsearch for dashboards.

#### Sequence Diagrams

{% tabs %}
{% tab title="Stock" %}

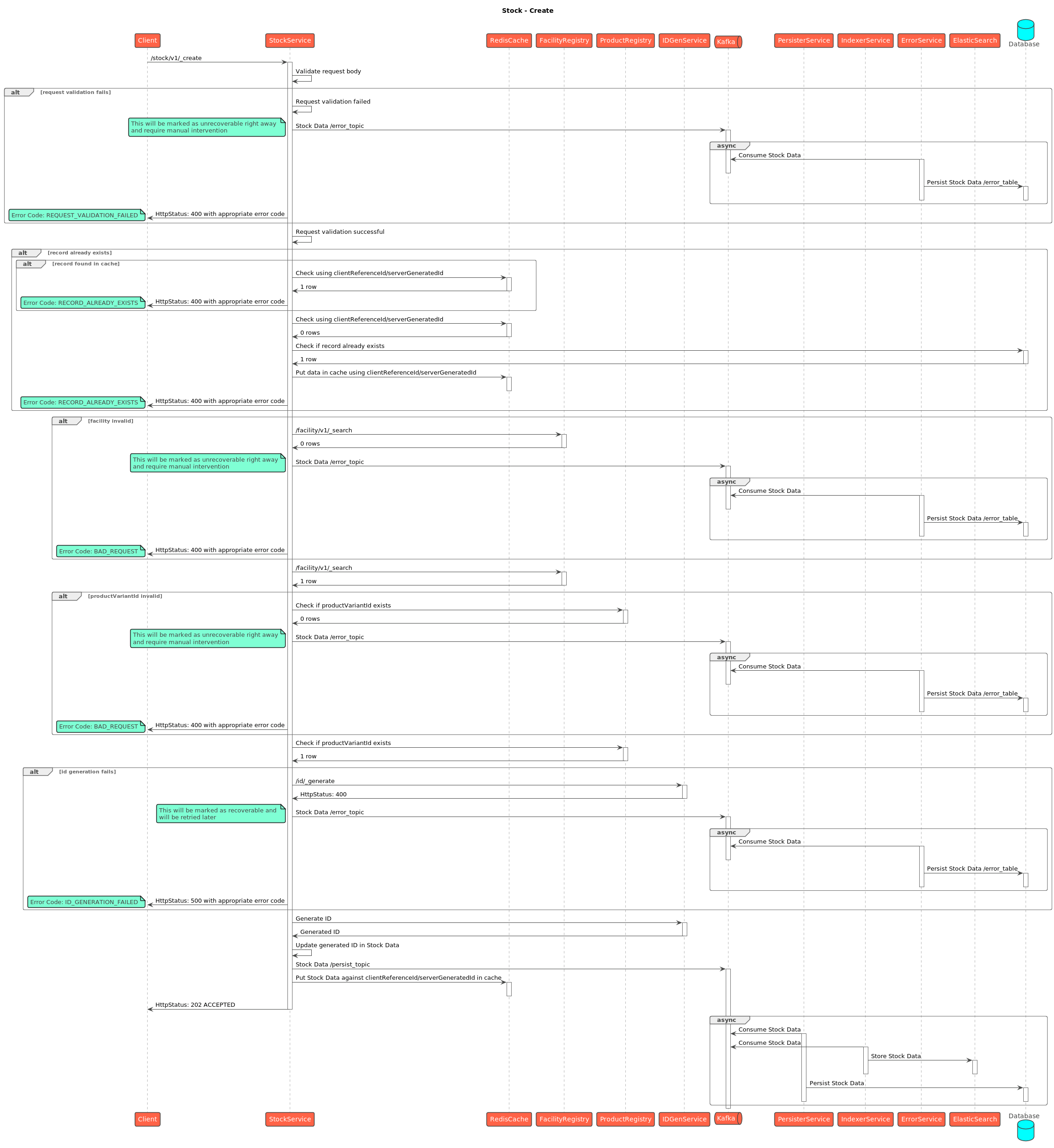

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/WUqucpw1vR0Yb5B0x5qU/stock_create.png" alt=""><figcaption><p>Stock - Create</p></figcaption></figure>

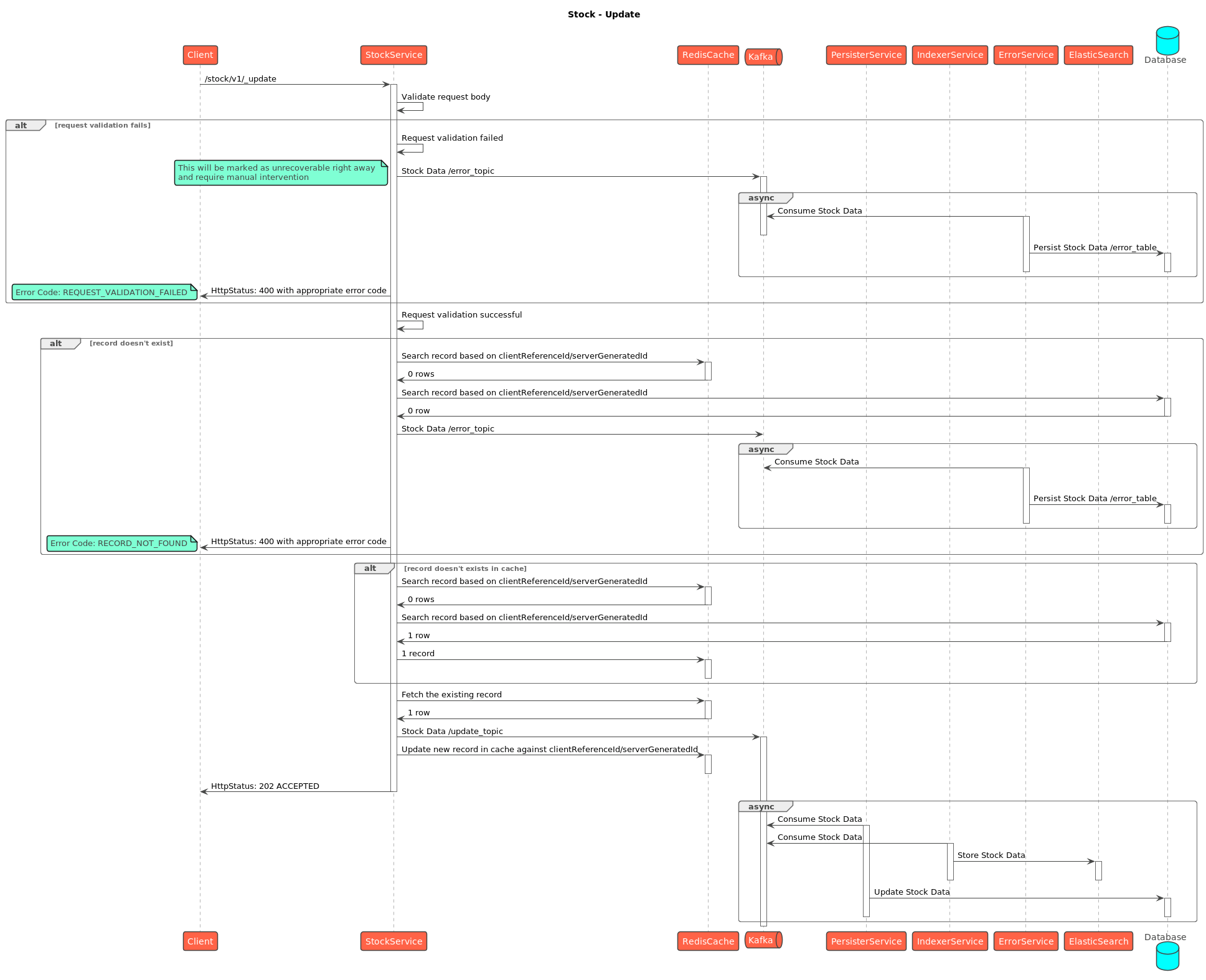

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/G2L3tcxwp11wbGJLgArD/stock_update.png" alt=""><figcaption><p>Stock - Update</p></figcaption></figure>

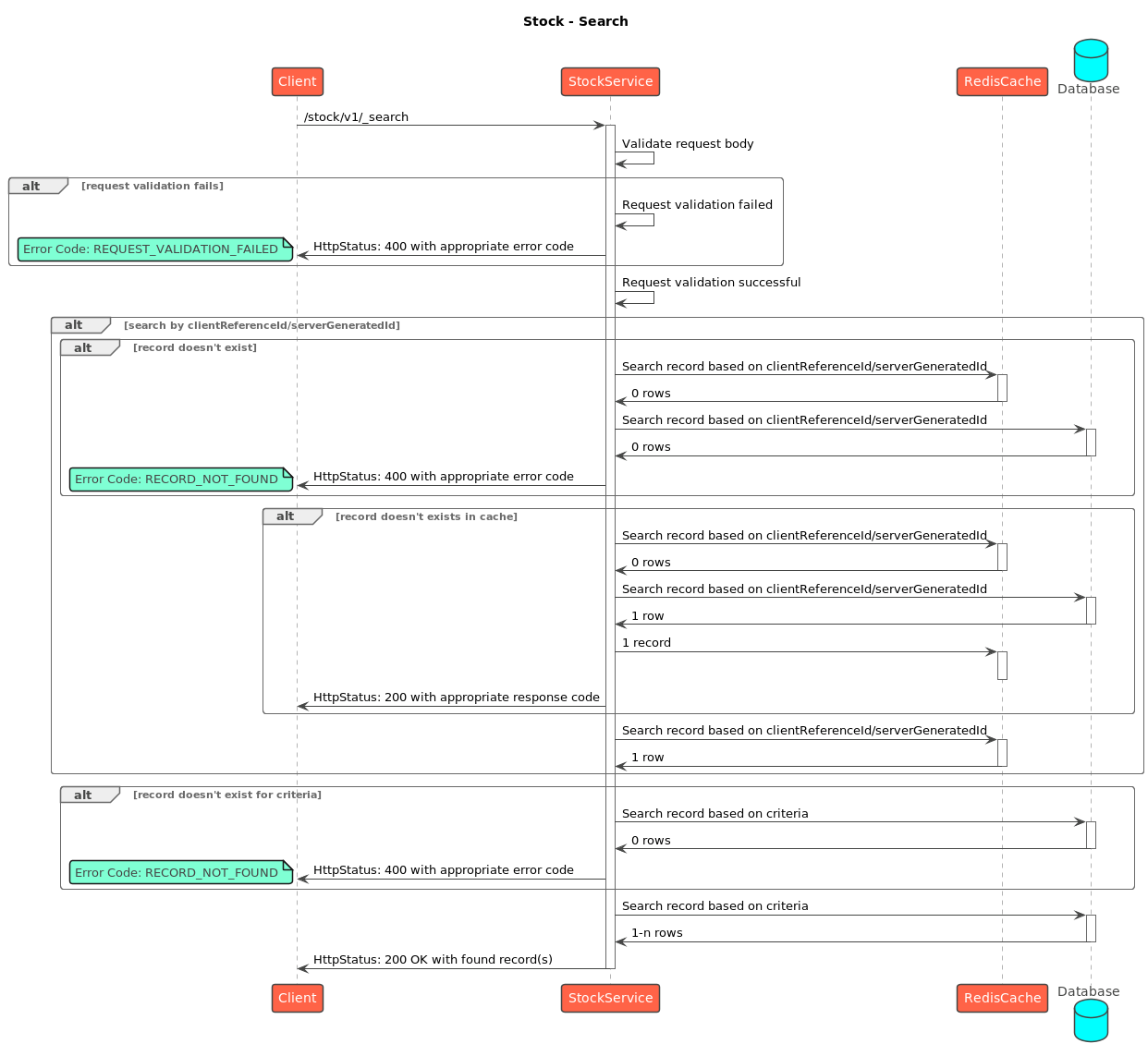

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/7qXN1DKF0F9iy5g6no9D/stock_search.png" alt=""><figcaption><p>Stock - Search</p></figcaption></figure>
{% endtab %}

{% tab title="Reconciliation" %}

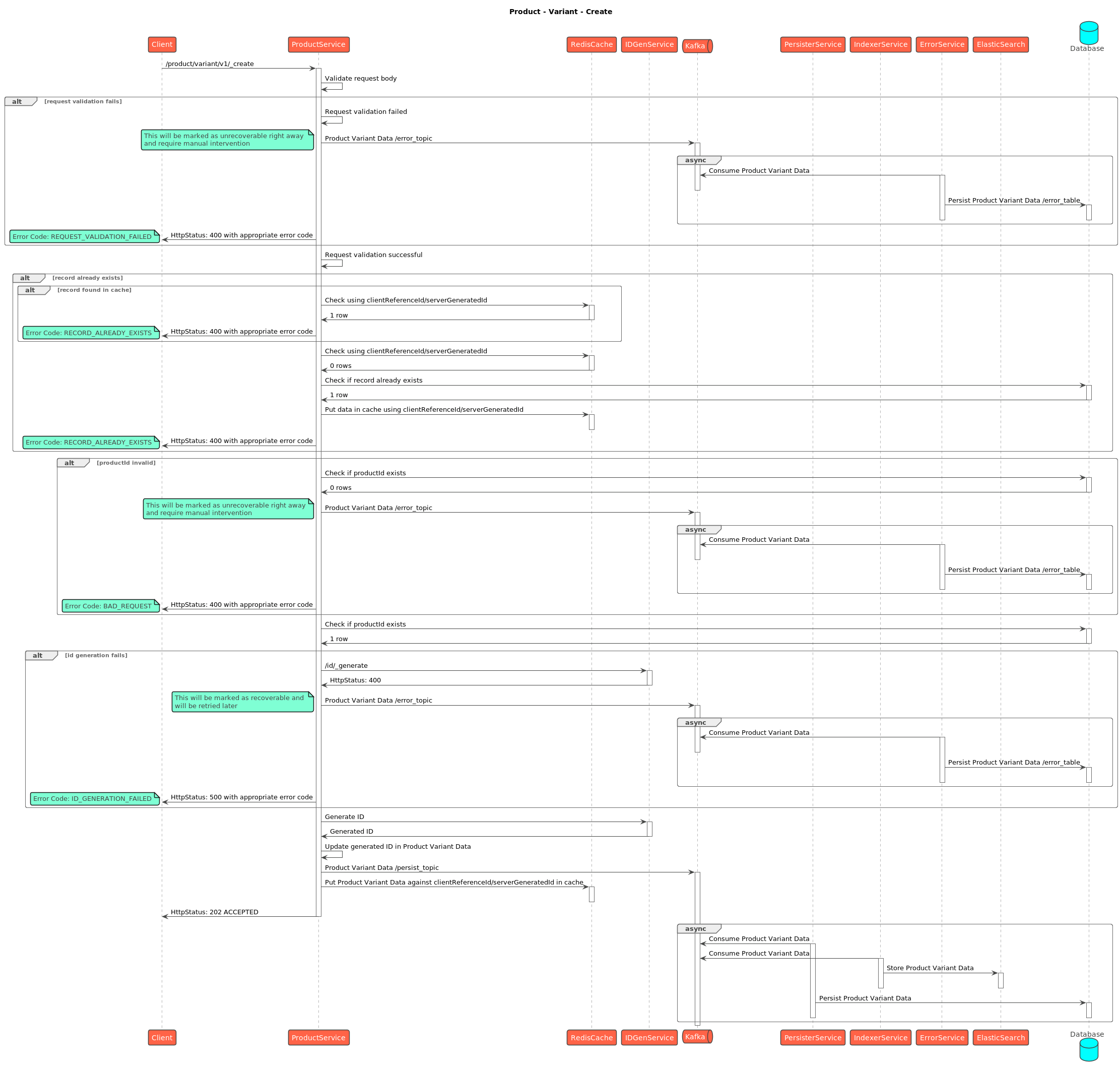

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/Rf6dNnh9YCUEhAVDYy2H/product_variant_create.png" alt=""><figcaption><p>Reconciliation - Create</p></figcaption></figure>

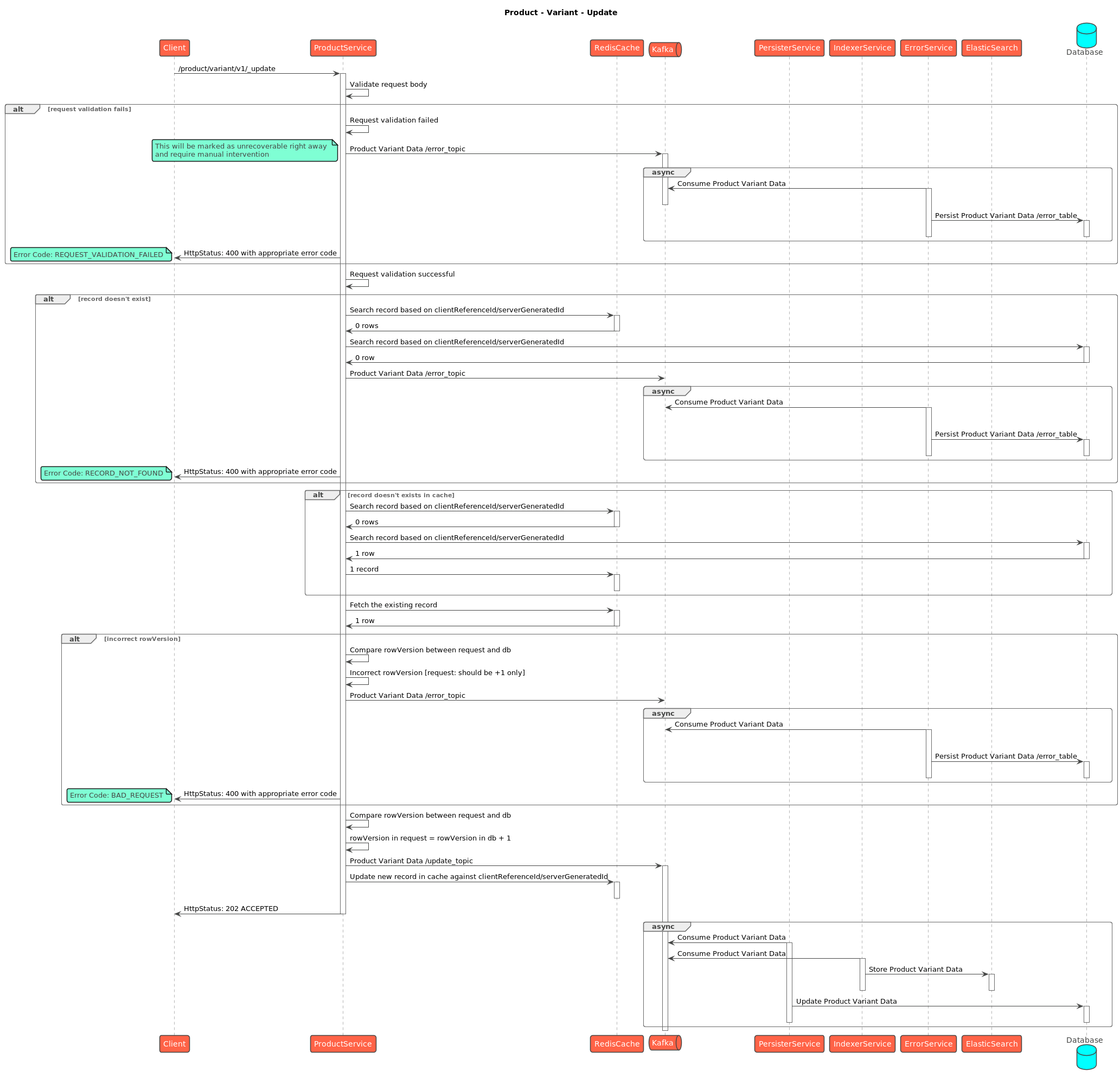

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/gTJ6v7yvgO0Q97zsUxaV/product_variant_update.png" alt=""><figcaption><p>Reconciliation - Update</p></figcaption></figure>

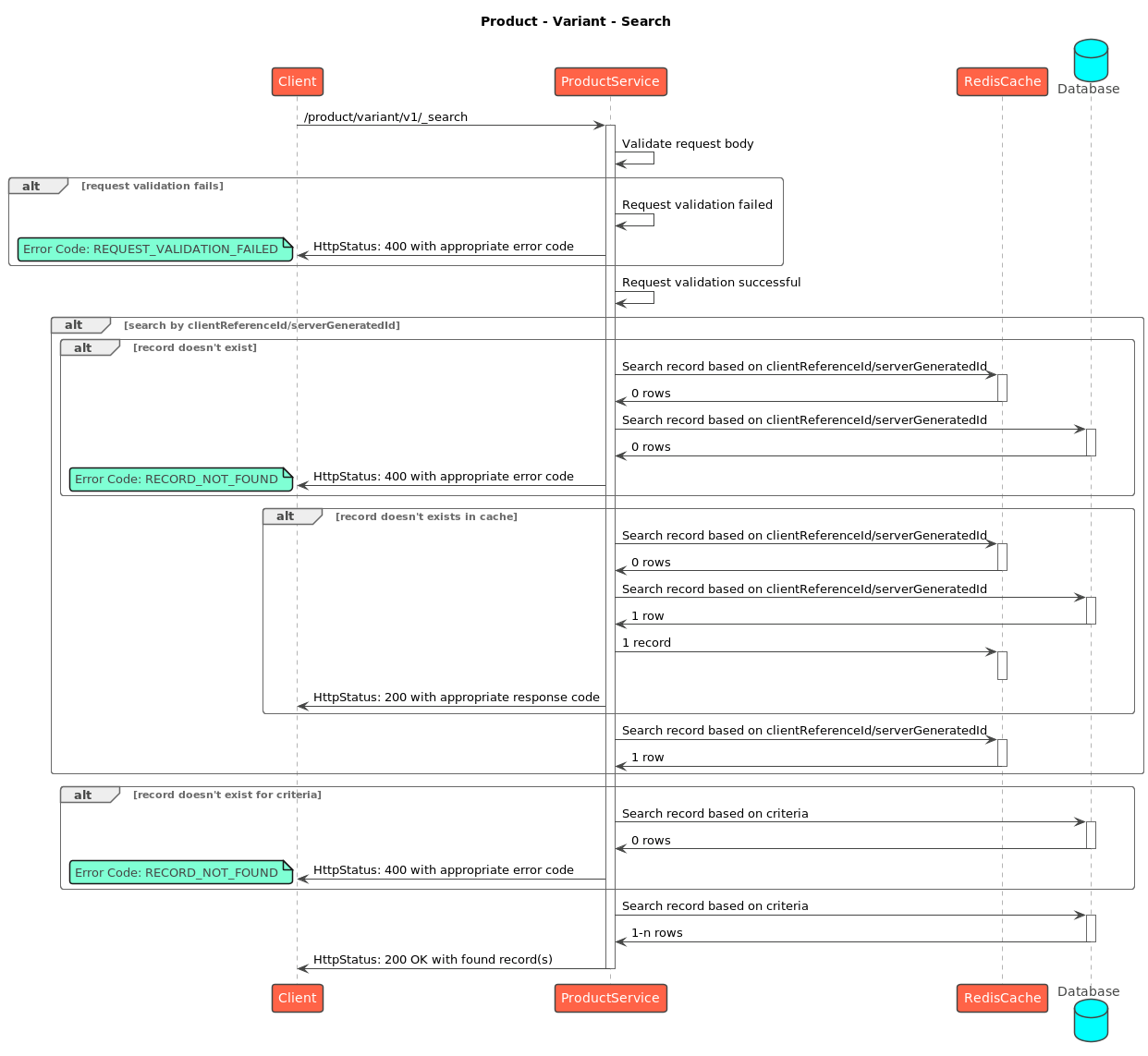

<figure><img src="https://content.gitbook.com/content/I0KFbSBTySIQ7TCOKnJF/blobs/0a6mKSIvUmvEOjzddmXG/product_variant_search.png" alt=""><figcaption><p>Reconciliation - Search</p></figcaption></figure>
{% endtab %}
{% endtabs %}

#### Data Model

<figure><img src="https://2077406040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI0KFbSBTySIQ7TCOKnJF%2Fuploads%2FYClqjeAusj9zTQlrFFqm%2Fimage.png?alt=media&amp;token=3010b3ac-1421-455c-be7e-18a43047f5c4" alt=""><figcaption></figcaption></figure>

### Failure / Retry Handling

* **Async, no batch rollback.** A bulk request returns `202` before persistence. If one record in the batch fails validation in the consumer, it does not roll back the others — check consumer logs and the record's status.
* **Idempotency** is via `clientReferenceId` — re-submitting the same one should not create a duplicate row.
* **Optimistic locking** via `rowVersion` protects concurrent transfer updates. Reconciliation count submissions allow concurrent writes and use last-write-wins.
* **Soft delete** (`isDeleted`) everywhere — nothing is hard-deleted; unique constraints include the delete flag.
* If the **persister config** for the stock topics is missing/stale in an environment, the API will accept writes but rows will silently not appear in Postgres — a classic "it worked in QA" trap.

### Known Risks / Limitations

* **`quantity` is signed** — negative values are valid (loss/consumption) and there is no DB constraint; bad data is an app/validation concern, not a DB guard.
* **`transactingPartyId` + `transactingPartyType` are polymorphic with no foreign key** — validation is app-level only.
* **`transactionType` / `transactionReason` are free strings.** Convention is IN/OUT/LOSS/ADJUSTMENT/TRANSFER, but the DB won't stop other values.
* **Reconciliation is per facility, not per product variant** — variant-level discrepancies live in a comments field, not structured columns.
* **`dateOfEntry` (field date) ≠ `createdTime` (system date)** — both matter for audit; don't conflate them.
* **Relaxed concurrency on the count path** (v2.1) means simultaneous count submissions are accepted with last-write-wins — acceptable for counts, but a behavioural change QA must be aware of.


---
