Muster Roll

Overview

The Muster Roll service aggregates attendance logs from the attendance service based on some rules and presents an attendance aggregate for a time period (week or month) per individual. This can then be used to compute payments or other semantics.

Dependencies

• DIGIT backbone services
• Idgen
• Persister
• Indexer
• Workflow
• User
• Attendance

Code

Module code

Helm charts

API Specifications

Base Path: /health-muster-roll

API Contract Link

SwaggerEditoreditor.swagger.io

Data Model

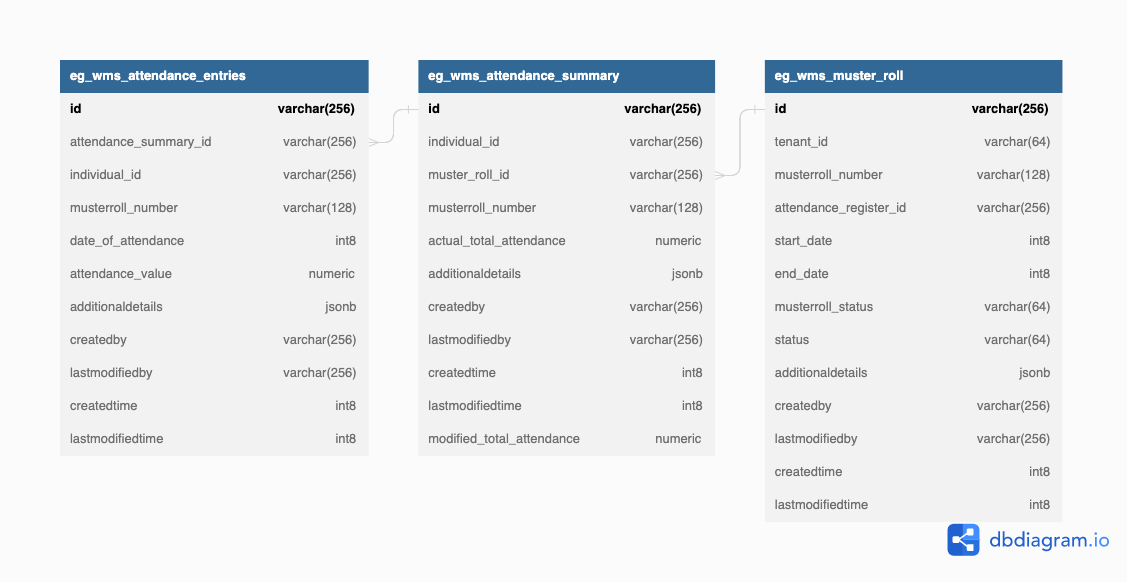

DB Schema Diagram

Web Sequence Diagrams

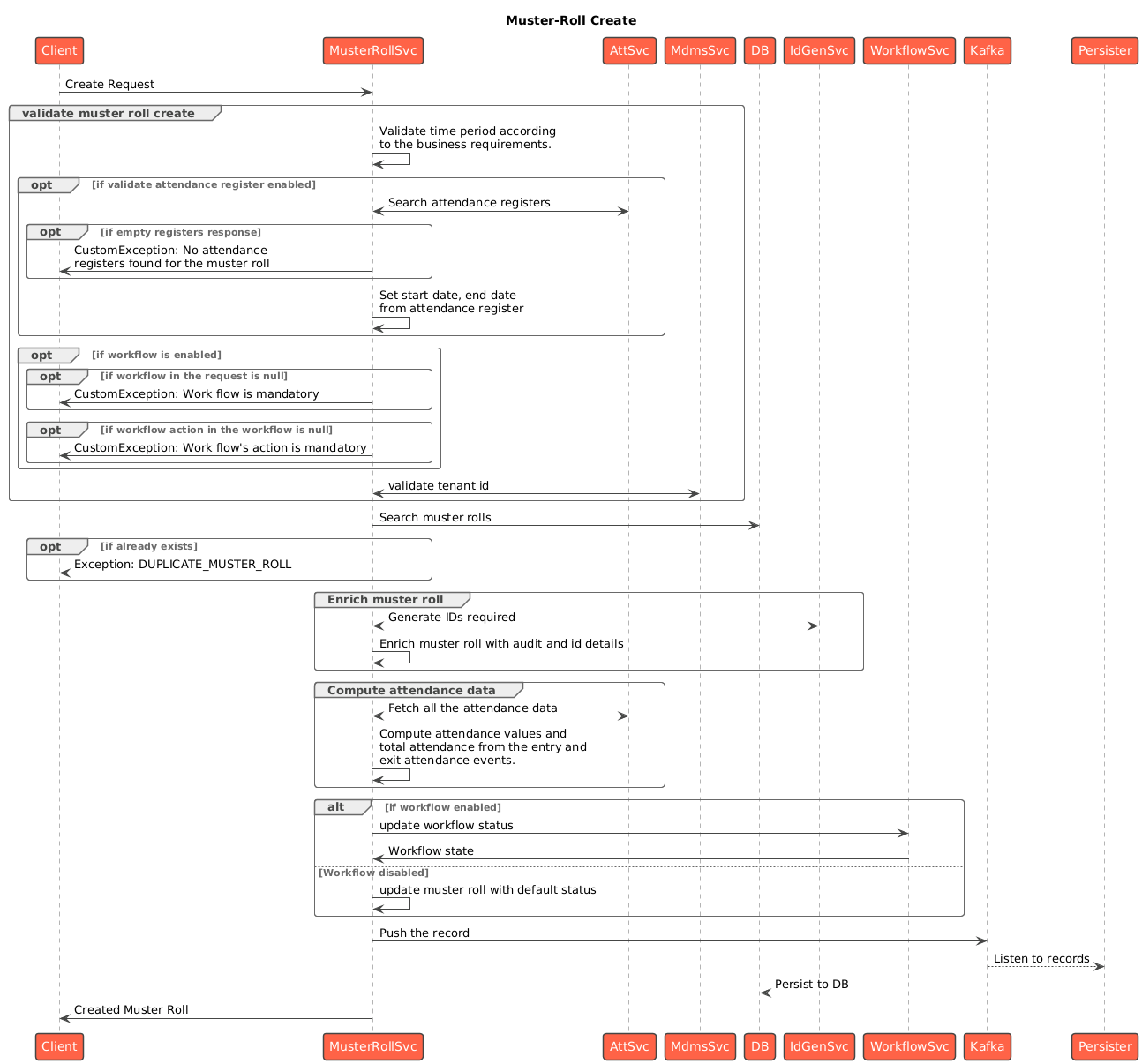

Create

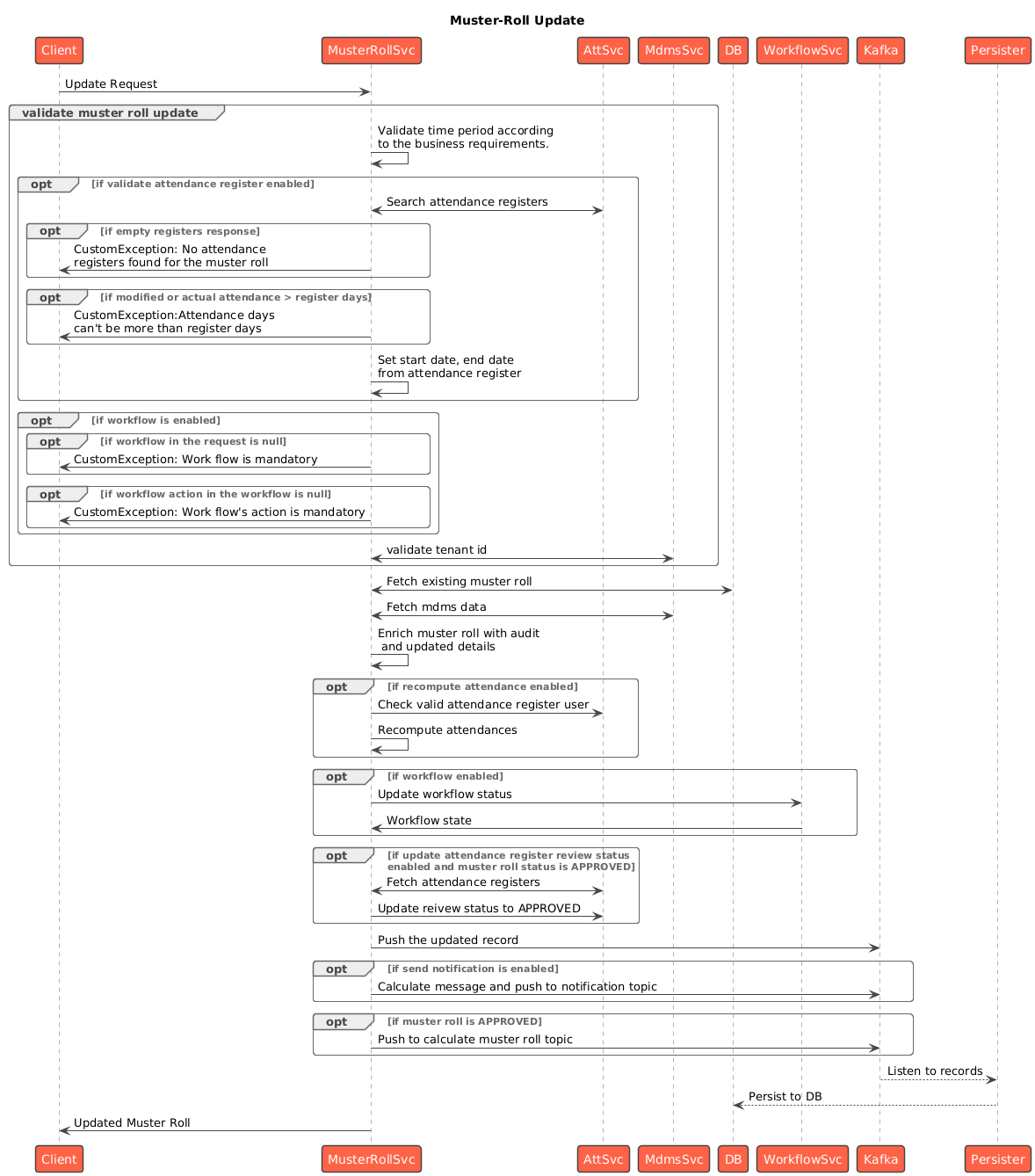

Update

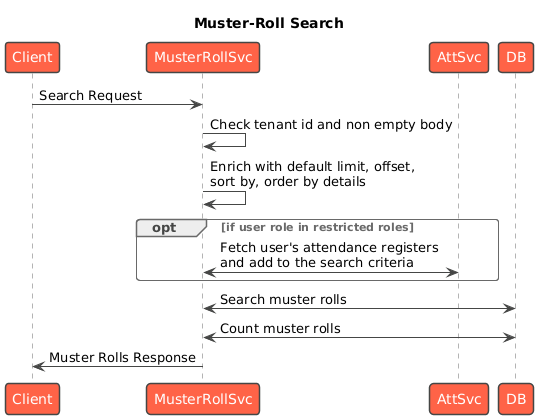

Search

Master Data

egov-mdms-data/data/mz/common-masters/MusterRoll.json at UNIFIED-QA · egovernments/egov-mdms-dataGitHub

egov-mdms-data/data/mz/common-masters/IdFormat.json at 99007bb4c94d7c9579d92ebded8533068f8e7344 · egovernments/egov-mdms-dataGitHub

egov-mdms-data/data/mz/health/workerRates.json at UNIFIED-QA · egovernments/egov-mdms-dataGitHub

*Worker Rates must be created for each campaign, Campaign ID is project id of the root level project

Related Topics

• Muster Roll service configuration
