# Referral Management

## Overview

The referral management registry provides APIs to register side-effects, and referrals for beneficiaries of a health campaign of the DIGIT platform. This document provides the configuration details for setting up the module.

## Pre-requisites

* Knowledge of Java/J2EE (preferably Java 8 version).
* Knowledge of Spring Boot and spring-boot micro-services.
* Knowledge of Git or any version control system.
* Knowledge of RESTful web services.
* Knowledge of the Lombok library is helpful.
* Knowledge of eGov-mdms service, eGov-persister, eGov-idgen, eGov-indexer, and eGov-user will be helpful.
* Knowledge of Project, Household, and Individual modules.

## Functionalities

* Provides APIs to create, update, and delete referrals and side-effects.
* Provides APIs to bulk create, update, and delete referrals and side-effects.
* Inactivates the status of referrals, and side-effects post deletion.
* Provides a search API for referral on unique ID, client reference unique ID, project beneficiary ID, side-effect ID, referrer ID and recipient ID.
* Provides a search API for side-effect on unique ID, client reference unique ID, project task ID.

## Setup Details

The source code for an[ ](https://github.com/egovernments/health-campaign-services/tree/v1.1.0/health-services/individual)[referral management](https://github.com/egovernments/health-campaign-services/tree/master/health-services/referralmanagement) is present in the health-campaign-services Git repo. The spring boot application needs the Lombok\* extension added to the IDE to load it. Once the application is up and running, the API requests can be posted to the URL and the IDs can be generated.

\*In the case of IntelliJ, the plugin can be installed directly. For eclipse, the Lombok jar location has to be added in the eclipse.ini file in this format javaagent:lombok.jar.

## API Details

Refer to the [Swagger API](https://github.com/egovernments/health-campaign-services/blob/master/docs/health-api-specs/contracts/referral-management.yml) for YAML file details.

Application.properties file information:

Kafka topics persister configs for eGov persister:

```
referralmanagement.sideeffect.kafka.create.topic=save-side-effect-topic
referralmanagement.sideeffect.kafka.update.topic=update-side-effect-topic
referralmanagement.sideeffect.kafka.delete.topic=delete-side-effect-topic

referralmanagement.sideeffect.consumer.bulk.create.topic=save-side-effect-bulk-topic
referralmanagement.sideeffect.consumer.bulk.update.topic=update-side-effect-bulk-topic
referralmanagement.sideeffect.consumer.bulk.delete.topic=delete-side-effect-bulk-topic

referralmanagement.referral.kafka.create.topic=save-referral-topic
referralmanagement.referral.kafka.update.topic=update-referral-topic
referralmanagement.referral.kafka.delete.topic=delete-referral-topic

referralmanagement.referral.consumer.bulk.create.topic=save-referral-bulk-topic
referralmanagement.referral.consumer.bulk.update.topic=update-referral-bulk-topic
referralmanagement.referral.consumer.bulk.delete.topic=delete-referral-bulk-topic

referralmanagement.hfreferral.kafka.create.topic=save-hfreferral-topic
referralmanagement.hfreferral.kafka.update.topic=update-hfreferral-topic
referralmanagement.hfreferral.kafka.delete.topic=delete-hfreferral-topic

referralmanagement.hfreferral.consumer.bulk.create.topic=save-hfreferral-bulk-topic
referralmanagement.hfreferral.consumer.bulk.update.topic=update-hfreferral-bulk-topic
referralmanagement.hfreferral.consumer.bulk.delete.topic=delete-hfreferral-bulk-topic
```

#### URLs for the external API references:

* eGvo mdms :-> egov.mdms.host =[ https://unified-dev.digit.org](https://dev.digit.org/)/
* eGov -idGen :-> egov.idgen.host =[ https://unified-dev.digit.org](https://dev.digit.org/)/
* localization service :-> egov.localization.host =[ https://unified-dev.digit.org](https://dev.digit.org/)/

## Configuration Details

### Access MDMS Configurations

#### Action test: URL actions adding

[actions-test.json](https://github.com/egovernments/egov-mdms-data/blob/UNIFIED-DEV/data/mz/ACCESSCONTROL-ACTIONS-TEST/actions-test.json)

```
{
  "id": 1653,
  "name": "Side Effect Create",
  "url": "/referralmanagement/side-effect/v1/_create",
  "displayName": "Side Effect Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1654,
  "name": "Side Effect Update",
  "url": "/referralmanagement/side-effect/v1/_update",
  "displayName": "Side Effect Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1655,
  "name": "Side Effect Search",
  "url": "/referralmanagement/side-effect/v1/_search",
  "displayName": "Side Effect Search",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1656,
  "name": "Side Effect Bulk Create",
  "url": "/referralmanagement/side-effect/v1/bulk/_create",
  "displayName": "Side Effect Bulk Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1657,
  "name": "Side Effect Bulk Update",
  "url": "/referralmanagement/side-effect/v1/bulk/_update",
  "displayName": "Side Effect Bulk Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1658,
  "name": "Side Effect Delete",
  "url": "/referralmanagement/side-effect/v1/_delete",
  "displayName": "Side Effect Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1659,
  "name": "Side Effect Bulk Delete",
  "url": "/referralmanagement/side-effect/v1/bulk/_delete",
  "displayName": "Side Effect Bulk Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1660,
  "name": "Referral Create",
  "url": "/referralmanagement/v1/_create",
  "displayName": "Referral Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1661,
  "name": "Referral Update",
  "url": "/referralmanagement/v1/_update",
  "displayName": "Referral Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1662,
  "name": "Referral Delete",
  "url": "/referralmanagement/v1/_delete",
  "displayName": "Referral Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1663,
  "name": "Referral Search",
  "url": "/referralmanagement/v1/_search",
  "displayName": "Referral Search",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1664,
  "name": "Referral Bulk Create",
  "url": "/referralmanagement/v1/bulk/_create",
  "displayName": "Referral Bulk Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1665,
  "name": "Referral Bulk Update",
  "url": "/referralmanagement/v1/bulk/_update",
  "displayName": "Referral Bulk Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1666,
  "name": "Referral Bulk Delete",
  "url": "/referralmanagement/v1/bulk/_delete",
  "displayName": "Referral Bulk Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1673,
  "name": "Downsync",
  "url": "/referralmanagement/beneficiary-downsync/v1/_get",
  "displayName": "Downsync",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1689,
  "name": "HFReferral Create",
  "url": "/referralmanagement/hf-referral/v1/_create",
  "displayName": "HFReferral Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1690,
  "name": "HFReferral Update",
  "url": "/referralmanagement/hf-referral/v1/_update",
  "displayName": "HFReferral Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1691,
  "name": "HFReferral Delete",
  "url": "/referralmanagement/hf-referral/v1/_delete",
  "displayName": "HFReferral Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1692,
  "name": "HFReferral Search",
  "url": "/referralmanagement/hf-referral/v1/_search",
  "displayName": "HFReferral Search",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1693,
  "name": "HFReferral Bulk Create",
  "url": "/referralmanagement/hf-referral/v1/bulk/_create",
  "displayName": "HFReferral Bulk Create",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1694,
  "name": "HFReferral Bulk Update",
  "url": "/referralmanagement/hf-referral/v1/bulk/_update",
  "displayName": "HFReferral Bulk Update",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
},
{
  "id": 1695,
  "name": "HFReferral Bulk Delete",
  "url": "/referralmanagement/hf-referral/v1/bulk/_delete",
  "displayName": "HFReferral Bulk Delete",
  "orderNumber": 0,
  "parentModule": "",
  "enabled": false,
  "serviceCode": "referralmanagement",
  "code": "null",
  "path": ""
}

```

#### Access to role-based actions

[roleaction.json](https://github.com/egovernments/egov-mdms-data/blob/UNIFIED-DEV/data/mz/ACCESSCONTROL-ROLEACTIONS/roleactions.json)

```
{
  "rolecode": "SUPERUSER",
  "actionid": 1653,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1653,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1654,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1654,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1655,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1655,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1656,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1656,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1657,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1657,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1658,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1658,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1659,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1659,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1660,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1660,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1661,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1661,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1662,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1662,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1663,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1663,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1664,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1664,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1665,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1665,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1666,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1666,
  "actioncode": "",
  "tenantid": "mz"
},
{
  "rolecode": "DISTRIBUTOR",
  "actionid": 1673,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SEUPERUSER",
  "actionid": 1673,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1689,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1689,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1690,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1690,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1691,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1691,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1692,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1692,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1693,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1693,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1694,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1694,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "SUPERUSER",
  "actionid": 1695,
  "actioncode": "",
  "tenantId": "mz"
},
{
  "rolecode": "HEALTH_FACILITY_WORKER",
  "actionid": 1695,
  "actioncode": "",
  "tenantId": "mz"
}
```

## Persister Configs

[Referral Management YAML](https://github.com/egovernments/health-campaign-config/blob/v1.2/egov-persister/referral-management-persister.yml)

## Indexer Configs

[Referral Management YAML](https://github.com/egovernments/health-campaign-config/blob/v1.2/egov-indexer/referral-management-indexer.yml)

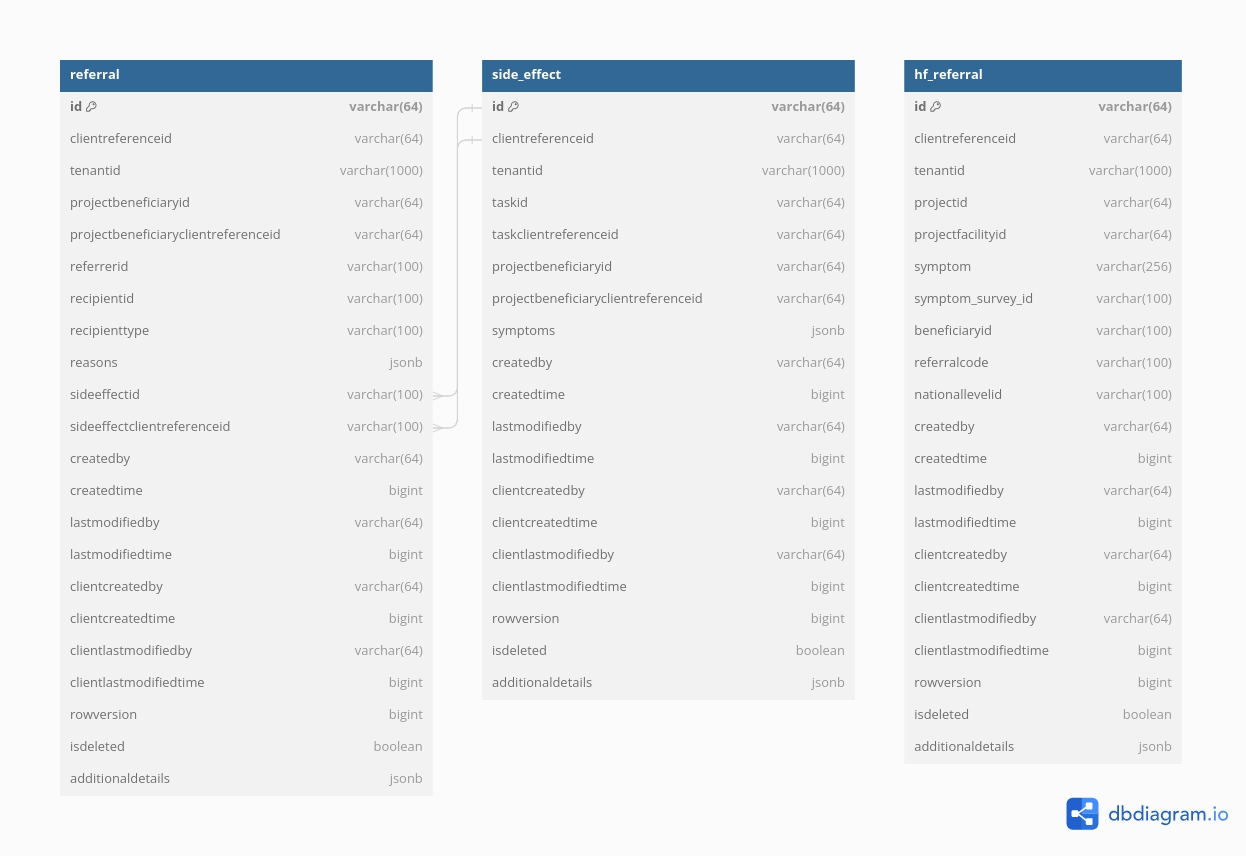

## Database Schema

<figure><img src="https://content.gitbook.com/content/GYQEda2SOh4goA6Ee2d2/blobs/c4UyQ3h1fBBQOjJFi8nC/smc%20referral.png" alt=""><figcaption></figcaption></figure>

## Postman Collections

[Link](https://api.postman.com/collections/28428162-829fd5ae-a3ae-4d62-8da0-f984e9ed8aaa?access_key=PMAT-01HJNFM9ZXR7ZDBPCFF2QDV5T6)


---

# Agent Instructions
This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com.

## Querying This Documentation
If you need additional information that is not directly available in this page, you can query the documentation by asking a question.

Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters:

```
GET https://docs.digit.org/health/v1.5/setup/configuration/service-configuration/referral-management.md?ask=<question>&goal=<user_goal>
```

`ask` is the immediate question: it should be specific, self-contained, and written in natural language.
`goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case.

The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
