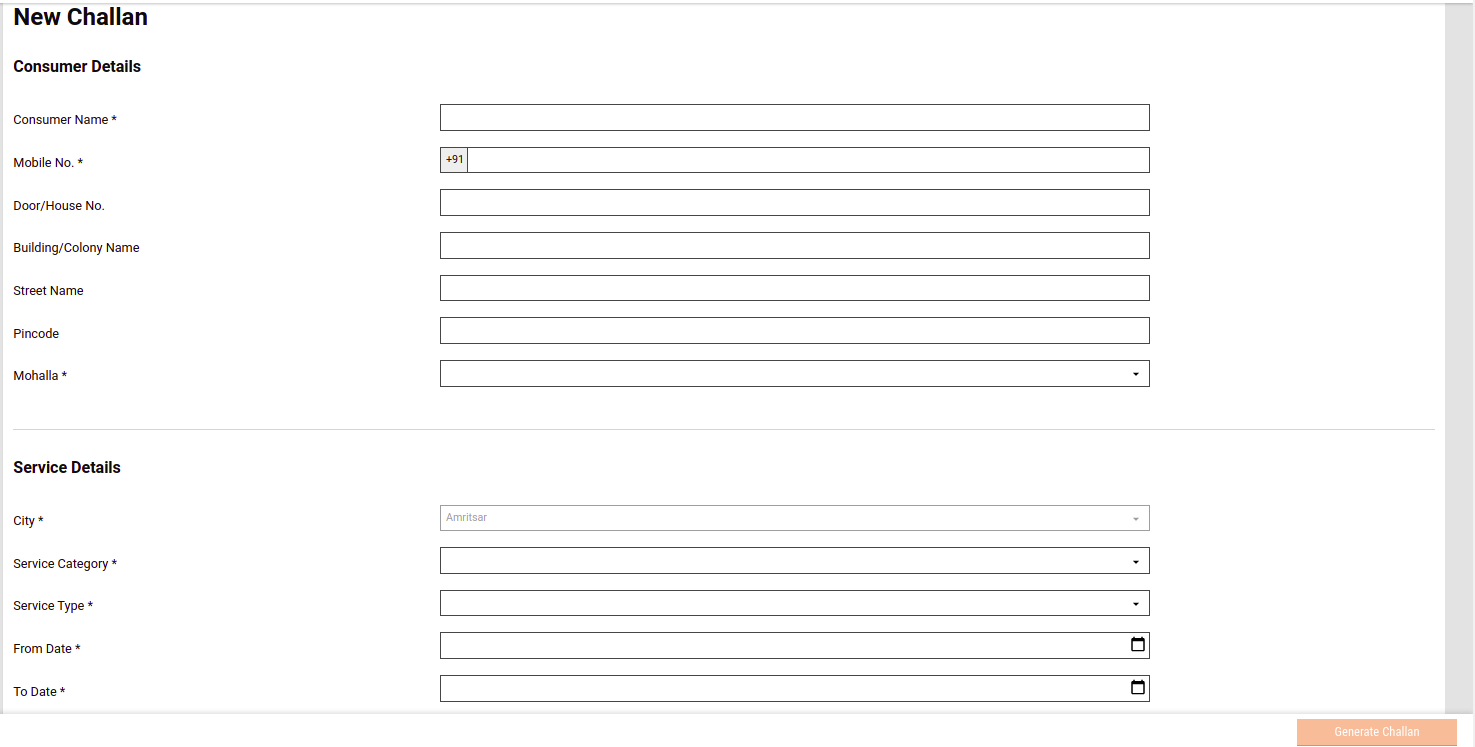

# Challan Creation ## **Overview** Provide employees with the option to create Challan, by selecting the service category, and entering all consumer information and tax head details. ## Workflow Details ### **MCollect - Create Challan**
File Path:[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js) ### **MDMS Details** Created hooks for MDMS in mCollect, by using hooks will get the response by passing on the details in the method. `Digit.MDMSService.getPaymentRules(tenantId, "[?(@.type=='Adhoc')]");` which is present in the below file:[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js) MDMS File path:[ digit-ui-internals/MDMS.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/libraries/src/services/elements/MDMS.js) ## **Technical Implementation Details** ### **Service Type and Service Category Dropdown Formation** Based on the response, Service Type and Service category Dropdowns are Loaded.\ For eg: Refer to the response object ``` { "businessService": "WaterCharges.Metered", "code": "WaterCharges.Metered", "collectionModesNotAllowed": [ "DD" ], "partPaymentAllowed": false, "isAdvanceAllowed": true, "demandUpdateTime": 86400000, "isVoucherCreationEnabled": false, "type": "Adhoc" } ``` Based on that `"businessService": "WaterCharges.Metered"` The service Category will be `"WaterCharges"` The service Type will be `"Metered"` ### **Tax Head Dropdown Formation** Based on the MDMS response `TaxHeadMaster` are formed by the selected service type dropdown. Filter the initial Taxhead master with the selected service type with `service` the attributes in each Taxheads. **Other Validations and Create challan** can be referred in[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js) `createChallan` the method is used to create challan. `/echallan-services/eChallan/v1/_create` API is used to create a challan. Once Challan is created successfully, you will be able to see the Challan Acknowledgement. Actions available: 1. Print Challan 2. Go to home 3. Proceed to Payment ![](/files/-MgiGfgxDIRDvpVHiTzI) File Path:[ digit-ui-internals/EmployeeChallanAcknowledgement.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/EmployeeChallanAcknowledgement.js) **Print Challan:** Click on Print Challan, Challan will be downloaded using `egov-pdf/download/UC/mcollect-challan` API. **Go to home:** Click on Go TO Home routes users to the home screen. **Proceed To Payment:** Clicking on this routes users to the common pay screen and it is common for all modules also refer to [Update / Cancel Challan](/local-governance/access/local-governance-stack/mcollect-mcs/mcollect-service-configuration/echallan-ui-details/update-cancel-challan-ui-flow.md). ## **Localisation Module** `rainmaker-uc` ## **API Used** 1. `egov-mdms-service/v1/_search` 2. `echallan-services/eChallan/v1/_update` 3. `egov-pdf/download/UC/mcollect-challan` 4. `collection-services/payments/ADVT.Gas_Balloon_Advertisement/_search` **we need to pass the businessService** (`collection-services/payments/{businessService}/_search` ). 5. `collection-services/payments/_create` 6. `billing-service/bill/v2/_fetchbill` 7. `pdf-service/v1/_create` ## **Role Action Mapping** | API | Roles | Action ID | | --------------------------------------------------------------------- | ---------- | --------- | | `egov-mdms-service/v1/_search` | | `954` | | `/echallan-services/eChallan/v1/_create` | `UC_EMP` | `2112` | | `egov-pdf/download/UC/mcollect-challan` | `UC_EMP` | `2115` | | `collection-services/payments/ADVT.Gas_Balloon_Advertisement/_search` | `UC_EMP` | `2138` | | `collection-services/payments/_create` | `UC_EMP` | `1862` | | `pdf-service/v1/_create` | `UC_EMP` | `1834` | | `billing-service/bill/v2/_fetchbill` | `EMPLOYEE` | `1862` | ## **Related Links** | Related Title | Documenation | | ------------------------------ | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | MCollect Search | [mCollect - Technical Documentation](/local-governance/access/local-governance-stack/mcollect-mcs/mcollect-service-configuration/echallan-ui-details/mcollect-ui-flow.md) | | MCollect Update/Cancel Challan | [Update / Cancel Challan](/local-governance/access/local-governance-stack/mcollect-mcs/mcollect-service-configuration/echallan-ui-details/update-cancel-challan-ui-flow.md) | --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.digit.org/local-governance/access/local-governance-stack/mcollect-mcs/mcollect-service-configuration/echallan-ui-details/challan-creation.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
