# DIGIT: Internal Datamart Deployment Steps

Steps for setting up the environment and running the script file to get a fresh copy of the required Datamart CSV file.

### Steps for setting up the environment for running the script <a href="#steps-for-setting-up-the-environment-for-running-the-script" id="steps-for-setting-up-the-environment-for-running-the-script"></a>

**(One Time Setup)**

1. **Install Kubectl** Step 1: Go through the Kubernetes documentation page to install and configure the kubectl. Following are useful links: [Kubernetes Installation Doc](https://kubernetes.io/docs/tasks/tools/install-kubectl/) [Kubernetes Ubuntu Installation](https://matthewpalmer.net/kubernetes-app-developer/articles/install-kubernetes-ubuntu-tutorial.html)

After installing type the below command to check the version install in your system`1 kubectl version`

Step 2: Install aws-iam-authenticator\
[![](https://docs.aws.amazon.com/assets/images/favicon.ico)Installing aws-iam-authenticator - Amazon EKS](https://docs.aws.amazon.com/eks/latest/userguide/install-aws-iam-authenticator.html)

Step 3: After installing, you need access to a particular environment cluster.

* Go to $HOME/.Kube folder

`1cd 2cd .kube`

Open the config file and replace the content with the environment cluster config file. (Config file will be attached)`1gedit config`

* Copy-paste the content from the config file provided to this config file opened and save the file.

**2. Exec into the pod**`1kubectl exec --stdin --tty playground-584d866dcc-cr5zf -n playground -- /bin/bash`

(*Replace the pod name depending on what data you want.*

*Refer to Table 1.2 for more information*)

**3. Install Python and check to see if it installed correctly**`1apt install python3.8 2python --version`

**4. Install pip and check to see if it installed correctly**`1apt install python3-pip 2pip3 --version`

**5. Install psycopg2 and Pandas**`1pip3 install psycopg2-binary pandas`

Note: If this doesn’t work then try this command`1pip3 install --upgrade pip`

and running the #5 command again

### **Steps for setting up the environment for running the script** <a href="#steps-for-setting-up-the-environment-for-running-the-script.1" id="steps-for-setting-up-the-environment-for-running-the-script.1"></a>

**(Every time you want a datamart with the latest data available in the pods)**

**1. Sending the python script to the pod**`1tar cf - /home/priyanka/Desktop/mcollect.py | kubectl exec -i -n playground playground-584d866dcc-cr5zf -- tar xf - -C /tmp`

Note: Replace the file path (/home/priyanka/Desktop/mcollect.py) with your own file path (/home/user\_name/Desktop/script\_name.py)

Note: Replace the pod name depending on what data you want.

(Refer to Table 1.2 for more information on pod names)

**2. Exec into the pod**`1kubectl exec --stdin --tty playground-584d866dcc-cr5zf -n playground -- /bin/bash`

(Note: Replace the pod name depending on what data you want.`1kubectl exec --stdin --tty <your_pod_name> -n playground -- /bin/bash`

Refer to Table 1.2 for more information)

**3. Move into tmp directory and then move into the directory your script was in**`1cd tmp 2cd home/priyanka/Desktop`

for example :`1cd home/<your_username>/Desktop`

**4. List the files there**`1ls`

(Python script file should be present here)

(Refer Table 1.1 for the list of script file names for each module)

**5. Run the python script file**`1python3 ws.py`

(name of the python script file will change depending on the module)

(Refer Table 1.1 for the list of script file names for each module)

**6. Outside the pod shell, In your home directory run this command to copy the CSV file/files to your desired location**`1kubectl cp playground/playground-584d866dcc-cr5zf:/tmp/mcollectDatamart.csv /home/priyanka/Desktop/mcollectDatamart.csv`

(The list of CSV file names for each module will be mentioned below)

**7. The reported CSV file is ready to use.**

### Jupyter vs Excel for Data Analysis <a href="#jupyter-vs-excel-for-data-analysis" id="jupyter-vs-excel-for-data-analysis"></a>

|                                                                                                                                                                                                                                                                                                                    |                                                                                                                                                                                                                                      |
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| **Jupyter**                                                                                                                                                                                                                                                                                                        | **Excel**                                                                                                                                                                                                                            |
| <p>Using jupyter will be <strong>command-based</strong>.</p><p>Will take some time getting used to it.</p>                                                                                                                                                                                                         | **Ease of Use** with the Graphical User Interface (**GUI**). Learning formulas is fairly easier.                                                                                                                                     |
| Jupyter requires python language for data analysis hence a **steeper learning curve.**                                                                                                                                                                                                                             | **Negligible** previous knowledge is required.                                                                                                                                                                                       |
| Equipped to handle lots of data really **quickly**. With the bonus of ease of **accessibility to databases** like Postgres and Mysql where actual data is stored.                                                                                                                                                  | <p>Excel can only handle so much data. Scalability becomes difficult and messy.</p><p><strong>More Data = Slower Results</strong></p>                                                                                                |
| <p><strong>Summary:</strong></p><p>Python is harder to learn because you have to download many packages and set the correct development environment on your computer. However, it provides a big leg up when working with big data and creating repeatable, automatable analyses, and in-depth visualizations.</p> | <p><strong>Summary:</strong></p><p>Excel is best when doing small and one-time analyses or creating basic visualizations quickly. It is easy to become an intermediate user relatively without too much experience dueo its GUI.</p> |

#### How to install and configure jupyter to analyze the datamart <a href="#how-to-install-and-configure-jupyter-to-analyze-the-datamart" id="how-to-install-and-configure-jupyter-to-analyze-the-datamart"></a>

Watch this video

[![](https://www.youtube.com/s/desktop/65defdc1/img/favicon_144x144.png)How To Install Jupyter Notebook In Ubuntu Linux](https://www.youtube.com/watch?v=Yg9AkozItTU)

OR

Follow these steps ->

**(One Time Setup)**

1. **Install Python and check to see if it installed correctly**

`1apt install python3.8 2python --version`

1. **Install pip and check to see if it installed correctly**`1apt install python3-pip 2pip3 --version`

**3. Install jupyter**`1pip3 install notebook`

**(Whenever you want to run Jupyter lab)**

1. **To run jupyter lab**

`1jupyter notebook`

**2.** **To open a new notebook**

New -> Python3 notebook

**3. To open an existing notebook**

Select File -> Open

Go to the directory where your sample notebook is.

Select that notebook (Ex: sample.pynb)

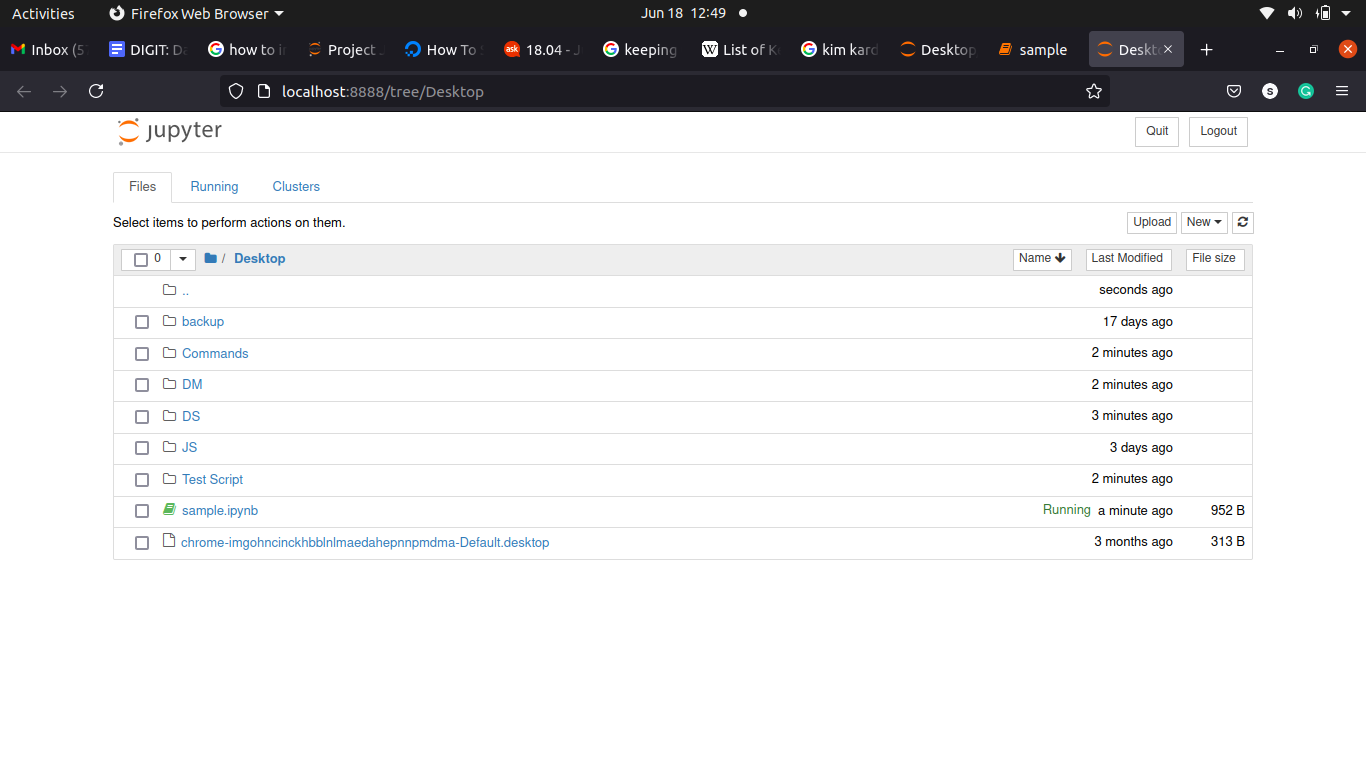

**Opening an existing notebook**

![](/files/-MgiGlCJDEPjWFpzYybq)

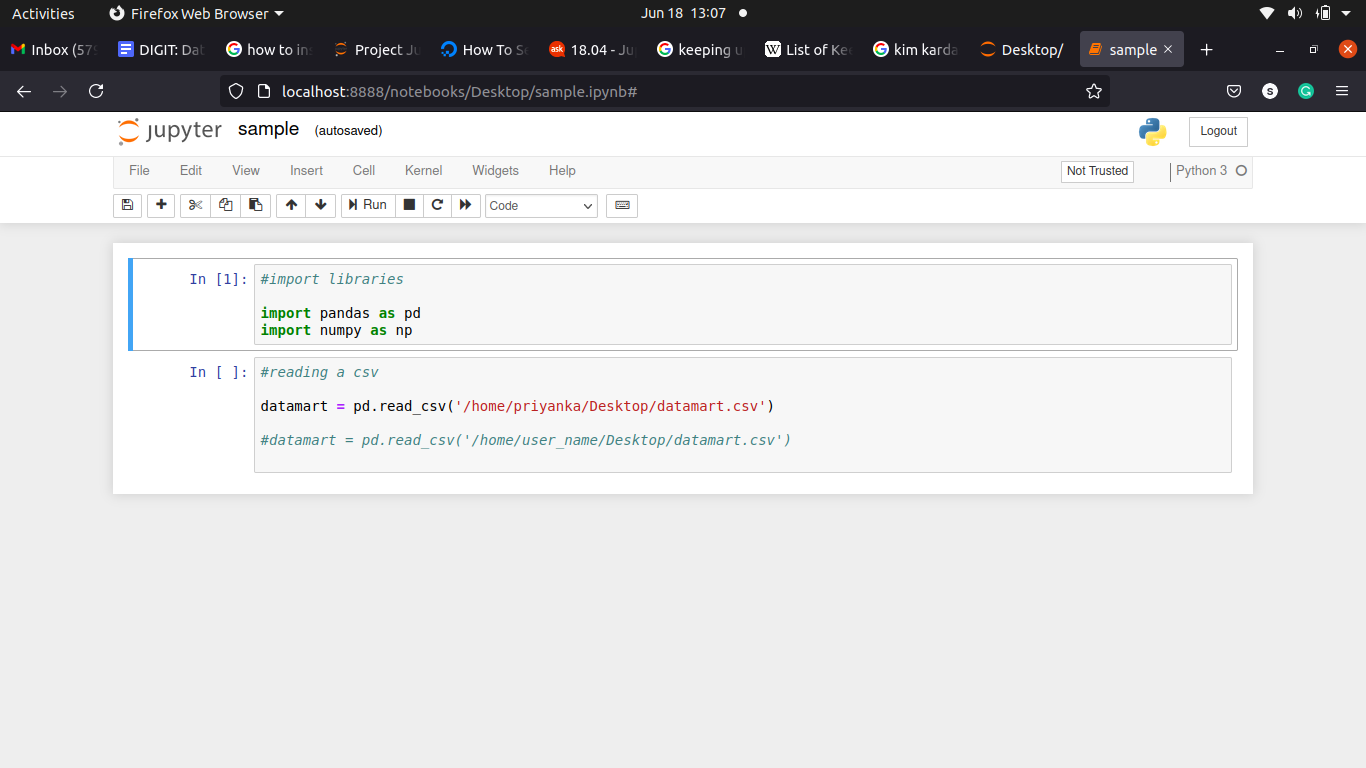

After opening

![](/files/-MgiGlCLA0iccU5p11_8)

### Table 1.1 - File Names for each Module <a href="#table-1.1-file-names-for-each-module" id="table-1.1-file-names-for-each-module"></a>

|                 |                                                                                                       |                            |                            |
| --------------- | ----------------------------------------------------------------------------------------------------- | -------------------------- | -------------------------- |
| **Module Name** | **Script File Name (With Links)**                                                                     | **Datamart CSV File Name** | **Datamart CSV File Name** |
| **PT**          | [pt.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/property-tax/pt.py)         | ptDatamart.csv             |                            |
| **W\&S**        | [ws.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/water-and-sewerage/ws.py)   | waterDatamart.csv          | sewerageDatamart.csv       |
| **PGR**         | [pgr.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/pgr/pgr.py)                | pgrDatamart.csv            |                            |
| **mCollect**    | [mcollect.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/mcollect/mcollect.py) | mcollectDatamart.csv       |                            |
| **TL**          | [tl.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/trade-license/tl.py)        | tlDatamart.csv             | tlrenewDatamart.csv        |
| **Fire Noc**    | [fn.py](https://github.com/egovernments/utilities/blob/Rain-3035/datamart/firenoc/fn.py)              | fnDatamart.csv             |                            |
| **OBPS (Bpa)**  | [bpa.py](https://github.com/egovernments/utilities/tree/Rain-3035/datamart/obps/bpa)                  | bpaDatamart.csv            |                            |

### Table 1.2 - Pod Names for each Module <a href="#table-1.2-pod-names-for-each-module" id="table-1.2-pod-names-for-each-module"></a>

|                 |                             |                                     |
| --------------- | --------------------------- | ----------------------------------- |
| **Module Name** | **Pod Name**                | **Description**                     |
| **PT**          | playground-865db67c64-tfdrk | Punjab Prod Data in UAT Environment |
| **W\&S**        | playground-584d866dcc-cr5zf | QA Data                             |
| **PGR**         | Local Data                  | Data Dump                           |
| **mCollect**    | playground-584d866dcc-cr5zf | QA Data                             |
| **TL**          | playground-584d866dcc-cr5zf | QA Data                             |
| **Fire Noc**    | playground-584d866dcc-cr5zf | QA Data                             |
| **OBPS (Bpa)**  | playground-584d866dcc-cr5zf | QA Data                             |
