There are two dimensions to DSS. The first refers to the process where the data is pooled to ElasticSearch and the second relates to the way the data is fetched, aggregated, computed, transformed and sent across.
The DSS processes are easily configurable and this enables users to configure new analytics insights using a wide range of data sets.
This document defines the configuration steps for fetching analytical insights on the DSS for the Water & Sewerage module.
Each visualization has its own properties. The visualization is derived from different data sources or a combination of data sources.
The Chart API Configuration Document is used to configure each visualization and its properties. The Visualization Code is the key and its properties are easily configurable.
Copy "_comment": "National Dashboard-WS Revenue Tab configs start here-------------------------------",
"nssWsTodaysCollection": {
"chartName": "NSS_WS_TODAYS_COLLECTION",
"queries": [
{
"module": "WS",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"todaysDate\":{\"terms\":{\"field\":\"date\",\"order\":{\"_term\":\"desc\"},\"size\":1},\"aggs\":{\"Todays Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}},\"lastUpdatedTime\":{\"terms\":{\"field\":\"lastModifiedTime\",\"order\":{\"_term\":\"desc\"},\"size\":1}}}}}}",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"state\" : \"state.keyword\", \"ulb\" : \"ulb.keyword\"}",
"dateRefField": ""
}
],
"chartType": "metric",
"valueType": "amount",
"drillChart": "none",
"documentType": "nss",
"action": "",
"TodaysCollection":true,
"aggregationPaths": [
"Todays Collection"
],
"insight": {
},
"_comment": " NSS W&S today's collections"
},
"nssWsTotalCollection": {
"chartName": "NSS_WS_TOTAL_COLLECTION",
"queries": [
{
"module": "WS",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\",\"state\" : \"state.keyword\"}",
"dateRefField": "date",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Total Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "amount",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Total Collection"
],
"insight": {
"chartResponseMap" : "nssWsTotalCollection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "W&S total collections "
},
"nssWsTargetCollection": {
"chartName": "NSS_WS_TARGET_COLLECTION",
"queries": [
{
"module": "WS",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"Target Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\",\"order\":{\"Sum\":\"desc\"}},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
}
],
"chartType": "metric",
"valueType": "amount",
"action": "",
"drillChart": "none",
"documentType": "nss",
"aggregationPaths": [
"Target Collection"
],
"isDayUnit": true,
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"insight": {
"chartResponseMap" : "nssWsTargetCollection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "NSS W&S Target Collection "
},
"nssWsTargetAchieved": {
"chartName": "NSS_WS_TARGET_ACHIEVED",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\",\"state\" : \"state.keyword\"}",
"dateRefField": "date",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Total Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}"
},
{
"module": "WS",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"Target Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\",\"order\":{\"Sum\":\"desc\"}},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
}
],
"chartType": "metric",
"valueType": "percentage",
"drillChart": "none",
"documentType": "nss",
"action": "percentage",
"isRoundOff": true,
"aggregationPaths": [
"Total Collection",
"Target Collection"
],
"preActionTheory":{
"Target Collection":"repsonseToDifferenceOfDates"
},
"insight": {
"chartResponseMap" : "nssWsTargetAchieved",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": " "
},
"nssWsCumulativeCollections": {
"chartName": "NSS_WS_TOTAL_CUMULATIVE_COLLECTION",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Water Collections\":{\"date_histogram\":{\"field\":\"date\",\"interval\":\"intervalvalue\"},\"aggs\":{\"Water\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"WATER.NONMETERED\",\"WATER.METERED\"]}}]}},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"todaysCollectionForConnectionType\"}}}}}},\"Sewerage Collections\":{\"date_histogram\":{\"field\":\"date\",\"interval\":\"intervalvalue\"},\"aggs\":{\"Sewerage\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"SEWERAGE\"]}}]}},\"aggs\":{\"Count\":{\"sum\":{\"field\":\"todaysCollectionForConnectionType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "line",
"valueType": "amount",
"action": "",
"drillChart": "none",
"documentType": "_doc",
"aggregationPaths": [
"Water Collections",
"Sewerage Collections"
],
"isCumulative": true,
"interval": "month",
"insight": {
},
"_comment": " "
},
"nssWsTopPerformingUlbs": {
"chartName": "NSS_WS_TOP_3_PERFORMING_STATES",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"Target Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\"},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
},
{
"module": "WS",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Total Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\"},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"isPostResponseHandler": true,
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "NSS_WS_TOP_3_PERFORMING_STATES",
"order": "desc",
"limit": 3,
"isRoundOff": true,
"aggregationPaths": [
"Total Collection","Target Collection"
],
"preActionTheory":{
"Target Collection":"repsonseToDifferenceOfDates"
},
"insight": {
},
"_comment": " Top Performing Ulbs for target achieved"
},

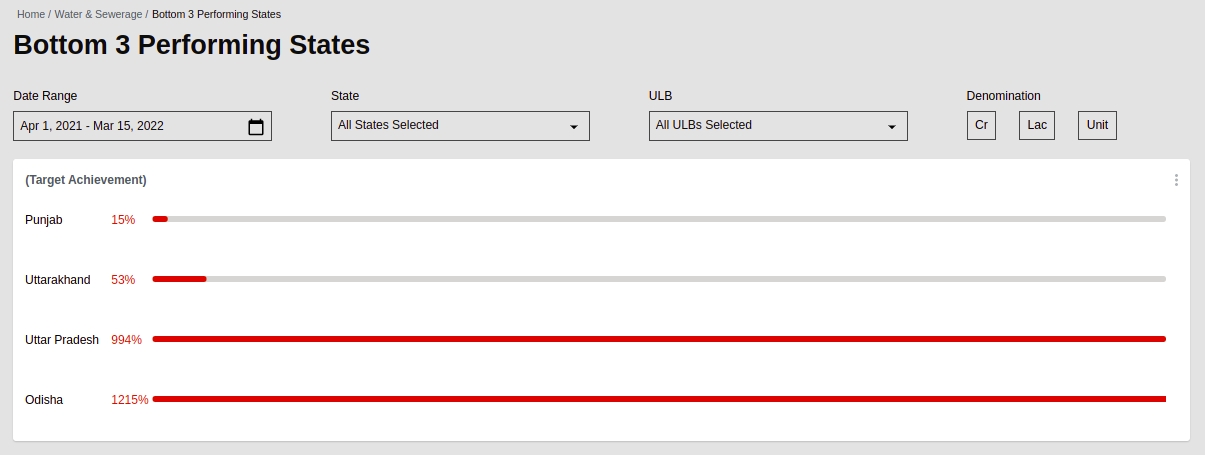

"nssWsBottomPerformingUlbs": {
"chartName": "NSS_WS_BOTTOM_3_PERFORMING_STATES",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"Target Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\"},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
},
{
"module": "WS",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"dateRefField": "date",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Total Collection\":{\"terms\":{\"field\":\"state.keyword\",\"size\":\"200\"},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"isPostResponseHandler": true,
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "NSS_WS_BOTTOM_3_PERFORMING_STATES",
"order": "asc",
"limit": 3,
"isRoundOff": true,
"aggregationPaths": [
"Total Collection", "Target Collection"
],
"preActionTheory":{
"Target Collection":"repsonseToDifferenceOfDates"
},
"insight": {
},
"_comment": " Bottom Performing States for target achieved"
},

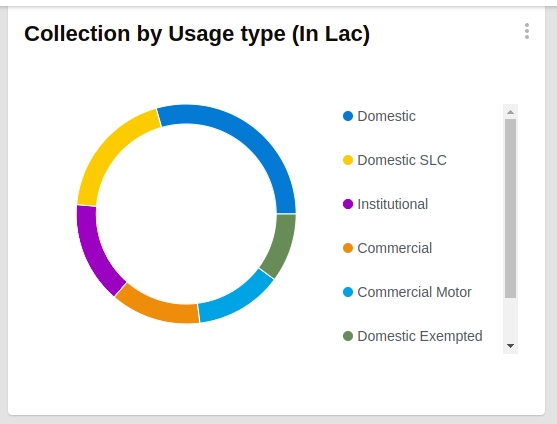

"nssWsCollectionByUsage": {
"chartName": "NSS_WS_COLLECTION_BY_USAGE",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"tenantId\" : \"tenantId.keyword\",\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Collection by Usage Type\":{\"terms\":{\"field\":\"usageType.keyword\",\"size\":200},\"aggs\":{\"Amount Paid\":{\"sum\":{\"field\":\"todaysCollectionForUsageType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "pie",
"valueType": "amount",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"Collection by Usage Type"
],
"insight": {
},
"_comment": " "
},

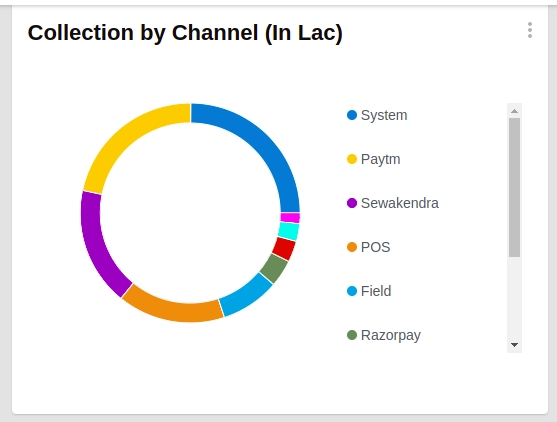

"nssWsCollectionByChannel": {
"chartName": "NSS_WS_COLLECTION_BY_CHANNEL",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"tenantId\" : \"tenantId.keyword\",\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Collection by Channel Type\":{\"terms\":{\"field\":\"paymentChannelType.keyword\",\"size\":200},\"aggs\":{\"Amount Paid\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "pie",
"valueType": "amount",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"Collection by Channel Type"
],
"insight": {
},
"_comment": " "
},

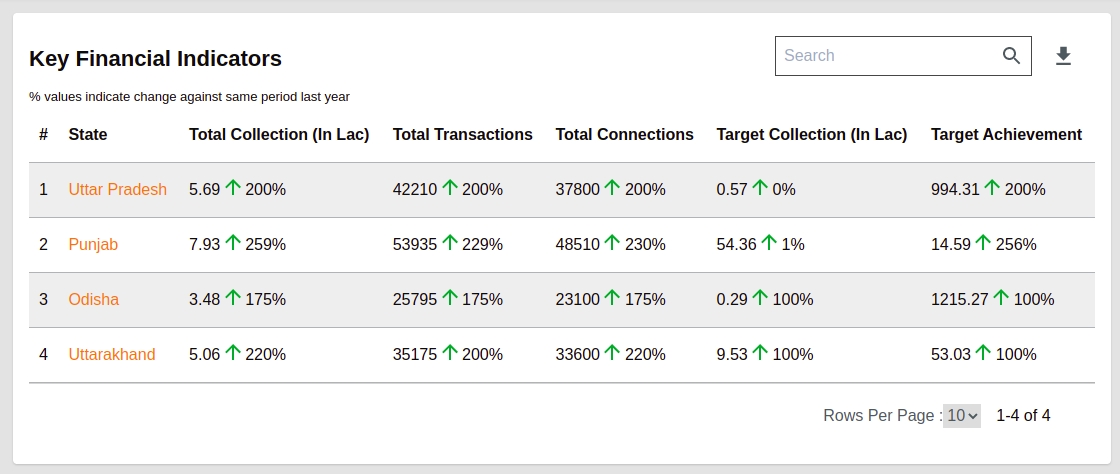

"nssWsFinancialIndicatorState": {
"chartName": "NSS_WS_KEY_FY_INDICATORS",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"module\" : \"module.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"state \":{\"terms\":{\"field\":\"state.keyword\",\"size\":200},\"aggs\":{\"Ws_Target_Collection\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
},
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"state\":{\"terms\":{\"field\":\"state.keyword\"},\"aggs\":{\"intermediateAggrULB\":{\"terms\":{\"field\":\"ulb.keyword\"},\"aggs\":{\"intermediateAggrWard\":{\"terms\":{\"field\":\"ward.keyword\"},\"aggs\":{\"days\":{\"terms\":{\"field\":\"date\"},\"aggs\":{\"Transactions\":{\"avg\":{\"field\":\"transactions\"}}}},\"wardTransactions\":{\"sum_bucket\":{\"buckets_path\":\"days.Transactions\"}}}},\"ulbTransactions\":{\"sum_bucket\":{\"buckets_path\":\"intermediateAggrWard.wardTransactions\"}}}},\"Total_Transactions\":{\"sum_bucket\":{\"buckets_path\":\"intermediateAggrULB.ulbTransactions\"}},\"Total_Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"filterKeys": [
{
"key": "state","column": "State"
}
],
"isPostResponseHandler": false,
"postAggregationTheory": "repsonseToDifferenceOfDates",
"chartType": "xtable",
"valueType": "number",
"drillChart": "nssWsFinancialIndicatorTenant",
"documentType": "_doc",
"action": "",
"plotLabel": "State",
"aggregationPaths": [
"Ws_Target_Collection",
"Total_Connections",
"Total_Transactions",
"Ws_Total_Collection"
],
"computedFields": [
{
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"actionName": "AdditiveComputedField",
"fields" : ["Ws_Target_Collection"],
"newField" : "Target_Collection",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
},
{
"postAggregationTheory" : "",
"actionName": "PercentageComputedField",
"fields" : ["Ws_Total_Collection","Target_Collection"],
"newField" : "Target_Achieved",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"excludedColumns":["Ws_Target_Collection"],
"pathDataTypeMapping": [
{
"Ws_Target_Collection": "amount"
},
{
"Total_Connections": "number"
},
{
"Total_Transactions": "number"
},
{
"Ws_Total_Collection": "amount"
},
{
"Target_Collection": "amount"
},
{
"Target_Achieved": "percentage"
}
],
"insight": {
},
"_comment": " "
},

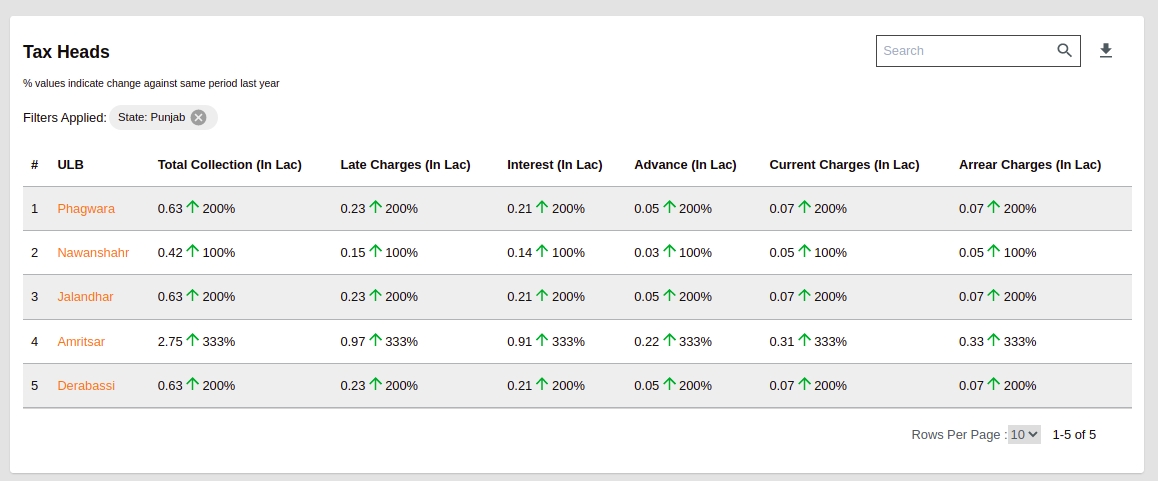

"nssWsFinancialIndicatorTenant": {
"chartName": "NSS_WS_DEMAND_COLLECTION_BOUNDARY",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"module\" : \"module.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"state \":{\"terms\":{\"field\":\"ulb.keyword\",\"size\":200},\"aggs\":{\"Ws_Target_Collection\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
},
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"intermediateAggrULB\":{\"terms\":{\"field\":\"ulb.keyword\"},\"aggs\":{\"intermediateAggrWard\":{\"terms\":{\"field\":\"ward.keyword\"},\"aggs\":{\"days\":{\"terms\":{\"field\":\"date\"},\"aggs\":{\"Transactions\":{\"avg\":{\"field\":\"transactions\"}}}},\"wardTransactions\":{\"sum_bucket\":{\"buckets_path\":\"days.Transactions\"}}}},\"Total_Transactions\":{\"sum_bucket\":{\"buckets_path\":\"intermediateAggrWard.wardTransactions\"}},\"Total_Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"filterKeys": [
{
"key": "ulb","column": "ULB"
}
],
"postAggregationTheory": "repsonseToDifferenceOfDates",
"chartType": "xtable",
"valueType": "number",
"drillChart": "nssWsFinancialIndicatorWard",
"documentType": "_doc",
"action": "",
"plotLabel": "ULB",
"aggregationPaths": [
"Ws_Target_Collection",
"Total_Connections",
"Total_Transactions",
"Ws_Total_Collection"
],
"computedFields": [
{
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"actionName": "AdditiveComputedField",
"fields" : ["Ws_Target_Collection"],
"newField" : "Target_Collection",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
},
{
"postAggregationTheory" : "",
"actionName": "PercentageComputedField",
"fields" : ["Ws_Total_Collection","Target_Collection"],
"newField" : "Target_Achieved",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"excludedColumns":["Ws_Target_Collection"],
"pathDataTypeMapping": [
{
"Ws_Target_Collection": "amount"
},
{
"Total_Connections": "number"
},
{
"Total_Transactions": "number"
},
{
"Ws_Total_Collection": "amount"
},
{
"Target_Collection": "amount"
},
{
"Target_Achieved": "percentage"
}
],
"insight": {},
"_comment": ""
},
"nssWsFinancialIndicatorWard": {
"chartName": "",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"dateRefField": "date",
"indexName": "master-national-dashboard",
"aggrQuery": "{\"aggs\":{\"state \":{\"terms\":{\"field\":\"ward.keyword\",\"size\":200},\"aggs\":{\"Ws_Target_Collection\":{\"filter\":{\"term\":{\"module.keyword\":\"WS\"}},\"aggs\":{\"sum\":{\"sum\":{\"field\":\"budgetProposedForMunicipalCorporation\"}}}}}}}}"
},
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"intermediateAggrWard\":{\"terms\":{\"field\":\"ward.keyword\"},\"aggs\":{\"days\":{\"terms\":{\"field\":\"date\"},\"aggs\":{\"Transactions\":{\"avg\":{\"field\":\"transactions\"}}}},\"Total_Transactions\":{\"sum_bucket\":{\"buckets_path\":\"days.Transactions\"}},\"Total_Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForPaymentChannelType\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"filterKeys": [
],
"postAggregationTheory": "repsonseToDifferenceOfDates",
"chartType": "xtable",
"valueType": "number",
"drillChart": "",
"documentType": "_doc",
"action": "",
"plotLabel": "Ward",
"aggregationPaths": [
"Ws_Target_Collection",
"Total_Connections",
"Total_Transactions",
"Ws_Total_Collection"
],
"computedFields": [
{
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"actionName": "AdditiveComputedField",
"fields" : ["Ws_Target_Collection"],
"newField" : "Target_Collection",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
},
{
"postAggregationTheory" : "",
"actionName": "PercentageComputedField",
"fields" : ["Ws_Total_Collection","Target_Collection"],
"newField" : "Target_Achieved",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"excludedColumns":["Ws_Target_Collection"],
"pathDataTypeMapping": [
{
"Ws_Target_Collection": "amount"
},
{
"Total_Connections": "number"
},
{
"Total_Transactions": "number"
},
{
"Ws_Total_Collection": "amount"
},
{
"Target_Collection": "amount"
},
{
"Target_Achieved": "percentage"
}
],
"insight": {
},
"_comment": ""
},
"nssWsTaxHeadState": {
"chartName": "NSS_WS_TAX_HEAD_BOUNDARY",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"State \":{\"terms\":{\"field\":\"state.keyword\",\"size\":200},\"aggs\":{\"Interest\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"INTEREST\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Late_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"LATE.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Arrear_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ARREAR.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Advance\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ADVANCE\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Current_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"CURRENT.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"filterKeys": [
{"key": "state", "column": "State"}
],
"chartType": "table",
"valueType": "amount",
"drillChart": "nssWsTaxHeadTenant",
"action": "",
"plotLabel": "State",
"postAggregationTheory" : "",
"aggregationPaths": [
"Ws_Total_Collection",
"Late_Charges",
"Interest",
"Advance",
"Current_Charges",
"Arrear_Charges"
],
"pathDataTypeMapping": [
{
"Ws_Total_Collection": "amount"
},
{
"Late_Charges": "amount"
},
{
"Interest": "amount"
},
{
"Advance": "amount"
},
{
"Current_Charges": "amount"
},
{
"Arrear_Charges": "amount"
}
],
"insight": {
},
"_comment": ""
},
"nssWsTaxHeadTenant": {
"chartName": "NSS_WS_TAX_HEAD_BOUNDARY",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"ULB \":{\"terms\":{\"field\":\"ulb.keyword\",\"size\":200},\"aggs\":{\"Interest\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"INTEREST\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Late_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"LATE.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Arrear_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ARREAR.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Advance\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ADVANCE\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Current_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"CURRENT.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}}}}}}"
}
],
"translateTenantCode": false,
"isMdmsEnabled": false,
"filterKeys": [
{"key": "ulb", "column": "ULB"}
],
"chartType": "table",
"valueType": "amount",
"drillChart": "nssWsTaxHeadWard",
"action": "",
"plotLabel": "ULB",
"postAggregationTheory" : "",
"aggregationPaths": [
"Ws_Total_Collection",
"Late_Charges",
"Interest",
"Advance",
"Current_Charges",
"Arrear_Charges"
],
"pathDataTypeMapping": [
{
"Ws_Total_Collection": "amount"
},
{
"Late_Charges": "amount"
},
{
"Interest": "amount"
},
{
"Advance": "amount"
},
{
"Current_Charges": "amount"
},
{
"Arrear_Charges": "amount"
}
],
"insight": {
},
"_comment": ""
},
"nssWsTaxHeadWard": {
"chartName": "",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Ward \":{\"terms\":{\"field\":\"ward.keyword\",\"size\":200},\"aggs\":{\"Interest\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"INTEREST\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Late_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"LATE.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Arrear_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ARREAR.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Advance\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"ADVANCE\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Current_Charges\":{\"filter\":{\"terms\":{\"taxHeads.keyword\":[\"CURRENT.CHARGES\"]}},\"aggs\":{\"amount\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}},\"Ws_Total_Collection\":{\"sum\":{\"field\":\"todaysCollectionForTaxHeads\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"translateTenantCode": false,
"filterKeys": [
],
"chartType": "table",
"valueType": "amount",
"drillChart": "none",
"action": "",
"plotLabel": "Ward",
"postAggregationTheory" : "",
"aggregationPaths": [
"Ws_Total_Collection",
"Late_Charges",
"Interest",
"Advance",
"Current_Charges",
"Arrear_Charges"
],
"pathDataTypeMapping": [
{
"Ws_Total_Collection": "amount"
},
{
"Late_Charges": "amount"
},
{
"Interest": "amount"
},
{
"Advance": "amount"
},
{
"Current_Charges": "amount"
},
{
"Arrear_Charges": "amount"
}
],
"insight": {
},
"_comment": ""
},
"_comment": "National Dashboard-WS- Service Tab- all cards configs start here",
"nssWsTotalApplications": {
"chartName": "NSS_WS_TOTAL_APPLICATIONS",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"state\":{\"terms\":{\"field\":\"state.keyword\"},\"aggs\":{\"intermediateAggrULB\":{\"terms\":{\"field\":\"ulb.keyword\"},\"aggs\":{\"intermediateAggrWard\":{\"terms\":{\"field\":\"ward.keyword\"},\"aggs\":{\"days\":{\"terms\":{\"field\":\"date\"},\"aggs\":{\"applications\":{\"avg\":{\"field\":\"todaysTotalApplications\"}}}},\"wardapplications\":{\"sum_bucket\":{\"buckets_path\":\"days.applications\"}}}},\"ulbApplications\":{\"sum_bucket\":{\"buckets_path\":\"intermediateAggrWard.wardapplications\"}}}},\"stateApplications\":{\"sum_bucket\":{\"buckets_path\":\"intermediateAggrULB.ulbApplications\"}}}},\"Total Applications\":{\"sum_bucket\":{\"buckets_path\":\"state.stateApplications\"}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Total Applications"
],
"insight": {
"chartResponseMap" : "nssWsTotalApplications",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": " "
},
"nssWsTotalConnection": {
"chartName": "NSS_WS_ACTIVE_CONNECTIONS",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Connections\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Count\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Connections"
],
"insight": {
"chartResponseMap" : "nssWsTotalConnection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": " "
},
"nssWsSLACompliance": {
"chartName": "NSS_WS_SLA_COMPLIANCE",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"ulb.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"state\":{\"terms\":{\"field\":\"state.keyword\"},\"aggs\":{\"intermediateAggrULB\":{\"terms\":{\"field\":\"ulb.keyword\"},\"aggs\":{\"intermediateAggrWard\":{\"terms\":{\"field\":\"ward.keyword\"},\"aggs\":{\"todaysDate\":{\"terms\":{\"field\":\"date\",\"order\":{\"_term\":\"desc\"},\"size\":1},\"aggs\":{\"SLACompliance\":{\"avg\":{\"field\":\"slaCompliance\"}}}},\"wardSLACompliance\":{\"avg_bucket\":{\"buckets_path\":\"todaysDate.SLACompliance\"}}}},\"ulbSLACompliance\":{\"avg_bucket\":{\"buckets_path\":\"intermediateAggrWard.wardSLACompliance\"}}}},\"stateSLACompliance\":{\"avg_bucket\":{\"buckets_path\":\"intermediateAggrULB.ulbSLACompliance\"}}}},\"SLA Compliance\":{\"avg_bucket\":{\"buckets_path\":\"state.stateSLACompliance\"}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "percentage",
"action": "",
"drillChart": "none",
"isRoundOff": true,
"aggregationPaths": [
"SLA Compliance"
],
"insight": {
"chartResponseMap" : "nssWsSLACompliance",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "WS SLA Compliance"
},
"nssWsActiveMeteredWaterConnection": {
"chartName": "NSS_WS_ACTIVE_METERED_WATER_CONNECTIONS",
"queries": [
{
"module": "WS",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"WATER.METERED\"]}}]}},\"aggs\":{\"Active Metered Water Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}}",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\",\"state\" : \"state.keyword\",\"ward\" : \"ward.keyword\"}",
"dateRefField": "date"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Active Metered Water Connections"
],
"insight": {
"chartResponseMap" : "nssWsActiveMeteredWaterConnection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "active metered water connections"
},
"nssWsActiveNonMeteredWaterConnection": {
"chartName": "NSS_WS_ACTIVE_NON_METERED_WATER_CONNECTIONS",
"queries": [
{
"module": "WS",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"WATER.NONMETERED\"]}}]}},\"aggs\":{\"Active Non-Metered Water Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}}",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\",\"state\" : \"state.keyword\",\"ward\" : \"ward.keyword\"}",
"dateRefField": "date"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Active Non-Metered Water Connections"
],
"insight": {
"chartResponseMap" : "nssWsActiveNonMeteredWaterConnection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "active non-metered water connections"
},
"nssWsActiveSewerageConnection": {
"chartName": "NSS_WS_ACTIVE_SEWERAGE_CONNECTIONS",
"queries": [
{
"module": "WS",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"SEWERAGE\"]}}]}},\"aggs\":{\"Active Sewerage Connections\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}}",
"requestQueryMap": "{\"module\" : \"module.keyword\", \"ulb\" : \"ulb.keyword\",\"state\" : \"state.keyword\"}",
"dateRefField": "date"
}
],
"translateTenantCode": false,
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Active Sewerage Connections"
],
"insight": {
"chartResponseMap" : "nssWsActiveSewerageConnection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "active sewerage connections "
},
"nssWsCumulativeConnections": {
"chartName": "NSS_WS_CUMULATIVE_CONNECTION",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Water Connections\":{\"date_histogram\":{\"field\":\"date\",\"interval\":\"intervalvalue\"},\"aggs\":{\"Water\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"WATER.NONMETERED\",\"WATER.METERED\"]}}]}},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}},\"Sewerage Connections\":{\"date_histogram\":{\"field\":\"date\",\"interval\":\"intervalvalue\"},\"aggs\":{\"Sewerage\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"connectionType.keyword\":[\"SEWERAGE\"]}}]}},\"aggs\":{\"Count\":{\"sum\":{\"field\":\"connectionsCreatedForConnectionType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "line",
"valueType": "number",
"action": "",
"drillChart": "none",
"documentType": "_doc",
"aggregationPaths": [
"Water Connections",
"Sewerage Connections"
],
"isCumulative": true,
"interval": "month",
"insight": {
},
"_comment": " "
},
"nssWsWaterConnectionByUsageType": {
"chartName": "NSS_WS_WATER_CONNECTION_BY_USAGE",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"tenantId\" : \"tenantId.keyword\",\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Connection by Usage Type\":{\"terms\":{\"field\":\"usageType.keyword\",\"size\":200},\"aggs\":{\"Water Connections\":{\"sum\":{\"field\":\"waterConnectionsForUsageType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "pie",
"valueType": "number",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"Connection by Usage Type"
],
"insight": {
},
"_comment": " "
},
"nssWsSewerageConnectionByUsageType": {
"chartName": "NSS_WS_SEWERAGE_CONNECTION_BY_USAGE",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"tenantId\" : \"tenantId.keyword\",\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Connection by Usage Type\":{\"terms\":{\"field\":\"usageType.keyword\",\"size\":200},\"aggs\":{\"Sewerage Connections\":{\"sum\":{\"field\":\"sewerageConnectionsForUsageType\"}}}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "pie",
"valueType": "number",
"action": "",
"documentType": "nss",
"drillChart": "none",
"aggregationPaths": [
"Connection by Usage Type"
],
"insight": {
},
"_comment": " "
},
"nssWsConnectionByChannelType": {
"chartName": "NSS_WS_CONNECTION_BY_CHANNEL",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"Connection by Channel Type\":{\"terms\":{\"field\":\"channelType.keyword\",\"size\":200},\"aggs\":{\"Total Connections\":{\"sum\":{\"field\":\"connectionsCreatedForChannelType\"}}}}}}"
}
],
"translateTenantCode": false,
"chartType": "pie",
"valueType": "number",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"Connection by Channel Type"
],
"insight": {
},
"_comment": " "
},
"nssWsConnectionAgeingState": {
"chartName": "NSS_WS_CONNECTION_AGEING",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"State \":{\"terms\":{\"field\":\"state.keyword\",\"size\":200},\"aggs\":{\"Pending_from_0_to_3_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"0to3Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_3_to_7_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"3to7Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_7_to_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"7to15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_more_than_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"MoreThan15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Total Connection\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"filterKeys": [
{"key": "state", "column": "State"}
],
"chartType": "xtable",
"valueType": "number",
"drillChart": "nssWsConnectionAgeingULB",
"action": "",
"plotLabel": "State",
"postAggregationTheory" : "",
"isPostResponseHandler": true,
"aggregationPaths": [
"Pending_from_0_to_3_days",
"Pending_from_3_to_7_days",
"Pending_from_7_to_15_days",
"Pending_from_more_than_15_days"
],
"computedFields": [
{
"postAggregationTheory" : "",
"actionName": "AdditiveComputedField",
"fields" : ["Pending_from_0_to_3_days","Pending_from_3_to_7_days","Pending_from_7_to_15_days","Pending_from_more_than_15_days"],
"newField" : "Total_Pending",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"insight": {
},
"_comment": ""
},
"nssWsConnectionAgeingULB": {
"chartName": "NSS_WS_CONNECTION_AGEING",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"ULB \":{\"terms\":{\"field\":\"ulb.keyword\",\"size\":200},\"aggs\":{\"Pending_from_0_to_3_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"0to3Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_3_to_7_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"3to7Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_7_to_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"7to15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_more_than_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"MoreThan15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Total Connection\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"filterKeys": [
{"key": "ulb", "column": "ULB"}
],
"chartType": "xtable",
"valueType": "number",
"drillChart": "nssWsConnectionAgeingWard",
"action": "",
"plotLabel": "ULB",
"postAggregationTheory" : "",
"isPostResponseHandler": true,
"aggregationPaths": [
"Pending_from_0_to_3_days",
"Pending_from_3_to_7_days",
"Pending_from_7_to_15_days",
"Pending_from_more_than_15_days"
],
"computedFields": [
{
"postAggregationTheory" : "",
"actionName": "AdditiveComputedField",
"fields" : ["Pending_from_0_to_3_days","Pending_from_3_to_7_days","Pending_from_7_to_15_days","Pending_from_more_than_15_days"],
"newField" : "Total_Pending",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"insight": {
},
"_comment": ""
},
"nssWsConnectionAgeingWard": {
"chartName": "",
"queries": [
{
"module": "WS",
"dateRefField": "date",
"requestQueryMap": "{\"state\" : \"state.keyword\",\"ulb\" : \"ulb.keyword\",\"ward\" : \"ward.keyword\"}",
"indexName": "ws-national-dashboard",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{}},\"aggs\":{\"Ward \":{\"terms\":{\"field\":\"ward.keyword\",\"size\":200},\"aggs\":{\"Pending_from_0_to_3_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"0to3Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_3_to_7_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"3to7Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_7_to_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"7to15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Pending_from_more_than_15_days\":{\"filter\":{\"terms\":{\"duration.keyword\":[\"MoreThan15Days\"]}},\"aggs\":{\"Total\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}},\"Total Connection\":{\"sum\":{\"field\":\"pendingConnectionsForDuration\"}}}}}}}}"
}
],
"isMdmsEnabled": false,
"filterKeys": [
],
"chartType": "xtable",
"valueType": "number",
"drillChart": "none",
"action": "",
"plotLabel": "Ward",
"isPostResponseHandler": true,
"postAggregationTheory" : "",
"aggregationPaths": [
"Pending_from_0_to_3_days",
"Pending_from_3_to_7_days",
"Pending_from_7_to_15_days",
"Pending_from_more_than_15_days"
],
"computedFields": [
{
"postAggregationTheory" : "",
"actionName": "AdditiveComputedField",
"fields" : ["Pending_from_0_to_3_days","Pending_from_3_to_7_days","Pending_from_7_to_15_days","Pending_from_more_than_15_days"],
"newField" : "Total_Pending",
"_comments": "fields are field names picked from its aggregation query to use post aggregation newField value with given new field name "
}
],
"insight": {
},
"_comment": ""
} Master Dashboard Configuration is the main configuration that defines the key insights and visualizations to be painted on the screen.
It includes all the visualizations, the groups, the charts embedded within them and even the dimensions in terms of height and width.
Copy {
"name": "NSS_WS_DASHBOARD",
"id": "national-ws",
"isActive": "",
"style": "linear",
"visualizations": [
{
"row": 1,
"name": "NSS_REVENUE",
"vizArray": [
{
"id": 211,
"name": "NSS_NATIONAL_WS_OVERVIEW",
"dimensions": {
"height": 350,
"width": 5
},
"vizType": "metric-collection",
"noUnit": true,
"isCollapsible": false,
"label": "NSS_OVERVIEW",
"charts": [
{
"id": "nssWsTodaysCollection",
"name": "NSS_WS_TODAYS_COLLECTION",
"code": "",
"chartType": "metric",
"filter": {"title": "TODAY"},
"headers": []
},
{
"id": "nssWsTotalCollection",
"name": "NSS_WS_TOTAL_COLLECTION",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsTargetCollection",
"name": "NSS_WS_TARGET_COLLECTION",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsTargetAchieved",
"name": "NSS_WS_TARGET_ACHIEVED",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
}
]
},
{
"id": "212",
"name": "NSS_WS_TOTAL_CUMULATIVE_COLLECTION",
"dimensions": {
"height": 350,
"width": 7
},
"vizType": "chart",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nssWsCumulativeCollections",
"name": "Monthly",
"code": "",
"chartType": "line",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 2,
"name": "NSS_REVENUE",
"vizArray": [
{
"id": 221,
"name": "NSS_WS_TOP_3_PERFORMING_STATES",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "performing-metric",
"noUnit": false,
"isCollapsible": false,
"label": "",
"charts": [
{
"id": "nssWsTopPerformingUlbs",
"name": "NSS_WS_TOP_3_PERFORMING_STATES",
"code": "",
"chartType": "bar",
"filter": "",
"headers": []
}
]
},
{
"id": 222,
"name": "NSS_WS_BOTTOM_3_PERFORMING_STATES",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "performing-metric",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nssWsBottomPerformingUlbs",
"name": "NSS_WS_BOTTOM_3_PERFORMING_STATES",
"code": "",
"chartType": "bar",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 3,
"name": "NSS_REVENUE",
"vizArray": [
{
"id": 223,
"name": "NSS_WS_COLLECTION_BY_USAGE",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "chart",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nssWsCollectionByUsage",
"name": "NSS_WS_COLLECTION_BY_USAGE",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
},
{
"id": 224,
"name": "NSS_WS_COLLECTION_BY_CHANNEL",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "chart",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nssWsCollectionByChannel",
"name": "NSS_WS_COLLECTION_BY_CHANNEL",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 4,
"name": "NSS_REVENUE",
"vizArray": [
{
"id": 231,
"name": "NSS_WS_KEY_FY_INDICATORS",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nssWsFinancialIndicatorState",
"name": "NSS_WS_DEMAND_COLLECTION_BOUNDARY",
"code": "",
"chartType": "table",
"filter": "",
"headers": [],
"tabName": "Boundary"
}
]
}
]
},
{
"row": 5,
"name": "NSS_REVENUE",
"vizArray": [
{
"id": 231,
"name": "NSS_WS_TAX_HEAD_BOUNDARY",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsTaxHeadState",
"name": "NSS_WS_TAX_HEAD_BOUNDARY",
"code": "",
"chartType": "table",
"filter": "",
"headers": [],
"tabName": "Boundary"
}
]
}
]
},
{
"row": 7,
"name": "NSS_SERVICE",
"vizArray": [
{
"id": 231,
"name": "NSS_NATIONAL_WS_OVERVIEW",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "metric-collection",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsTotalApplications",
"name": "NSS_WS_TOTAL_APPLICATIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsSLACompliance",
"name": "NSS_WS_SLA_COMPLIANCE",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsTotalConnection",
"name": "NSS_WS_ACTIVE_CONNECTIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsActiveMeteredWaterConnection",
"name": "NSS_WS_ACTIVE_METERED_WATER_CONNECTIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsActiveNonMeteredWaterConnection",
"name": "NSS_WS_ACTIVE_NON_METERED_WATER_CONNECTIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nssWsActiveSewerageConnection",
"name": "NSS_WS_ACTIVE_SEWERAGE_CONNECTIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
}
]
},
{
"id": 232,
"name": "NSS_WS_CUMULATIVE_CONNECTION",
"dimensions": {
"height": 350,
"width": 7
},
"vizType": "chart",
"isCollapsible": false,
"charts": [
{
"id": "nssWsCumulativeConnections",
"name": "Monthly",
"code": "",
"chartType": "line",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 8,
"name": "NSS_SERVICE",
"vizArray": [
{
"id": 231,
"name": "NSS_WS_WATER_CONNECTION_BY_USAGE",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsWaterConnectionByUsageType",
"name": "",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
},
{
"id": 232,
"name": "NSS_WS_SEWERAGE_CONNECTION_BY_USAGE",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsSewerageConnectionByUsageType",
"name": "",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
},
{
"id": 233,
"name": "NSS_WS_CONNECTION_BY_CHANNEL",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsConnectionByChannelType",
"name": "NSS_WS_CONNECTION_BY_CHANNEL",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 9,
"name": "NSS_SERVICE",
"vizArray": [
{
"id": 231,
"name": "NSS_WS_CONNECTION_AGEING",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": true,
"charts": [
{
"id": "nssWsConnectionAgeingState",
"name": "NSS_WS_CONNECTION_AGEING",
"code": "",
"chartType": "table",
"filter": "",
"headers": [],
"tabName": "Boundary"
}
]
}
]
}
]
} The master dashboard configuration explained earlier contains the list of available dashboards. Map the roles to specific dashboard views based on the user role requirements. The configuration allows each role to be mapped to authorized dashboard views.

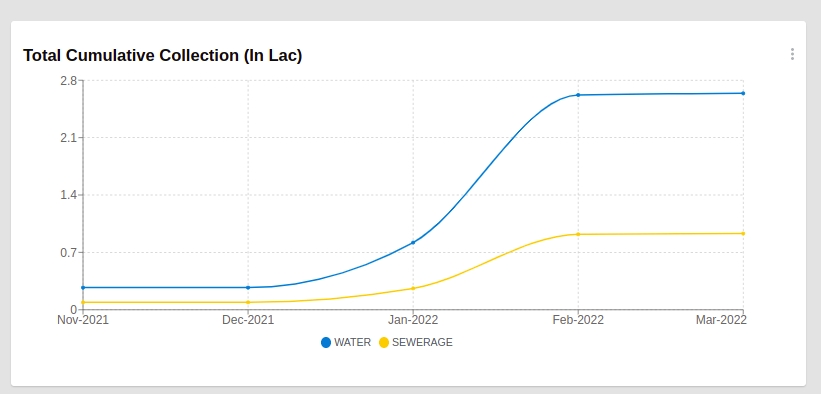

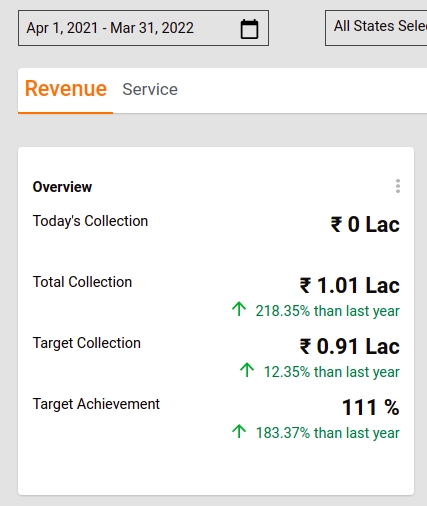

This graph illustrates the Water and Sewerage collection amount information on a monthly basis. The insights are represented in distinct cumulative line graphs for water and sewerage collections. The graph changes as per the denomination amount filter selection.

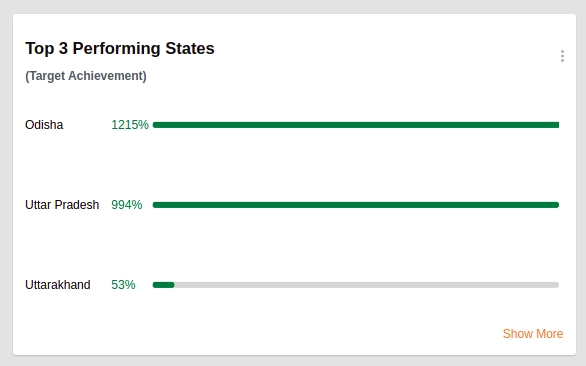

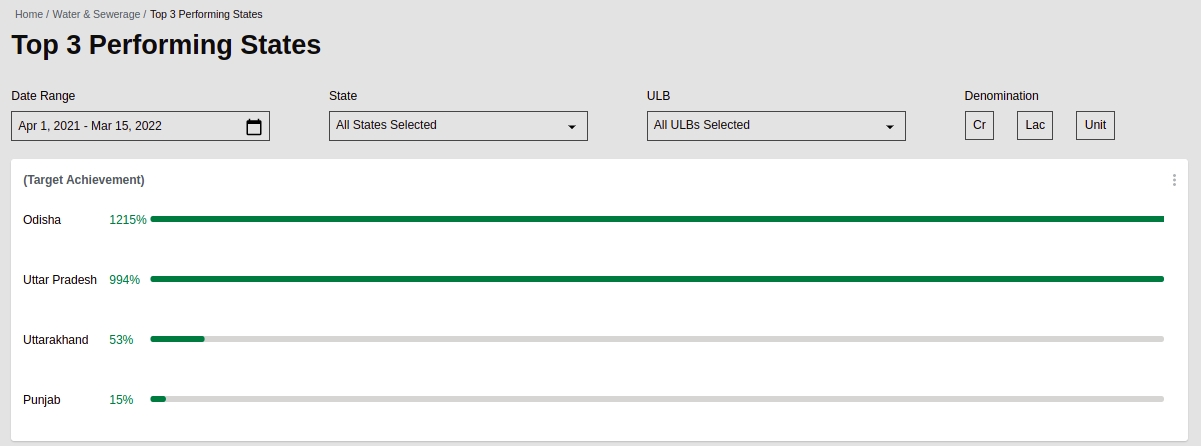

This graph represents the States performance based on the % of target achieved in the form of bar charts in descending order.
On the click of the Show More button the system displays the information of all the states as seen in the screenshot below:

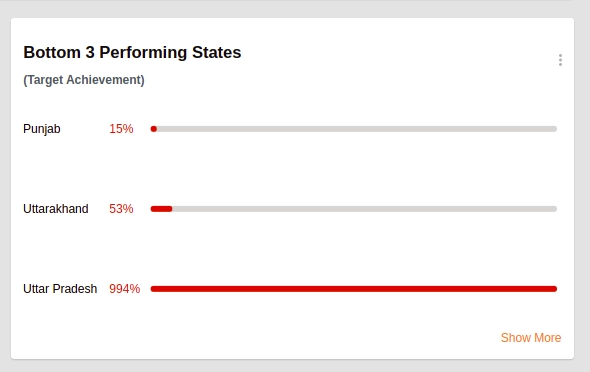

This graph represents the States performance based on the % of target achieved in the form of bar charts in ascending order.
On the click of the Show More button, the system displays the information of all the states as seen in the screenshot below:

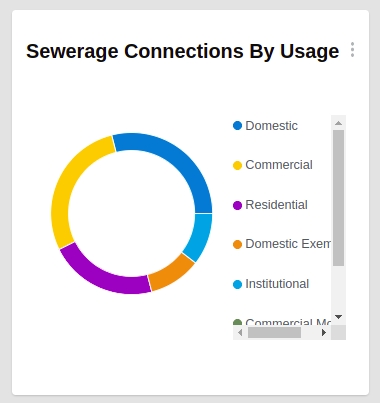

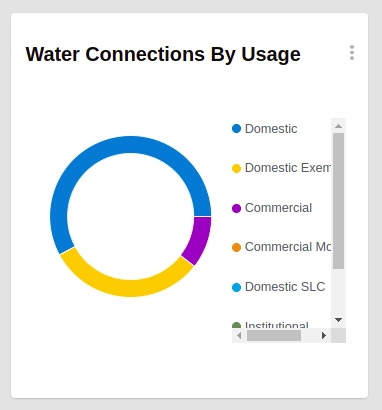

This graph shows the collection amount based on the usage/property type and this amount changes as per the selected denomination filter.

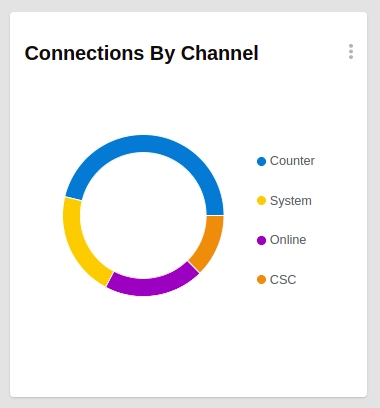

This graph shows the collection amount based on the collection channel type (eg-online, counter, etc) and this amount changes as per the selected denomination filter.

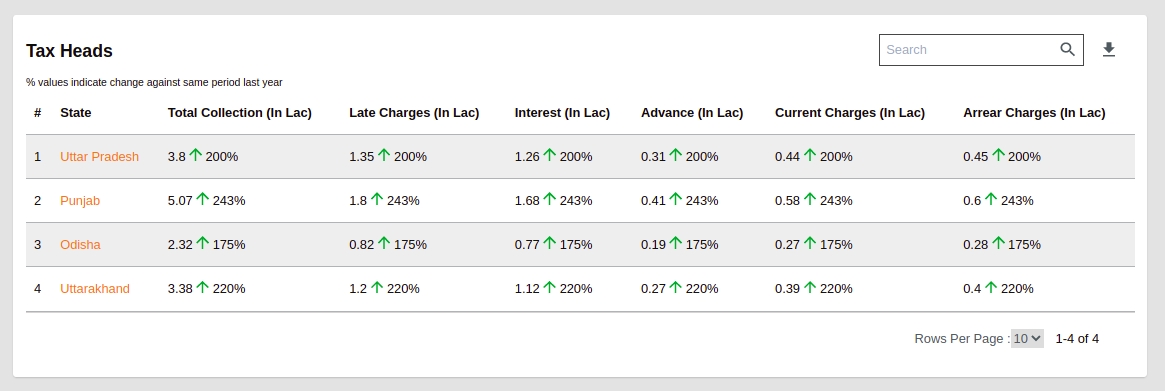

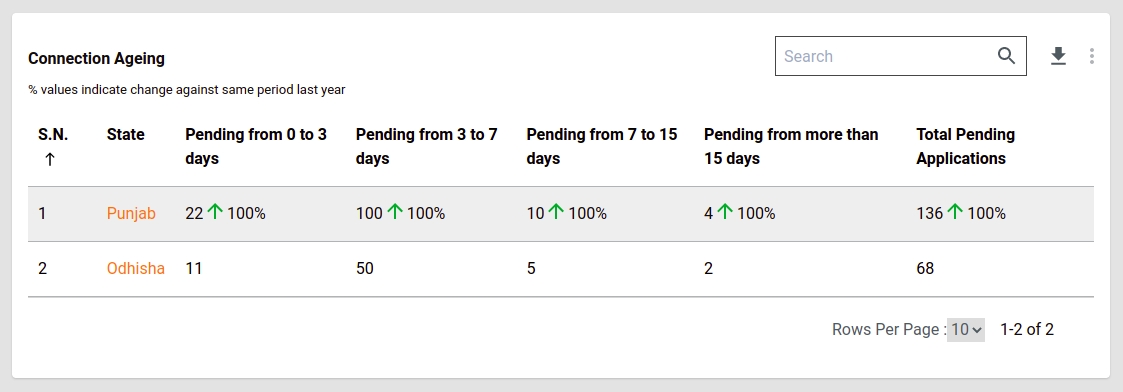

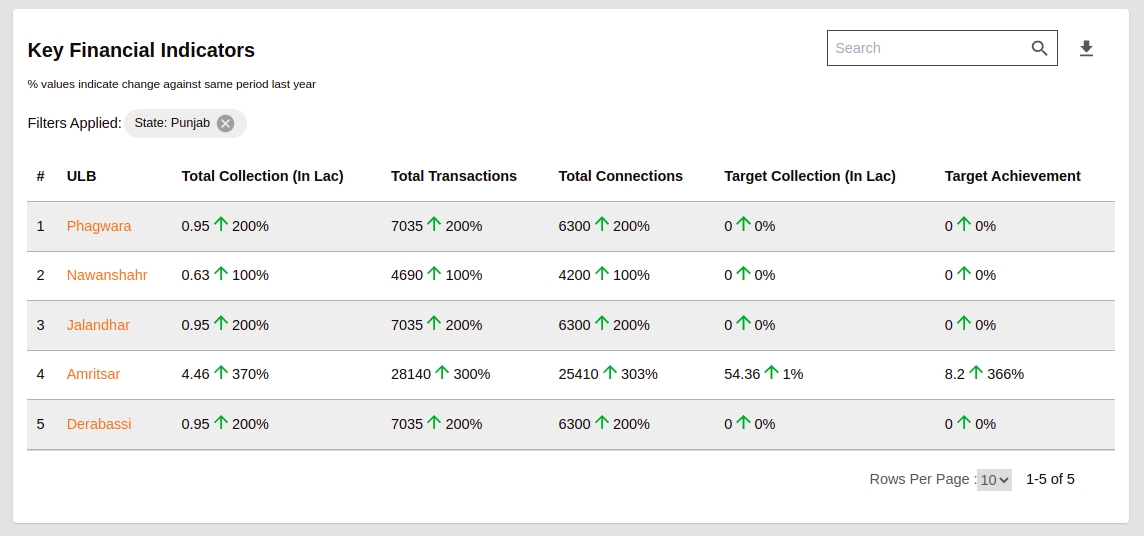

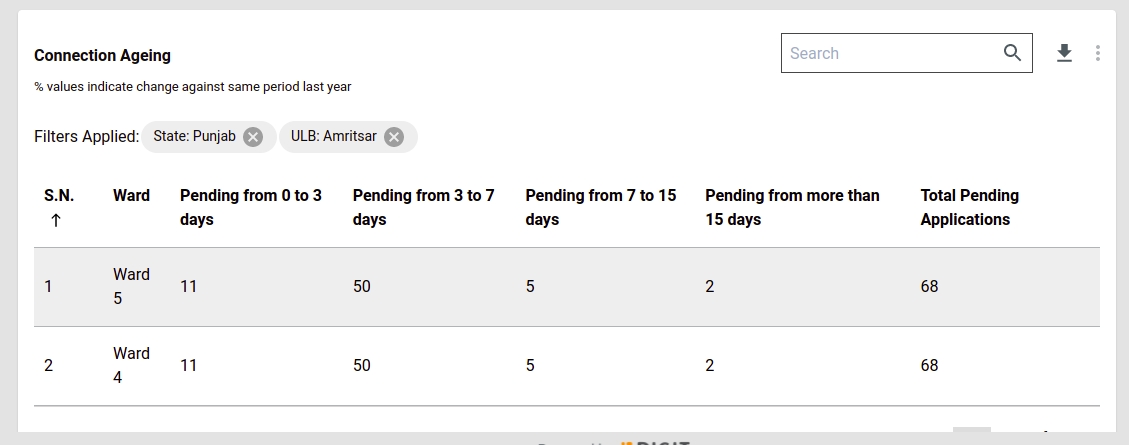

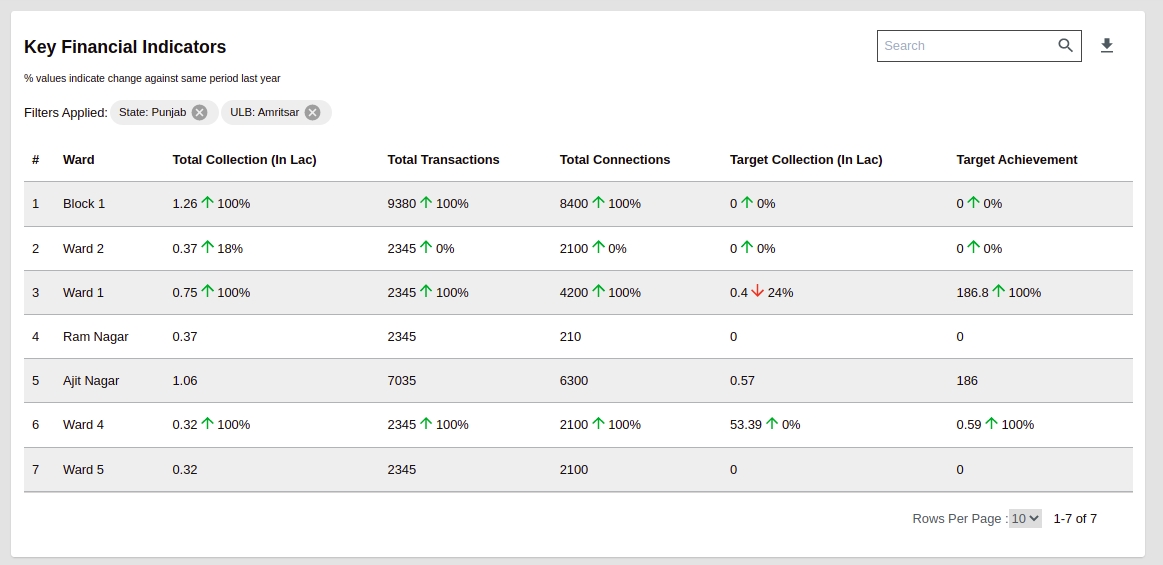

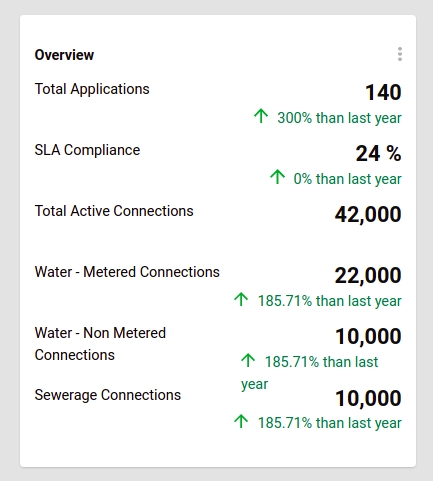

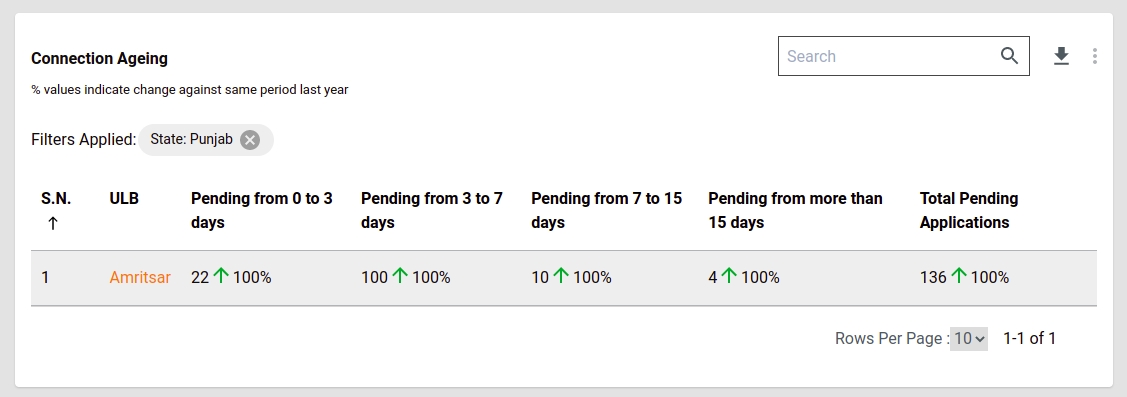

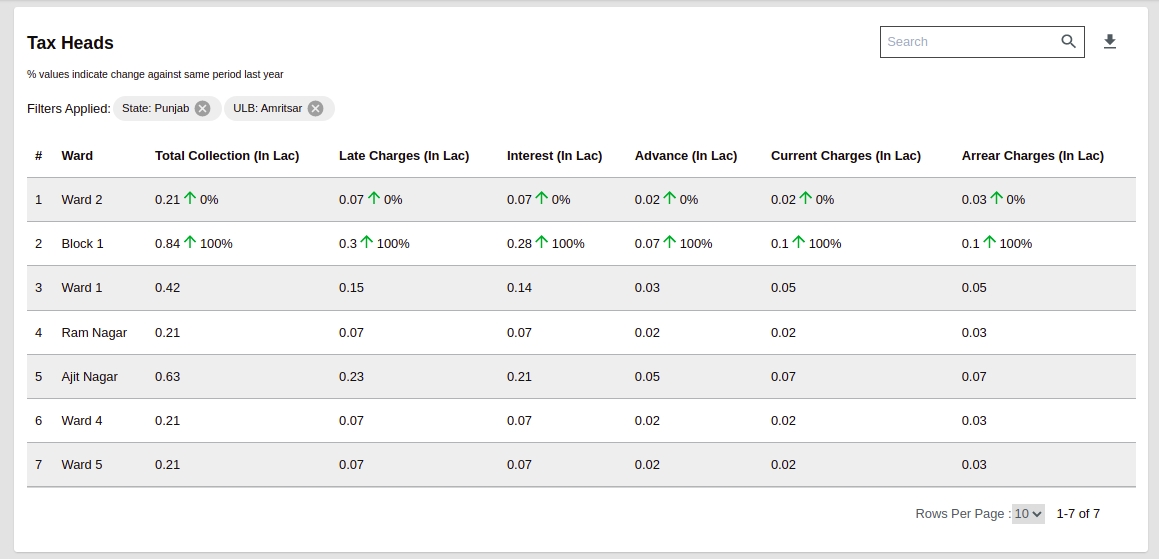

This tabular chart representation graph shows multiple W&S information like Target Collection, Total Collection, Total Transactions, Total Connections and Target Achievement (in %). The table shows the data at the district level and provides a drill-down chart for each district to the ULB level and from the ULB level to the ward level.
Clicking on any district name provides the drill-down charts, that represent data at the district level.
Clicking on the ULB offers a drill-down view of the data at the ward level.
The tabular chart representation graph shows multiple W&S information like Total Collection, Penalty, Interest and Target Collection. The table provides the view of data at the district level. Drill-down charts are available for each district to ULB level and for each ULB to ward level.
Clicking on the distinct name provides a drill-down view of data at the ULB level.
Clicking on the ULB name provides a drill-down view of data at the ward level.

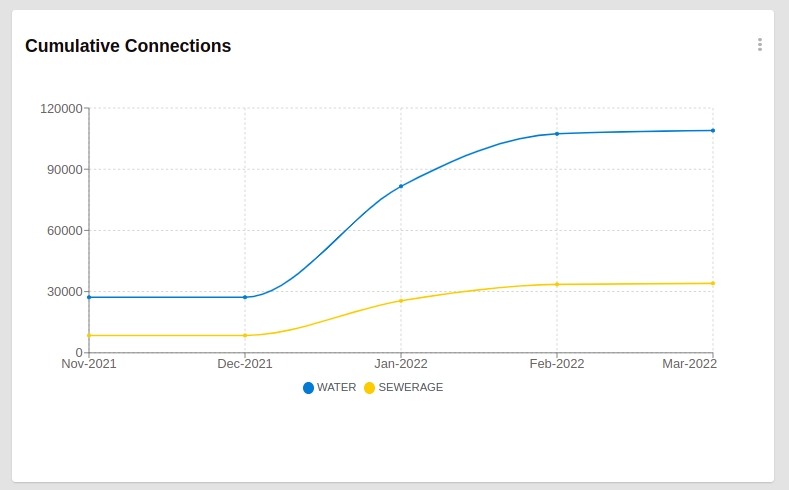

This graph provides insights into the Water and Sewerage connections on a monthly basis in the form of a cumulative line graph. Distinct line graphs are illustrated for water and sewerage connections.
This graph provides the active water connection insights based on the usage/property type.
This graph offers the active Sewerage connection details based on the usage/property type.
This graph provides the active water and sewerage connection details by channel type (eg-online, counter, etc).
This tabular chart graph provides insights on the submitted W&S applications that are pending to be worked on. Information like Pending from 0 to 3 days, Pending from 3 to 7 days, Pending from 7 to 15 days, Pending for more than 15 days, and Total Pending Applications are shown in the chart. The data is visible at the district level with the drill-down facility down to the State level to the ULB level and finally to the Ward level.
Clicking on the district or State name provides a drill-down view of the data at the ULB level.
Clicking on the ULB name provides a drill-down view of the data at the ward level.
