Current Bill Cancellation UI Flow

Frontend Repo

Overview

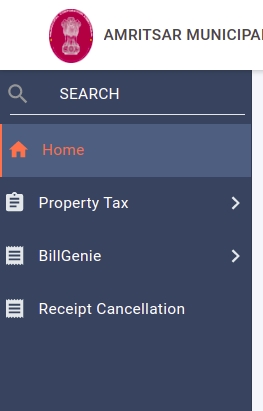

Once the user logs in with WS_CEMP or SW_CEMP roles the BillGenie tree option is available on the left panel of the screen.

Workflow Details

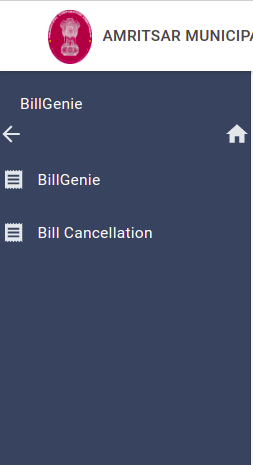

Clicking on the BillGenie displays two options as seen in the screenshot below.

Click on the Bill Cancellation option. This routes the user to the search bill screen.

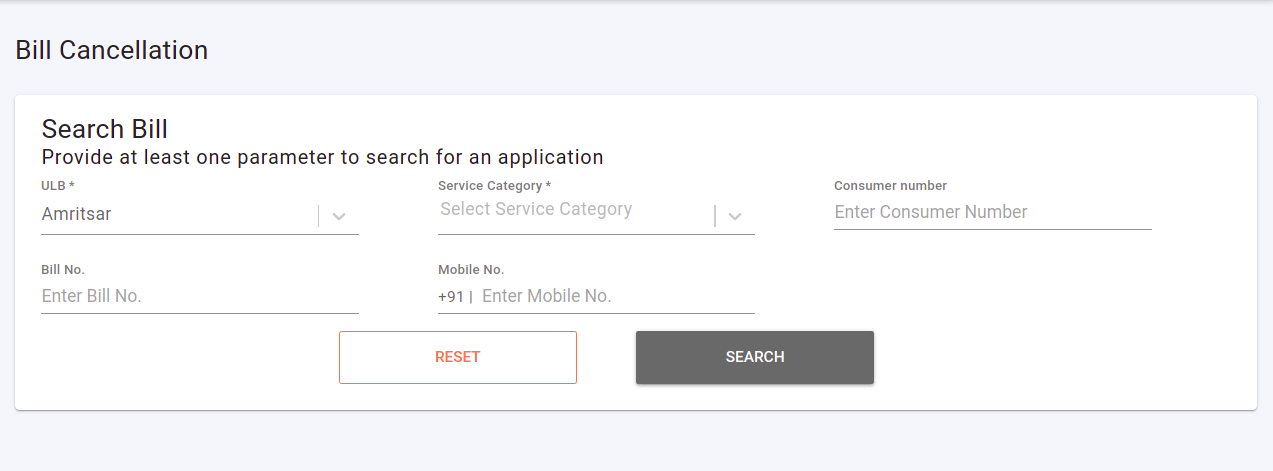

Search Bill

Objective: This option allows employees to search for active bills, download bills, or cancel bills.

For instance, a bill can be cancelled if the tax head information is entered wrong in a bill.

Route - mSeva

Technical Implementation

• Initial page - frontend/billSearch.js at master · egovernments/frontend

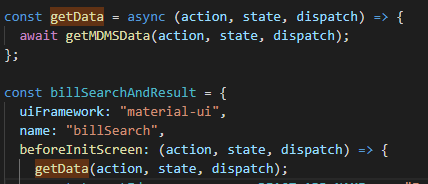

• Initial MDMS call is made on page load

Note: The search, cancel bill and service category options are available only for enabled services. This is configured in uiCommonPay config by marking the followingcancelBill path as true.

egov-mdms-data/uiCommonPay.json at QA · egovernments/egov-mdms-data

Example:

{
   "code": "WS",
   "headerBandLabel": "PAYMENT_COMMON_CONSUMER_CODE",
   "pdfModule":"WNS",
   "receiptKey": "ws-onetime-receipt",
   "cancelReceipt":false,
   "cancelBill": true,
   "billKey": "ws-bill",
   "arrears": true,
   "buttons": [
    {
      "label": "COMMON_BUTTON_HOME",
      "citizenUrl": "/wns-citizen/home",
      "employeeUrl": "/wns/search"
    }
  ]
}

• Form rendering details available in frontend/billSearchCard.js at master · egovernments/frontend
• Table rendering details available in frontend/searchResults.js at master · egovernments/frontend
• The Bill Search API and formatting data is available in frontend/function.js at master · egovernments/frontend

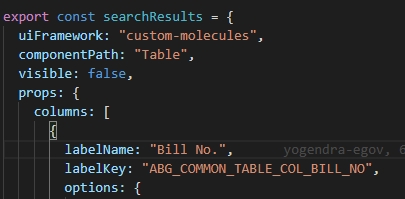

Table Structure

• MUIDataTable is used to implement the table component.

• Every column entry is treated as an object.

{
   labelName: "Bill No.",
   labelKey: "ABG_COMMON_TABLE_COL_BILL_NO"
}

• Any customizations at column level are done through the customBodyRender hook available with the option property of the columns.

Data fetch, load and render

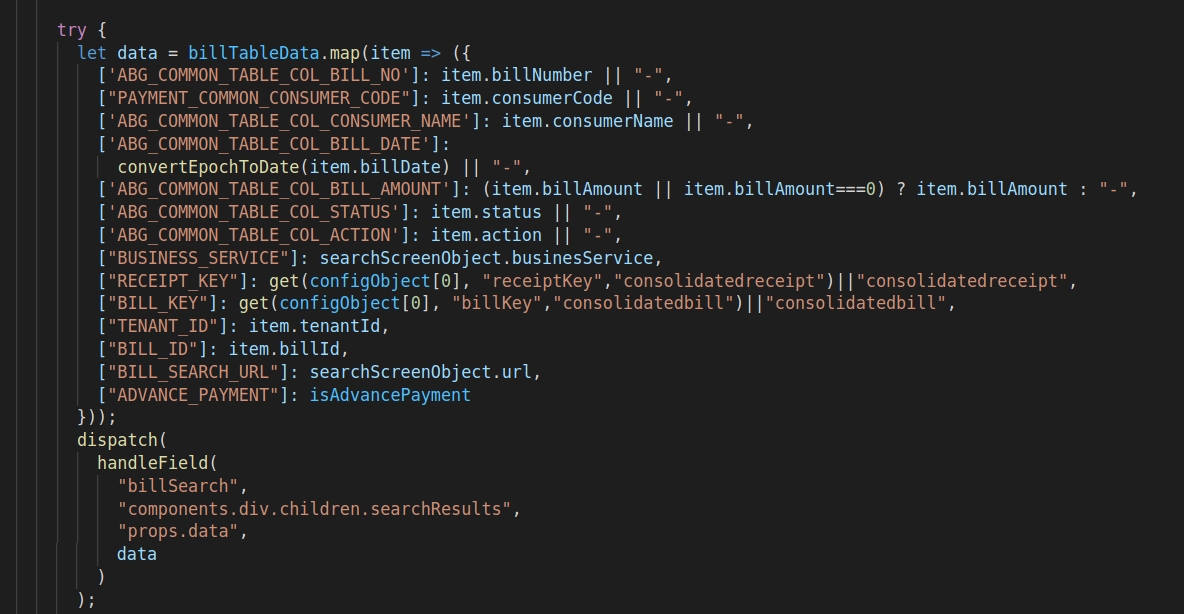

Once the data is fetched using egov-searcher/bill-genie/billswithaddranduser/_get API, the returned data is formatted and dispatched to redux.

frontend/function.js at master · egovernments/frontend

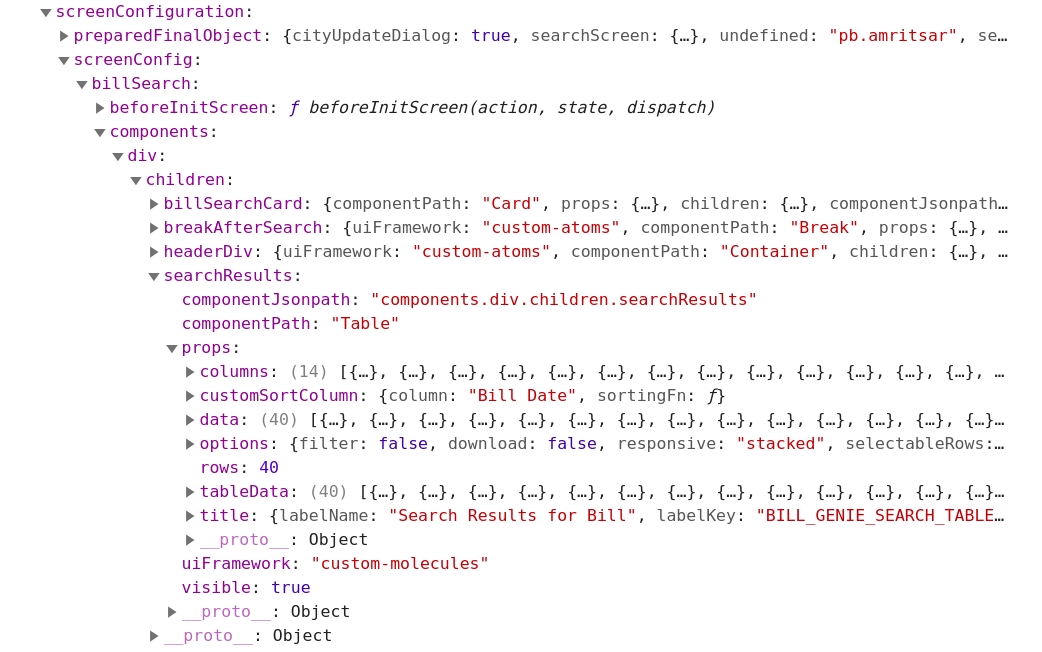

As seen in the above screenshot, the data is assigned to a specific path inside props.

frontend/searchResults.js at master · egovernments/frontend

The table component now fetches the data from its props as shown below.

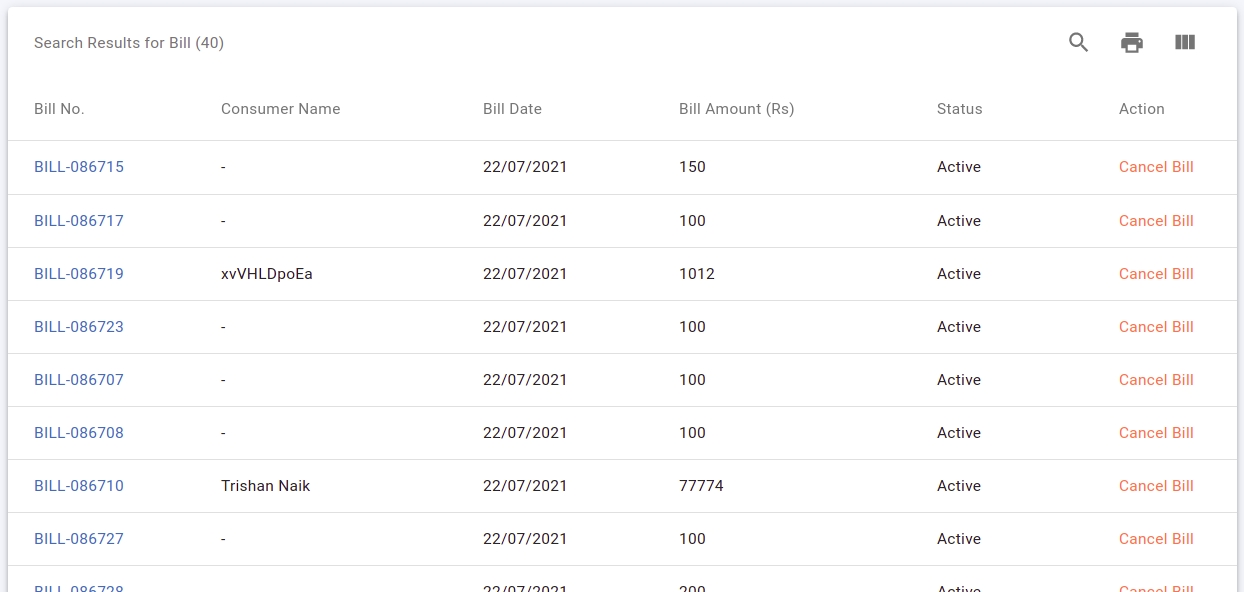

To cancel bills, employees have to click on the Cancel Bill option. The system navigates to the Bill Details page that displays the bill amount and other details. The bill can be cancelled from this page.

frontend/viewBill.js at master · egovernments/frontend

For bill details refer to the document here - Bill Details.

API Used

1. egov-mdms-service/v1/_search,

2. egov-searcher/bill-genie/billswithaddranduser/_get

Role Action Mapping

API	Roles	Action ID
egov-mdms-service/v1/_search		954
egov-searcher/bill-genie/billswithaddranduser/_get	SUPERUSER , EMPLOYEE	1804
