# Challan Creation
## **Overview**

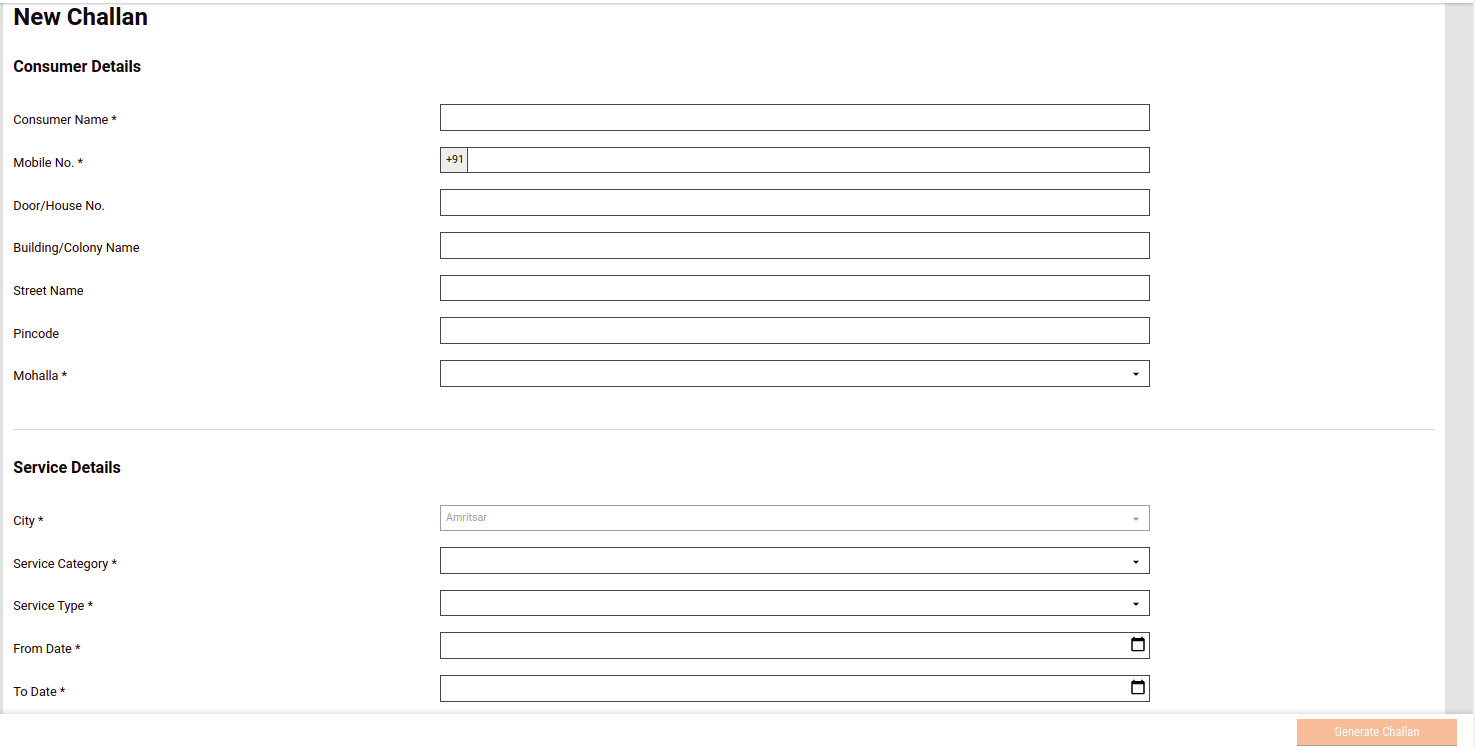

Provide employees with the option to create Challan, by selecting the service category, and entering all consumer information and tax head details.
## Workflow Details
### **MCollect - Create Challan**
File Path:[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js)
### **MDMS Details**
Created hooks for MDMS in mCollect, by using hooks will get the response by passing on the details in the method.
`Digit.MDMSService.getPaymentRules(tenantId, "[?(@.type=='Adhoc')]");` which is present in the below file:[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js)
MDMS File path:[ digit-ui-internals/MDMS.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/libraries/src/services/elements/MDMS.js)
## **Technical Implementation Details**
### **Service Type and Service Category Dropdown Formation**
Based on the response, Service Type and Service category Dropdowns are Loaded.\
For eg: Refer to the response object
```
{
"businessService": "WaterCharges.Metered",
"code": "WaterCharges.Metered",
"collectionModesNotAllowed": [
"DD"
],
"partPaymentAllowed": false,
"isAdvanceAllowed": true,
"demandUpdateTime": 86400000,
"isVoucherCreationEnabled": false,
"type": "Adhoc"
}
```
Based on that `"businessService": "WaterCharges.Metered"`
The service Category will be `"WaterCharges"`
The service Type will be `"Metered"`
### **Tax Head Dropdown Formation**
Based on the MDMS response `TaxHeadMaster` are formed by the selected service type dropdown. Filter the initial Taxhead master with the selected service type with `service` the attributes in each Taxheads.
**Other Validations and Create challan** can be referred in[ digit-ui-internals/CreateChallan.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/CreateChallan.js)
`createChallan` the method is used to create challan.
`/echallan-services/eChallan/v1/_create` API is used to create a challan.
Once Challan is created successfully, you will be able to see the Challan Acknowledgement.
Actions available:
1. Print Challan
2. Go to home
3. Proceed to Payment
.png?alt=media)
File Path:[ digit-ui-internals/EmployeeChallanAcknowledgement.js at main · egovernments/digit-ui-internals](https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/mCollect/src/pages/employee/EmployeeChallanAcknowledgement.js)
**Print Challan:** Click on Print Challan, Challan will be downloaded using `egov-pdf/download/UC/mcollect-challan` API.
**Go to home:** Click on Go TO Home routes users to the home screen.
**Proceed To Payment:** Clicking on this routes users to the common pay screen and it is common for all modules also refer to [Update / Cancel Challan](https://docs.digit.org/local-governance/v2.8/platform/configure-digit/configuring-digit-services/mcs-service-configuration/echallan-ui-details/update-cancel-challan-ui-flow).
## **Localisation Module**
`rainmaker-uc`
## **API Used**
1. `egov-mdms-service/v1/_search`
2. `echallan-services/eChallan/v1/_update`
3. `egov-pdf/download/UC/mcollect-challan`
4. `collection-services/payments/ADVT.Gas_Balloon_Advertisement/_search` **we need to pass the businessService** (`collection-services/payments/{businessService}/_search` ).
5. `collection-services/payments/_create`
6. `billing-service/bill/v2/_fetchbill`
7. `pdf-service/v1/_create`
## **Role Action Mapping**
| API | Roles | Action ID |
| --------------------------------------------------------------------- | ---------- | --------- |
| `egov-mdms-service/v1/_search` | | `954` |
| `/echallan-services/eChallan/v1/_create` | `UC_EMP` | `2112` |
| `egov-pdf/download/UC/mcollect-challan` | `UC_EMP` | `2115` |
| `collection-services/payments/ADVT.Gas_Balloon_Advertisement/_search` | `UC_EMP` | `2138` |
| `collection-services/payments/_create` | `UC_EMP` | `1862` |
| `pdf-service/v1/_create` | `UC_EMP` | `1834` |
| `billing-service/bill/v2/_fetchbill` | `EMPLOYEE` | `1862` |
## **Related Links**
| Related Title | Documenation |
| ------------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| MCollect Search | [mCollect - Technical Documentation](https://docs.digit.org/local-governance/v2.8/platform/configure-digit/configuring-digit-services/mcs-service-configuration/echallan-ui-details/mcollect-ui-flow) |
| MCollect Update/Cancel Challan | [Update / Cancel Challan](https://docs.digit.org/local-governance/v2.8/platform/configure-digit/configuring-digit-services/mcs-service-configuration/echallan-ui-details/update-cancel-challan-ui-flow) |
