Workflow Config-Replacement Data

Migration Document for Bill Amendment W&S

Overview

This document contains the steps to create new workflow configs specific to WS and SW modules for Bill Amendment.

Steps

Create the new Workflow configs in the same tenant-Id as the one you want to replace in the applications. New configs for WS and SW bill amendment are as follows:

Curl for WS Bill Amendment Config:

curl --location --request POST 'https://egov-micro-qa.egovernments.org/egov-workflow-v2/egov-wf/businessservice/_create' \
--header 'Content-Type: application/json' \
--data-raw '{
    "RequestInfo": {
        "apiId": "Rainmaker",
        "action": "",
        "did": 1,
        "key": "",
        "msgId": "20170310130900|en_IN",
        "requesterId": "",
        "ts": 1513579888683,
        "ver": ".01",
        "authToken": "",
        "userInfo": {
            "id": 73,
            "userName": null,
            "name": null,
            "type": "EMPLOYEE",
            "mobileNumber": null,
            "emailId": null,
            "roles": [
                {
                    "id": 2,
                    "name": "Customer Support Representative",
                    "code": null,
                    "tenantId": null
                }
            ],
            "tenantId": null,
            "uuid": "uuid"
        }
    },
    "BusinessServices": [
        {
            "tenantId": "pb.amritsar",
            "businessService": "WS.AMENDMENT",
            "business": "WS",
            "businessServiceSla": 0,
            "states": [
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": null,
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": true,
                    "isTerminateState": false,
                    "isStateUpdatable": false,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "action": "OPEN",
                            "nextState": "APPROVALPENDING",
                            "roles": [
                                "CITIZEN",
                                "SW_CEMP",
                                "WS_CEMP"
                            ],
                            "active": true
                        }
                    ]
                },
                {
                    "uuid": "APPROVALPENDING",
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "APPROVALPENDING",
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": true,
                    "isTerminateState": false,
                    "isStateUpdatable": false,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "APPROVE",
                            "nextState": "APPROVED",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        },
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "REJECT",
                            "nextState": "REJECTED",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        },
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "SEND_BACK",
                            "nextState": "PENDING_FOR_CITIZEN_ACTION",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        }
                    ]
                },
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "REJECTED",
                    "applicationStatus": "INACTIVE",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": true,
                    "isStateUpdatable": false,
                    "actions": null
                },
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "APPROVED",
                    "applicationStatus": "ACTIVE",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": true,
                    "isStateUpdatable": false,
                    "actions": null
                },
                {
                    "uuid": "PENDING_FOR_CITIZEN_ACTION",
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "PENDING_FOR_CITIZEN_ACTION",
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": false,
                    "isStateUpdatable": true,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "PENDING_FOR_CITIZEN_ACTION",
                            "action": "RE-SUBMIT",
                            "nextState": "APPROVALPENDING",
                            "roles": [
                                "CITIZEN",
                                "SW_CEMP",
                                "WS_CEMP"
                            ],
                            "active": true
                        }
                    ]
                }
            ]
        }
    ]
}'

Curl for SW Bill Amendment Config:

curl --location --request POST 'https://egov-micro-qa.egovernments.org/egov-workflow-v2/egov-wf/businessservice/_create' \
--header 'Content-Type: application/json' \
--data-raw '{
    "RequestInfo": {
        "apiId": "Rainmaker",
        "action": "",
        "did": 1,
        "key": "",
        "msgId": "20170310130900|en_IN",
        "requesterId": "",
        "ts": 1513579888683,
        "ver": ".01",
        "authToken": "",
        "userInfo": {
            "id": 73,
            "userName": null,
            "name": null,
            "type": "EMPLOYEE",
            "mobileNumber": null,
            "emailId": null,
            "roles": [
                {
                    "id": 2,
                    "name": "Customer Support Representative",
                    "code": null,
                    "tenantId": null
                }
            ],
            "tenantId": null,
            "uuid": "uuid"
        }
    },
    "BusinessServices": [
        {
            "tenantId": "pb.amritsar",
            "businessService": "SW.AMENDMENT",
            "business": "SW",
            "businessServiceSla": 0,
            "states": [
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": null,
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": true,
                    "isTerminateState": false,
                    "isStateUpdatable": false,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "action": "OPEN",
                            "nextState": "APPROVALPENDING",
                            "roles": [
                                "CITIZEN",
                                "SW_CEMP",
                                "WS_CEMP"
                            ],
                            "active": true
                        }
                    ]
                },
                {
                    "uuid": "APPROVALPENDING",
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "APPROVALPENDING",
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": true,
                    "isTerminateState": false,
                    "isStateUpdatable": false,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "APPROVE",
                            "nextState": "APPROVED",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        },
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "REJECT",
                            "nextState": "REJECTED",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        },
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "APPROVALPENDING",
                            "action": "SEND_BACK",
                            "nextState": "PENDING_FOR_CITIZEN_ACTION",
                            "roles": [
                                "WS_APPROVER",
                                "SW_APPROVER"
                            ],
                            "active": true
                        }
                    ]
                },
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "REJECTED",
                    "applicationStatus": "INACTIVE",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": true,
                    "isStateUpdatable": false,
                    "actions": null
                },
                {
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "APPROVED",
                    "applicationStatus": "ACTIVE",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": true,
                    "isStateUpdatable": false,
                    "actions": null
                },
                {
                    "uuid": "PENDING_FOR_CITIZEN_ACTION",
                    "tenantId": "pb.amritsar",
                    "sla": null,
                    "state": "PENDING_FOR_CITIZEN_ACTION",
                    "applicationStatus": "INWORKFLOW",
                    "docUploadRequired": false,
                    "isStartState": false,
                    "isTerminateState": false,
                    "isStateUpdatable": true,
                    "actions": [
                        {
                            "tenantId": "pb.amritsar",
                            "currentState": "PENDING_FOR_CITIZEN_ACTION",
                            "action": "RE-SUBMIT",
                            "nextState": "APPROVALPENDING",
                            "roles": [
                                "CITIZEN",
                                "SW_CEMP",
                                "WS_CEMP"
                            ],
                            "active": true
                        }
                    ]
                }
            ]
        }
    ]
}'

eg:--

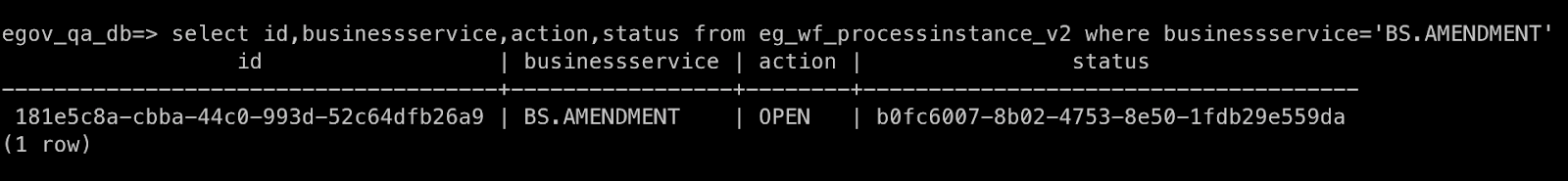

List all the states from the process instances of the old workflow(business service) config. select uuid,state from eg_wf_state_v2 where businessserviceid=(select UUID from eg_wf_businessservice_v2 where businessservice='BS.AMENDMENT' and tenantid='pb');

uuid	state
94055bb3-210c-4184-93ac-99e288ab00d9
b0fc6007-8b02-4753-8e50-1fdb29e559da	APPROVALPENDING
b9ea9101-09ff-4a8e-97c1-d43b3311af73	REJECTED
ea5668ee-d8db-4c16-839b-64299e12f8fc	APPROVED
468ce854-e19d-4a0f-97a0-66745f2034af	PENDING_FOR_CITIZEN_ACTION

List the states from the new business service created for replacement using this query SELECT UUID, state FROM eg_wf_state where businessService='WS.AMENDMENT' AND business='WS' AND tenantid='pb'

SELECT UUID, state FROM eg_wf_state where businessService='SW.AMENDMENT' AND business='SW' AND tenantid='pb'

uuid	state
New uuid
New uuid	APPROVALPENDING
New uuid	REJECTED
New uuid	APPROVED
New uuid	PENDING_FOR_CITIZEN_ACTION

Replace the state-ids of the old workflow in the eg_wf_processinstance table with stateids of the new workflow.

Write an update query (one for each state UUID) to rewrite the process-instance table, as shown above - update eg_wf_processinstance_v2 set status={new state uuid} AND businessservice={WS.AMENDMENT} and modulename={WS} where businessservice={BS.AMENDMENT} and status={old state uuid} and businessid like '%WS%';

update eg_wf_processinstance_v2 set status={new state uuid} AND businessservice={SW.AMENDMENT} and modulename={SW} where businessservice={BS.AMENDMENT} and status={old state uuid} and businessid like '%SW%';

Note: businessid like '%SW% or businessid like '%WS% will be used depending on the New businessService that you are using. moduleName in the above query would take WS or SW in sync with the new businessService

• The status and businessservice columns should be set to the new values from the newly created business-service master create based on the old status and id of the process-Instance.

• Rename or delete the old business service (BS.AMENDMENT) to avoid any of the applications using it wrongly in future. {update eg_wf_businessservice set businessservice='BS.AMENDMENT-deprecated' where businessservice='BS.AMENDMENT'}

• UI/BACKEND will have to replace their configs to fetch the workflow configs for WS and SW. Changes required from UI: Bill Amendment Workflow _create and _update APIs - replace businessservice BS.AMENDMENT with WS.AMENDMENT/SW.AMENDMENT and moduleName BS with WS/SW as per the requirement. Bill Amendment Inbox - replace businessservice BS.AMENDMENT with WS.AMENDMENT/SW.AMENDMENT as per the requirement.
