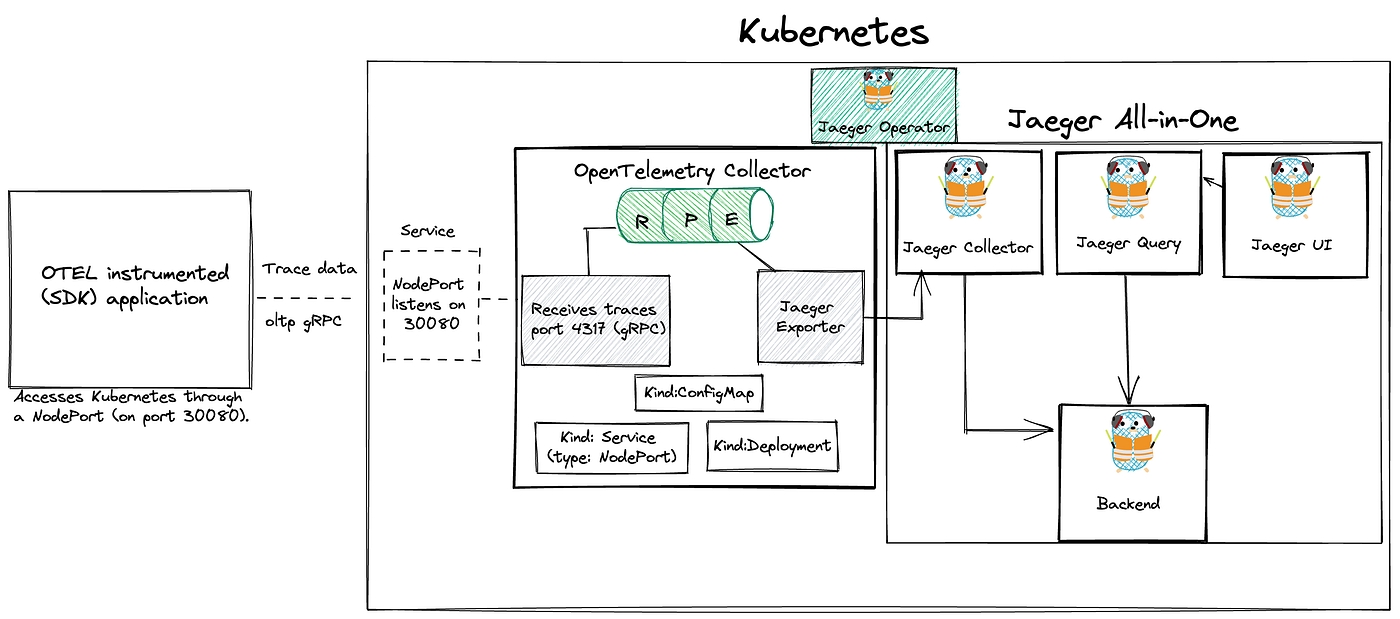

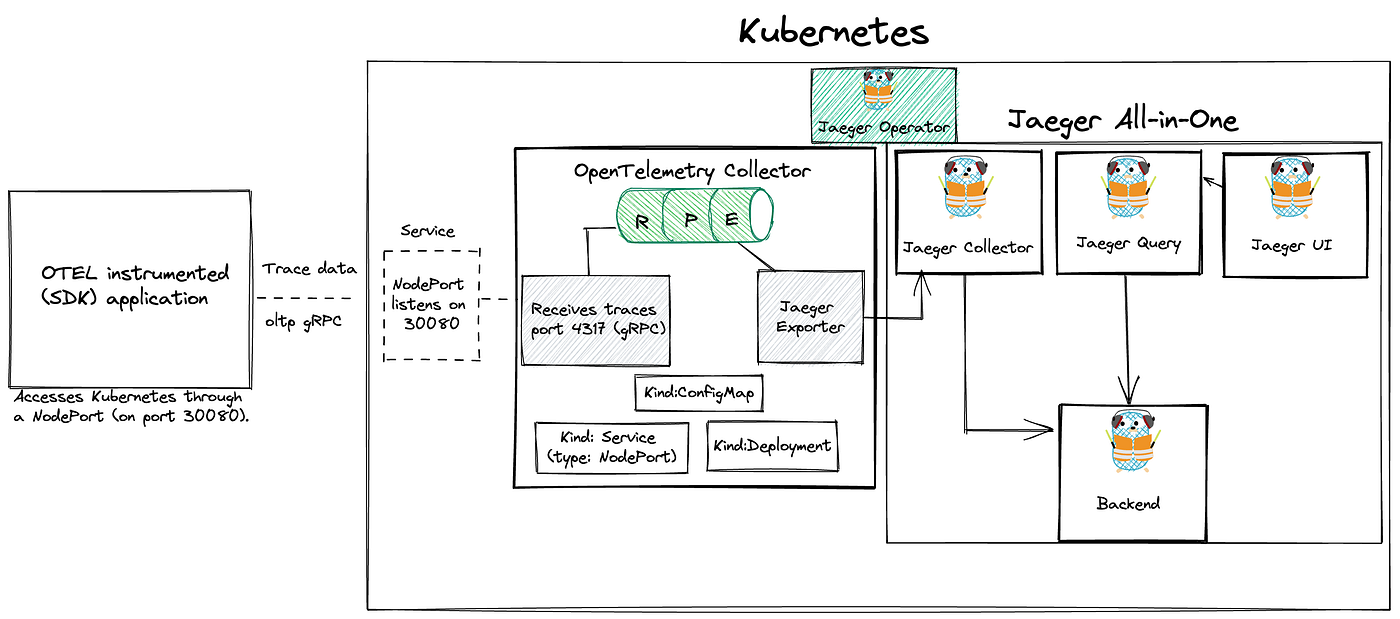

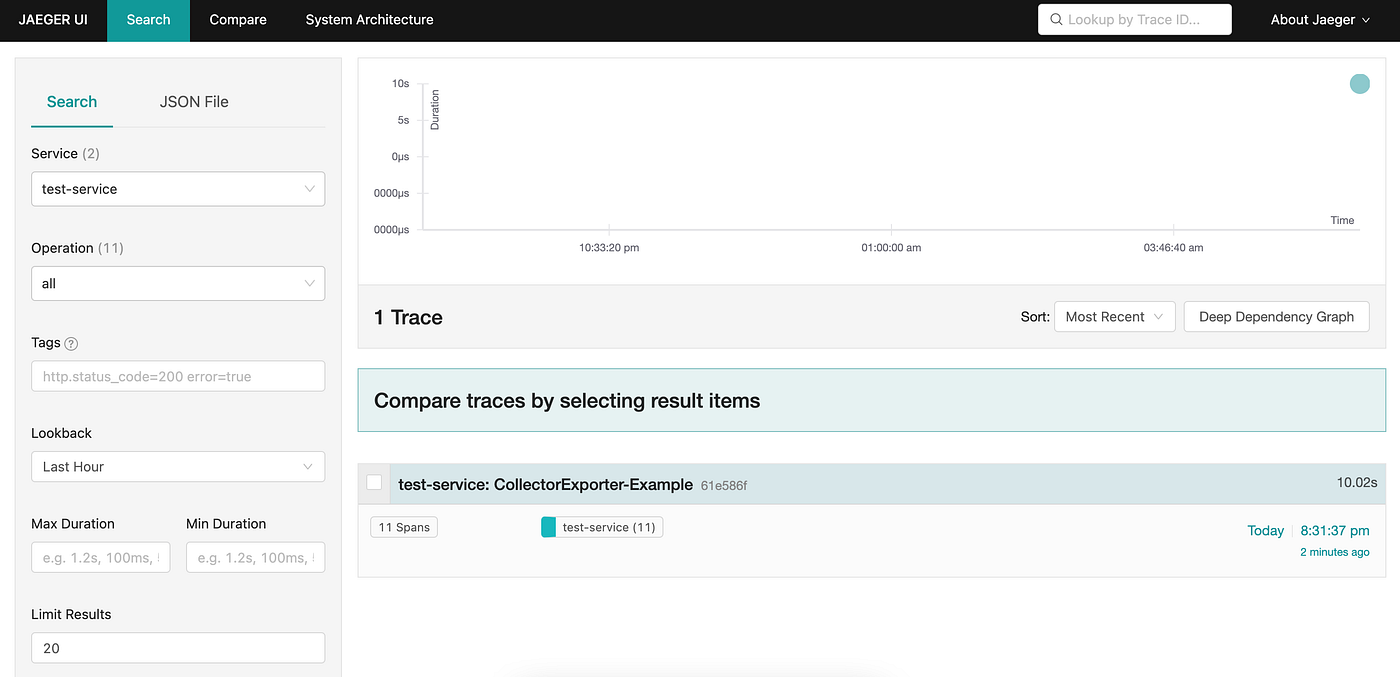

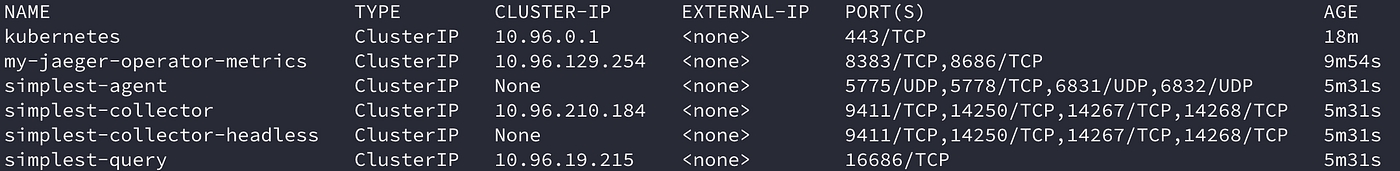

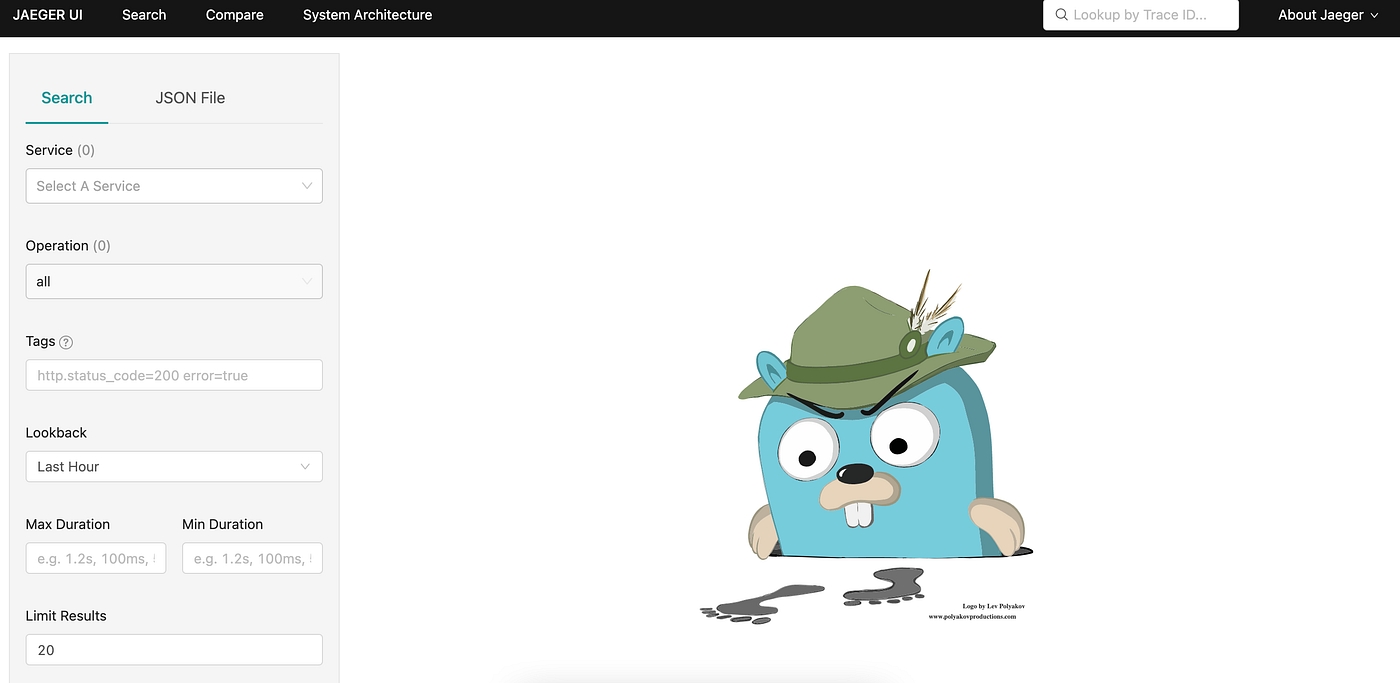

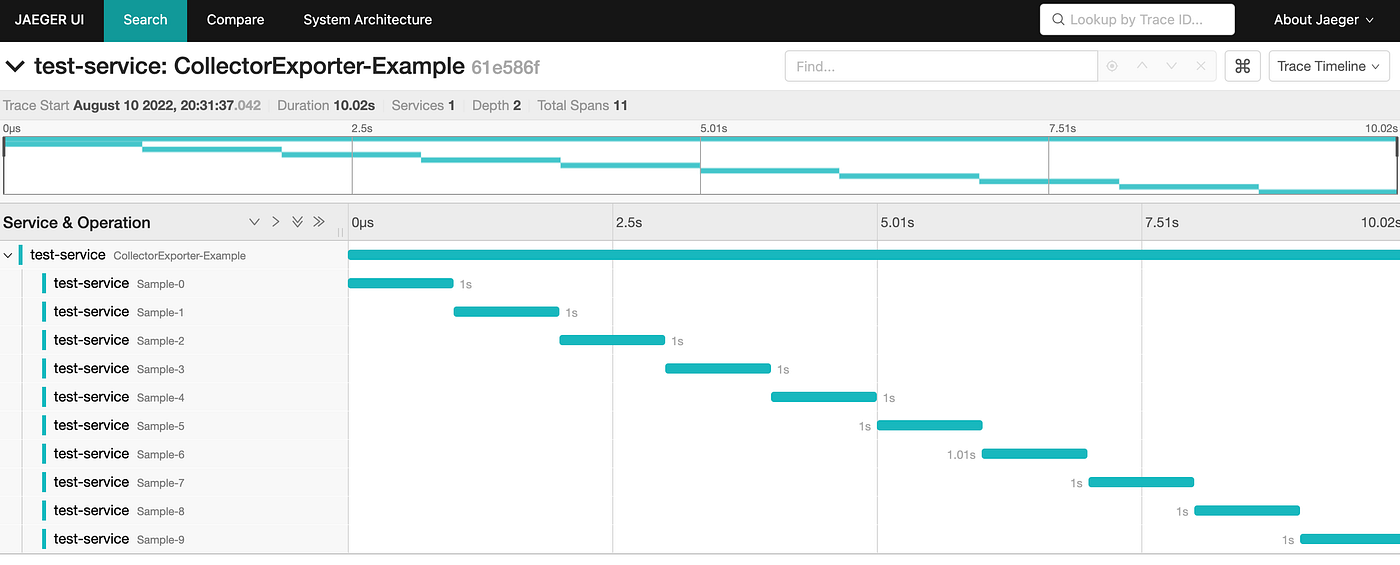

# Tracing ## Pre-reads {% content-ref url="" %} {% endcontent-ref %} This doc covers the steps on how to deploy an **OpenTelemetry** collector on Kubernetes. We will then use an OTEL instrumented (Go) **application** provided by OpenTelemetry to send traces to the **Collector**. From there, we will bring the trace data to a **Jaeger** **collector**. Finally, the traces will be visualised using the **Jaeger** **UI**. This image shows the flow between the **application**, OpenTelemetry **collector** and **Jaeger**. ![](https://miro.medium.com/max/1400/1*8wbA6DvV0jepbkNbsr8yag.png) > This OpenTelemetry [repository](https://github.com/open-telemetry/opentelemetry-go/tree/main/sdk/metric/exemplar) provides a complete demo on how you can deploy OpenTelemetry on Kubernetes, **we can use this as a starting point.** ## **Pre-requisites** To begin, we need a **Kubernetes** cluster you can use any of your existing Kubernetes clusters with the apx 2vCPUs, 4GB RAM, and 100GB Storage. ### Local Kubernetes Cluster Setup Skip this in case you have the existing cluster. In case, you don't have the ready Kubernetes but you have a good local machine with at least 4GB RAM left, you can use a local instance of [Kind](https://kind.sigs.k8s.io/). The [application](https://github.com/open-telemetry/opentelemetry-go/blob/main/example/otel-collector/main.go) will access this Kubernetes cluster through a NodePort (on port 30080). So make sure this port is free. ``` conn, err := grpc.DialContext(ctx, "localhost:30080", grpc.WithTransportCredentials(insecure.NewCredentials()), grpc.WithBlock()) ``` To use **NodePort** with **Kind**, we need to first enable it. > [*Extra port mappings*](https://kind.sigs.k8s.io/docs/user/configuration/#extra-port-mappings) *can be used to port forward to the kind nodes. This is a cross-platform option to get traffic into your kind cluster.* `vim kind-config.yaml` ``` kind: ClusterapiVersion: kind.x-k8s.io/v1alpha4nodes:- role: control-plane # port forward 30080 on the host to 30080 on this node extraPortMappings: - containerPort: 30080 hostPort: 30080- role: worker ``` Create the cluster with: `kind create cluster --config kind-config.yaml` ``` Creating cluster "kind" ... ✓ Ensuring node image (kindest/node:v1.24.0) 🖼 ✓ Preparing nodes 📦 📦 ✓ Writing configuration 📜 ✓ Starting control-plane 🕹️ ✓ Installing CNI 🔌 ✓ Installing StorageClass 💾 ✓ Joining worker nodes 🚜Set kubectl context to "kind-kind"You can now use your cluster with:kubectl cluster-info --context kind-kindThanks for using kind! 😊 ``` Once our Kubernetes cluster is up, we can start deploying **Jaeger**. ## What is Jaeger? [Jaeger](https://www.jaegertracing.io/) is an open-source distributed tracing system for tracing transactions between distributed services. It’s used for monitoring and troubleshooting complex [microservices](https://microservices.io/) environments. By doing this, we can view traces and analyse the application’s behaviour. ### Why do we need it? Using a tracing system (like Jaeger) is especially important in [microservices](https://microservices.io/) environments since they are considered a lot more difficult to debug than a single **monolithic** application. ### Problems that [Jaeger](https://www.jaegertracing.io/) addresses? * Distributed tracing monitoring * Performance and latency optimisation * Root cause analysis * Service dependency analysis ## Deploy Jaeger To deploy Jaeger on the Kubernetes cluster, we can make use of the [Jaeger operator](https://www.jaegertracing.io/docs/1.36/operator/). > Operators are pieces of software that ease the operational complexity of running another piece of software. ## Deploy Jaeger Operator You first install the Jaeger Operator on Kubernetes. This operator will then watch for new Jaeger custom resources (CR). There are different ways of installing the **Jaeger Operator** on Kubernetes: * using **Helm** * using **Deployment** files > Before you start, pay attention to the [Prerequisite](https://www.jaegertracing.io/docs/1.36/operator/#prerequisite) section. > > Since version 1.31 the Jaeger Operator uses webhooks to validate Jaeger custom resources (CRs). This requires an installed version of the cert-manager. ## Installing Cert-Manager [***cert-manager***](https://cert-manager.io/) *is a powerful and extensible X.509 certificate controller for Kubernetes and OpenShift workloads. It will obtain certificates from a variety of Issuers, both popular public Issuers as well as private Issuers, and ensure the certificates are valid and up-to-date, and will attempt to renew certificates at a configured time before expiry.* Installation of **cert-manager** of is very simple, just run: ``` kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.9.1/cert-manager.yaml ``` > By default, **cert-manager** will be installed into the cert-manager namespace. You can verify the installation by following the instructions [here](https://cert-manager.io/docs/installation/verify/) With **cert-manager** installed, let’s continue with the deployment of **Jaeger** ## Installing Jaeger Operator Using Helm Jump over to [Artifact Hub](https://artifacthub.io/packages/helm/jaegertracing/jaeger-operator) and search for jaeger-operator Add the Jaeger Tracing Helm repository: `helm repo add jaegertracing` [`https://jaegertracing.github.io/helm-charts`](https://jaegertracing.github.io/helm-charts) To install the chart with the release name `my-release` (in the default namespace) ``` helm install my-release jaegertracing/jaeger-operator ``` You can also install a specific version of the helm chart: ``` helm install my-release jaegertracing/jaeger-operator --version 2.25.0 ``` Verify that it’s installed on Kubernetes: `helm list -A` > You can also deploy the Jaeger operator using **deployment files**. > > `kubectl create -f https://github.com/jaegertracing/jaeger-operator/releases/download/v1.36.0/jaeger-operator.yaml` At this point, there should be a **jaeger-operator** deployment available. `kubectl get deployment my-jaeger-operator` ``` NAME READY UP-TO-DATE AVAILABLE AGEmy-jaeger-operator 1/1 1 1 2m58s ``` The operator is now ready to create Jaeger instances. ## Deploy Jaeger All-in-One The **operator** that we just installed doesn’t do anything itself, it just means that we can create **jaeger** resources/instances that we want the jaeger operator to manage. The simplest possible way to create a Jaeger instance is by deploying the **All-in-one** **strategy**, which installs the `all-in-one` image, and includes the **agents**, **collector**, **query** and the J**aeger UI** in a single pod using in-memory storage. Create a yaml file like the following. The name of the Jaeger instance will be `simplest` `vim simplest.yaml` ``` apiVersion: jaegertracing.io/v1kind: Jaegermetadata: name: simplest ``` `kubectl apply -f simplest.yaml` After a little while, a new in-memory all-in-one instance of Jaeger will be available, suitable for quick demos and development purposes. When the Jaeger instance is up and running, we can check the **pods** and **services**. `kubectl get pods` ``` NAME READY STATUS RESTARTS AGEsimplest-656d7cf5c8-lff7b 1/1 Running 0 3m55s ``` `kubectl get services` To get the pod name, query for the pods belonging to the simplest Jaeger instance: ![](https://miro.medium.com/max/1400/1*sA3Xf7l_o77s0poLNWvWAg.png) Query the logs from the pod: `kubectl logs -l app.kubernetes.io/instance=simplest` ``` {"level":"info","ts":1660155049.86027,"caller":"channelz/logging.go:50","msg":"[core]Channel Connectivity change to READY","system":"grpc","grpc_log":true}{"level":"info","ts":1660155049.8612773,"caller":"grpc/builder.go:120","msg":"Agent collector connection state change","dialTarget":":14250","status":"READY"}{"level":"info","ts":1660155049.8617437,"caller":"app/server.go:241","msg":"Starting HTTP server","port":16686,"addr":":16686"}{"level":"info","ts":1660155049.8621716,"caller":"app/server.go:260","msg":"Starting GRPC server","port":16685,"addr":":16685"} ``` ### Let’s open the Jaeger UI Use port-forwarding to access the [Jaeger UI](http://127.0.0.1:16686/search) `kubectl port-forward svc/simplest-query 16686:16686` ``` Forwarding from 127.0.0.1:16686 -> 16686Forwarding from [::1]:16686 -> 16686 ``` Jaeger UI ![](https://miro.medium.com/max/1400/1*ZaBDx_6zL8NtpCfazTrwZA.png) ## Deploy Open Telemetry Collector To deploy the OpenTelemetry collector, we will use this [otel-collector.yaml](https://github.com/open-telemetry/opentelemetry-go/blob/main/example/otel-collector/k8s/otel-collector.yaml) file as a starting point. The yaml file consists of a **ConfigMap**, **Service** and a **Deployment**. `vim otel-collector.yaml` Make sure to change the name of the **jaeger collector** (exporter) to match the one we deployed above. In our case, that would be: ``` exporters: jaeger: endpoint: "simplest-collector.default.svc.cluster.local:14250" ``` Also, pay attention to [**receivers**](https://github.com/open-telemetry/opentelemetry-go/tree/main/example/otel-collector). This part creates the receiver on the Collector side and opens up the port `4317` for receiving traces, which enables the application to send data to the OpenTelemetry Collector. ``` ... otel-collector-config: | receivers: otlp: protocols: grpc: endpoint: "0.0.0.0:4317"... ``` Apply the file with: `kubectl apply -f otel-collector.yaml` ``` configmap/otel-collector-conf createdservice/otel-collector createddeployment.apps/otel-collector created ``` Verify that the OpenTelemetry Collector is up and running. `kubectl get deployment` `kubectl logs deployment/otel-collector` ``` "Everything is ready. Begin running and processing data." ``` ## Run Application Time to send some trace data to our OpenTelemetry collector. > *Remember, that the application access the Kubernetes cluster through a NodePort on port 30080. The Kubernetes service will bind the `4317` port used to access the OTLP receiver to port `30080` on the Kubernetes node.* > > *By doing so, it makes it possible for us to access the Collector by using the static address `:30080`. In case you are running a local cluster, this will be `localhost:30080`.* [*Source*](https://github.com/open-telemetry/opentelemetry-go/tree/main/example/otel-collector) This [repository](https://github.com/open-telemetry/opentelemetry-go/blob/main/example/otel-collector/main.go) contains an (SDK) instrumented application written in **Go**, that simulates an application. `go run main.go` ``` 2022/08/10 20:31:37 Waiting for connection...2022/08/10 20:31:37 Doing really hard work (1 / 10)2022/08/10 20:31:38 Doing really hard work (2 / 10)2022/08/10 20:31:39 Doing really hard work (3 / 10)2022/08/10 20:31:40 Doing really hard work (4 / 10)2022/08/10 20:31:41 Doing really hard work (5 / 10)2022/08/10 20:31:42 Doing really hard work (6 / 10)2022/08/10 20:31:43 Doing really hard work (7 / 10)2022/08/10 20:31:44 Doing really hard work (8 / 10)2022/08/10 20:31:45 Doing really hard work (9 / 10)2022/08/10 20:31:46 Doing really hard work (10 / 10)2022/08/10 20:31:47 Done! ``` ## Viewing the data Let’s check out the telemetry data generated by our sample application Again, we can use port-forwarding to access Jaeger UI. ``` kubectl port-forward svc/simplest-query 16686:16686 ``` Open the web-browser and go to Under Service select **test-service** to view the generated traces. ![](https://miro.medium.com/max/1400/1*FrgRm1lvFZz6OzT-smeoIw.png) ![](https://miro.medium.com/max/1400/1*YijRHBoe4BpoFCHZA0RZ5A.png) The **service name** is specified in the `main.go` [file](https://github.com/open-telemetry/opentelemetry-go/blob/main/example/otel-collector/main.go). ``` res, err := resource.New(ctx, resource.WithAttributes( // the service name used to display traces in backends semconv.ServiceNameKey.String("test-service"), ), ``` The [application](https://github.com/open-telemetry/opentelemetry-go/blob/main/example/otel-collector/main.go) will access this Kubernetes cluster through a NodePort (on port 30080). The **URL** is specified here: ``` conn, err := grpc.DialContext(ctx, "localhost:30080", grpc.WithTransportCredentials(insecure.NewCredentials()), grpc.WithBlock()) if err != nil { return nil, fmt.Errorf("failed to create gRPC connection to collector: %w", err) } ``` Done This document has covered how we deploy an **OpenTelemetry** collector on **Kubernetes**. Then we sent trace data to this collector using an Otel **SDK** instrumented **application** written in Go. From there, the traces were sent to a Jaeger collector and visualised in J**aeger UI**. [![Creative Commons License](https://i.creativecommons.org/l/by/4.0/80x15.png)*​*](http://creativecommons.org/licenses/by/4.0/)*All content on this page by* [*eGov Foundation*](https://egov.org.in/) *is licensed under a* [*Creative Commons Attribution 4.0 International License*](http://creativecommons.org/licenses/by/4.0/)*.* --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.digit.org/platform/guides/operations-guide/observability/tracing.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
