# FSM Technical Specification

## Overview

Faecal Sludge Management (FSM) is a system that enables citizens to raise a request for septic tank cleaning with their urban local bodies (ULBs) directly or for reaching out to a ULB counter. Citizens can track the application, make a payment for the charges and rate the service.

### Service Dependencies:

* billing-service
* mdms-service
* workflow-v2
* boundary-service
* user-service
* idgen-service
* user-events
* collection-service
* notification-service
* vendor
* vehicle
* fsm-calculator
* egov-url-shortener
* collection-service
* pdf-service

## API Specification

[FSM Swagger Link](https://editor.swagger.io/?url=https://raw.githubusercontent.com/AmanKumar-eGov/municipal-services/master/docs/fsm/v1.3/fsm.yaml)

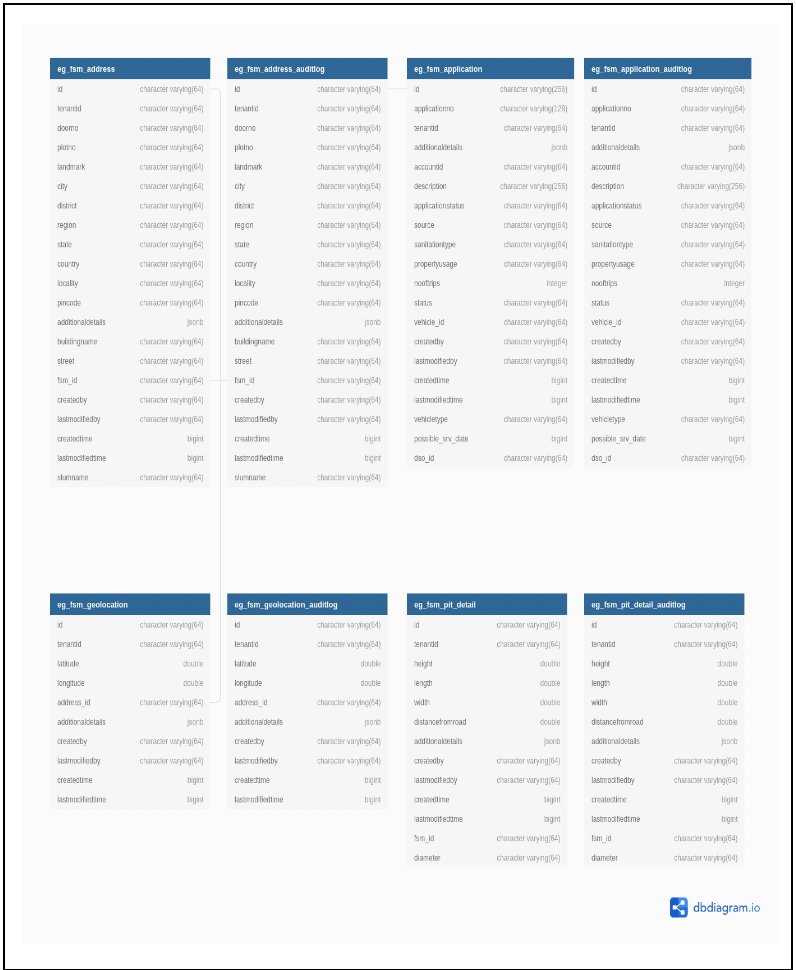

## Data Model

<figure><img src="https://content.gitbook.com/content/XBU7xhTVuMJw3ncxgvWz/blobs/EGz8cigmnIUciMJtiMrj/Screenshot%202023-04-25%20at%209.09.51%20AM.png" alt=""><figcaption></figcaption></figure>

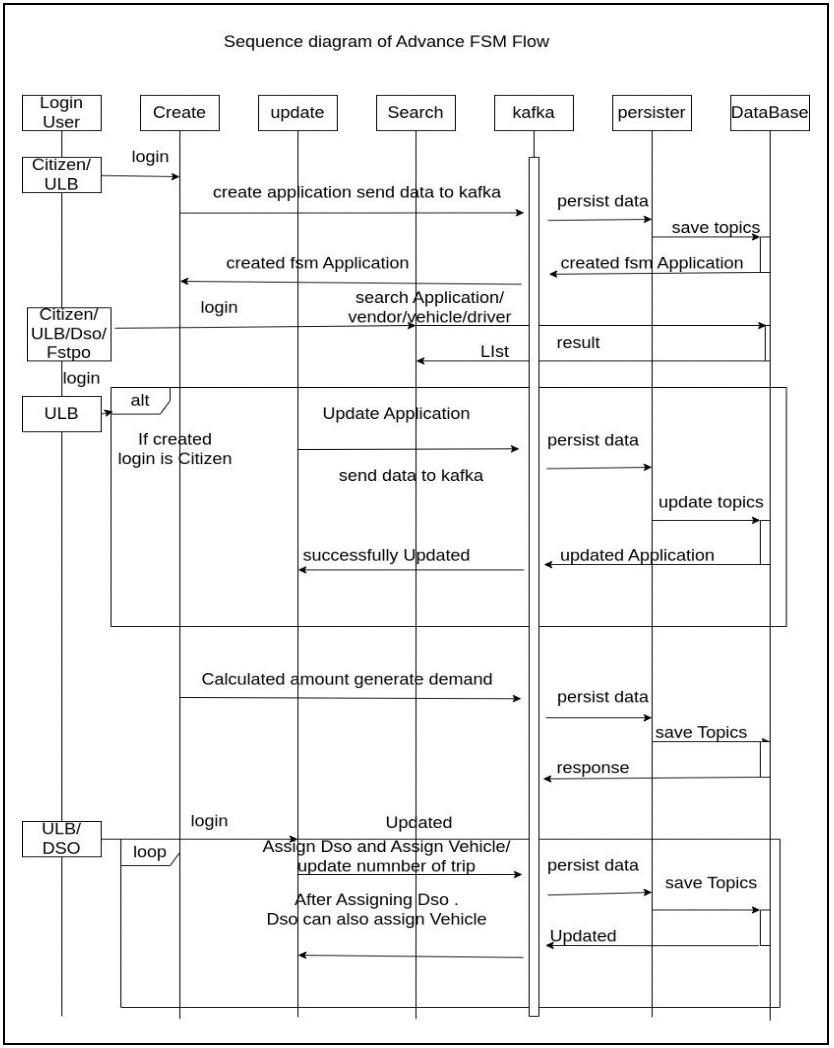

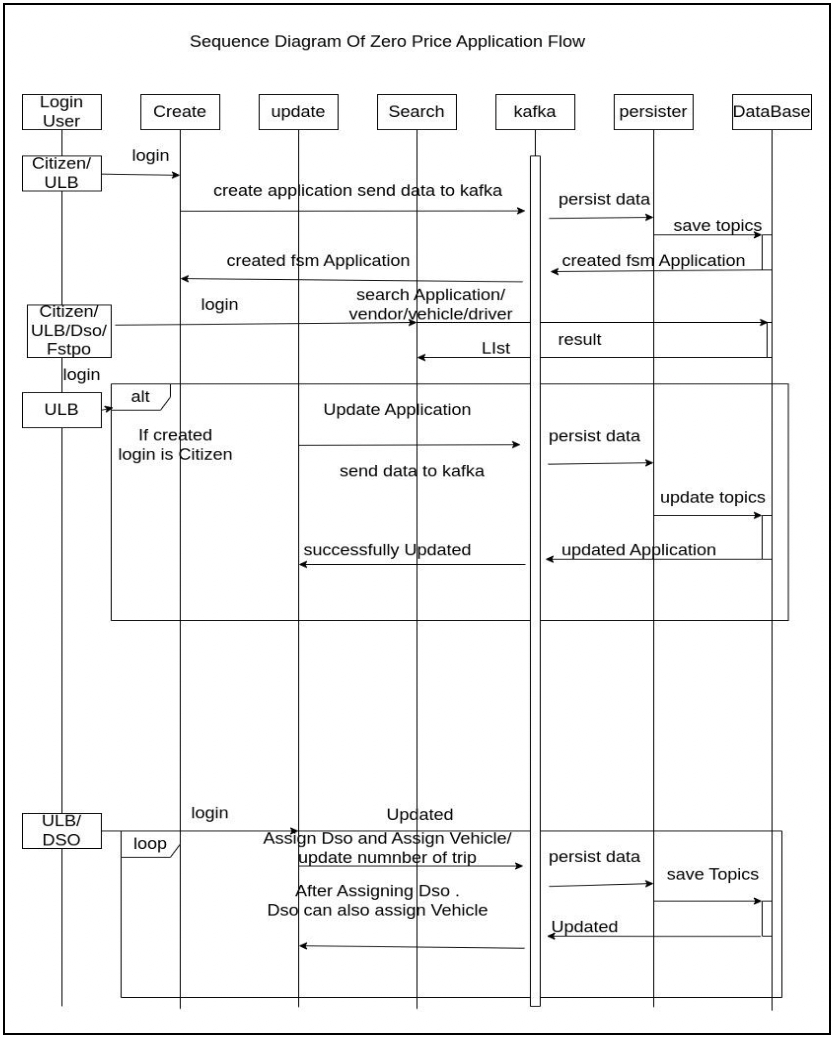

## Web Sequence Diagrams

<figure><img src="https://content.gitbook.com/content/XBU7xhTVuMJw3ncxgvWz/blobs/35B9TJuzU5La6KFPgamD/Screenshot%202023-04-25%20at%209.13.04%20AM.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XBU7xhTVuMJw3ncxgvWz/blobs/5rQW9r4rJfiQx9zKGbaF/Screenshot%202023-04-25%20at%209.14.15%20AM.png" alt=""><figcaption></figcaption></figure>
