# View Past Test Results/Test's Summary Screen
From the TQM card in the home screen, there is a link to "View Past Tests".
## View Past Tests/Test's Summary Screen
* The view past tests screen will show the tests whose workflow is completed, that is, they are in the submitted status.
* The screen shows a list of cards, each card corresponding to a test, and shows test details similar to inbox.
* Filters and sort options are available.
* User can filter by Treatment process, Output Type, Test Type and the date range.
* Sort is similar to inbox.

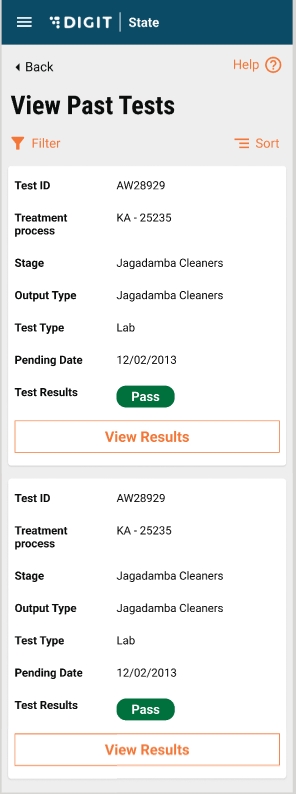

View Past Tests
## API Details:
* Use the pqm-service.
* URL for search "/pqm-service/v1/\_search".
* Sample request object:
```
{
"testSearchCriteria": {
"processCodes": [
"WATER_FILTERING",
"FECAL_SLUDGE_MANAGEMENT"
],
"materialCodes": [
"ARSENIC",
"NA",
"SCREENED_SLUDGE",
"FECAL_SLUDGE",
"EFFLUENTS",
"BIOSOLID",
"CHLORINE",
"SALT",
"IRON",
"POTABLE_WATER"
],
"testType": [
"IOT_SCHEDULED",
"LAB_ADHOC",
"LAB_SCHEDULED"
],
"fromDate": 1698777000000,
"toDate": 1701368999000,
"wfStatus": [
"SUBMITTED"
],
"plantCodes": [
"ANGUL_FSTP",
"PURI_FSTP"
]
},
"pagination": {
"limit": 100
},
"RequestInfo": {
"apiId": "Rainmaker",
"authToken": "e5d10a5d-b262-47fc-a9ee-fc24c3a0de19",
"userInfo": {
"id": 721,
"uuid": "41488b21-c742-4290-af8e-a2a1dc3749ac",
"userName": "TQM_DEV_PLANTOPERATOR",
"name": "Plant operator",
"mobileNumber": "7281638699",
"emailId": null,
"locale": null,
"type": "EMPLOYEE",
"roles": [
{
"name": "PQM TP OPERATOR",
"code": "PQM_TP_OPERATOR",
"tenantId": "pg.citya"
}
],
"active": true,
"tenantId": "pg.citya",
"permanentCity": null
},
"msgId": "1701076145507|en_IN",
"plainAccessRequest": {}
}
}
```
* #### Sample curl for search:
```
curl 'https://unified-dev.digit.org/pqm-service/v1/_search' \
-H 'authority: unified-dev.digit.org' \
-H 'accept: application/json, text/plain, */*' \
-H 'accept-language: en-US,en;q=0.9' \
-H 'content-type: application/json;charset=UTF-8' \
-H 'cookie: _ga_V2CPZCVTXQ=GS1.1.1695293925.1.1.1695293950.0.0.0; __cuid=59fd9aac25b044f6af006bd4b159cbbf; amp_fef1e8=f4fc07f6-3fb0-4c67-8114-a1beb906e625R...1hf75985a.1hf76uet8.i.8.q; _ga_P1TZCPKF6S=GS1.1.1699974064.1.1.1699975479.60.0.0; _ga=GA1.2.1291438273.1695293925; _ga_0JZG96DZSM=GS1.1.1699977339.2.0.1699977339.60.0.0' \
-H 'origin: https://unified-dev.digit.org' \
-H 'referer: https://unified-dev.digit.org/sanitation-ui/employee/tqm/search-test-results' \
-H 'sec-ch-ua: "Google Chrome";v="119", "Chromium";v="119", "Not?A_Brand";v="24"' \
-H 'sec-ch-ua-mobile: ?1' \
-H 'sec-ch-ua-platform: "Android"' \
-H 'sec-fetch-dest: empty' \
-H 'sec-fetch-mode: cors' \
-H 'sec-fetch-site: same-origin' \
-H 'user-agent: Mozilla/5.0 (Linux; Android 6.0; Nexus 5 Build/MRA58N) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/119.0.0.0 Mobile Safari/537.36' \
--data-raw '{"testSearchCriteria":{"processCodes":["WATER_FILTERING","FECAL_SLUDGE_MANAGEMENT"],"materialCodes":["ARSENIC","NA","SCREENED_SLUDGE","FECAL_SLUDGE","EFFLUENTS","BIOSOLID","CHLORINE","SALT","IRON","POTABLE_WATER"],"testType":["IOT_SCHEDULED","LAB_ADHOC","LAB_SCHEDULED"],"fromDate":1698777000000,"toDate":1701368999000,"wfStatus":["SUBMITTED"],"plantCodes":["ANGUL_FSTP","PURI_FSTP"]},"pagination":{"limit":100},"RequestInfo":{"apiId":"Rainmaker","authToken":"e5d10a5d-b262-47fc-a9ee-fc24c3a0de19","userInfo":{"id":721,"uuid":"41488b21-c742-4290-af8e-a2a1dc3749ac","userName":"TQM_DEV_PLANTOPERATOR","name":"Plant operator","mobileNumber":"7281638699","emailId":null,"locale":null,"type":"EMPLOYEE","roles":[{"name":"PQM TP OPERATOR","code":"PQM_TP_OPERATOR","tenantId":"pg.citya"}],"active":true,"tenantId":"pg.citya","permanentCity":null},"msgId":"1701076145507|en_IN","plainAccessRequest":{}}}' \
--compressed
```
## Role-Action Mapping:
Role-action mapping is done for the search endpoint for a plant operator user role, that is:
```json
PQM_TP_OPERATOR
```
---
