MDMS Changes

Overview

The following MDMS changes were done as part of the FSM v1.4 release:

MDMS Changes

Feature
Service name
Changes
Description

PQM inbox

MDMS for inbox

PR#3123

Added MDMS configuration for inbox-v2 integration.

Role Action

MDMS

Added role-action mapping for all APIs of the PQM service.

For MDMS-V2 changes, refer to the below table for the sequence in which MDMS schema and data needs to be added for the PQM service:

MasterName
Schema Link
Required Fields
Unique Fields

PQM.BenchmarkRule

Postman Collection

id, code, name

code

PQM.QualityTestLab

Postman Collection

code

code

PQM.Material

Postman Collection

code, name

code

PQM.Parameter

Postman Collection

code, name

code

PQM.PlantConfig

Postman Collection

code, pendingTestsToDisplayWithinDays, pendingTestsToDisplayWithinDaysInbox, pendingTestsToDisplayWithinDaysForULB, iotAnomalyDetectionDays, manualTestPendingEscalationDays

code

PQM.PlantType

Postman Collection

code, name

code

PQM.ProcessType

Postman Collection

code, name

code

PQM.Unit

Postman Collection

code, name

code

PQM.WasteType

Postman Collection

code, name

code

PQM.SourceType

Postman Collection

code, name

code

PQM.Stage

Postman Collection

code, name, output

code

PQM.Process

Postman Collection

code, type, name, stages, wasteType

code

PQM.Plant

Postman Collection

code, plantType, active

code

PQM.QualityCriteria

Postman Collection

code, name, plantType, wasteType, address, processes

code

PQM.TestStandard

Postman Collection

code, plant, process, stage, material, qualityCriteria, frequency, sourceType

code

UI-Related MDMS Files

  • Make sure TQM and FSM is enabled in this master -> cityModule.json

  • data/pg/common-masters/howItWorks.json -> HowItWorks

  • data/pg/FSM/SanitationWorkerSkills.json -> SanitationWorkerSkills

  • data/pg/FSM/SanitationWorkerEmploymentType.json -> File Link

  • data/pg/FSM/SanitationWorkerEmployer.json -> File Link

  • data/pg/FSM/SanitationWorkerFunctionalRoles.json -> File Link

Role-Action Mapping

data/pg/ACCESSCONTROL-ACTIONS-TEST/actions-test.json

data/pg/ACCESSCONTROL-ACTIONS-TEST/actions-test.json:

PQM.Benchmark

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

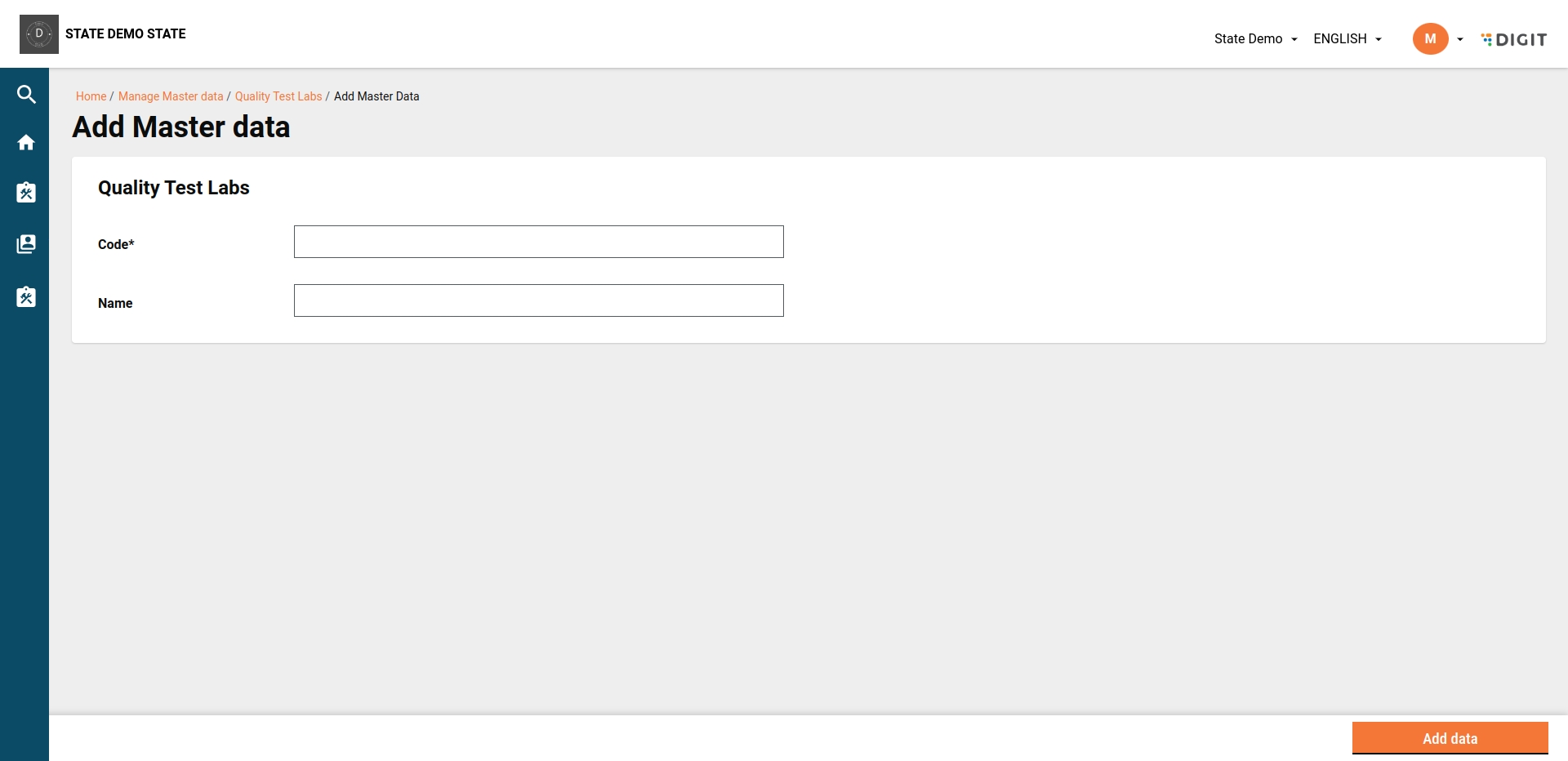

PQM.QualityTestLab

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

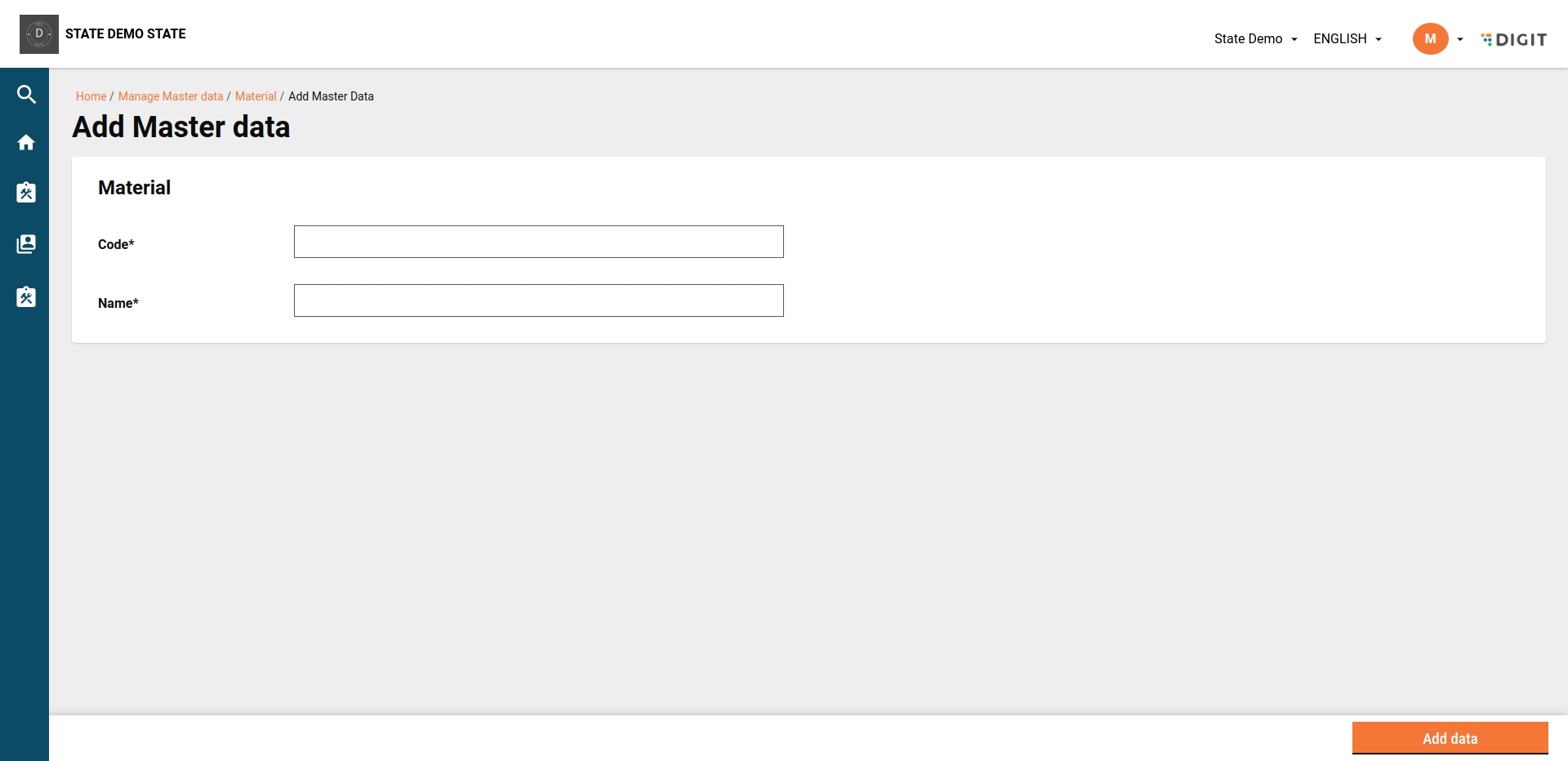

PQM.Material

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

PQM.Parameter

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

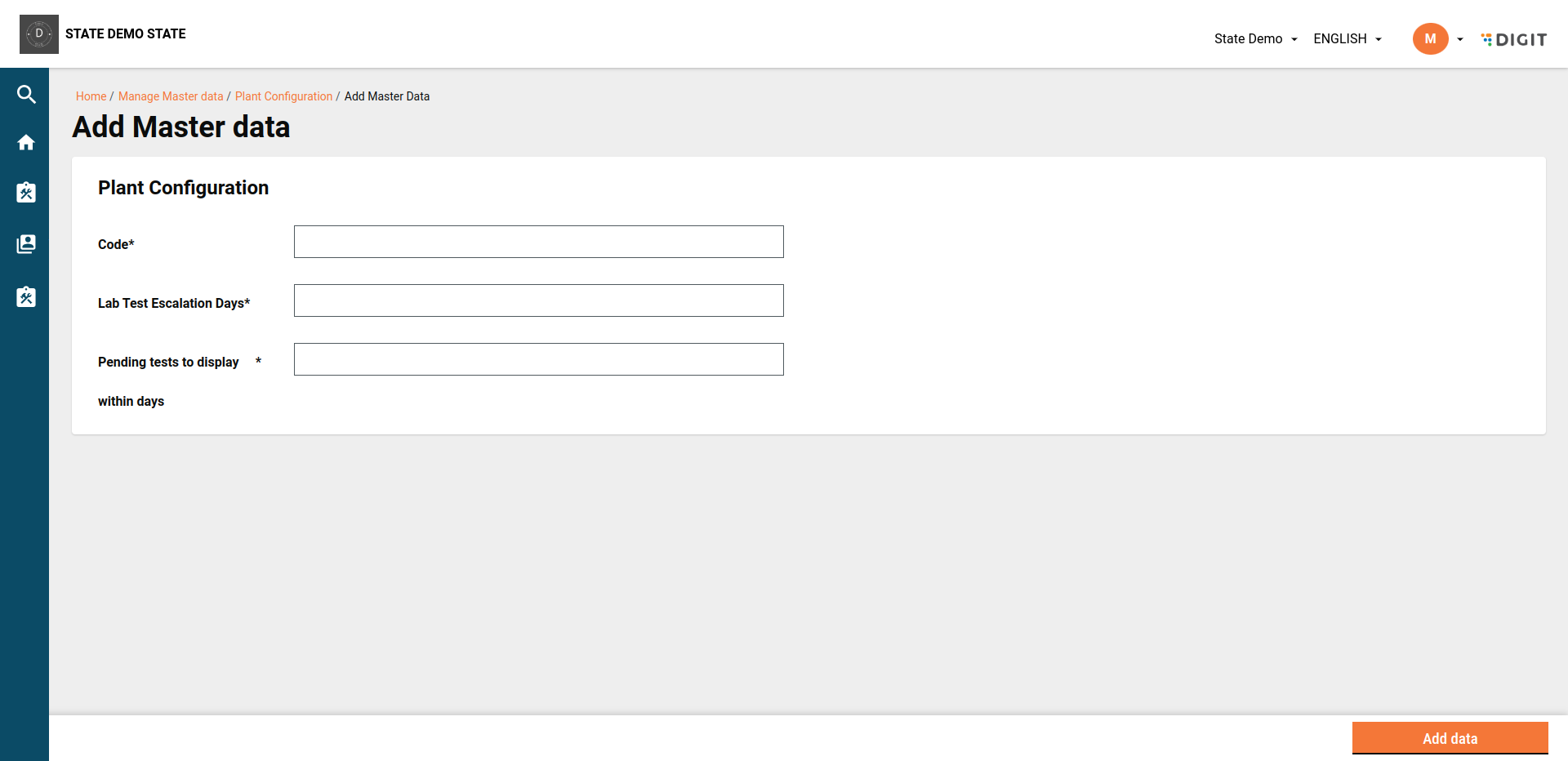

PQM.PlantConfig

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

manualTestPendingEscalationDays

The number of days after which a scheduled test that is still pending requires escalation.

pendingTestsToDisplayWithinDays

The number of days within which pending tests, assessments, or evaluations should be displayed or considered.

PQM.PlantType

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

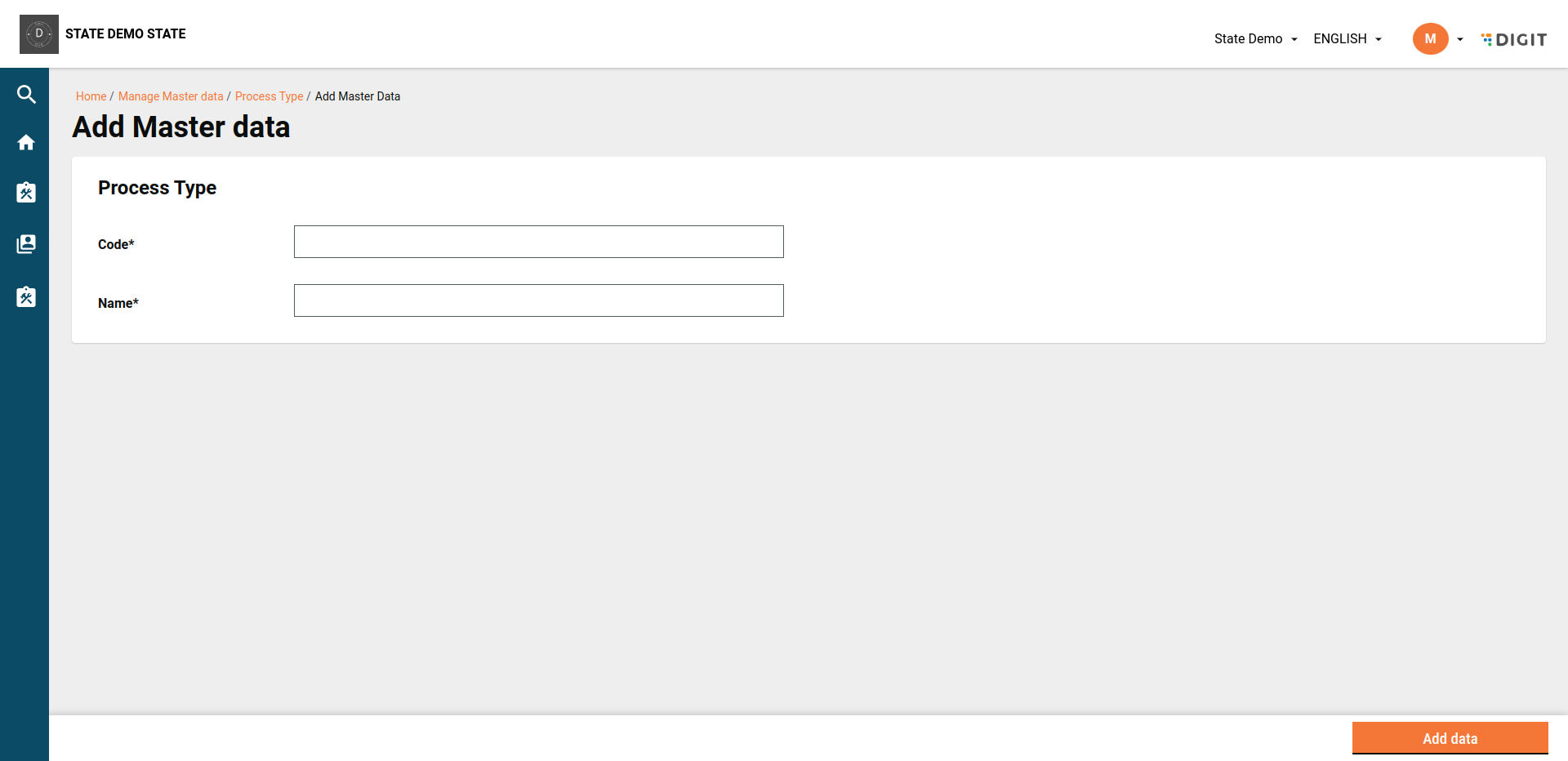

PQM.ProcessType

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

PQM.Unit

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

PQM.WasteType

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

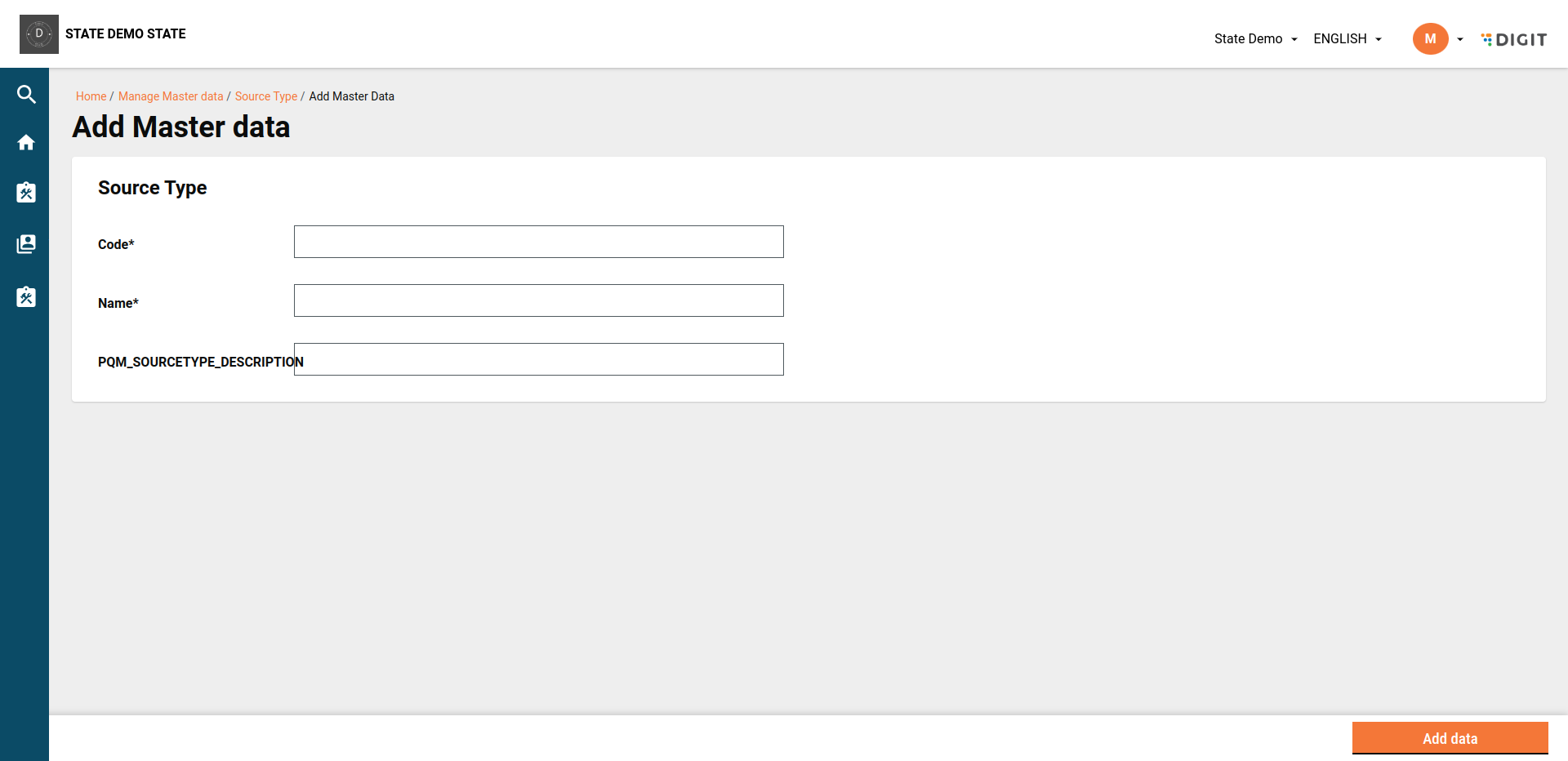

PQM.SourceType

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

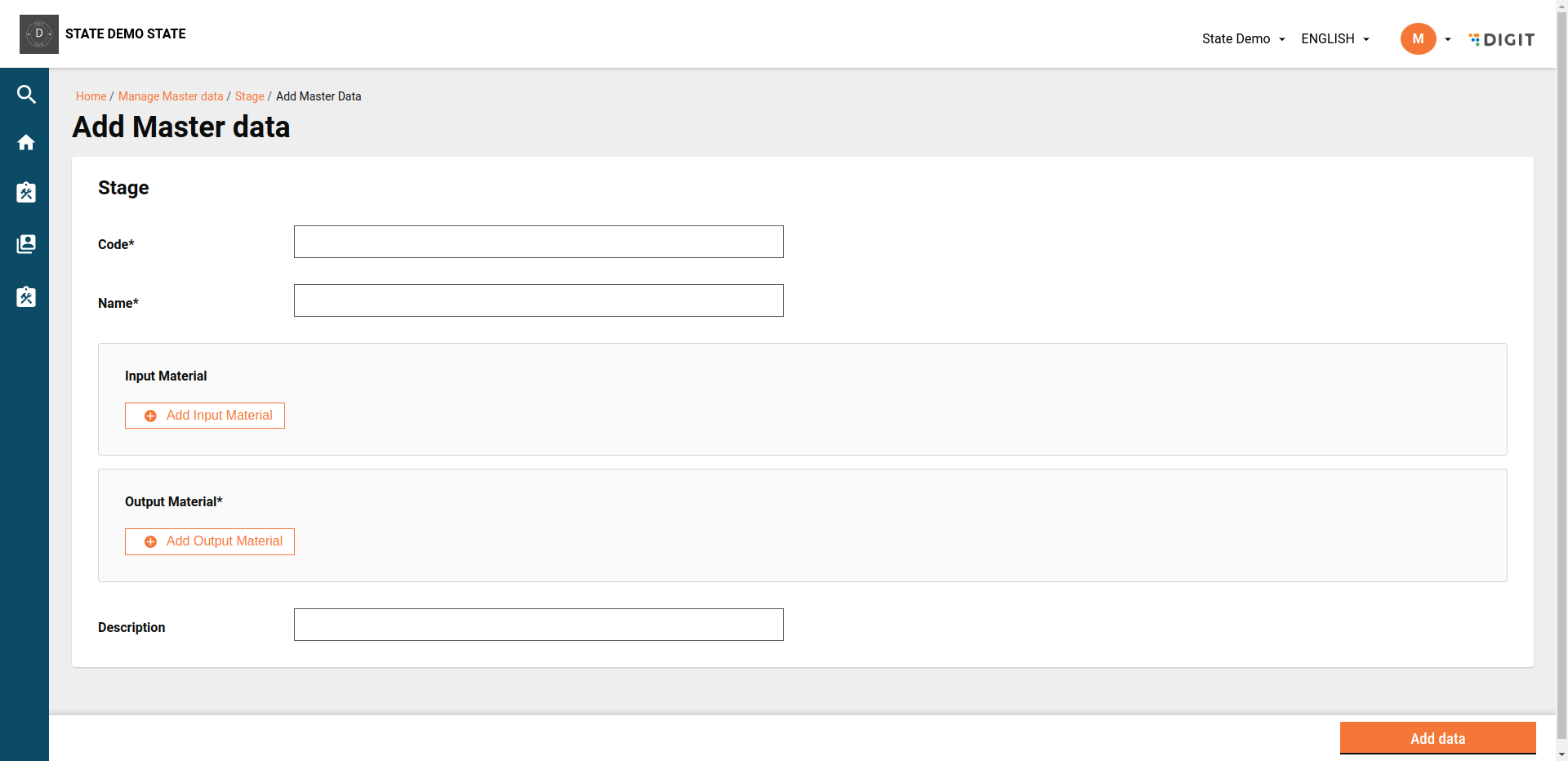

PQM.Stage

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

input

Materials provided as input to a stage.

output

Materials provided as output to a stage.

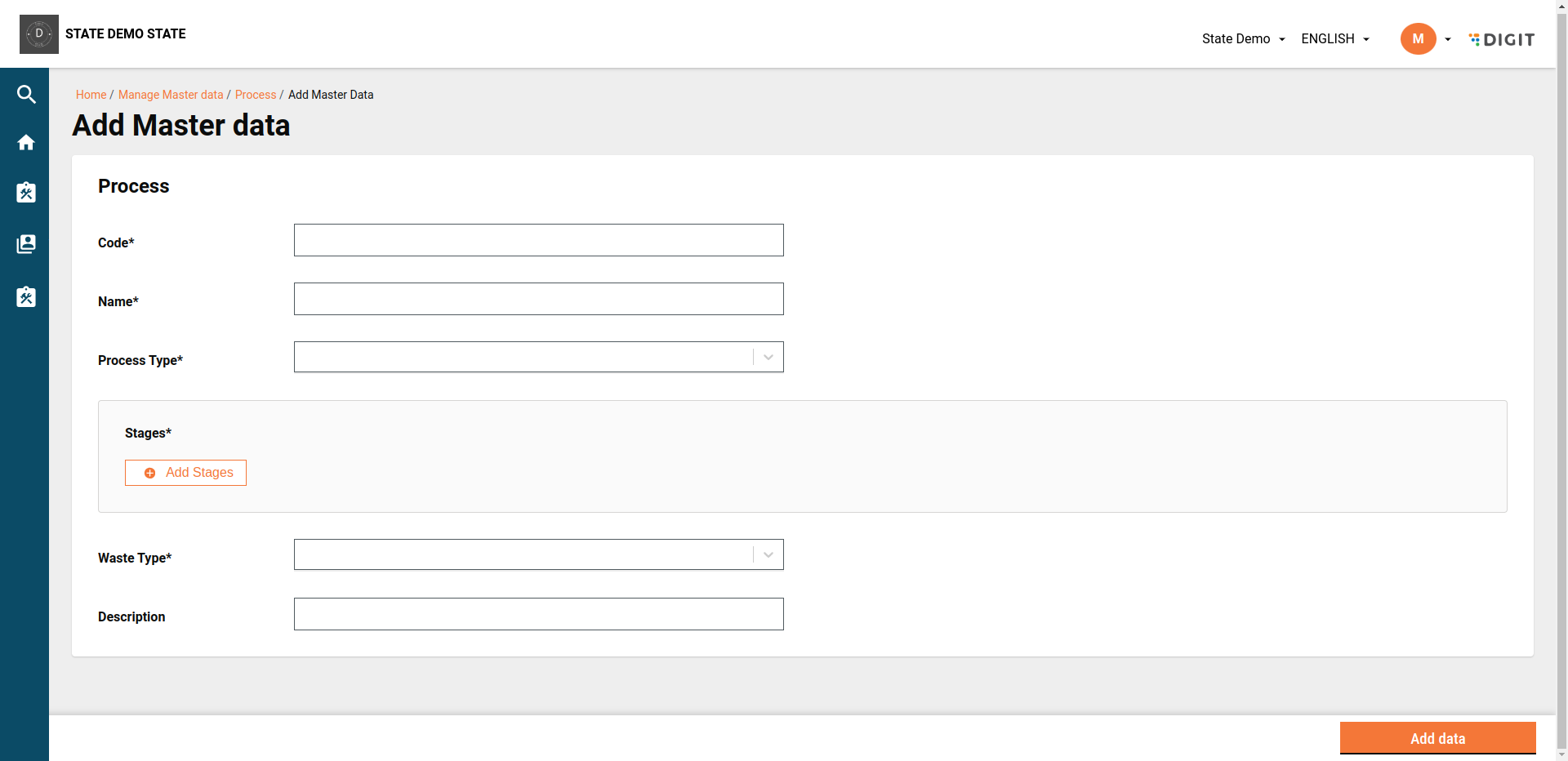

PQM.Process

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

type

Defines the type of process.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

stages

A list of stages that come under a particular process.

wasteType

The classification of waste materials based on their characteristics or origin.

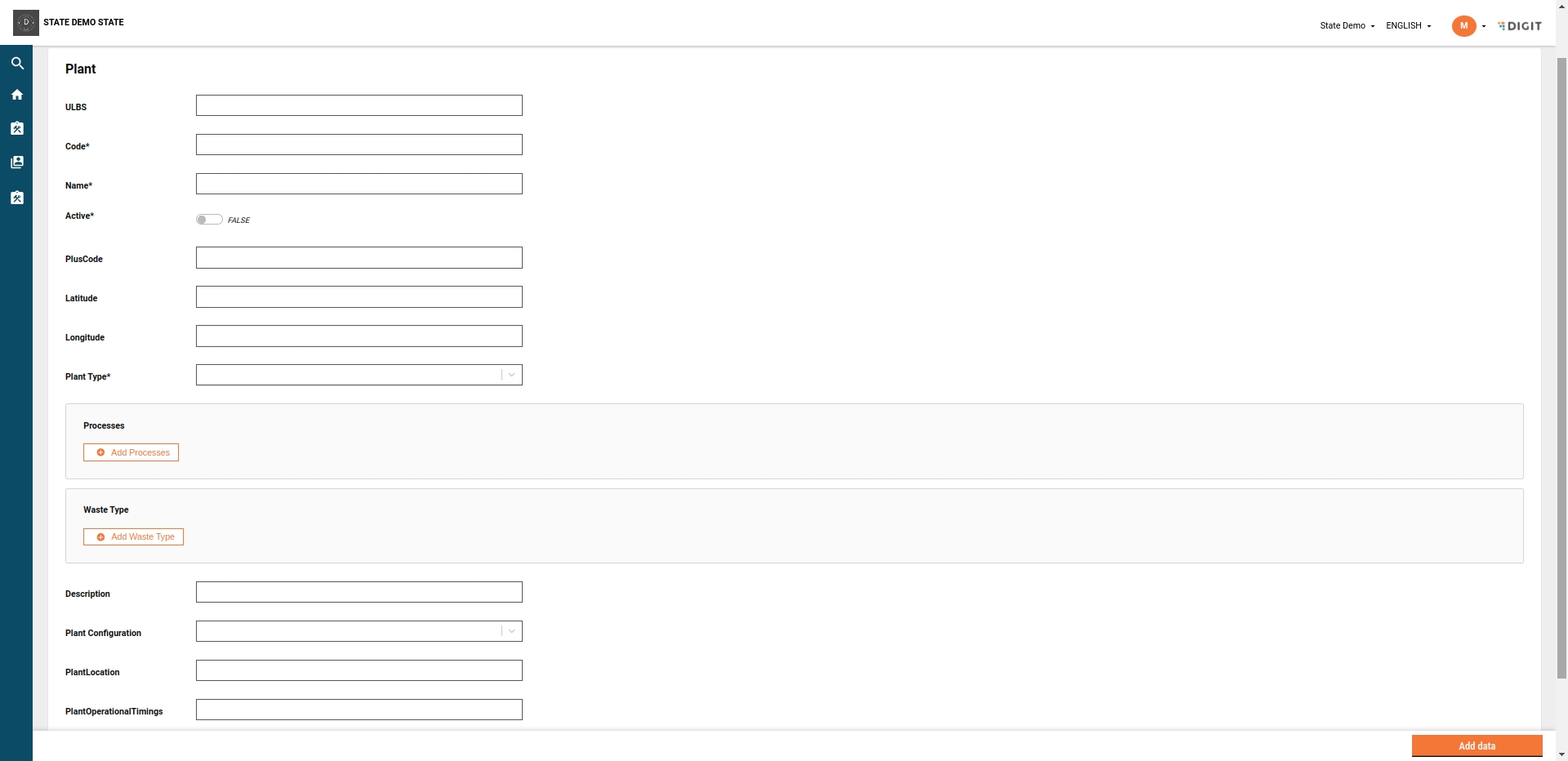

PQM.Plant

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the record.

name

Textual or human-readable identity given to a record.

description

Details or explanation for a record.

plantType

The classification of plants based on their processing.

wasteType

The classification of waste materials based on their characteristics or origin

address

Location details for a particular plant.

processes

A list of processes that happen under a particular plant.

plantConfig

Configuration details for a particular plant.

ULBs

Comma separted ULB list who have operational access to. e.g. pg.cityb, pg.cityb

PlusCode

Address of the plant. e.g. JQ2R+7G Khapar Kheri, Punjab

Latitude

Latitude of the plant location

Longitude

Logitude value of the plant location

PlantLocation

Location of the plant. e.g. Bhalasore

PlantOperationalTimings

Plant Operational Timings. E.g. 10.00am-08.00pm

PlantOperationalCapcityKLD

Capacity of the plant for operating at max. E.g.50

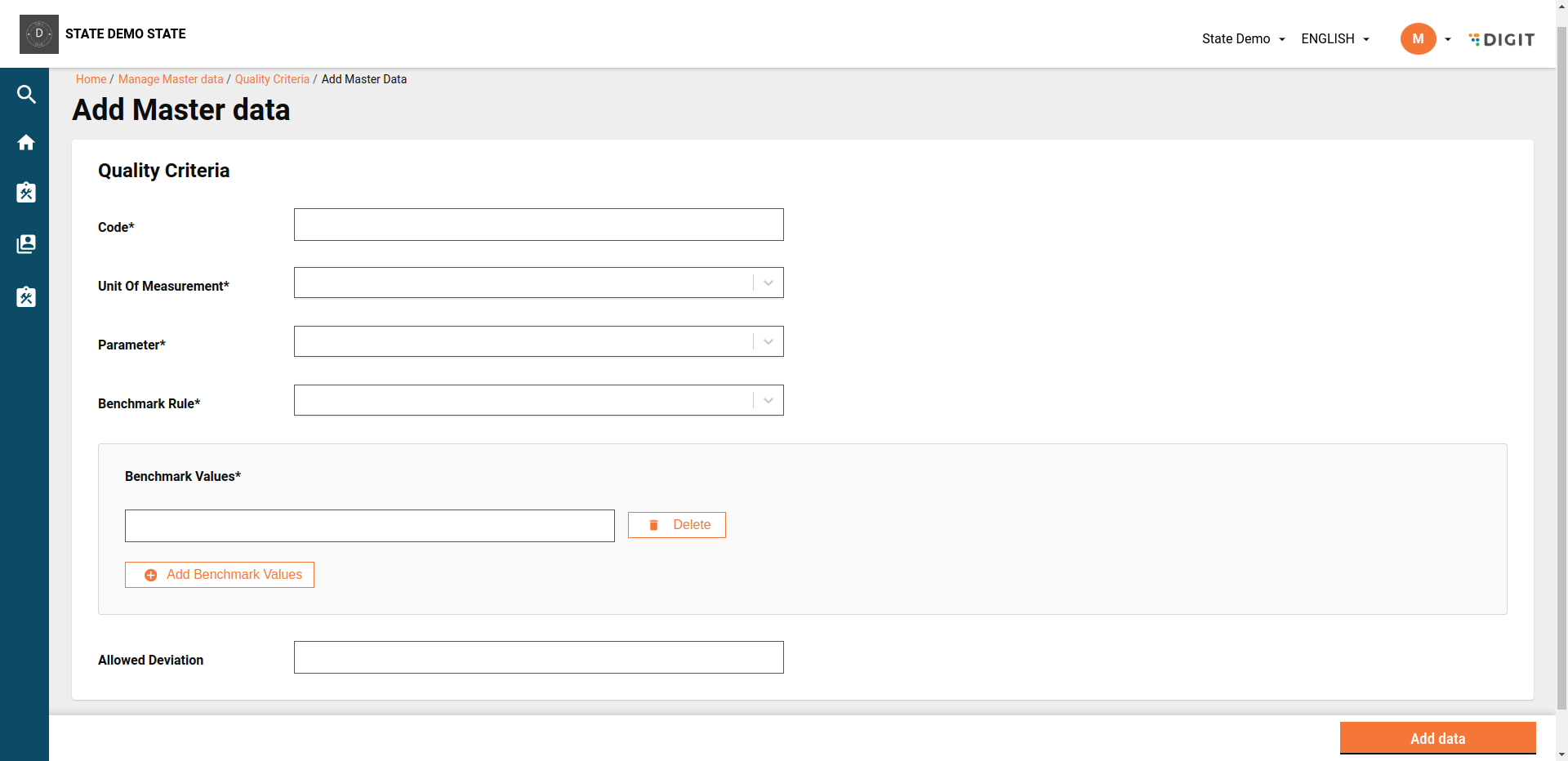

PQM.QualityCriteria

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

parameter

Anything that is measurable as an input/output for a particular stage.

unit

The unit for measuring this particular parameter.

benchmarkRule

The rules according to which a test value should be tested (For example, greater than, less than, equals to).

benchmarkValues

Specific numbers on which the benchmark rule is applied for a test value.

allowedDeviation

The acceptable difference from the benchmark values.

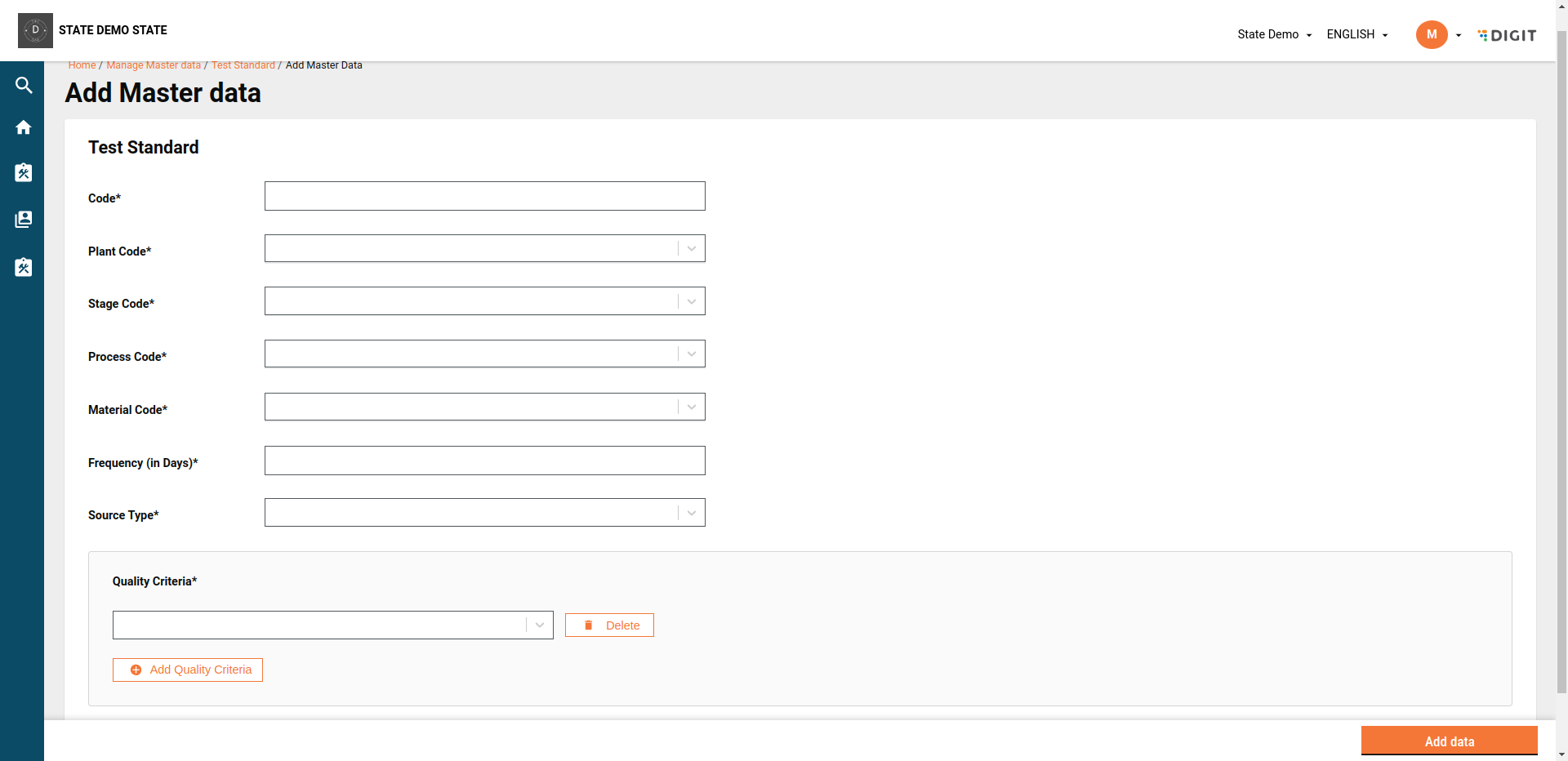

PQM.TestStandard

Field
Definition

code

Alphanumeric or numeric representation assigned to uniquely identify the field.

plant

Plant code for which this test standard is registered.

process

Process code for which this test standard is registered.

stage

Stage code for which this test standard is registered.

material

Material code for which this test standard is registered.

qualityCriteria

The quality criteria which is applicable for the unique combination of plant, process, stage, and material.

frequency

The frequency at which this test standard should be scheduled.

sourceType

The origin of this particular test standard.
