# Attendance

## Overview

Attendance service allows users to maintain attendance registers, enrol individuals, create, update or search attendance logs and manage staff permissions.

## API Specifications

**Base Path:** /attendance/

### API Contract Link

{% embed url="<https://editor.swagger.io/?url=https://raw.githubusercontent.com/egovernments/DIGIT-Works/master/backend/attendance/Attendance-Service-1.0.0.yaml>" %}

## Data Model

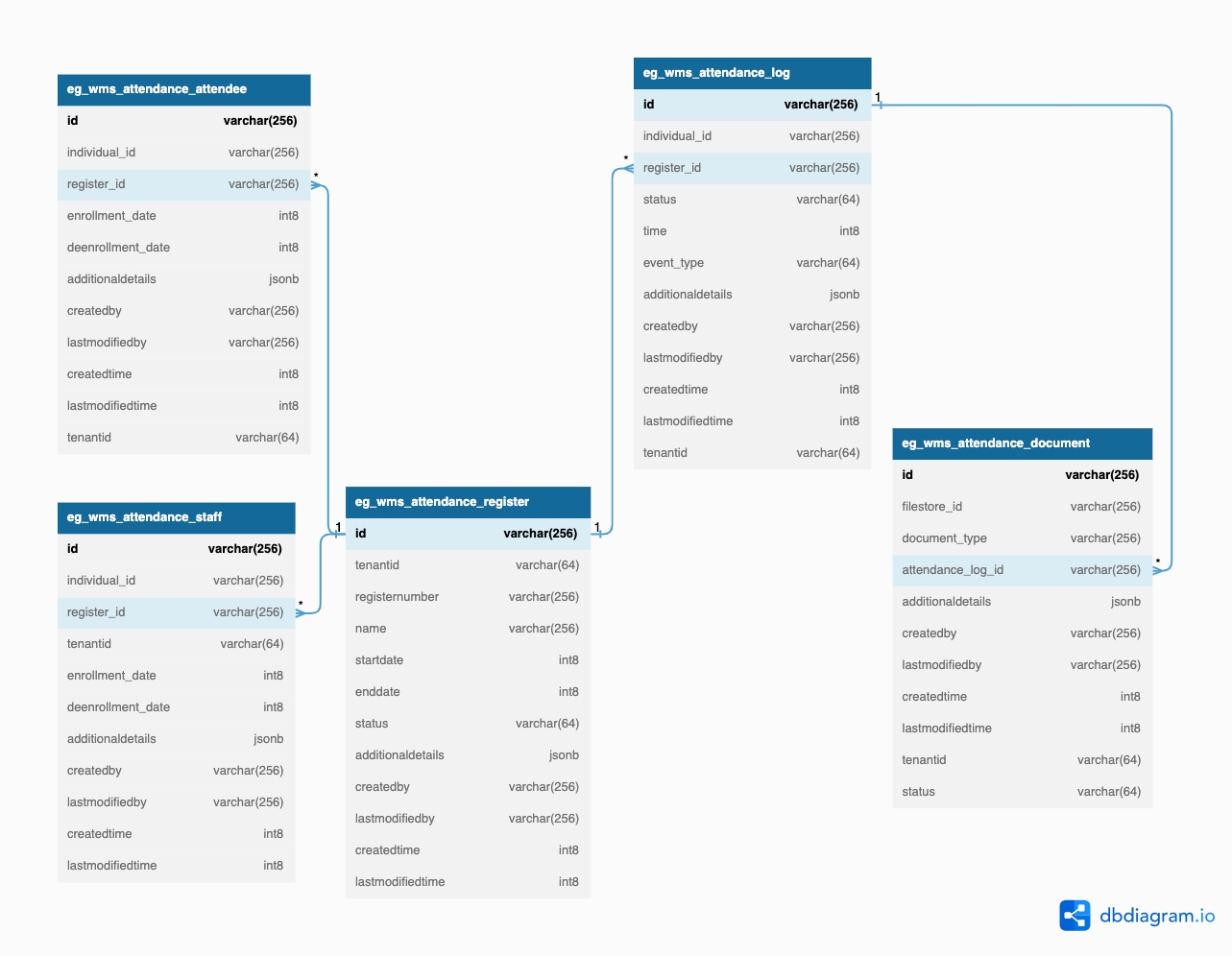

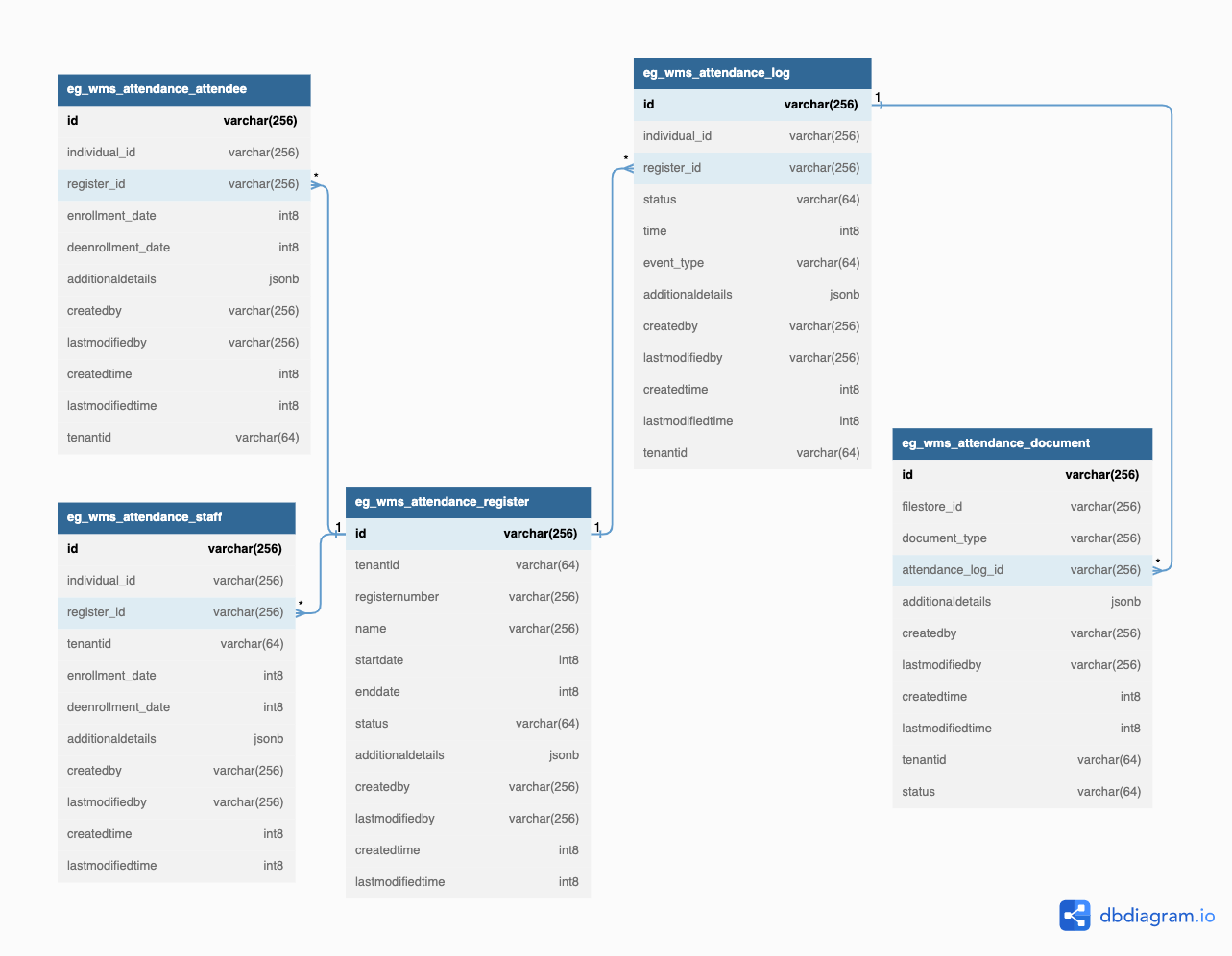

### DB Schema Diagram

<figure><img src="/files/oroik7MKotdEhu6yK4Ik" alt=""><figcaption></figcaption></figure>

## Web Sequence Diagram

#### Attendance Register

{% tabs %}

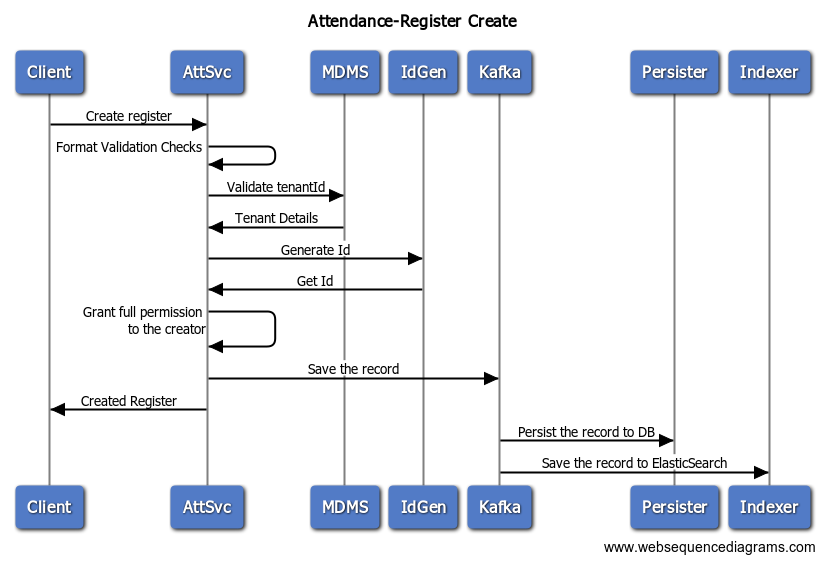

{% tab title="Create" %}

<figure><img src="/files/8pxEGQwn6ZeqeGbJvOIR" alt=""><figcaption></figcaption></figure>

{% endtab %}

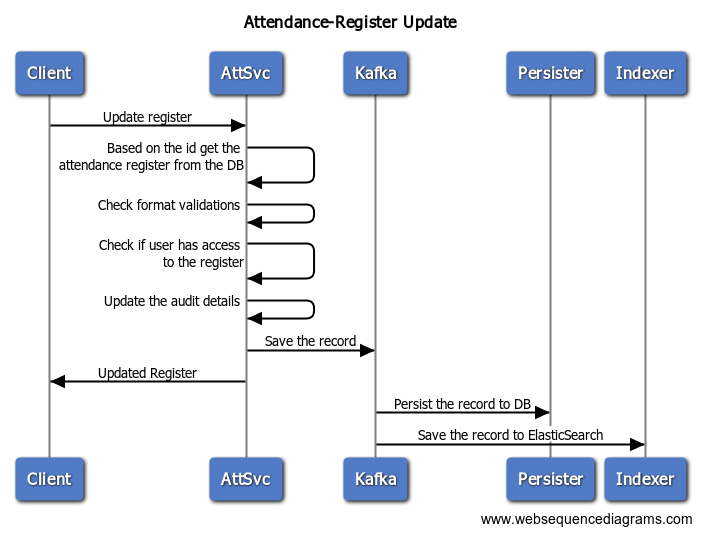

{% tab title="Update" %}

<figure><img src="/files/tT0l6CYYUIR9BpTWlNbb" alt=""><figcaption></figcaption></figure>

{% endtab %}

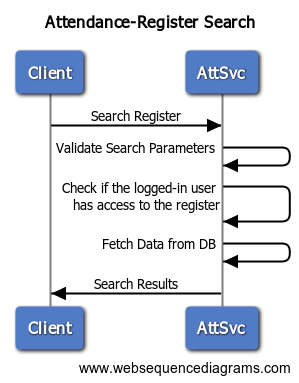

{% tab title="Search" %}

<figure><img src="/files/vQmQRDvoWuqz1PmBWRc6" alt=""><figcaption></figcaption></figure>

{% endtab %}
{% endtabs %}

#### Staff

{% tabs %}

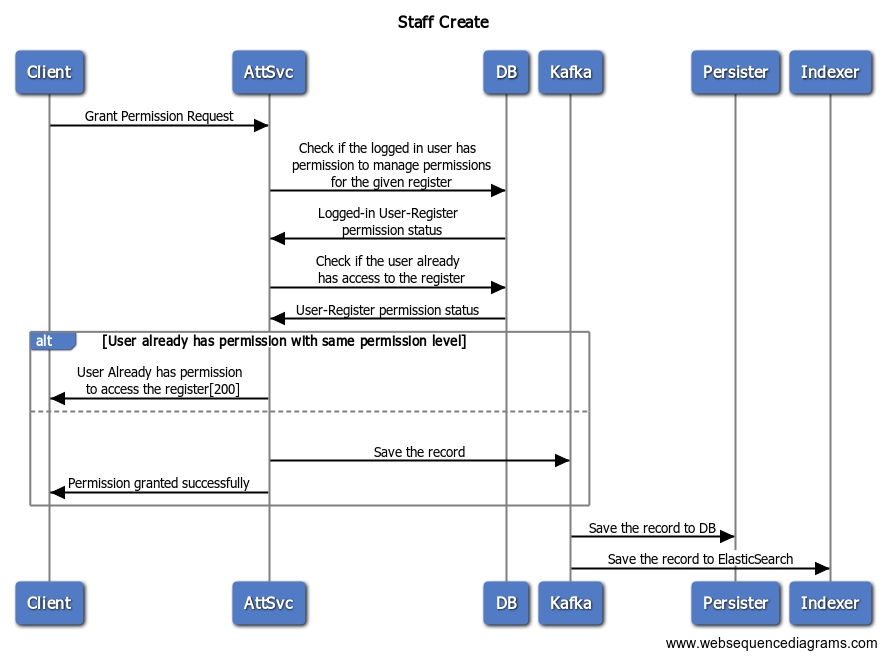

{% tab title="Create" %}

<figure><img src="/files/E3Egd8IyW0x5sCxdU2Mt" alt=""><figcaption></figcaption></figure>

{% endtab %}

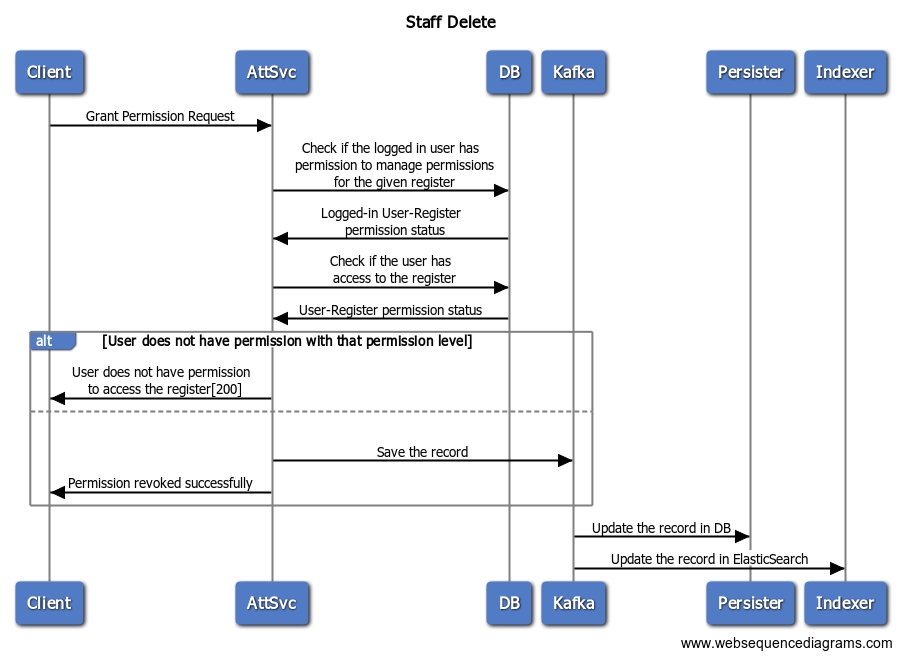

{% tab title="Update/Delete" %}

<figure><img src="/files/geROCOoQeePAsOMhH7QL" alt=""><figcaption></figcaption></figure>

{% endtab %}
{% endtabs %}

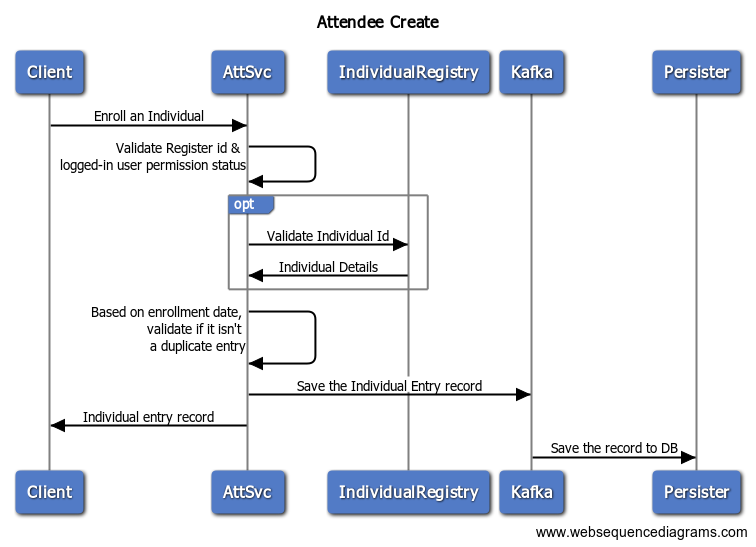

#### Attendee

{% tabs %}
{% tab title="Create" %}

<figure><img src="/files/8APpIKHiklJDe4KvDVt7" alt=""><figcaption></figcaption></figure>

{% endtab %}

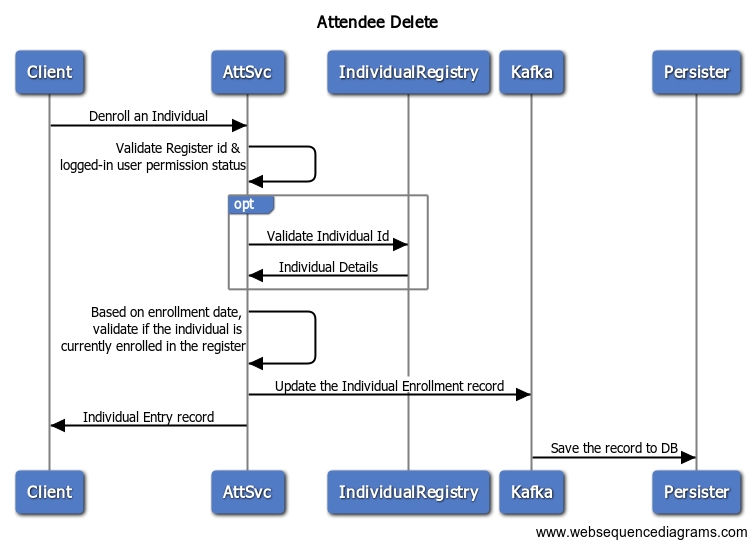

{% tab title="Delete" %}

<figure><img src="/files/v41FJ97SN0JWskS7NSmT" alt=""><figcaption></figcaption></figure>

{% endtab %}
{% endtabs %}

#### Attendance Log

{% tabs %}

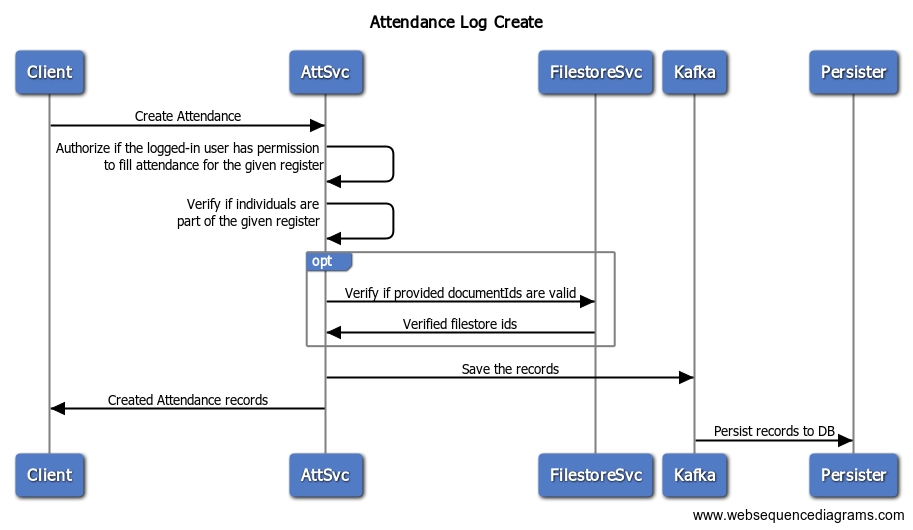

{% tab title="Create" %}

<figure><img src="/files/Kr5xUk8sooW3oObzHggf" alt=""><figcaption></figcaption></figure>

{% endtab %}

{% tab title="Update" %}

<figure><img src="/files/P1eWVlEgRzPiYVP52t9p" alt=""><figcaption></figcaption></figure>

{% endtab %}

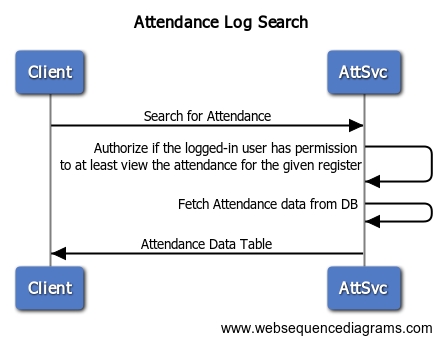

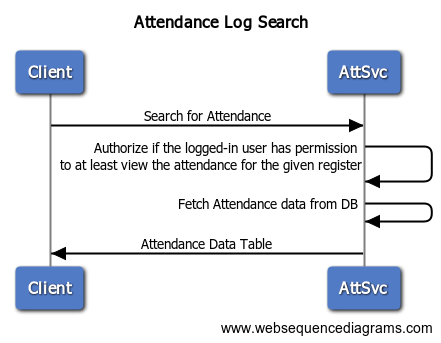

{% tab title="Search" %}

<figure><img src="/files/CynP3Nc00k5m7iJd4ZTO" alt=""><figcaption></figcaption></figure>

{% endtab %}
{% endtabs %}
