# Rate Analysis

## Overview

The service generates rate analysis for SOR (Schedule of Rates) compositions using four APIs:

1. **Job Management**:
   * **Create Job API**: Creates a new job.
   * **Search Job API**: Searches for existing jobs.
2. **Rate Analysis**:
   * **Generate Rate Analysis API**: Generates rate analysis.
   * **Create Rate Analysis API**: Saves the rate analysis.

To save the rate analysis per unit, the scheduler/create API is triggered. This internally calls the Create API and computes the rates generated with the help of the Calculate API.

This streamlined process ensures accurate rate analysis for SOR compositions.

## Dependency

* DIGIT backbone services
* Persister
* MDMSV2
* IDgen

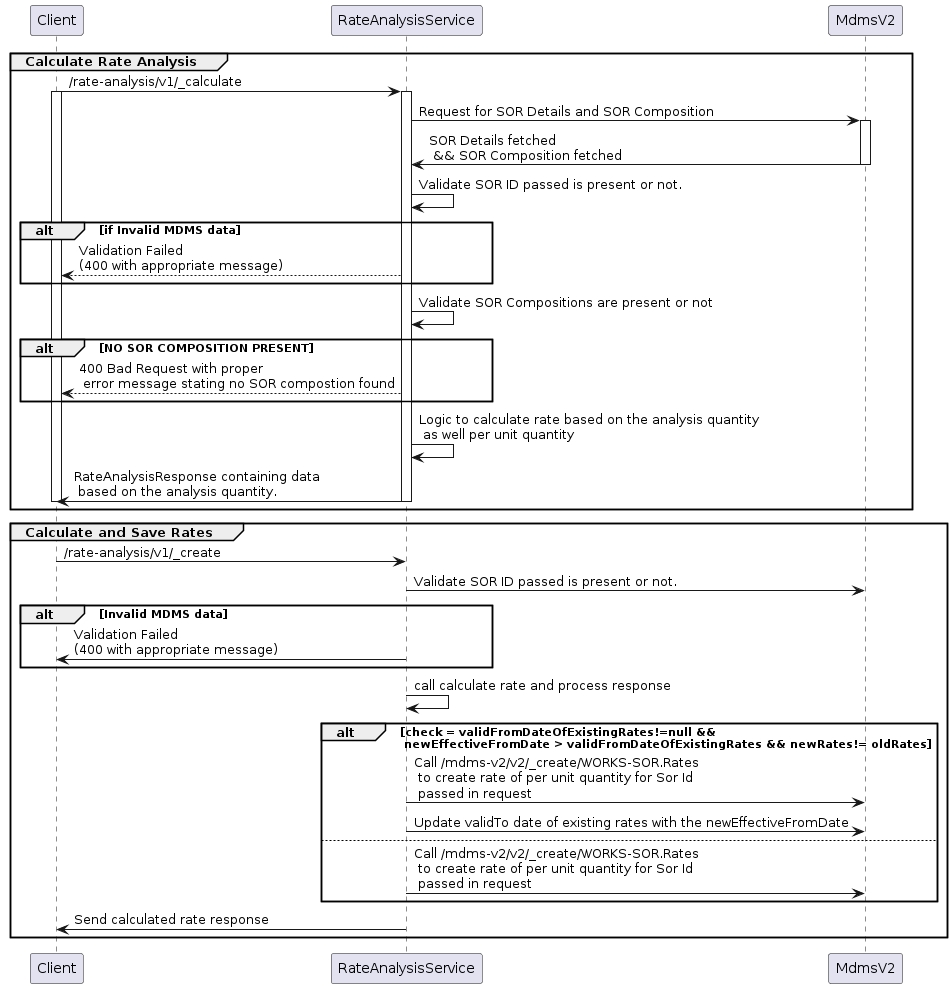

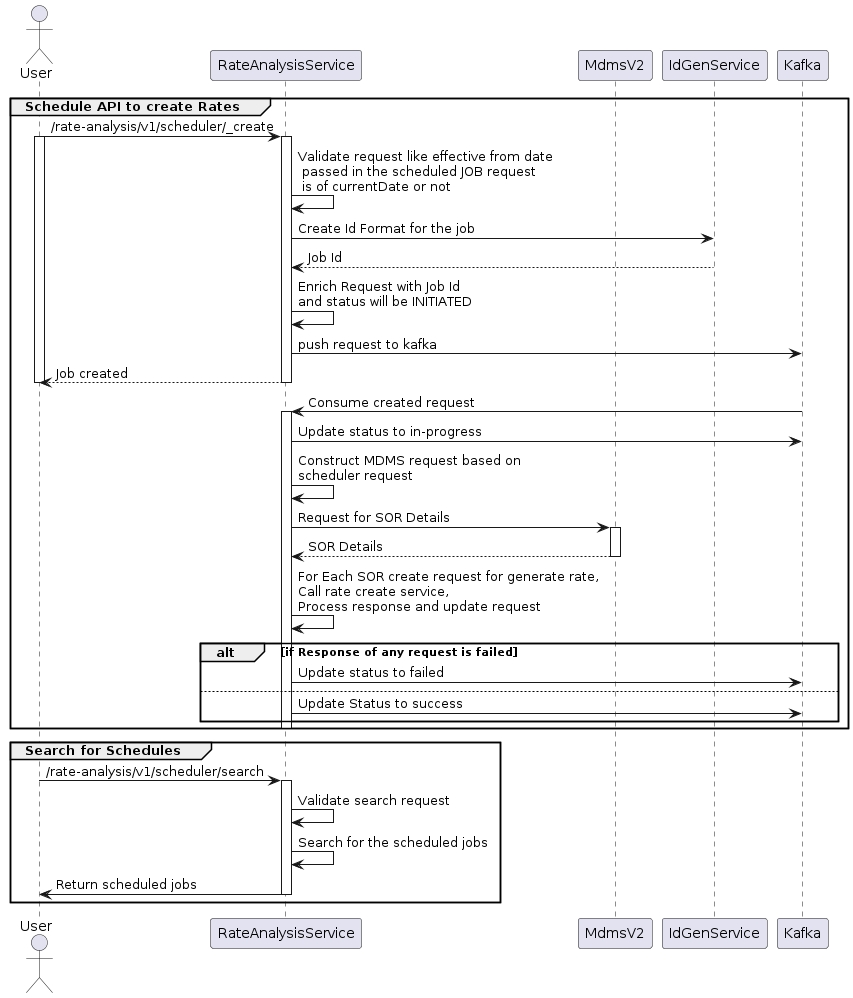

## Sequence Diagram

<figure><img src="/files/Sn9Es2hLPbICHKwLd8jF" alt=""><figcaption><p>Rate Analysis</p></figcaption></figure>

<figure><img src="/files/wyz7YgM36oRagXrDg7TA" alt=""><figcaption><p>Scheduler</p></figcaption></figure>

## API Specifications

<https://raw.githubusercontent.com/egovernments/DIGIT-Specs/works-v2/Domain%20Services/Works/Rate-Analysis-v1.0.0.yaml>

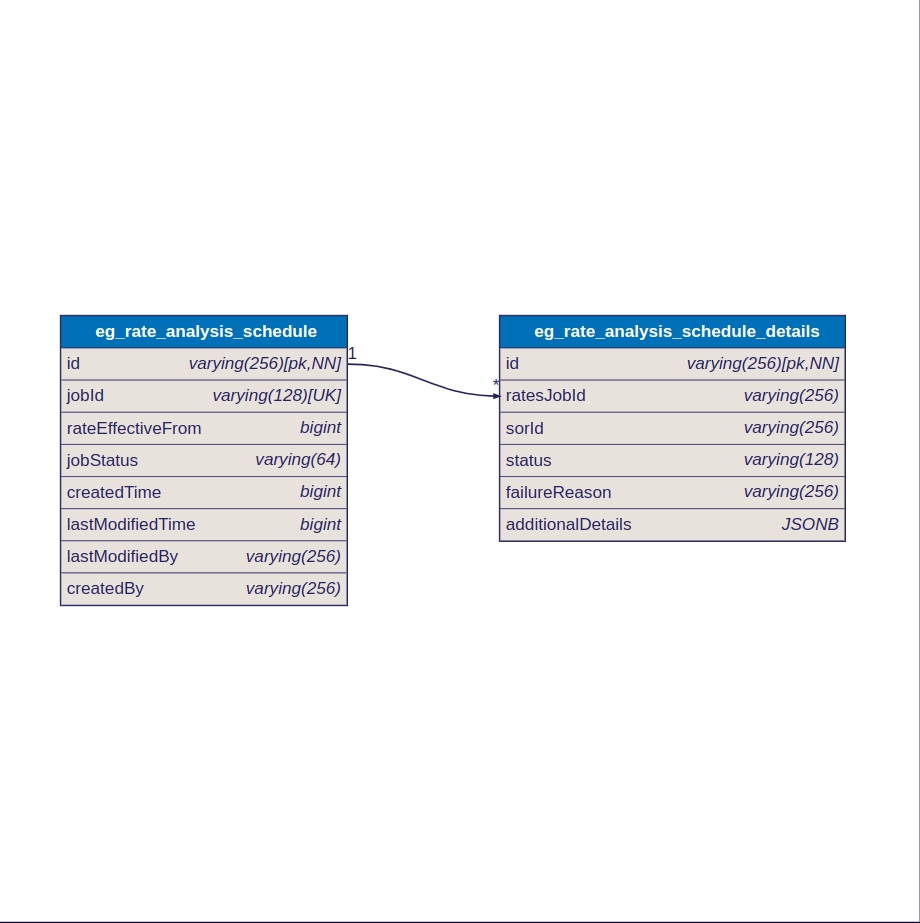

## DB Diagram

<div align="left"><figure><img src="/files/76dAEfql2UFnotrh0sJD" alt="" width="563"><figcaption><p>Rate Analysis Schedule Tables</p></figcaption></figure></div>

## Description

The Rate Analysis Save API internally calls the existing MDMSv2 API to save the rates, eliminating the need for a new database design. The Rate Analysis Create API generates the rate analysis in real-time.

The client should call the Scheduler Create API to save the generated rate analysis. This API creates a job that includes a list of SORs requiring rate revisions (even a single SOR is passed as a list).


---
