DIGIT - Projects functional details

Overview

Projects are the first work entity defined by the State/Department/ULB or any executing authority. This consists of basic details like IDs, descriptions, addresses, sub-project details, project types, start and end dates etc.

Projects may not focus on just construction or civil works. A health campaign, an office decoration, a pre-contractual phase with an IT vendor for new software, new service delivery initiatives etc are examples of projects.

Users: Junior Engineer or Assistant Engineer who creates Works Projects for the ULB/Department

Description

1. JE creates projects with the below-mentioned attributes.

2. A project can have sub-projects as well depending on the way of executing the project.

   • When a project is divided into sub-projects, each will have the same attributes to be captured as the main project.

3. A project can be sent for approval depending on the need.

   • Usually, the administrative sanction is done on projects by EO. Post approval, detailed and abstract estimates are done.

     • Once the admin sanctions the project, the fund is also blocked for the respective heads of accounts.

     • Project status -

       • Created

       • In progress

       • Approved

       • Rejected

       • Cancelled

4. Once a project is created on the UI, the system generates a unique ID for each project/sub-project.

   • ID: PROJ/<ULB/Department Code>/<Year>/<month>/<Date>/<running sequence number>

5. The project details capture the financial details such as the funding source for the project. These details, however, are not part of the Project Service but are captured as part of the Program Service.

Features & Scope

The table below provides the list of project attributes.

Field	Data Type	Required (Y/N)	Validations / Comments
Id	NA	Y	System generated UUID
Name	Alphanumeric	Y	MinChar 2 - Max Char - NA Ex - Construction of School Building
Project Type	MDMS Data	Y	Should be pre-defined master data Ex - Building
Project Sub Type	MDMS Data	N	Should be pre-defined master data. Estimate templates are linked to a project subtype Ex - School Building
Project Group	MDMS Data	Y	Should be pre-defined master data. Contract & Assetisation terms are defined based on this value. Ex - Capital Works
Address		Y	Address of the main project.
Proposed Start date	Date	N
Proposed End date	Date	N
Parent	ID	N	Parent Project ID
Status	MDMS Data	Y	Created, Rejected, Cancelled, In-progress, Completed
Owning Department	MDMS Data	Y
Reference No	Alphanumeric	N	MinChar 2 - Max Char - NA Reference No to Offline File if any
Description	Alphanumeric	N	MinChar 2 - Max Char - NA Description of the Project
Documents	Attachments	N	Upto 5 Documents each of 5 MB Document Attachments

Use Cases

A project can be divided into multiple sub-projects, each with its own workflows/business requirements defined.

Mockups

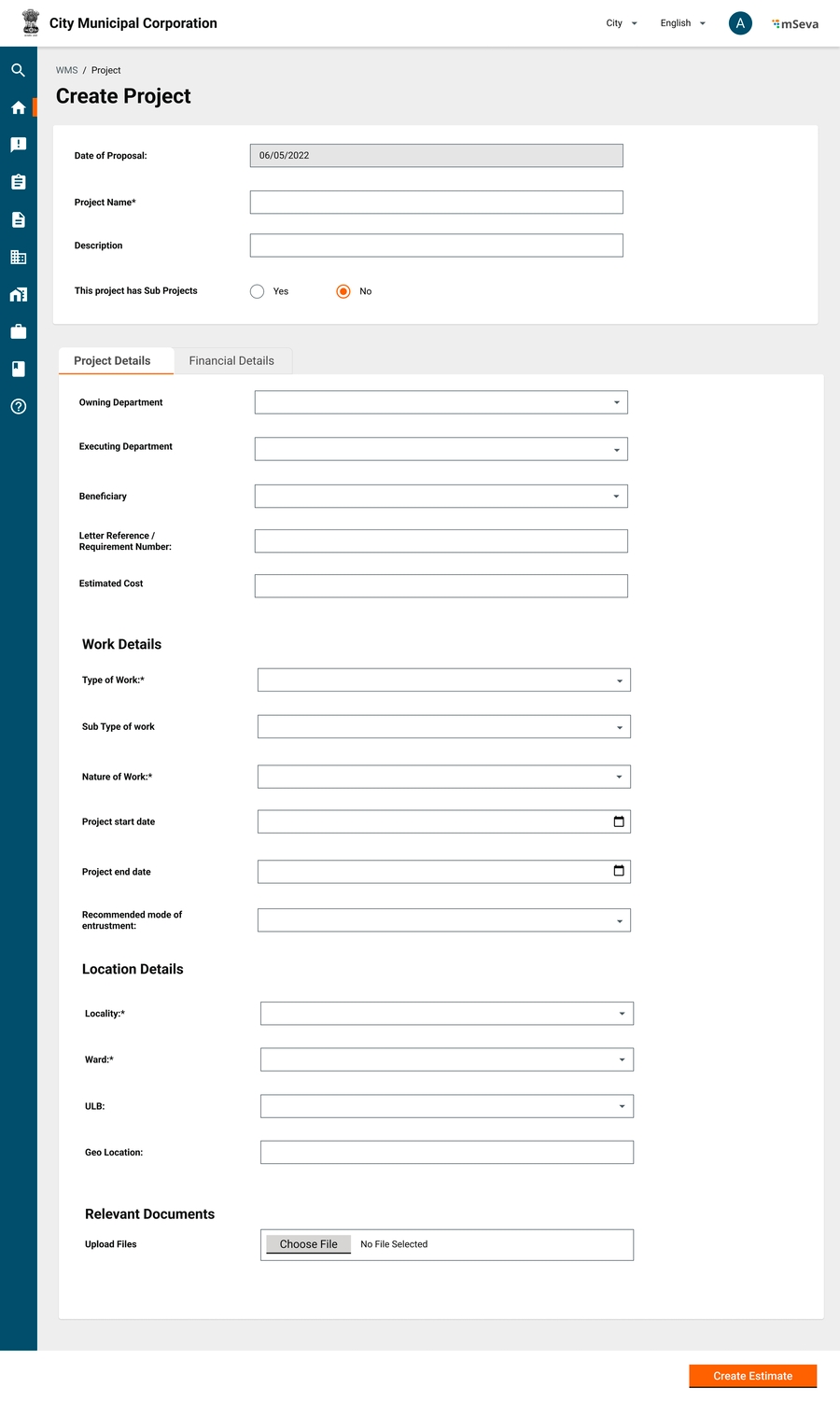

Create Project with no sub projects

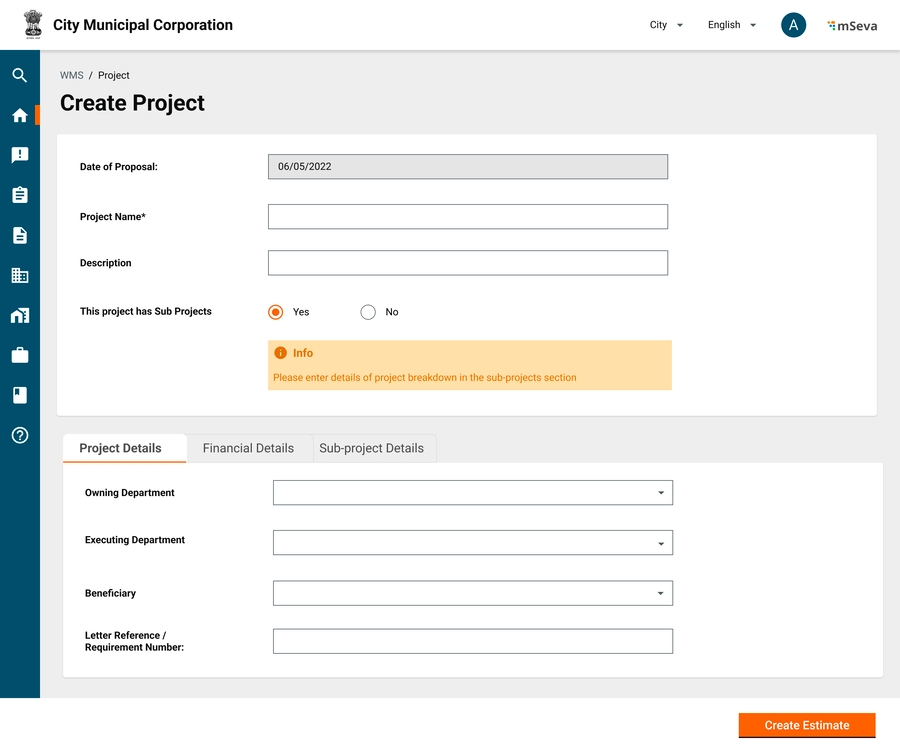

Create Project with Sub projects

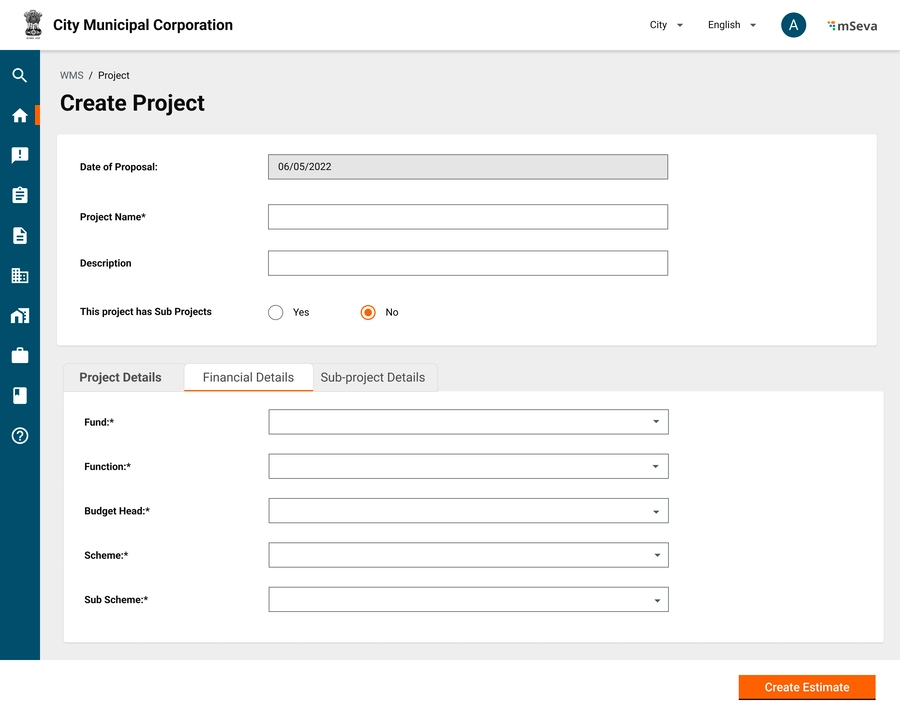

Capturing Financial details of project (Part of Program service)

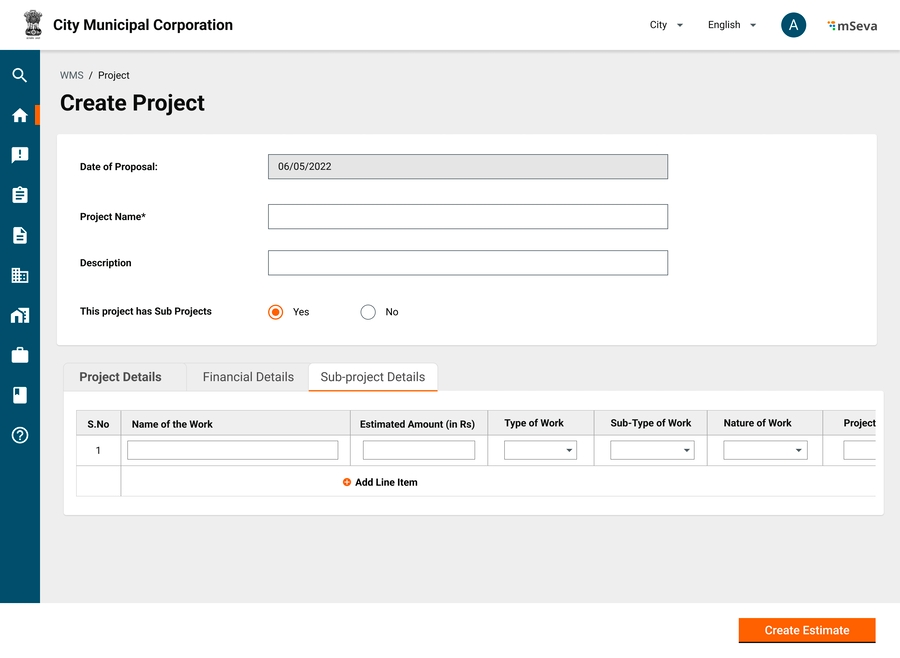

Capturing Sub Project Details

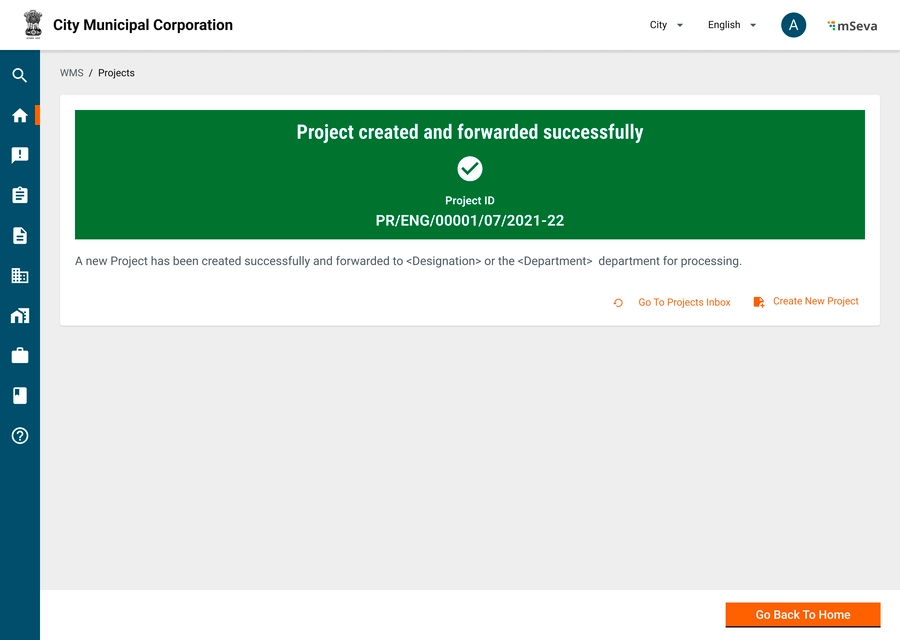

Project Created Successfully

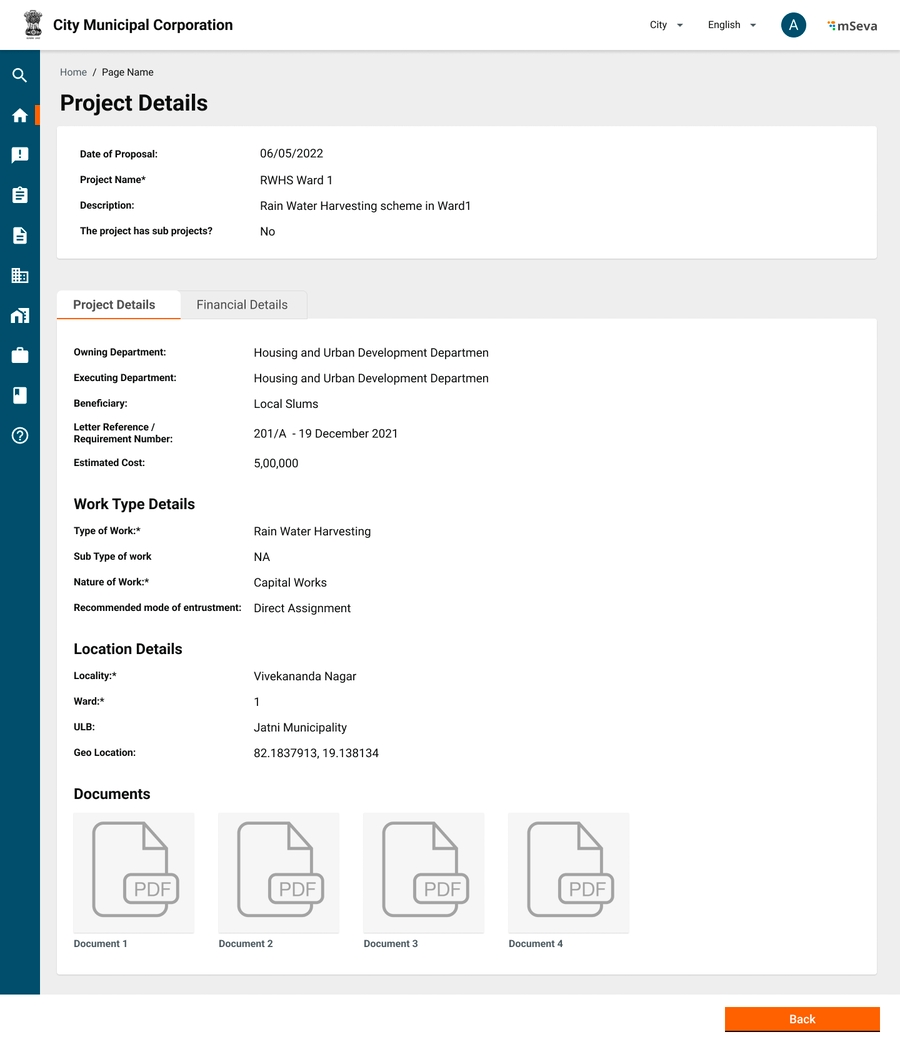

View Project

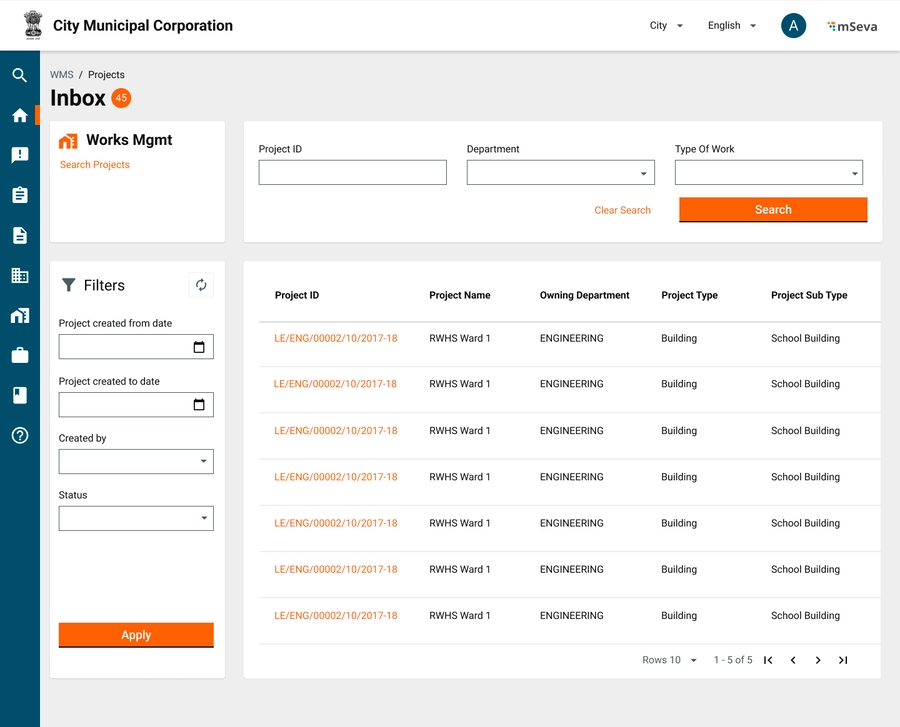

Projects Inbox

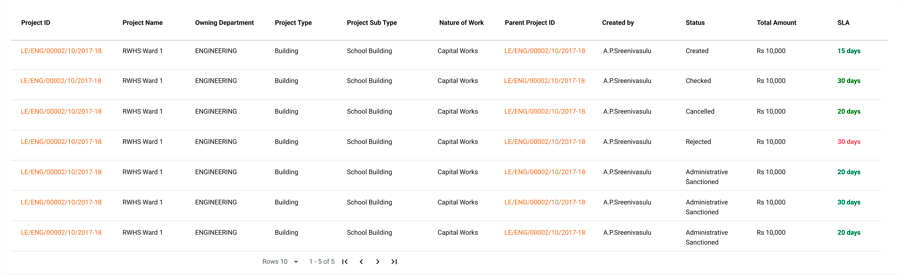

Inbox Table
