Muster Roll

Overview

The Muster Roll service aggregates attendance logs from the attendance service based on some rules and presents an attendance aggregate for a time period (week or month) per individual. This can then be used to compute payments or other semantics.

Dependencies

• DIGIT backbone services

• Idgen

• Persister

• Indexer

• Workflow

• User

• Attendance

Code

Module code

Helm charts

API Specifications

Base Path: /health-muster-roll

API Contract Link

SwaggerEditoreditor.swagger.io

Data Model

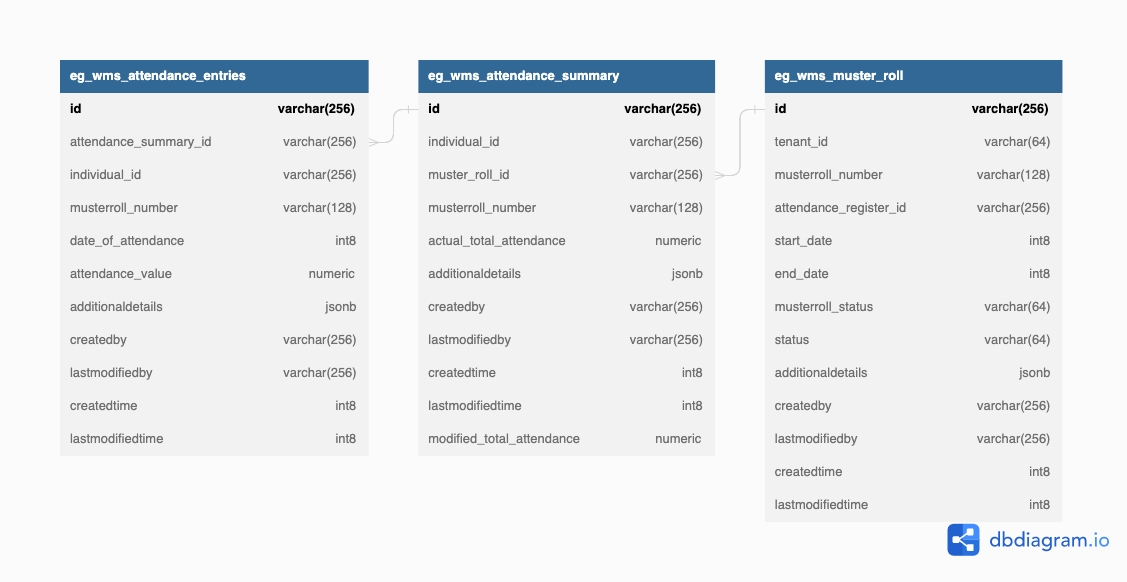

DB Schema Diagram

Web Sequence Diagrams

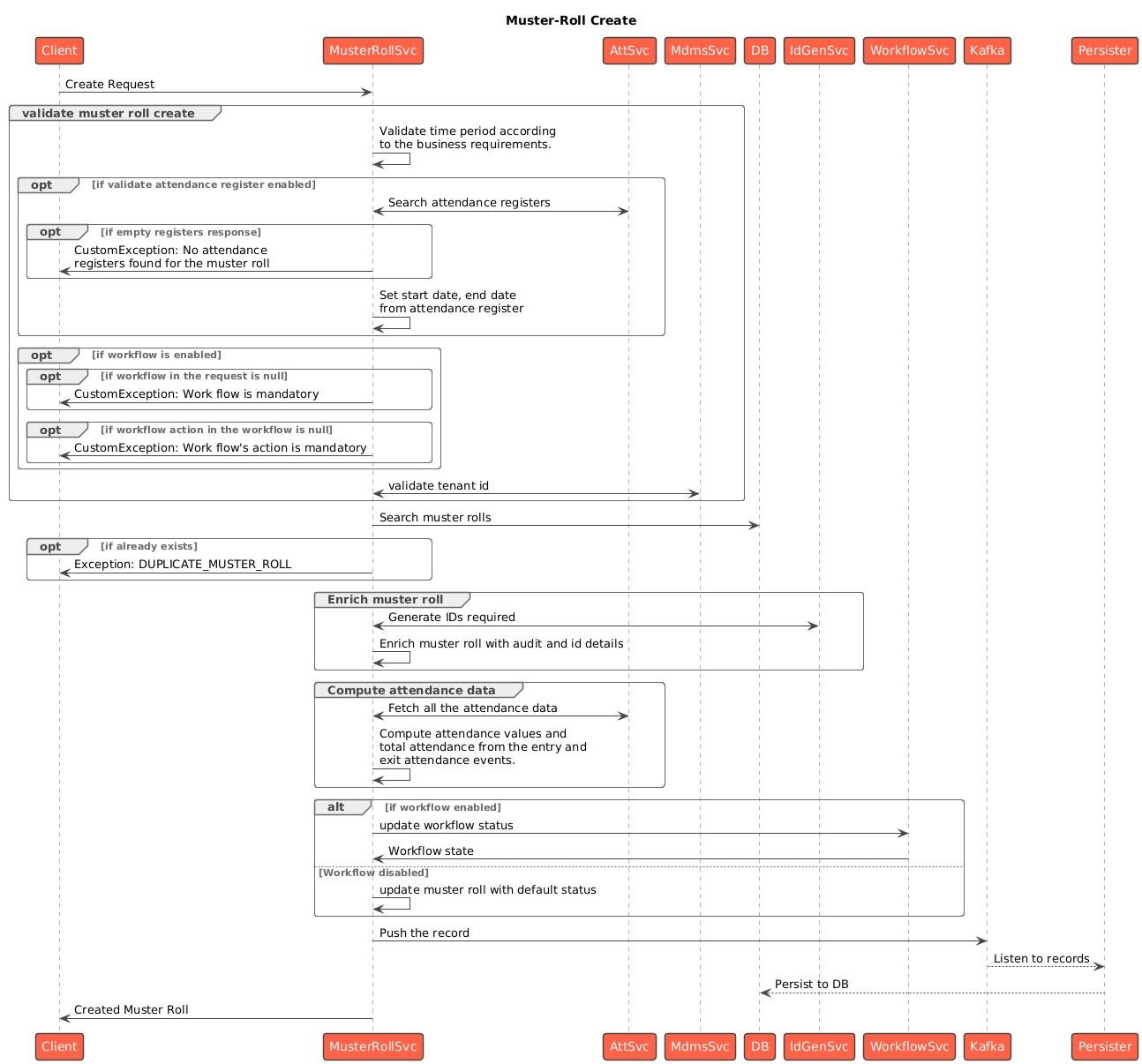

Create

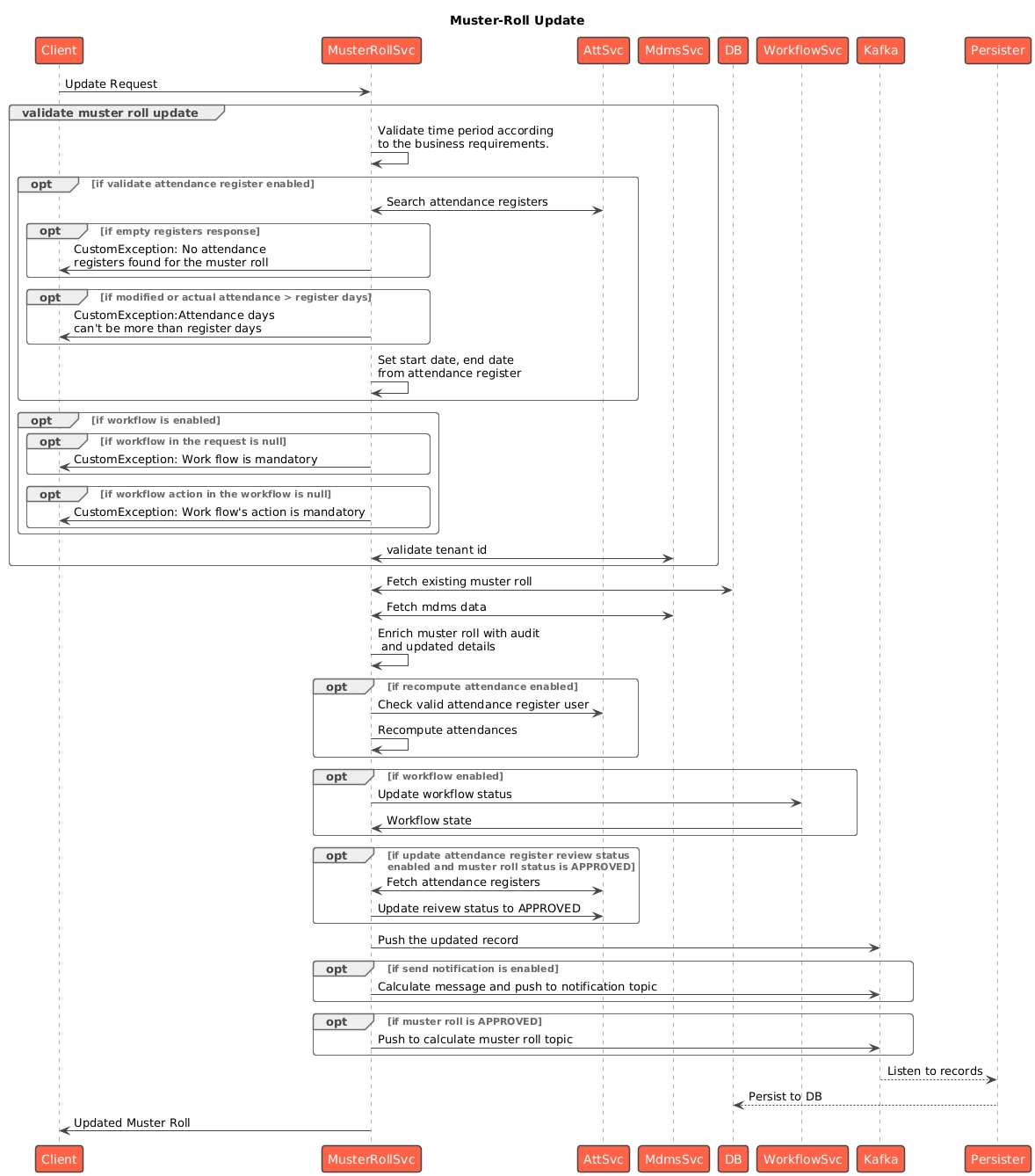

Update

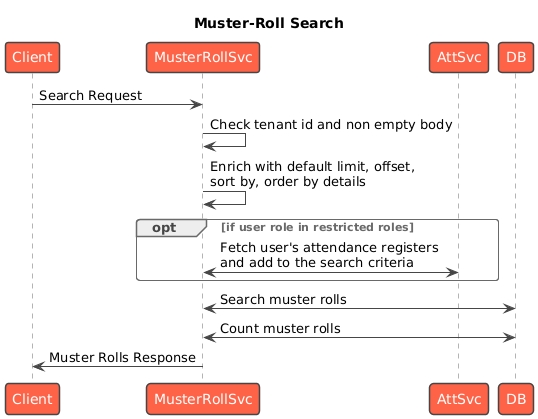

Search

Master Data

releasekit/mdms/HCM/v1.8/MusterRoll.json at master · egovernments/releasekitGitHub

releasekit/mdms/HCM/v1.8/IdFormat.json at master · egovernments/releasekitGitHub

releasekit/mdms/HCM/v1.8/workerRates.json at master · egovernments/releasekitGitHub

Related Topics

• Muster Roll service configuration
