Project Factory - Campaign Manager

Overview

This service is used to create a Project (Campaign), create required resource data, and create a mapping relation between them based on the boundary data.

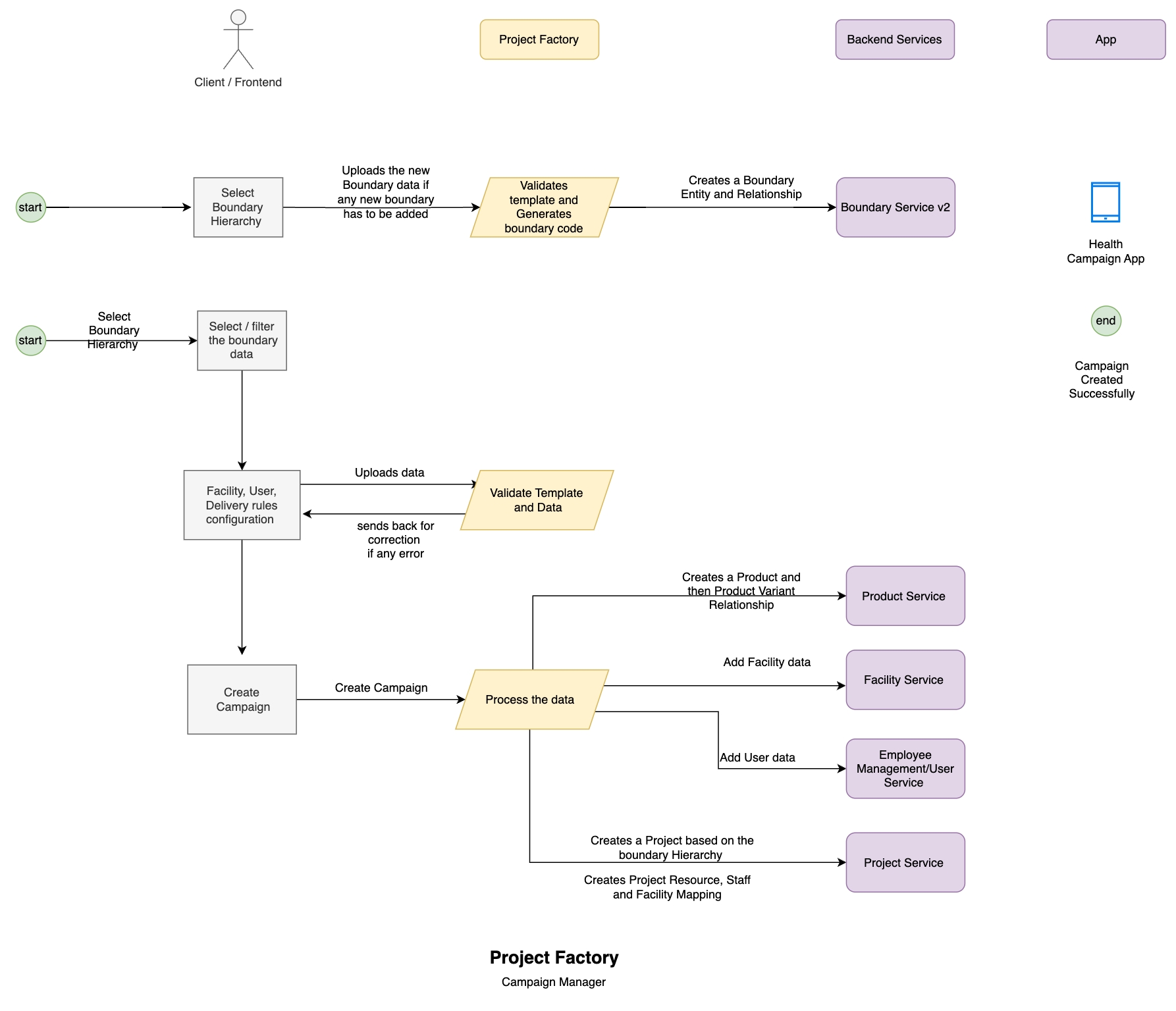

Project Factory Flow

Dependencies

Project
Facility
Product
HRMS
MDMS
Boundary
Localisation
Access Control
IdGen
Individual
User

API Specification

Base Path: /project-factory/

API Contract Link

Swagger Editor - Project Factory API Spec

Data Model

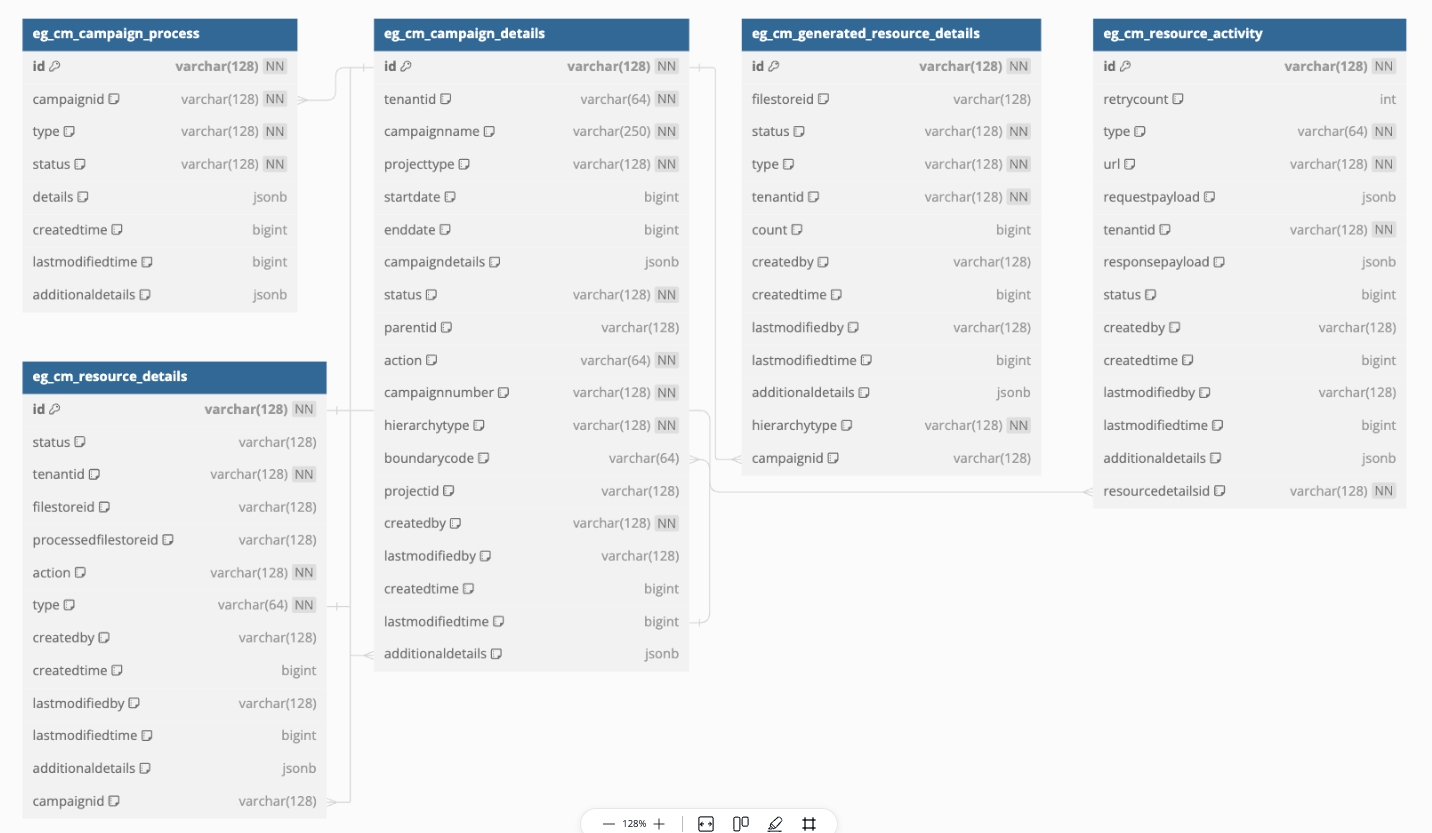

DB Schema Diagram

Project Factory related tables

Table Details

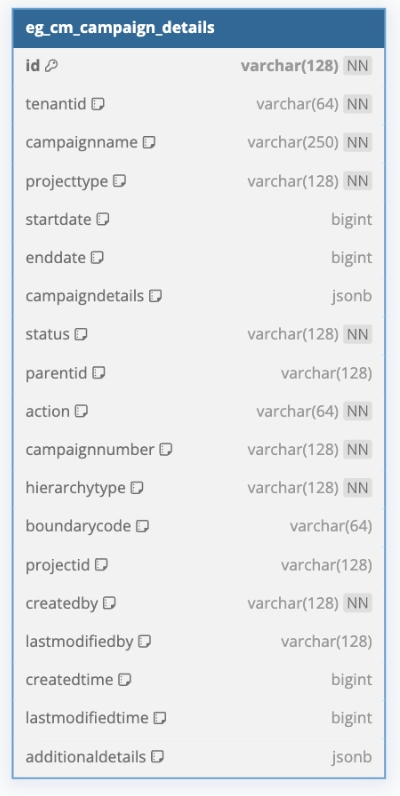

Table eg_cm_campaign_details {
  id varchar(128) [primary key ,not null, unique]
  tenantid varchar(64) [not null ,note: 'Tenant identifier']
  campaignname varchar(250) [not null ,note: 'Name of the campaign']
  projecttype varchar(128) [not null ,note: 'Type of project']
  startdate bigint [note: 'Start date in epoch']
  enddate bigint [note: 'End date in epoch']
  campaigndetails jsonb [note: 'Campaign specific details']
  status varchar(128) [not null ,note: 'Status of the campaign']
  parentid varchar(128) [note: 'refering to the previous campaign id']
  action varchar(64) [not null ,note: 'Action type']
  campaignnumber varchar(128) [not null ,note: 'Campaign number']
  hierarchytype varchar(128) [not null ,note: 'Hierarchy type']
  boundarycode varchar(64) [note: 'Boundary code']
  projectid varchar(128) [note: 'Project identifier']
  createdby varchar(128) [not null ,note: 'Created by user ID']
  lastmodifiedby varchar(128) [note: 'Last modified by user ID']
  createdtime bigint [note: 'Creation timestamp']
  lastmodifiedtime bigint [note: 'Last modification timestamp']
  additionaldetails jsonb [note: 'Additional details']
}

Table eg_cm_campaign_process {
  id varchar(128) [primary key, not null, unique]
  campaignid varchar(128) [not null,note: 'Foreign key to eg_cm_campaign_details.id']
  type varchar(128) [not null,note: 'Type of campaign process']
  status varchar(128) [not null,note: 'Status of the campaign process']
  details jsonb [note: 'Detailed information of the process']
  createdtime bigint [note: 'Creation timestamp']
  lastmodifiedtime bigint [note: 'Last modification timestamp']
  additionaldetails jsonb [note: 'Additional details']
}
Ref: eg_cm_campaign_process.campaignid > eg_cm_campaign_details.id // many-to-one

Table eg_cm_generated_resource_details {
  id varchar(128) [primary key,not null, unique]
  filestoreid varchar(128) [note: 'File store ID']
  status varchar(128) [not null,note: 'Status of the resource']
  type varchar(128) [not null,note: 'Type of resource']
  tenantid varchar(128) [not null,note: 'Tenant identifier']
  count bigint [note: 'Count of resources']
  createdby varchar(128) [note: 'Created by user ID']
  createdtime bigint [note: 'Creation timestamp']
  lastmodifiedby varchar(128) [note: 'Last modified by user ID']
  lastmodifiedtime bigint [note: 'Last modification timestamp']
  additionaldetails jsonb [note: 'Additional details']
  hierarchytype varchar(128) [not null,note: 'Hierarchy type']
  campaignid varchar(128) [note: 'Foreign key to eg_cm_campaign_details.id']
}
Ref: eg_cm_generated_resource_details.campaignid > eg_cm_campaign_details.id // many-to-one

Table eg_cm_resource_activity {
  id varchar(128) [primary key,not null, unique]
  retrycount int [note: 'Number of retry attempts']
  type varchar(64) [not null,note: 'Type of activity']
  url varchar(128) [not null,note: 'URL for the activity']
  requestpayload jsonb [note: 'Request payload']
  tenantid varchar(128) [not null,note: 'Tenant identifier']
  responsepayload jsonb [note: 'Response payload']
  status bigint [note: 'Status code']
  createdby varchar(128) [note: 'Created by user ID']
  createdtime bigint [note: 'Creation timestamp']
  lastmodifiedby varchar(128) [note: 'Last modified by user ID']
  lastmodifiedtime bigint [note: 'Last modification timestamp']
  additionaldetails jsonb [note: 'Additional details']
  resourcedetailsid varchar(128) [not null,note: 'Foreign key to eg_cm_resource_details.id']
}
Ref: eg_cm_resource_activity.resourcedetailsid > eg_cm_resource_details.id // many-to-one



Table eg_cm_resource_details {
  id varchar(128) [primary key,not null, unique]
  status varchar(128) [note: 'Status of the resource']
  tenantid varchar(128) [not null,note: 'Tenant identifier']
  filestoreid varchar(128) [note: 'File store ID']
  processedfilestoreid varchar(128) [note: 'Processed file store ID']
  action varchar(128) [not null,note: 'Action type']
  type varchar(64) [not null,note: 'Type of resource']
  createdby varchar(128) [note: 'Created by user ID']
  createdtime bigint [note: 'Creation timestamp']
  lastmodifiedby varchar(128) [note: 'Last modified by user ID']
  lastmodifiedtime bigint [note: 'Last modification timestamp']
  additionaldetails jsonb [note: 'Additional details']
  campaignid varchar(128) [note: 'Foreign key to eg_cm_campaign_details.id']
}

Ref: eg_cm_resource_details.campaignid > eg_cm_campaign_details.id // many-to-one

Create Campaign

Update Campaign

Manage Resources

Web Sequence Diagrams
