Create Campaign API Endpoints

Endpoint

POST /project-type/create

Request Structure

Body Parameters

• RequestInfo: Object containing RequestInfo.

• CampaignDetails: Object containing the details of the campaign to be created.

• tenantId: Tenant identifier.

• hierarchyType: Type of hierarchy.

• action: Action type (create or draft).

• boundaries: Array of boundaries.

• resources: Array of resources.

• projectType: Type of the project.

• deliveryRules: Array of delivery rules.

• Additional request info

Response Structure

Success Response

• ResponseInfo: Object containing ResponseInfo.

• CampaignDetails: The created campaign details.

Flow

Client Initiates Request

The client initiates a createCampaign request to the Project Factory Service.

Validate Request

If the action is 'create':

1. The Project Factory Service validates the request schema.

2. It also validates the uniqueness of the campaign name in the database.

3. If the campaign name exists, an error is thrown.

If the action is 'draft':

1. The Project Factory Service validates the request schema.

2. It also validates the uniqueness of the campaign name in the database.

3. If the campaign name exists, an error is thrown.

Boundary and MDMS Validation

For both 'create' and 'draft' actions:

1. The Project Factory Service validates the request for hierarchy type and boundaries with the Boundary Service.

2. It validates the request for the project type code from MDMS.

Create Campaign

If the action is 'create':

1. The Project Factory Service validates the request for data resources.

2. It enriches the CampaignDetails and sets the status to 'creating'.

3. The CampaignDetails are persisted in the database.

4. For each resource data, the Project Factory Service creates resources through the /project-factory/v1/data/_create API.

5. It enriches boundaries for project creation and creates projects for each boundary with the Health Project Service.

6. The enriched CampaignDetails are persisted in the database.

7. The CampaignDetails object is sent to a Kafka topic for project mappings.

8. If the campaign status is not "created", project mappings are performed through the /project-factory/v1/project-type/createCampaign API and the status is updated to 'created'.

9. If the campaign status is already 'created', an error is thrown, and the status is updated to 'failed'.

If the action is 'draft':

1. The CampaignDetails are enriched, and the status is set to 'drafted'.

2. The enriched CampaignDetails are persisted in the database.

Response

The Project Factory Service sends the response back to the client.

Unified Campaign Vs Regular Campaign

• Unified Campaign: An advanced campaign flow in which the Excel Ingestion Service handles complex Excel-based data upload, validation, and processing using a single sheet (user, facility, boundary(target) ). To support the single-sheet flow, isUnifiedCampaign must be passed as true in additionalDetails. Additionally, in resources, the file store ID must be provided with the resource type set to "unified-console-resources".

"additionalDetails": {
  "isUnifiedCampaign": true
},
"resources": [
  {
    "type": "unified-console-resources",
    "filename": "File_name.xlsx",
    "filestoreId": "{{fileStoreID}}"
  }
]

• Regular Campaign: In this flow, we use three separate sheets—User, Facility, and Boundary (Target). The corresponding file store IDs must be passed in resources as shown below:

"resources": [
  {
    "type": "boundary",
    "filename": "Boundary Template.xlsx",
    "filestoreId": "{{boundaryFileStoreID}}"
  },
  {
    "type": "user",
    "filename": "User Template.xlsx",
    "filestoreId": "{{userFileStoreID}}"
  },
  {
    "type": "facility",
    "filename": "Facility Template.xlsx",
    "filestoreId": "{{facilityFileStoreID}}"
  }
]

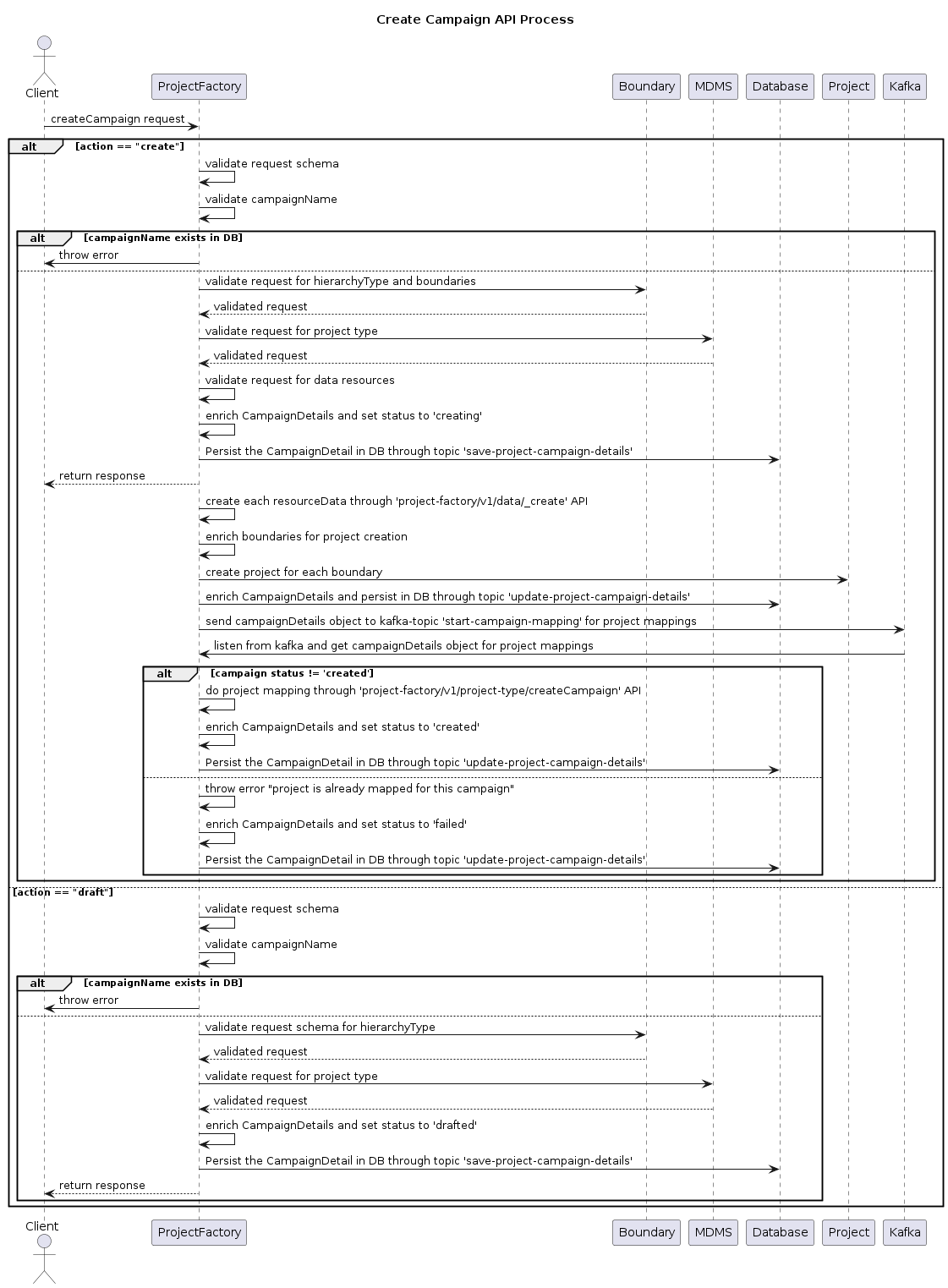

Flow Diagram

(a) Regular Campaign – Uses Three Separate Sheets

(b) Unified Campaign - single sheet
