e-Challan UI Details

UI details for eChallan feature in mCollect module

Overview

This page offers a detailed insight into the user interface features, screens, and navigation available for the eChallan service in the mCollect module. Browse through this document to find the e-Challan service details, MDMS and localization details.

Objective

1. Generate e-challans / bills for all miscellaneous / Adhoc services which citizens avail from ULBs

2. The ability for ULBs to Notify citizens about outstanding payments - Online and offline

3. Enable Digital payments for citizens - QR code, payment link in notifications, etc.

Employees can Create Challan, by selecting the service category, and entering all consumer information and tax head details.

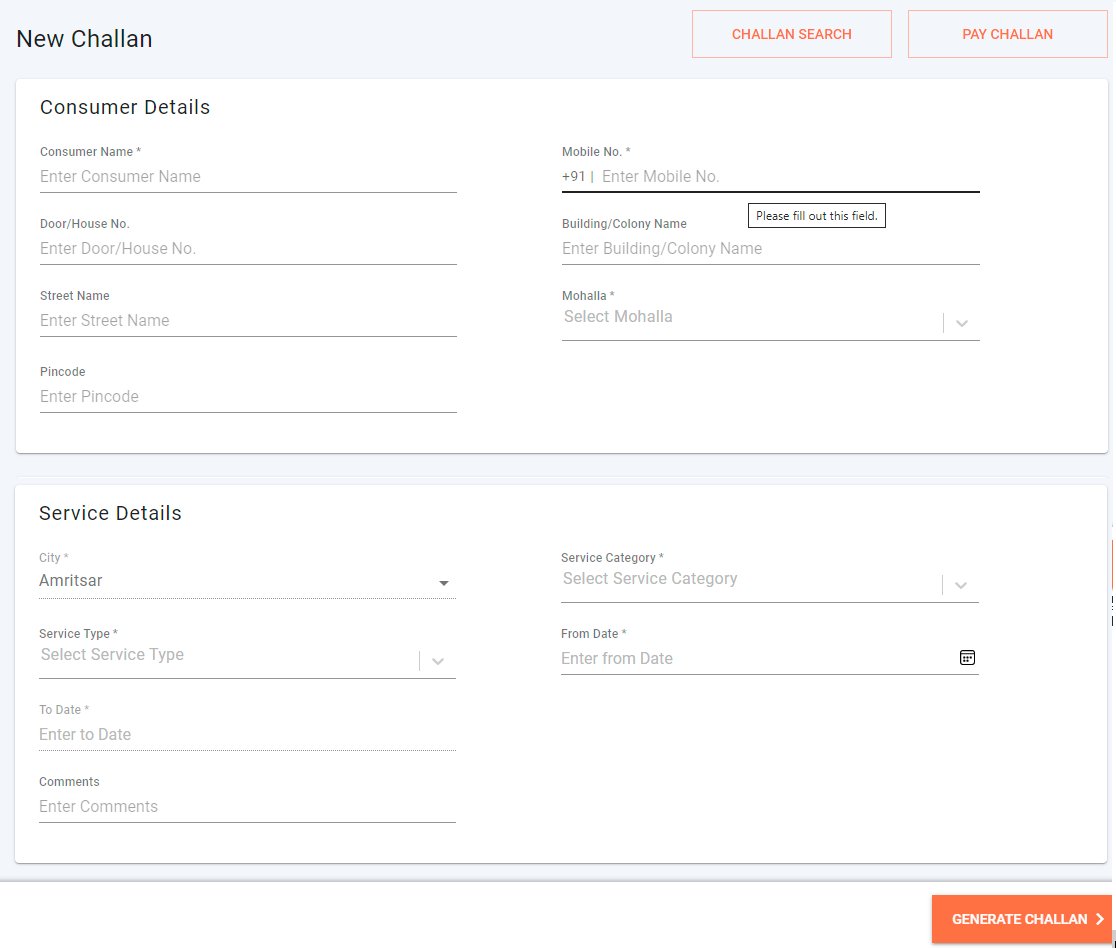

mCollect - Create Challan

Click here to find the create new challan file changes.

Selecting City is disabled as UC Employee of City A should be able to access/create only City A-related challans.

MDMS Details

{
  "tenantId": "pb.amritsar",
  "moduleDetails": [
    {
      "moduleName": "BillingService",
      "masterDetails": [
        {
          "name": "BusinessService",
          "filter": "[?(@.type=='Adhoc')]"
        },
        {
        "name":"TaxPeriod"
        }
      ]
    },
    {
      "moduleName": "common-masters",
      "masterDetails": [
        {
          "name": "uiCommonPay"
        }
      ]
    }
  ]
}

Service Type and Service Category Dropdown Formation

Based on the response, Service Type and Service category Dropdowns are Loaded. For eg: Refer to the response object

{
  "businessService": "WaterCharges.Metered",
  "code": "WaterCharges.Metered",
  "collectionModesNotAllowed": [
    "DD"
  ],
  "partPaymentAllowed": false,
  "isAdvanceAllowed": true,
  "demandUpdateTime": 86400000,
  "isVoucherCreationEnabled": false,
  "type": "Adhoc"
}

Based on that "businessService": "WaterCharges.Metered"

The service Category is "WaterCharges" and the service Type is "Metered" The conversion of business Service utils is setServiceCategory method present in ``https://github.com/egovernments/frontend/blob/39ffbeb4f5446bbb08729e9ce6cf0d519f2f748c/web/rainmaker/dev-packages/egov-uc-dev/src/ui-config/screens/specs/utils/index.js

Tax Head Dropdown Formation

Based on the MDMS response TaxHeadMaster are formed by the selected service type dropdown.

Filter the initial Taxhead master with the selected service type with service attribute in each Taxheads.

Other Validations and Create challan can be referred to in https://github.com/egovernments/frontend/blob/39ffbeb4f5446bbb08729e9ce6cf0d519f2f748c/web/rainmaker/dev-packages/egov-uc-dev/src/ui-config/screens/specs/uc/newCollectionResource/newCollectionFooter.js

createChallan method is used to create challan.

/echallan-services/eChallan/v1/_create API is used to create a challan.

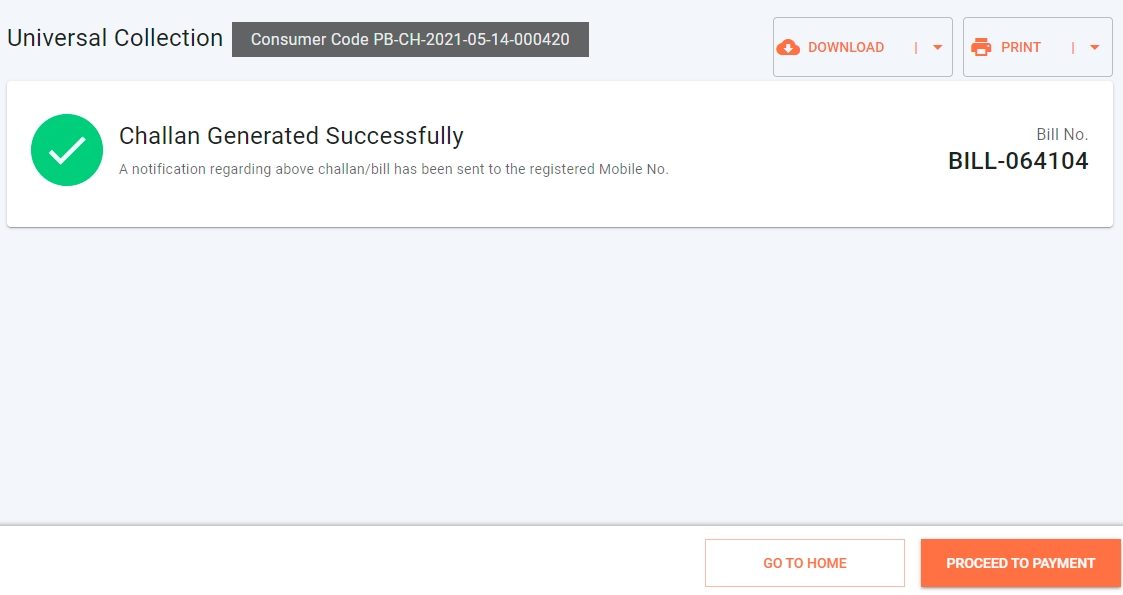

Users will be able to see the Challan Acknowledgement once the Challan is created successfully,

Actions available:

1. Proceed to Payment

2. Download/print Challan

3. Navigate back to the Home page

Challan’s can be downloaded through this API egov-pdf/download/UC/mcollect-challan?challanNo=

Localisation Module

rainmaker-uc

API Used

1. egov-mdms-service/v1/_search

2. echallan-services/eChallan/v1/_create

3. egov-pdf/download/UC/mcollect-challan

Role Action Mapping

API	Roles	Action ID
egov-mdms-service/v1/_search		954
echallan-services/eChallan/v1/_create	UC_EMP	2112
egov-pdf/download/UC/mcollect-challan	UC_EMP	2115

Document Resources and Links

Related Title	Documentation
MCollect Search Challan	Search Challan and Pay Challan
MCollect Pay Challan	BillGenie
MCollect Edit / Update Challan	Edit/Cancel Challan
