A decision support system (DSS) is a composite tool that collects, organizes and analyzes business data to facilitate quality decision-making for management, operations and planning. A well-designed DSS aids decision makers in compiling a variety of data from many sources: raw data, documents, personal knowledge from employees, management, executives and business models. DSS analysis helps organizations identify and solve problems, and make decisions.
Code Git Repos:
State-Level Admin
Commissioner
Domain-Level Employee
There are three types of dashboards -

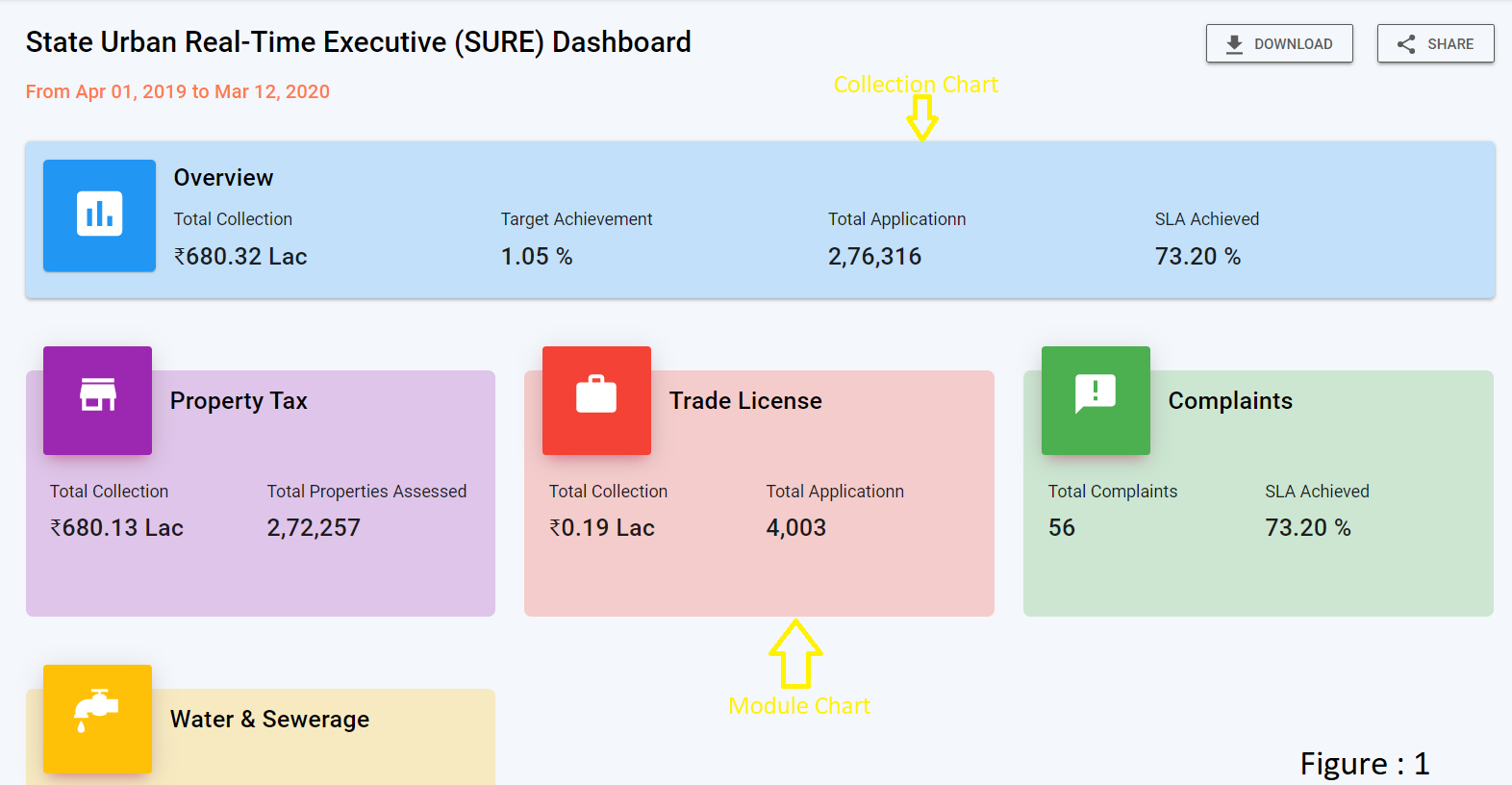

Home page (refer figure 1)

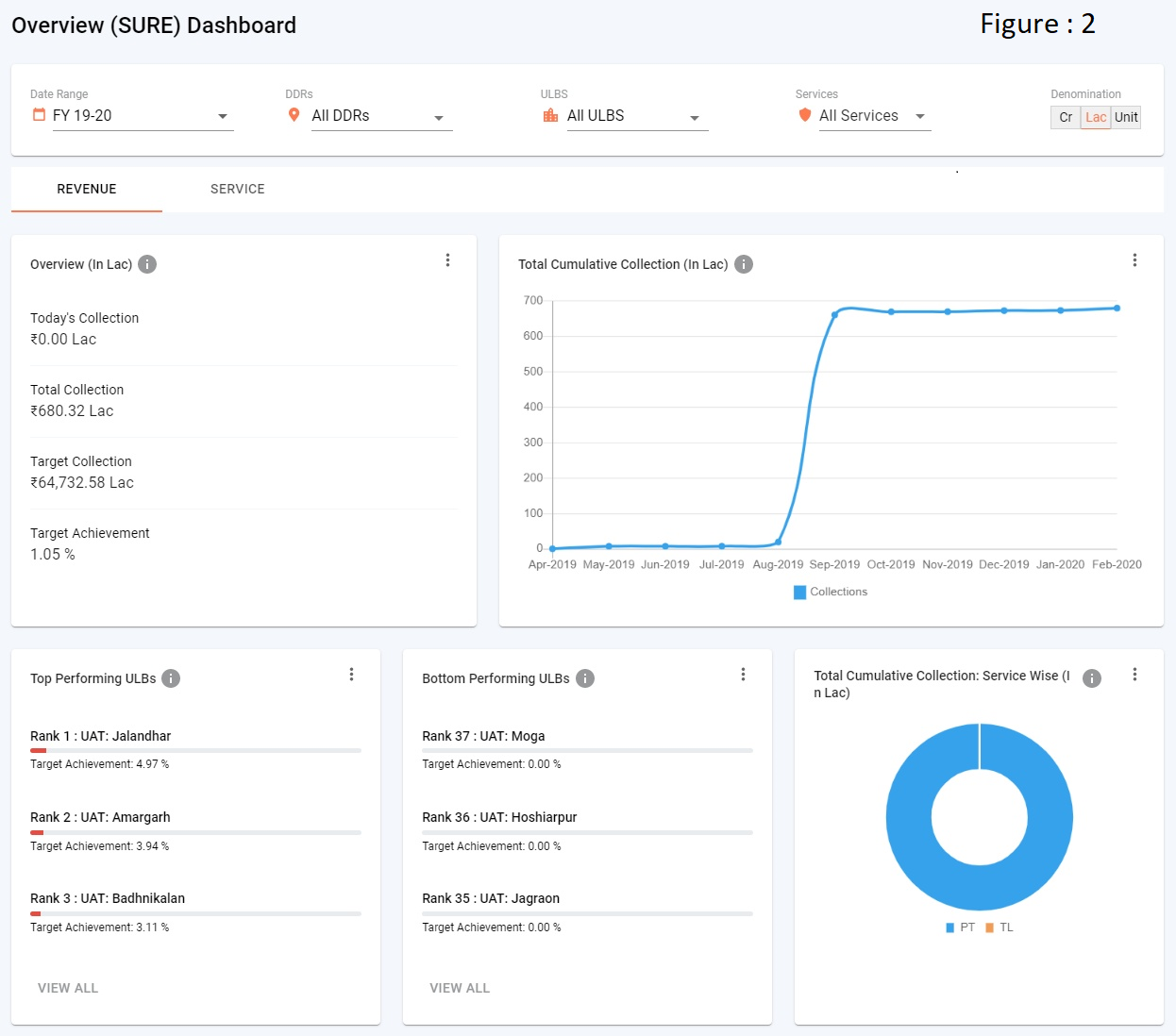

Overview page (refer figure 2)

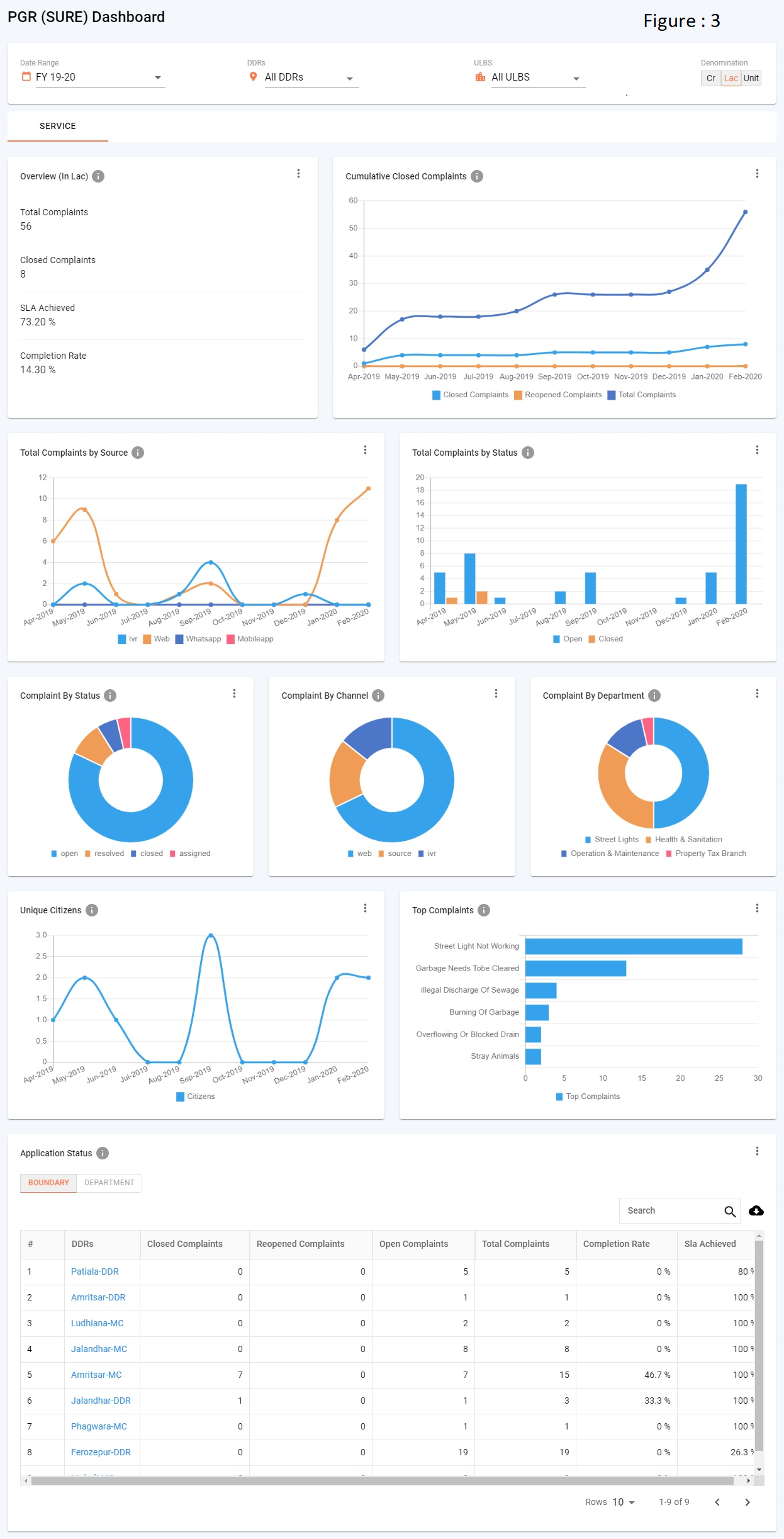

Module level dashboard (refer figure 3)
The home page contains multiple cards, each card is clickable.
There are two types of cards, i.e, the overview card and the module-level card.
The overview and the module level cards are differentiated by vizType,
Overview card: Clicking on the overview card navigates to the overview page. vizType for overview is a collection.
Module Level card: Clicking on the module level card navigates to the module level dashboard. vizType is a module (i.e Property Tax, Trade License etc).

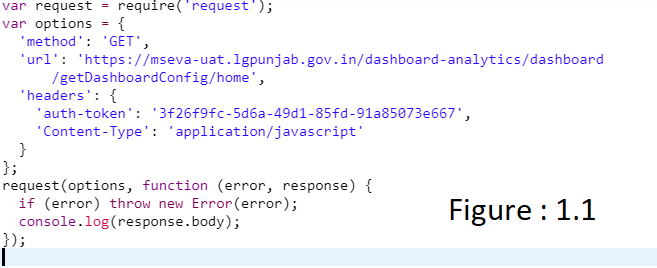

Request Payload for dashboardConfig
auth-token: authenticate the request and it fetches from a local storage key called “Employee.token”

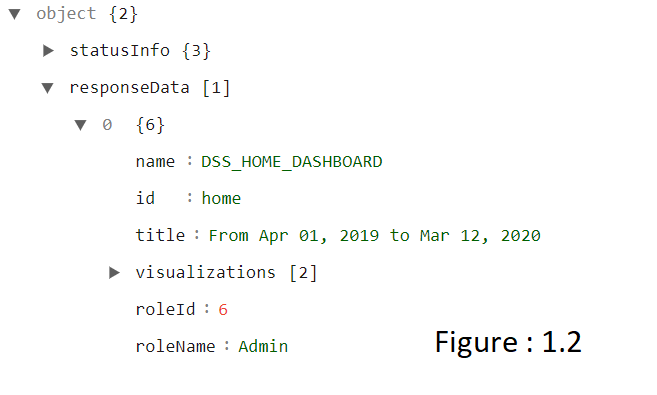

DashboardConfig API Response
roleName: the type of user.

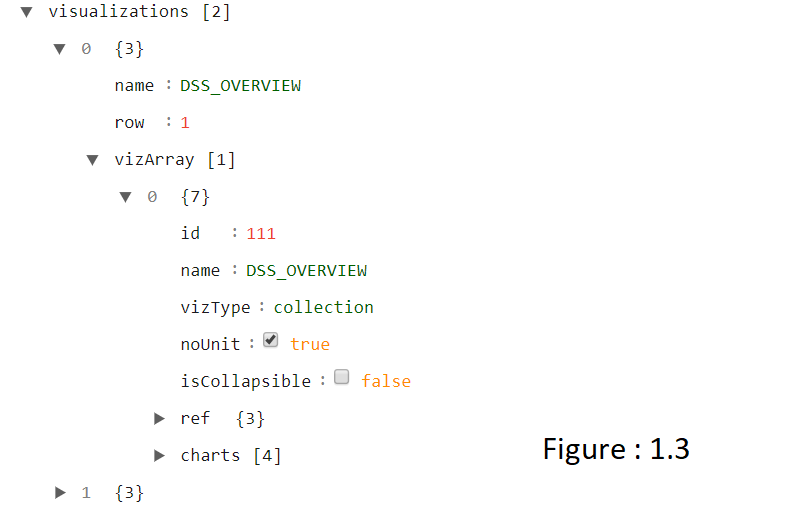

Visualisations: The key contains all configurations for displaying the visualisation like rows with charts etc please refer to figure 1.3.
In Figure 1.3, vizType key will define the module UI like
Collection chart & module chart refer figure 1
In dashboardConfig response, the visualisation key contains all rows & charts details (refer figure 1.3). Each row contains the visual details like name, vizType, noUnit, isCollapsible, charts etc (refer figure 1.3).
name - name of visualisation
vizType - type of visualisation like COLLECTION, MODULE, METRIC-COLLECTION, PERFORMING-METRIC, CHART
COLLECTION - The home page, contains the collection data (refer figure 1).
MODULE - The home page, contains the module-level data (refer figure 1).

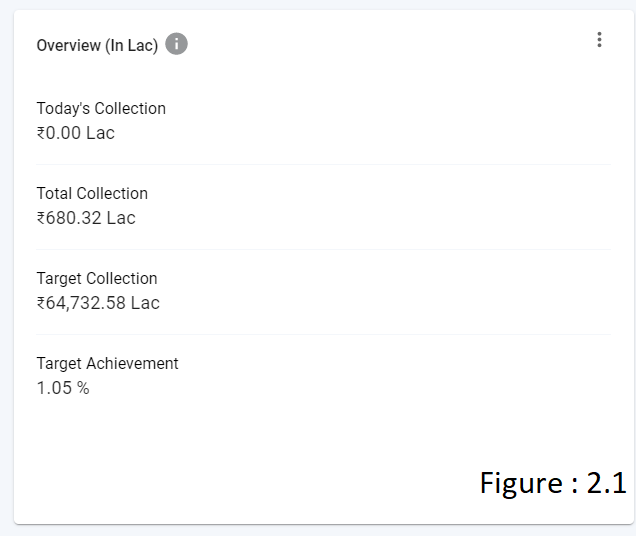

METRIC-COLLECTION - In Overview/Module Level Page, contains the collection data (refer figure 2.1).
PERFORMING-METRIC -In Overview/Module Level Page, contains the top/bottom performing data (refer figure 2.2).
CHART - In Overview/Module Level Page, contains the below visualisations (refer figure 2.3 to figure 2.7).

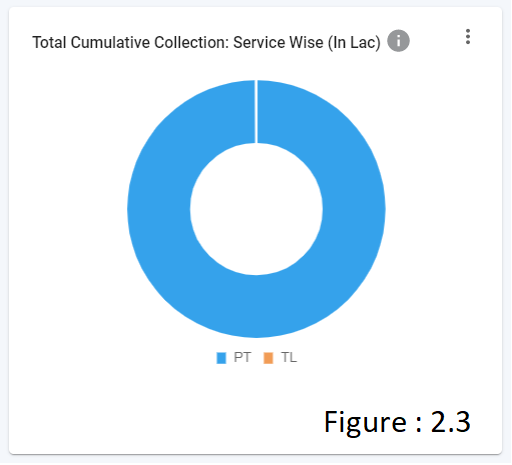

PIE CHART (refer figure 2.3)

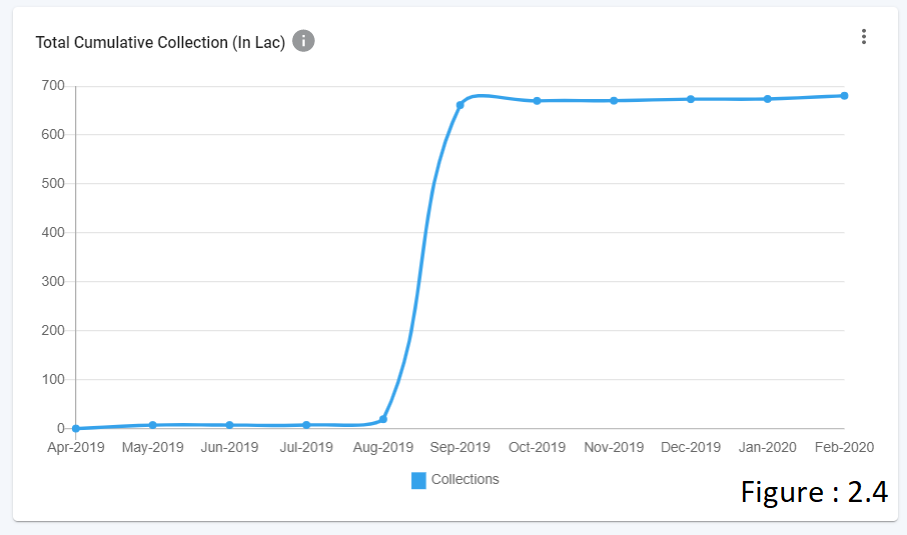

LINE CHART (refer figure 2.4)

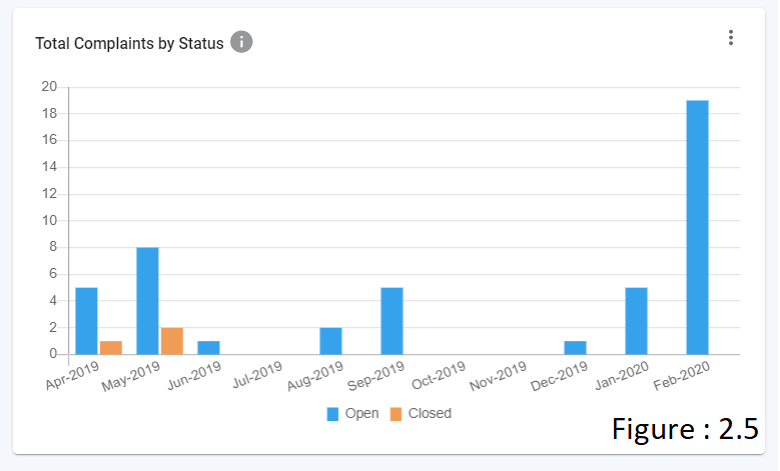

BAR CHART (refer figure 2.5)

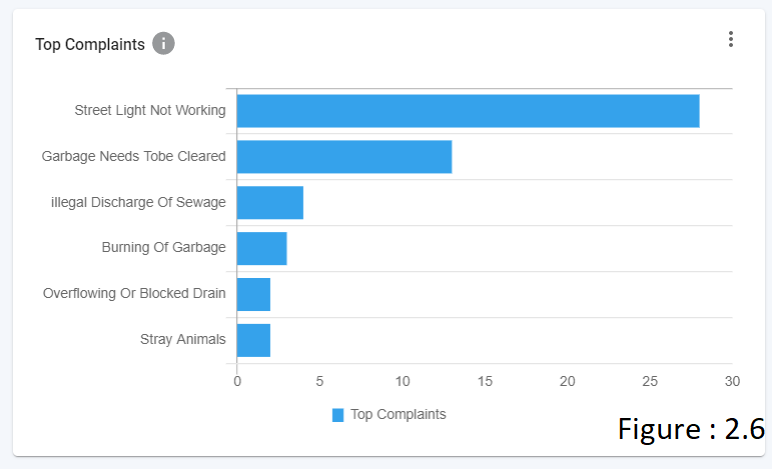

HORIZONTAL BAR CHART (refer figure 2.6)

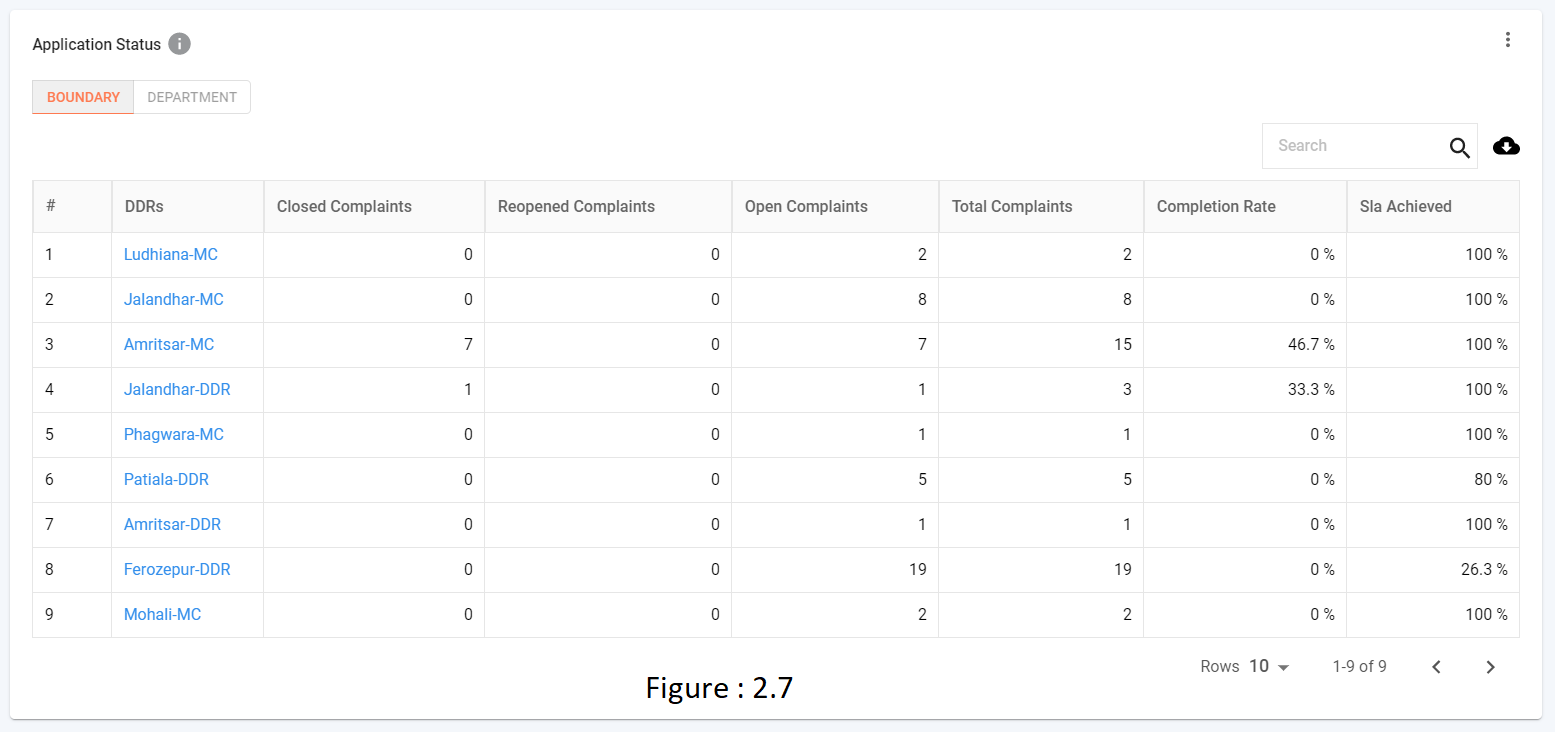

TABLE CHART (refer figure 2.7)
Visualisations
Each ULB dashboard, overview dashboard and module-level pages contain different filters and are identified by roleName in configs API.
The Wards/Blocks filter is a dependable filter, which gets loaded on ULB selection.
In the ULB dashboard, the on-page ULB filter is applied across all the charts and for the performance chart, the default ULB filter is not applied.
Overview and all module level pages has a ULB dashboard.

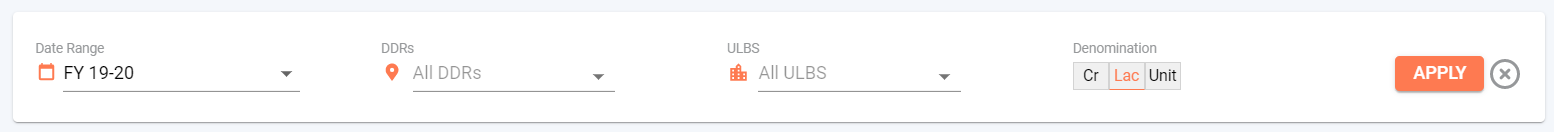

GLOBAL Filters (refer to figure 2.8)
Admin role: On the Module level page, Date, DDR and ULB filter are loaded.
On the Overview level page, Date, DDR, ULB and Service filter are loaded.
Commissioner role: On the Module level page, Date, ULB and Wards/Blocks filters are loaded.
On the Overview page, Date, ULB and Service filters are loaded.
Denomination filter: The Denomination filter has three options to display the amount and number in a particular format.
Crore
Lack
Unit

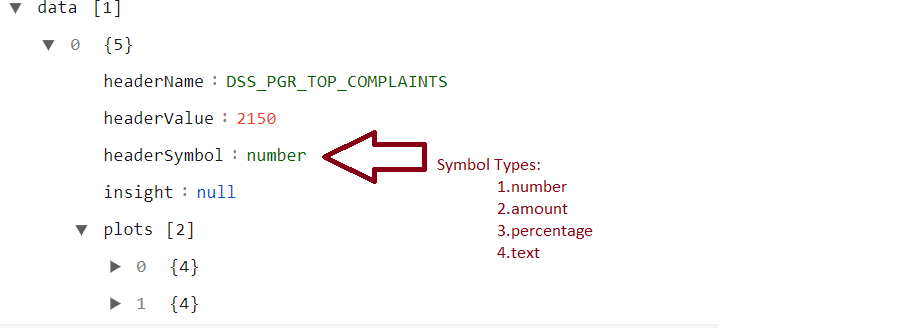

The denomination filter is not applied to the percentage and text (refer to figure 2.10). The type of data is identified by a symbol in the plots of charts API.
Custom Date Filter
If duration < 15 days, it displays data day-wise
If duration <= 30 days, it displays data week-wise
If duration >30, it displays data month-wise

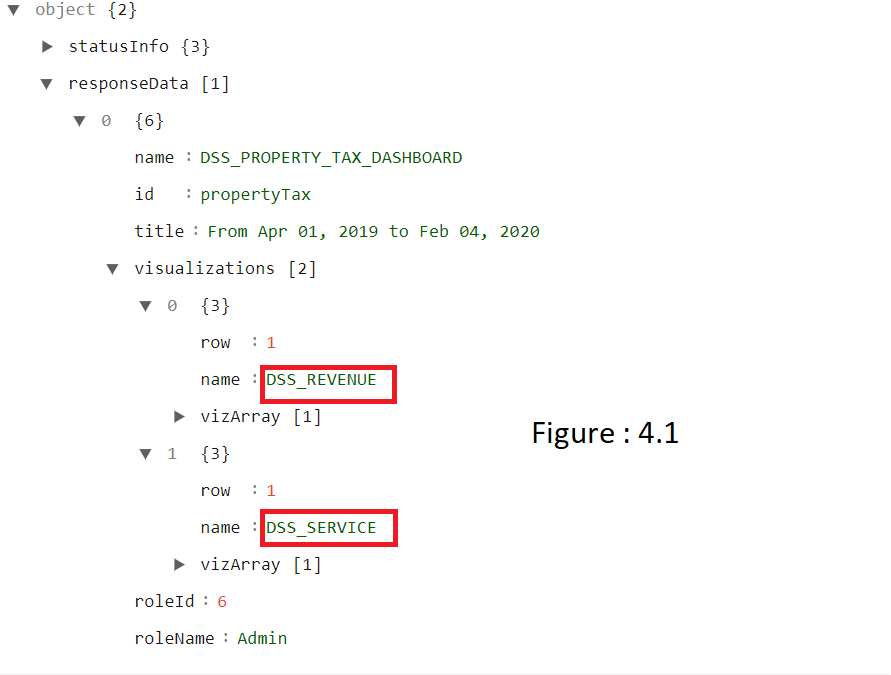

Tabs
Currently, the dashboard contains two types of tabs -
Revenue (refer figure: 4.1)
Service (refer figure: 4.1)
Tabs are identified by name in visualisations of config API.
Table Chart with drill-down
Table chart visualisations have normal material UI data table features like search, sort etc.
In table response, if filter key & drillDownChartId contain any value users can drill-down the table.
Cards
Each card header is localised and has an info icon with a tooltip option that displays the header and can display a description.
The number of cards in a row and in a page is driven by the backend. The backend provides the row number to each card where it should be displayed.
Card contains option icon that enables users to either download images and or share images.
Image download and share user id from vizArray in order to differentiate each card in a page.
Download and Share (refer to figure 2.9)
Download offers two options - to download data as an image or a PDF.

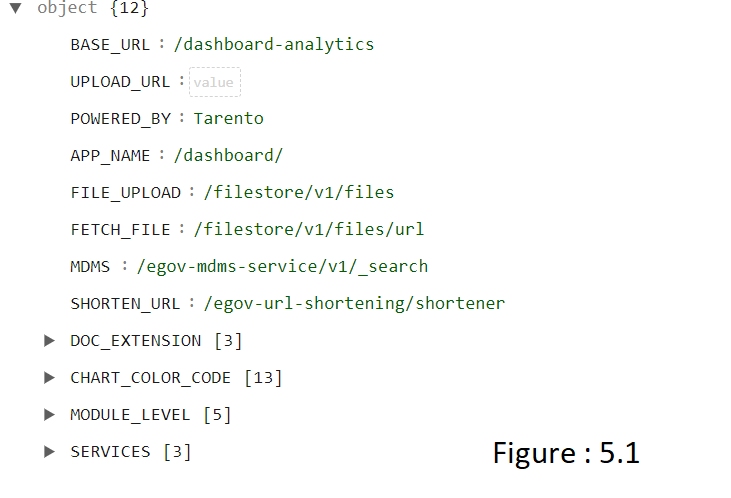

Configurations
BASE URL: End point of REST API for dashboard.
FILE Upload: End point of REST API for file upload.
FETCH FILE: End point of REST API for file fetch.
MDMS: End point of REST API for fetch MDMS Data.
SHORTEN URL: End point of REST API for Shorten URL, which is used for share via Email / What's app.
CHART COLOR CODE: Color code object for all charts.
MODULE LEVEL: for global filters, which contains services name & filter key.
SERVICES: for global filter, service filter.

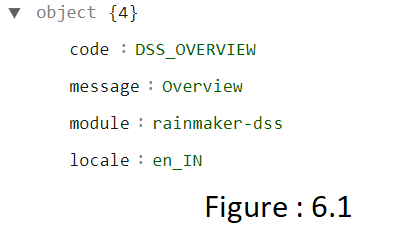

Upload Localisation Keys
code: pre-defined key for back-end.
message: message contains the value for the key.
module: rainmaker-dss
locale: contains locale data
for more details eGov team to be documented
Module name: rainmaker-dss
Steps to setup DSS in Local
Step 1: Run as independent, switch to dss-dashboard folder
Step 2: Get the below details from the environment website and update the localstorage in the browser.
Employee.tenant-id Employee.user-info Employee.token Employee.module Employee.locale localization_en_IN locale
Step 3: Run Yarn install and yarn start to start working on dss in local setup.
ULB dashboard contain different filters, i.e ULBs and Wards/Blocks. The data to the filters are loaded from MDMS API below -
Filters are loaded from the MDMS API - . Filters are loaded on the basis of roleName.
Share: Share creates the Image/PDF and uploads it S3 using below API and returns file id -
The file Id is fetched using the API -
Each S3 image is shortened using the API -
Github link for config:
NPM Module Used -
DSS Features Enhancements V2:
