Boundary Details - Selection

In this step, the user will encounter 2 screens:

• Boundary Details

• Boundary Details Summary

Boundary Details

This screen allows users to select the boundaries according to their requirements.

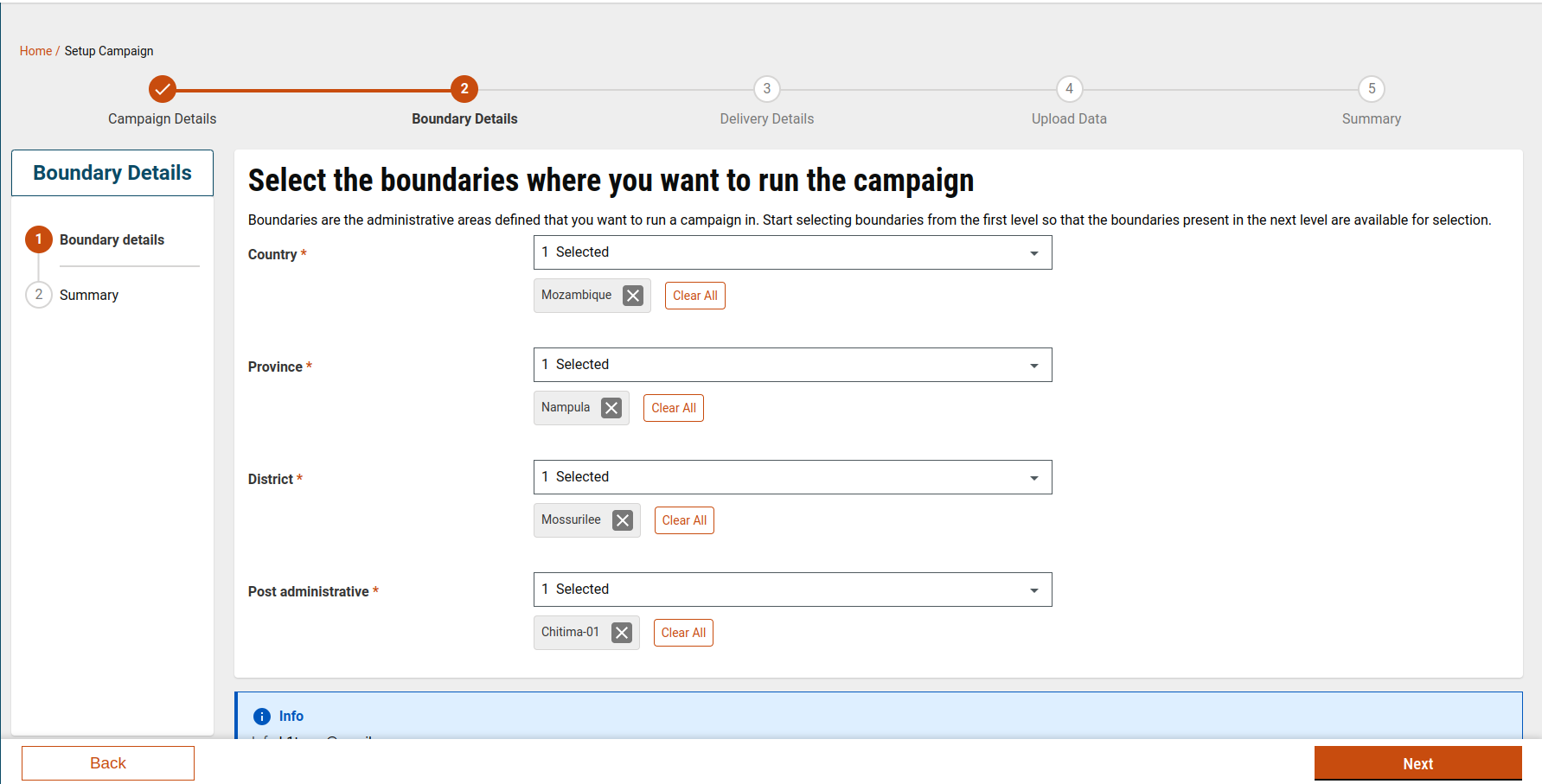

Boundary details

The working of this screen is given below.

The system fetches the boundary data according to the hierarchy saved in the MDMS.

The file where data is fetched - https://github.com/egovernments/DIGIT-Frontend/blob/console/health/micro-ui/web/micro-ui-internals/packages/modules/campaign-manager/src/Module.js

The hierarchy structure and the lowest boundary will be fetched from the MDMS

HCM-ADMIN-CONSOLE.HierarchySchema

For more information on the master data, refer here.

File Path - https://github.com/egovernments/DIGIT-Frontend/blob/console/health/micro-ui/web/micro-ui-internals/packages/modules/campaign-manager/src/components/SelectingBoundariesDuplicate.js

Which internally calls the - Selecting boundary component

https://github.com/egovernments/DIGIT-Frontend/blob/console/health/micro-ui/web/micro-ui-internals/packages/modules/campaign-manager/src/components/SelectingBoundaryComponent.jsgithub.com

Validation: The user must select boundaries down to the lowest level. If the parent boundary is selected, then the user should select at least one of the child options.

Summary

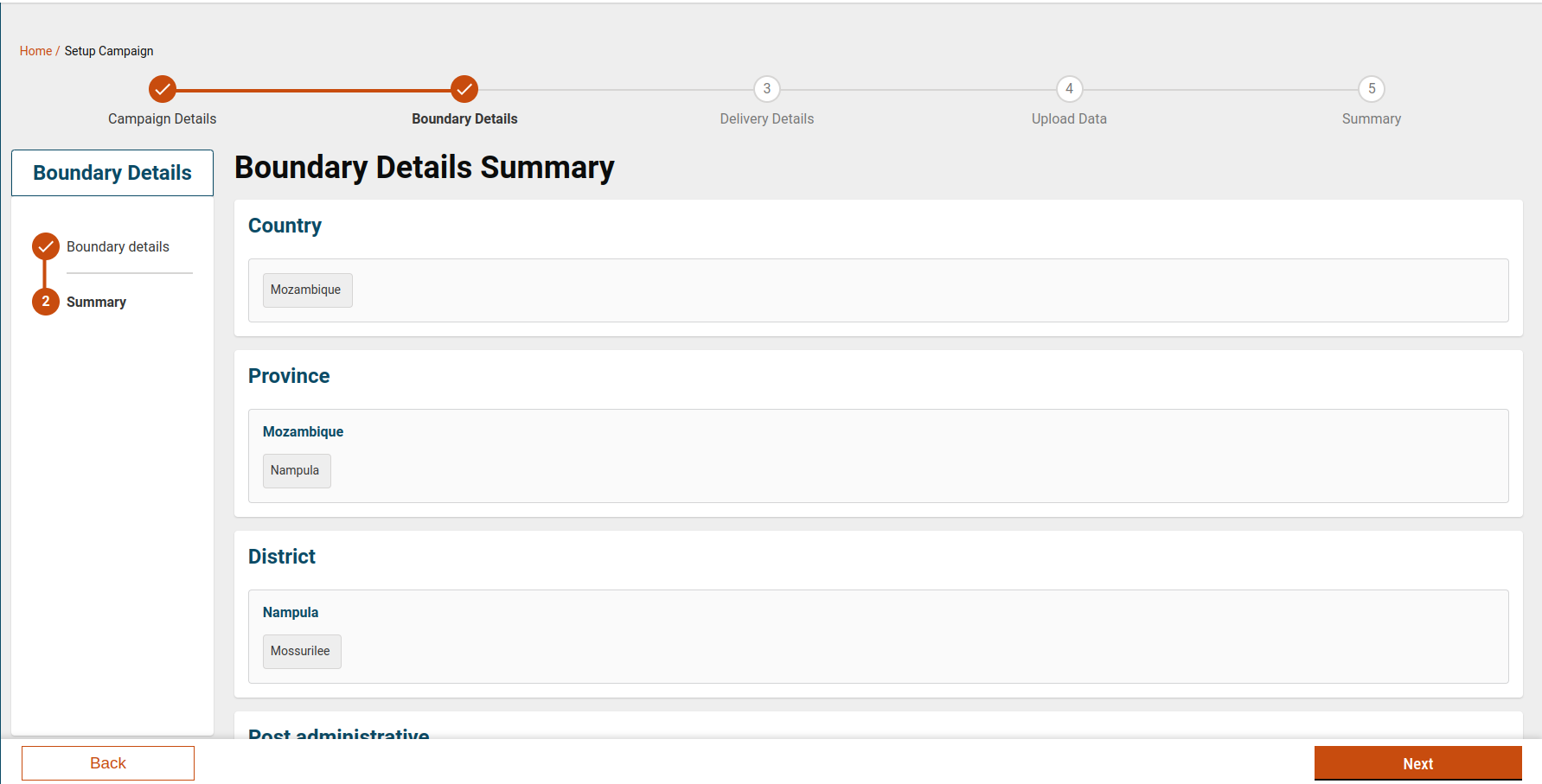

Summary

This screen displays all the boundaries selected in the previous step.

Localisation Details

Boundary localisation for this screen happens by using the combination of hierarchy type and boundary type

 {t((hierarchyType + "_" +boundaryType).toUpperCase())}

It should be in the above-given format.

API Details

EndPoint	Role
boundary-service/boundary-relationships/_search	CAMPAIGN_MANAGER
/boundary-service/boundary-hierarchy-definition/_search	CAMPAIGN_MANAGER
