Update Campaign API Endpoints

Endpoint

POST /project-type/update

Request Structure

Body Parameters

• RequestInfo: Object containing RequestInfo.

• CampaignDetails: Object containing the details of the campaign to be updated.

• id: Unique identifier of the campaign.

• tenantId: Tenant identifier.

• hierarchyType: Type of hierarchy.

• action: Action type (create or draft).

• boundaries: Array of boundaries.

• resources: Array of resources.

• projectType: Type of the project.

• deliveryRules: Array of delivery rules.

Response Structure

Success Response

• ResponseInfo: Object containing ResponseInfo.

• CampaignDetails: The updated campaign details.

Flow

Receive Request

The ProjectFactoryService receives an updateCampaign request from the Client.

Validate Request Schema

The received request schema is validated to ensure it matches the expected format.

Check Campaign Existence

The system checks if the campaign specified in the request exists in the database.

Conditional template generation call

• If boundaries are different from the campaign in the database, call:

  • Facility template generate

  • User template generate

  • Target template generate

• If delivery conditions are different, call:

  • Target template generate

Check Campaign Status

If the campaign exists, the system checks its status in the database.

Handle Drafted Status

If the campaign status is 'drafted':

1. Validate Boundaries: Validate the request for hierarchyType and boundaries.

2. Validate Project Type: It validates the request for the project type code from MDMS.

3. Enrich Campaign Details: Enrich the campaign details and set the status to 'updating'.

4. Update Campaign Details: Update the campaign details in the database.

5. Update Resource Data: Update each resource data associated with the campaign through the /project-factory/v1/data/_update API.

6. Enrich Boundaries: Enrich the boundaries for the project update.

7. Update Projects: Update projects associated with each boundary.

8. Persist Changes: Persist the updated campaign details in the database.

9. Send to Kafka Topic: Send the updated CampaignDetails object to the Kafka topic for project mappings.

10. Listen to Kafka: Listen for updates from the Kafka topic to get the updated CampaignDetails object for project mappings.

Handle Campaign Status

If the campaign status is not 'created':

1. Do project mapping through /project-factory/v1/project-type/createCampaign API.

2. Enrich the CampaignDetails and set the status to 'created'.

3. Update the CampaignDetail in the database.

Handle Project Mapping Error

If the campaign status is 'created':

1. Throw an error indicating that the project is already mapped for this campaign.

2. Enrich the CampaignDetails and set the status to 'failed'.

3. Update the CampaignDetail in the database.

Handle Non-Drafted Status

If the campaign status is not 'drafted', the system throws an error indicating that only drafted campaigns can be updated.

Send Response

The ProjectFactoryService sends a response to the Client based on the outcome of the update operation.

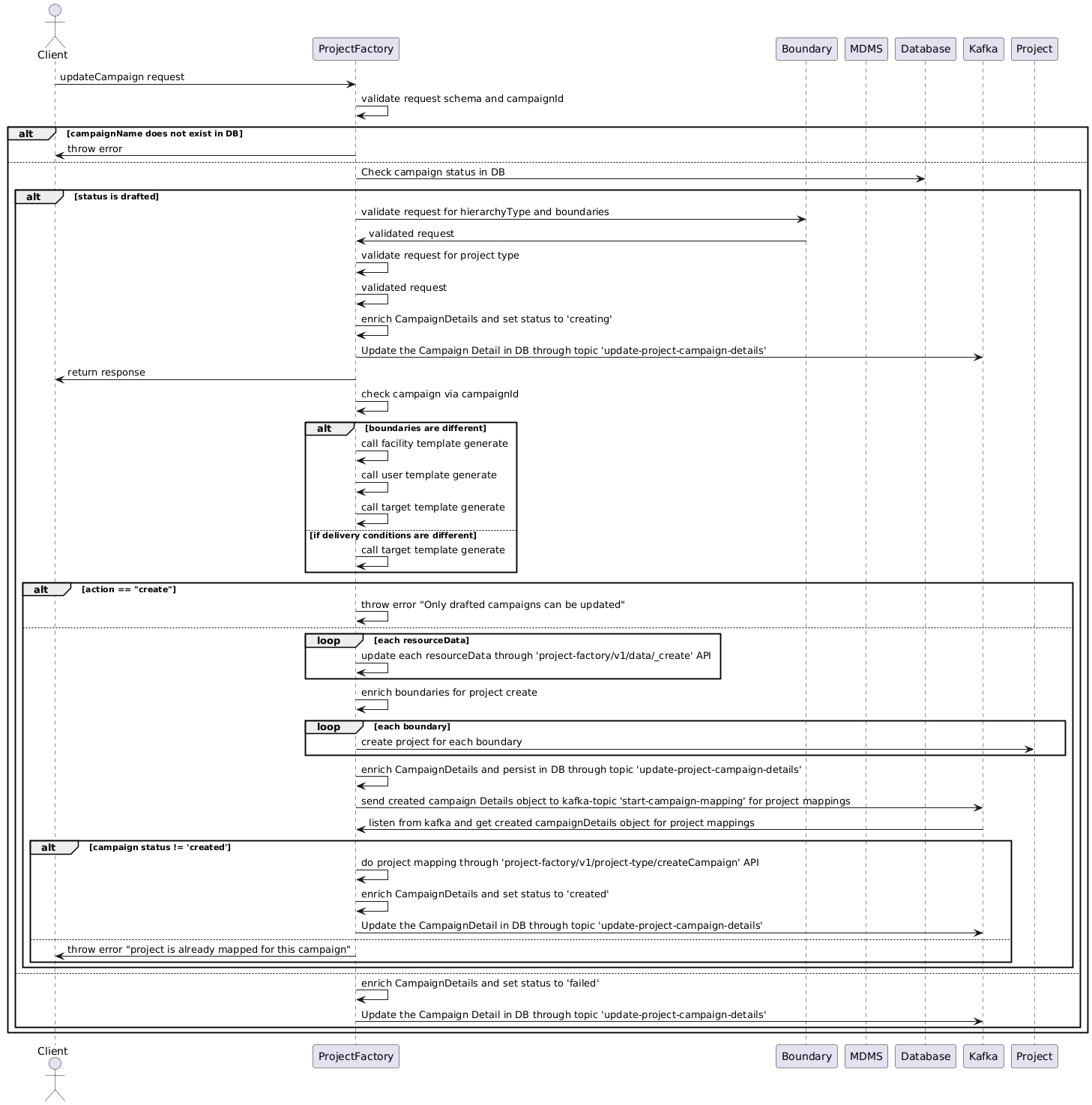

Flow Diagram
