Birth and Death Service Setup

Overview

This egov application helps and provides a digital interface, allowing employees/citizens to download Birth & Death certificates. Employees can register both birth and death applications, update and search. The citizen has the access to download the certificates. There are two processes while downloading the certificates - citizens can download the certificate free for the first time and it will be charged for the next downloads. The citizen has to pay the amount and download the certificates.

This page provides the configuration details for setting up the birth and death service.

Pre-Requisites

• Knowledge of Java/J2EE(preferably Java 8 version)

• Knowledge of Spring Boot and spring-boot microservices.

• Knowledge of Git or any version control system.

• Knowledge of RESTful Web services.

• Knowledge of the Lombok library is helpful.

• knowledge of eGov-mdms service, eGov-persister, eGov-idgen, eGov-sms, eGov-email,eGov-user, eGov-localization, eGov-workflow-service will be helpful.

Functionalities

1. The BnD module facilitates the citizen to search and download the certificate.

2. The BnD module enables the counter employee to enter the details of Birth and Death using the Registration form.

3. The BnD module provides a facility for the counter employee to search the details of registration and view the details of the registration.

4. The BnD module provides a facility for anyone who has downloaded the certificate, to check the correctness of the certificate by scanning the QR Code.

Setup Details

The Application config file is available within the municipal services group of applications available in the eGov-services git repository with the folder name birth-death-services. The spring boot application needs the Lombok* extension added to your IDE to load it. Once the application is up and running API requests can be posted to the URL and ids can be generated.

• in the case of IntelliJ, the plugin can be installed directly, for eclipse the Lombok jar location has to be added in the eclipse.ini file in this format javaagent:lombok.jar

API Details

Refer to the Swagger API for YAML file details. Link -DIGIT-OSS/birth-death.yml at master · egovernments/DIGIT-OSS

Application.properties File Information:

kafka topics persister configs for eGov persister

• persister.save.birth.topic=save-birth-topic

• persister.update.birth.topic=update-birth-topic

URLs for the external API references:

• eGvo mdms :-> egov.mdms.host = https://dev.digit.org/

• eGov -idGen :-> egov.idgen.host = https://dev.digit.org/

• localization service :-> egov.localization.host = https://dev.digit.org/

• idGen Id formats :-> egov.idgen.birthapplnum.name=birth_cert.receipt.id egov.idgen.birthapplnum.format=BR/CB/01/2022-0/063768 egov.idgen.deathapplnum.name=death_cert.receipt.id egov.idgen.deathapplnum.format=DT/CB/01/2022-0/063767

Configuration Details

MDMS Configuration

egov-mdms-data/BusinessService.json at master · egovernments/egov-mdms-data

{
      "businessService": "Birth Certificate Fees",
      "code": "BIRTH_CERT",
      "collectionModesNotAllowed": ["DD", "POSTAL_ORDER"],
      "partPaymentAllowed": false,
      "isAdvanceAllowed": false,
      "isVoucherCreationEnabled": true,
      "isActive": true,
      "isCitizen": true,
      "type": "Adhoc"
    },
    {
      "businessService": "Death Certificate Fees",
      "code": "DEATH_CERT",
      "collectionModesNotAllowed": ["DD", "POSTAL_ORDER"],
      "partPaymentAllowed": false,
      "isAdvanceAllowed": false,
      "isVoucherCreationEnabled": true,
      "isActive": true,
      "isCitizen": true,
      "type": "Adhoc"
    }

egov-mdms-data/TaxHeadMaster.json at master · egovernments/egov-mdms-data

{
    "category": "CHARGES",
    "service": "BIRTH_CERT",
    "name": "BIRTH_CERT_FEE",
    "code": "BIRTH_CERT_FEE",
    "isDebit": false,
    "isActualDemand": false,
    "order": "0",
    "isRequired": false,
    "isDiscountApplicable": false
  },
  {
    "category": "CHARGES",
    "service": "DEATH_CERT",
    "name": "DEATH_CERT_FEE",
    "code": "DEATH_CERT_FEE",
    "isDebit": false,
    "isActualDemand": false,
    "order": "0",
    "isRequired": false,
    "isDiscountApplicable": false
  }

egov-mdms-data/TaxPeriod.json at master · egovernments/egov-mdms-data

 {
      "fromDate": 1554076800000,
      "toDate": 1901145600000,
      "periodCycle": "ANNUAL",
      "service": "BIRTH_CERT",
      "code": "BIRTHCERT",
      "financialYear": "2019-30"
    },
    {
      "fromDate": 1554076800000,
      "toDate": 1901145600000,
      "periodCycle": "ANNUAL",
      "service": "DEATH_CERT",
      "code": "DEATHCERT",
      "financialYear": "2019-30"
    }

egov-mdms-data/GLCode.json at QA · egovernments/egov-mdms-data

{
	"tenantId": "pb",
	"moduleName": "BillingService",
	"GLCode": [
	{
		"code": "BIRTH_CERT",
		"glcode": null,
		"cb": "pb.amritsar"
	},
	{
		"code": "DEATH_CERT",
		"glcode": null,
		"cb": "pb.amritsar"
	}
	]
}

egov-mdms-data/bdTemplate.json at QA · egovernments/egov-mdms-data

{
	"tenantId": "pb",
	"moduleName": "common-masters",
	"bdTemplate": [
		{
			"template": "bd-bihar",
			"code": "pb.danapur"
		},
		{
			"template": "bd-delhi",
			"code": "pb.delhi"
		},
		{
			"template": "bd-gujarat",
			"code": "pb.ahmedabad"
		},
		{
			"template": "bd-haryana",
			"code": "pb.ambala"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.bakloh"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.dagshai"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.dalhousie"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.jutogh"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.kasauli"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.khasyol"
		},
		{
			"template": "bd-himachalpradesh",
			"code": "pb.subathu"
		},
		{
			"template": "bd-badamibagh",
			"code": "pb.badamibagh"
		},
		{
			"template": "bd-jammu",
			"code": "pb.jammu"
		},
		{
			"template": "bd-jharkhand",
			"code": "pb.ramgarh"
		},
		{
			"template": "bd-karnataka",
			"code": "pb.belgaum"
		},
		{
			"template": "bd-kerala",
			"code": "pb.cannanore"
		},
		{
			"template": "bd-madhyapradesh",
			"code": "pb.jabalpur"
		},
		{
			"template": "bd-madhyapradesh",
			"code": "pb.mhow"
		},
		{
			"template": "bd-madhyapradesh",
			"code": "pb.pachmarhi"
		},
		{
			"template": "bd-madhyapradesh",
			"code": "pb.morar"
		},
		{
			"template": "bd-madhyapradesh",
			"code": "pb.saugor"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.ahmednagar"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.aurangabad"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.dehuroad"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.deolali"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.kamptee"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.kirkee"
		},
		{
			"template": "bd-maharashtra",
			"code": "pb.pune"
		},
		{
			"template": "bd-meghalaya",
			"code": "pb.shillong"
		},
		{
			"template": "bd-punjab",
			"code": "pb.amritsar"
		},
		{
			"template": "bd-punjab",
			"code": "pb.ferozepur"
		},
		{
			"template": "bd-punjab",
			"code": "pb.jalandhar"
		},
		{
			"template": "bd-rajasthan",
			"code": "pb.ajmer"
		},
		{
			"template": "bd-rajasthan",
			"code": "pb.nasirabad"
		},
		{
			"template": "bd-tamilnadu",
			"code": "pb.stm"
		},
		{
			"template": "bd-tamilnadu",
			"code": "pb.wellington"
		},
		{
			"template": "bd-telangana",
			"code": "pb.secunderabad"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.agra"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.allahabad"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.babina"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.bareilly"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.jhansi"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.kanpur"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.lucknow"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.faizabad"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.fatehgarh"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.mathura"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.meerut"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.shahjahanpur"
		},
		{
			"template": "bd-uttarpradesh",
			"code": "pb.varanasi"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.almora"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.chakrata"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.clementtown"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.dehradun"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.landour"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.lansdowne"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.nainital"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.ranikhet"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.roorkee"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.almora"
		},
		{
			"template": "bd-uttarakhand",
			"code": "pb.testing"
		},
		{
			"template": "bd-westbengal",
			"code": "pb.barrackpore"
		},
		{
			"template": "bd-jalapahar",
			"code": "pb.jalapahar"
		},
		{
			"template": "bd-lebong",
			"code": "pb.lebong"
		}
	]
}

egov-mdms-data/IdFormat.json at QA · egovernments/egov-mdms-data

{
      "format": "BR/CB/[cb.name]/[fy:yyyy]/[SEQ_EGOV_COMMON]",
      "idname": "birth_cert.receipt.id"
    },
    {
      "format": "DT/CB/[cb.name]/[fy:yyyy]/[SEQ_EGOV_COMMON]",
      "idname": "death_cert.receipt.id"
    }

Hospital List Configurations

egov-mdms-data/hospitalList.json at QA · egovernments/egov-mdms-data

{
	"tenantId": "pb.amritsar",
	"moduleName": "birth-death-service",
	"hospitalList": [
		{
			"hospitalName": "Ajit Hospital",
			"hospitalAddress": "Green Avenue road, 309, circular road block market Ranjit Avenue",
			"active": "true"
		},
		{
			"hospitalName": "Biala Orthopaedics And Multispeciality Hospital",
			"hospitalAddress": "54-A , Hukam Singh Road , S.L Public School Lane",
			"active": "true"
		},
		{
			"hospitalName": "Dashmesh Hospital",
			"hospitalAddress": "Majitha Road Bypass Chowk , Diamond Avenue",
			"active": "true"
		},
		{
			"hospitalName": "Dr. Parminder Singh Pannu Memorial Janta Hospital",
			"hospitalAddress": "Opp. Central Jail, Karam Singh Colony , Friends Avenue",
			"active": "true"
		},
		{
			"hospitalName": "Holy Heart Hospital & Super Speciality Center",
			"hospitalAddress": "Tarnawala Bridge , NH -1 opp New Amritsar",
			"active": "true"
		},
		{
			"hospitalName": "Med Card Multispeciality Hospital",
			"hospitalAddress": "Taran Tarn road, opp Bibi Kaulan Bhalai kendar , Ishwar Nagar",
			"active": "true"
		},
		{
			"hospitalName": "Mokha Hospital & Kidney Care Centre",
			"hospitalAddress": "905/13 near Kamal Palace , Batala Road",
			"active": "true"
		},
		{
			"hospitalName": "Neelkanth Hospital",
			"hospitalAddress": "Fathegrah Churian Road, bypass near Spring Dale School Chand Avenue",
			"active": "true"
		},
		{
			"hospitalName": "Ohri Chest and Multispeciality Hospital",
			"hospitalAddress": "gt road , opp railway workshop Putligarh",
			"active": "true"
		},
		{
			"hospitalName": "Randhawa Hospital Cardiac Care",
			"hospitalAddress": "mall road, Kennedy Avenue",
			"active": "true"
		},
		{
			"hospitalName": "Shoor Multi super Speciality Hospital",
			"hospitalAddress": "Gate Khazana",
			"active": "true"
		},
		{
			"hospitalName": "Shri Guru Ramdass Institute Of Medical Research and Hospital",
			"hospitalAddress": "Shri Guru Ramdass Institute Of Medical Research and Hospital Mehta Road Vallah",
			"active": "true"
		},
		{
			"hospitalName": "Taj Hospital Mattewal",
			"hospitalAddress": "Main Bazar, Mattewal, baba Bakala, Amritsar, Baba Bakala ,143119",
			"active": "true"
		},
		{
			"hospitalName": "Verma Hospital",
			"hospitalAddress": "khairabad Road, Airport road, Meerakot Chowk , Friends Avenue",
			"active": "true"
		}
	]

Access MDMS Configurations

Action Test: URL Actions adding

action-test.json

{
      "id": 2277,
      "name": "BirthRecordsCountReport",
      "url": "/report/rainmaker-bnd/BirthRecordsCountReport/_get",
      "displayName": "BirthRecordsCountReport",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2278,
      "name": "BirthRecordsCountReport",
      "url": "/report/rainmaker-bnd/BirthRecordsCountReport/metadata/_get",
      "displayName": "BirthRecordsCountReport",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2279,
      "name": "BirthRecordsCountReport",
      "url": "url",
      "displayName": "Birth Records Count",
      "orderNumber": 9,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "bnd",
      "code": "null",
      "path": "cbbnd.BirthRecordsCountReport",
      "navigationURL": "report/rainmaker-bnd/BirthRecordsCountReport",
      "leftIcon": "action:assignment",
      "rightIcon": ""
    },
    {
      "id": 2280,
      "name": "DeathRecordsCountReport",
      "url": "/report/rainmaker-bnd/DeathRecordsCountReport/_get",
      "displayName": "DeathRecordsCountReport",
      "orderNumber": 2,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2281,
      "name": "DeathRecordsCountReport",
      "url": "/report/rainmaker-bnd/DeathRecordsCountReport/metadata/_get",
      "displayName": "DeathRecordsCountReport",
      "orderNumber": 2,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2282,
      "name": "DeathRecordsCountReport",
      "url": "url",
      "displayName": "Death Records Count",
      "orderNumber": 9,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "bnd",
      "code": "null",
      "path": "cbbnd.DeathRecordsCountReport",
      "navigationURL": "report/rainmaker-bnd/DeathRecordsCountReport",
      "leftIcon": "action:assignment",
      "rightIcon": ""
    },
    {
      "id": 2283,
      "name": "BirthRecordsCountReportCBLevel",
      "url": "/report/rainmaker-bnd/BirthRecordsCountReportCBLevel/_get",
      "displayName": "BirthRecordsCountReportCBLevel",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2284,
      "name": "BirthRecordsCountReportCBLevel",
      "url": "/report/rainmaker-bnd/BirthRecordsCountReportCBLevel/metadata/_get",
      "displayName": "BirthRecordsCountReportCBLevel",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2285,
      "name": "BirthRecordsCountReportCBLevel",
      "url": "url",
      "displayName": "Birth Records Count CBLevel",
      "orderNumber": 9,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "bnd",
      "code": "null",
      "path": "cbbnd.BirthRecordsCountReportCBLevel",
      "navigationURL": "report/rainmaker-bnd/BirthRecordsCountReportCBLevel",
      "leftIcon": "action:assignment",
      "rightIcon": ""
    },
    {
      "id": 2286,
      "name": "DeathRecordsCountReportCBLevel",
      "url": "/report/rainmaker-bnd/DeathRecordsCountReportCBLevel/_get",
      "displayName": "DeathRecordsCountReportCBLevel",
      "orderNumber": 2,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2287,
      "name": "DeathRecordsCountReportCBLevel",
      "url": "/report/rainmaker-bnd/DeathRecordsCountReportCBLevel/metadata/_get",
      "displayName": "DeathRecordsCountReportCBLevel",
      "orderNumber": 2,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2288,
      "name": "DeathRecordsCountReportCBLevel",
      "url": "url",
      "displayName": "Death Records Count CBLevel",
      "orderNumber": 9,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "bnd",
      "code": "null",
      "path": "cbbnd.DeathRecordsCountReportCBLevel",
      "navigationURL": "report/rainmaker-bnd/DeathRecordsCountReportCBLevel",
      "leftIcon": "action:assignment",
      "rightIcon": ""
    },
    {
      "id": 2289,
      "name": "BirthAndDeathCertificatePayment",
      "url": "/report/rainmaker-bnd/BirthAndDeathCertificatePayment/metadata/_get",
      "displayName": "Birth-Death Payment Report",
      "orderNumber": 3,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2290,
      "name": "BirthAndDeathCertificatePayment",
      "url": "url",
      "displayName": "BnD Paid and Downloaded Records",
      "orderNumber": 9,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "bnd",
      "code": "null",
      "path": "cbbnd.BirthAndDeathCertificatePayment",
      "navigationURL": "report/rainmaker-bnd/BirthAndDeathCertificatePayment",
      "leftIcon": "action:assignment",
      "rightIcon": ""
    },
    {
      "id": 2291,
      "name": "Birth-Death : Birth Save Report",
      "url": "/birth-death-services/common/saveBirthImport",
      "displayName": "Birth Save",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2292,
      "name": "Birth-Death : Death Save Report",
      "url": "/birth-death-services/common/saveDeathImport",
      "displayName": "Death Save",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2293,
      "name": "Birth-Death : Birth Search Report",
      "url": "/birth-death-services/birth/_search",
      "displayName": "Birth Search",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2294,
      "name": "Birth-Death : Death Search Report",
      "url": "/birth-death-services/death/_search",
      "displayName": "Death Search",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2295,
      "name": "Birth-Death : Birth Update Report",
      "url": "/birth-death-services/common/updateBirthImport",
      "displayName": "Birth Update Report",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2296,
      "name": "Birth-Death : Death Update Report",
      "url": "/birth-death-services/common/updateDeathImport",
      "displayName": "Death Update Report",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2297,
      "name": "Dashboard Birth and Death",
      "url": "url",
      "displayName": "Birth and Death",
      "orderNumber": 4,
      "parentModule": "dss-dashboard",
      "enabled": true,
      "serviceCode": "DSS",
      "code": "null",
      "path": "Dashboard.Birth and Death",
      "navigationURL": "/digit-ui/employee/dss/dashboard/birth-death",
      "leftIcon": "places:business-center",
      "rightIcon": ""
    },
    {
      "id": 2298,
      "name": "DSS Dashboard Config Birth and Death",
      "url": "/dashboard-analytics/dashboard/getDashboardConfig/birth-death",
      "parentModule": "",
      "displayName": "DSS",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "DSS",
      "code": "null",
      "path": ""
    },
    {
      "id": 2299,
      "name": "Death New Registration",
      "url": "death-employee/newRegistration",
      "parentModule": "",
      "displayName": "Death New Registration",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2300,
      "name": "Birth New Registration",
      "url": "birth-employee/newRegistration",
      "parentModule": "",
      "displayName": "Birth New Registration",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "leftIcon": "custom:library-books",
      "path": ""
    },
    {
      "id": 2301,
      "name": "Birth : My Applications",
      "url": "birth-citizen/myApplications",
      "parentModule": "",
      "displayName": "My Applications",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2302,
      "name": "Death : My Applications",
      "url": "death-citizen/myApplications",
      "parentModule": "",
      "displayName": "My Applications",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2303,
      "name": "Birth : Home",
      "url": "birth-citizen/home",
      "parentModule": "",
      "displayName": "Home",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2304,
      "name": "Death : Home",
      "url": "death-citizen/home",
      "parentModule": "",
      "displayName": "Home",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2305,
      "name": "Birth New Registration",
      "url": "url",
      "displayName": "Birth New Registration",
      "orderNumber": 4,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": "birth-certificate.new-registration",
      "navigationURL": "birth-employee/newRegistration",
      "leftIcon": "custom:library-books",
      "rightIcon": ""
    },
    {
      "id": 2306,
      "name": "Death New Registration",
      "url": "url",
      "displayName": "Death New Registration",
      "orderNumber": 4,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": "death-certificate.new-registration",
      "navigationURL": "death-employee/newRegistration",
      "leftIcon": "custom:library-books",
      "rightIcon": ""
    },
    {
      "id": 2307,
      "name": "Birth Search Certificate",
      "url": "url",
      "displayName": "Birth Search Certificate",
      "orderNumber": 4,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": "birth-certificate.search-certificate",
      "navigationURL": "birth-common/getCertificate",
      "leftIcon": "custom:library-books",
      "rightIcon": ""
    },
    {
      "id": 2308,
      "name": "Death Search Certificate",
      "url": "url",
      "displayName": "Death Search Certificate",
      "orderNumber": 4,
      "parentModule": "rainmaker-bnd",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": "death-certificate.search-certificate",
      "navigationURL": "death-common/getCertificate",
      "leftIcon": "custom:library-books",
      "rightIcon": ""
    },
    {
      "id": 2309,
      "name": "Birth Download",
      "url": "/birth-death-services/birth/_download",
      "displayName": "Download",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2310,
      "name": "Death Download",
      "url": "/birth-death-services/death/_download",
      "displayName": "Download",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2311,
      "name": "Birth View Certificate",
      "url": "/birth-death-services/birth/_viewfullCertData",
      "displayName": "View Certificate",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2312,
      "name": "Death View Certificate",
      "url": "/birth-death-services/death/_viewfullCertData",
      "displayName": "View Certificate",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2313,
      "name": "Get Hospitals",
      "url": "/birth-death-services/common/getHospitals",
      "displayName": "Get Hospitals",
      "orderNumber": 0,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "Birth-Death",
      "code": "null",
      "path": ""
    },
    {
      "id": 2314,
      "name": "Get file store id for consumer code",
      "url": "/birth-death-services/birth/_getfilestoreid",
      "parentModule": "",
      "displayName": "Get file store id for consumer code",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2315,
      "name": "my requests",
      "url": "/birth-death-services/birth/_searchApplications",
      "parentModule": "",
      "displayName": "my requests",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2316,
      "name": "rainmaker-citizen-birth",
      "url": "card",
      "displayName": "Birth",
      "orderNumber": 8,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "",
      "code": "",
      "path": "",
      "navigationURL": "birth-citizen/home",
      "leftIcon": "custom:library-books",
      "rightIcon": "",
      "queryParams": ""
    },

    {
      "id": 2317,
      "name": "death Search",
      "url": "/birth-death-services/death/_search",
      "parentModule": "",
      "displayName": "death Search",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2318,
      "name": "Download death Cert",
      "url": "/birth-death-services/death/_download",
      "parentModule": "",
      "displayName": "Download death Cert",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2319,
      "name": "Get file store id for consumer code",
      "url": "/birth-death-services/death/_getfilestoreid",
      "parentModule": "",
      "displayName": "Get file store id for consumer code",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2320,
      "name": "my requests",
      "url": "/birth-death-services/death/_searchApplications",
      "parentModule": "",
      "displayName": "my requests",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2321,
      "name": "rainmaker-citizen-death",
      "url": "card",
      "displayName": "death",
      "orderNumber": 8,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "",
      "code": "",
      "path": "",
      "navigationURL": "death-citizen/home",
      "leftIcon": "custom:library-books",
      "rightIcon": "",
      "queryParams": ""
    },
    {
      "id": 2322,
      "name": "View Certificate data",
      "url": "/birth-death-services/birth/_viewCertData",
      "parentModule": "",
      "displayName": "View Certificate data",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2323,
      "name": "Check Declaration",
      "url": "/birth-death-services/common/checkDeclaration",
      "parentModule": "",
      "displayName": "Check Declaration",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2324,
      "name": "Update Declaration",
      "url": "/birth-death-services/common/updateDeclaration",
      "parentModule": "",
      "displayName": "Update Declaration",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2325,
      "name": "BirthAndDeathCertificatePayment",
      "url": "/report/rainmaker-bnd/BirthAndDeathCertificatePayment/_get",
      "displayName": "Birth-Death Payment Report",
      "orderNumber": 3,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "report",
      "code": "null",
      "path": ""
    },
    {
      "id": 2326,
      "name": "PT Payment search",
      "url": "/collection-services/payments/BIRTH_CERT/_search",
      "displayName": "PT Payment search",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": false,
      "serviceCode": "",
      "code": "null",
      "path": ""
    },
    {
      "id": 2327,
      "name": "PT Payment search",
      "url": "/collection-services/payments/DEATH_CERT/_search",
      "displayName": "PT Payment search",
      "orderNumber": 1,
      "parentModule": "",
      "enabled": false,
      "serviceCode": "",
      "code": "null",
      "path": ""
    },
    {
      "id": 2328,
      "name": "BND receipt search",
      "url": "/egov-pdf/download/BIRTHDEATH/birth-certificate",
      "displayName": "BND receipt search",
      "orderNumber": 3,
      "enabled": false,
      "serviceCode": "egov-pdf",
      "code": "null",
      "path": ""
    },
    {
      "id": 2329,
      "name": "BND receipt search",
      "url": "/egov-pdf/download/BIRTHDEATH/death-certificate",
      "displayName": "BND receipt search",
      "orderNumber": 3,
      "enabled": false,
      "serviceCode": "egov-pdf",
      "code": "null",
      "path": ""
    },
    {
      "id": 2333,
      "name": "BND how it works",
      "url": "/filestore/v1/files/static",
      "displayName": "BND how it works",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "birth-death-services",
      "code": "null",
      "path": ""
    },
    {
      "id": 2334,
      "name": "rainmaker-employee-birth",
      "url": "card",
      "displayName": "Birth",
      "orderNumber": 8,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "",
      "code": "",
      "path": "",
      "navigationURL": "birth-common/getCertificate",
      "leftIcon": "custom:library-books",
      "rightIcon": "",
      "queryParams": ""
    },
    {
      "id": 2335,
      "name": "rainmaker-employee-death",
      "url": "card",
      "displayName": "death",
      "orderNumber": 8,
      "parentModule": "",
      "enabled": true,
      "serviceCode": "",
      "code": "",
      "path": "",
      "navigationURL": "death-common/getCertificate",
      "leftIcon": "custom:library-books",
      "rightIcon": "",
      "queryParams": ""
    },
    {
      "id": 2336,
      "name": "NSS Dashboard Config bnd",
      "url": "/dashboard-analytics/dashboard/getDashboardConfig/nss-bnd",
      "parentModule": "",
      "displayName": "NSS",
      "orderNumber": 0,
      "enabled": false,
      "serviceCode": "NSS",
      "code": "null",
      "path": ""
    }

Access To Roles Based Actions

roleacton.json

{
      "rolecode": "BND_CEMP",
      "actionid": 2294,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "EMPLOYEE",
      "actionid": 2294,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2294,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2295,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "EMPLOYEE",
      "actionid": 2295,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2295,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2296,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "EMPLOYEE",
      "actionid": 2296,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2296,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2297,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "EMPLOYEE",
      "actionid": 2297,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2298,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "EMPLOYEE",
      "actionid": 2298,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2298,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2299,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2300,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2301,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2301,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2302,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2302,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2303,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2303,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2303,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2303,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2304,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2304,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2305,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2306,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2307,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2307,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2308,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2308,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2309,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2309,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2310,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2310,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2311,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2311,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2312,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2312,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2313,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2313,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2314,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2314,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2315,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2315,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2316,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2317,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2317,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2318,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2318,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2319,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2319,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2320,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2320,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2321,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2322,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2322,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2323,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2323,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2324,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2324,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2325,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2325,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2326,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2326,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2327,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2327,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2328,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2328,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 2329,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "CITIZEN",
      "actionid": 2329,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 1886,
      "actioncode": "",
      "tenantId": "pb"
    },
    {
      "rolecode": "BND_CEMP",
      "actionid": 1889,
      "actioncode": "",
      "tenantId": "pb"
    },
     {
      "rolecode": "BND_CEMP",
      "actionid": 1890,
      "actioncode": "",
      "tenantId": "pb"
    },

Birth and Death Roles

egov-mdms-data/roles.json at master · egovernments/egov-mdms-data

{
      "code": "BND_CEMP",
      "name": "Birth and Death User",
      "description": "Birth and Death User"
    },
    {
      "code": "DASHBOARD_REPORT_VIEWER",
      "name": "Birth and Death Dashboard User",
      "description": "Birth and Death Dashboard User"
    },
    {
      "code": "BIRTH_APPLICATION_CREATOR",
      "name": "Birth Application Creator",
      "description": "Birth User that can only create new applications"
    },
    {
      "code": "DEATH_APPLICATION_CREATOR",
      "name": "Death Application Creator",
      "description": "Death User that can only create new applications"
    },
    {
      "code": "BIRTH_APPLICATION_VIEWER",
      "name": "Birth Application Viewer",
      "description": "Birth User that can only search and view applications"
    },
    {
      "code": "DEATH_APPLICATION_VIEWER",
      "name": "Death Application Viewer",
      "description": "Death User that can only search and view applications"
    },
    {
      "code": "BIRTH_REPORT_VIEWER",
      "name": "Birth Report Viewer",
      "description": "Birth and Death User that can view tabular reports"
    },
    {
      "code": "DEATH_REPORT_VIEWER",
      "name": "Death Report Viewer",
      "description": "Death User that can view tabular reports"
    },
    {
      "code": "BIRTH_APPLICATION_EDITOR",
      "name": "Birth Application Editor",
      "description": "Birth User that can edit existing applications"
    },
    {
      "code": "DEATH_APPLICATION_EDITOR",
      "name": "DEATH Application Editor",
      "description": "Death User that can edit existing applications"
    }

Persister Configuration

BND Persister YAML

Indexer Configuration

Birth Indexer YAML

Death Indexer YAML

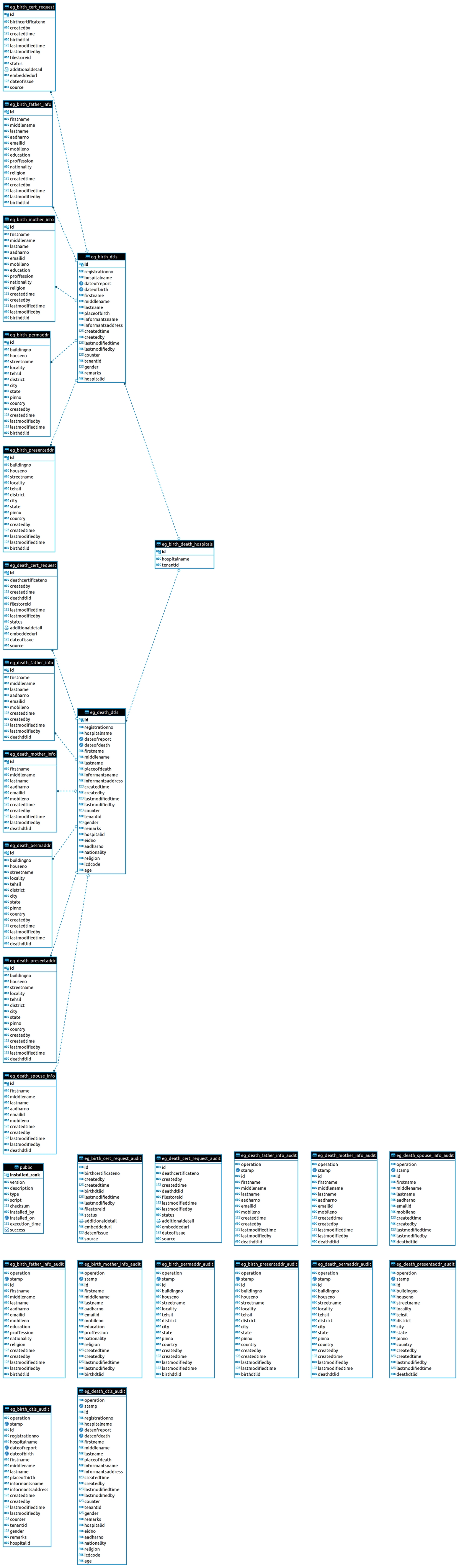

Database Schema

Postman Links

https://www.getpostman.com/collections/a6622af87bd5346d11fc
