DSS has two sides to it. One is the process in which the data is pooled into ElasticSearch and the other is the way it is fetched, aggregated, computed, transformed and sent across.
As this revolves around a variety of data sets, there is a need for making this configurable. So that, tomorrow, given a new scenario is introduced, then it is just a configuration away from getting the newly introduced scenario involved in this flow of the process.
This document explains the steps on how to define the configurations for the analytics side Of DSS for FireNoc.
What is analytics?
Analytics: Micro Service which is responsible for building, fetching, aggregating and computing the Data on ElasticSearch to a consumable Data Response. Which shall be later used for visualizations and graphical representations.
Analytics Configurations: Analytics contains multiple configurations. we need to add the changes related to firenoc in this dashboard-analytics. File location : configs/egov-dss-dashboards/dashboard-analytics at qa · egovernments/configs Below is a list of configurations that need to be changed to run firenoc successfully.
Chart API Configuration
Master Dashboard Configuration
Role Dashboard Mappings Configuration
Each visualization has its own properties. Each visualization comes from different data sources (Sometimes it is a combination of different data sources)
In order to configure each visualization and its properties, we have a Chart API Configuration document.
In this, visualization code, which happens to be the key, has its properties configured as a part of the configuration and are easily changeable.
Here is the sample ChartApiConfiguration.json data for the FireNoc.

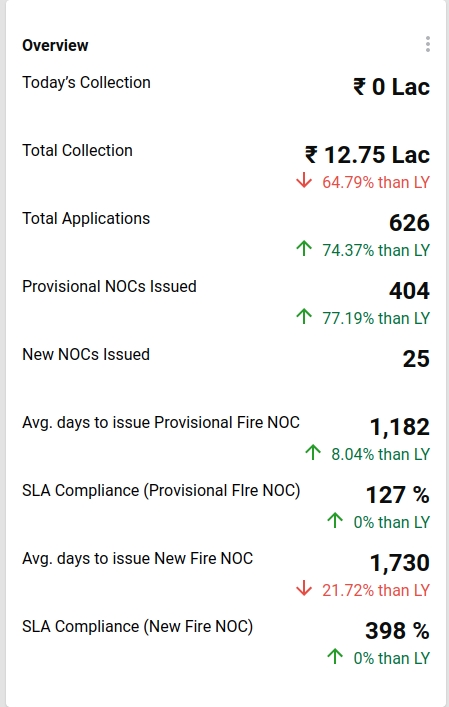

"nocTodaysCollection": {
"chartName": "DSS_NOC_TODAYS_COLLECTION",
"queries": [
{
"module": "FIRENOC",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}},{\"range\":{\"dataObject.paymentDetails.receiptDate\":{\"gte\":\"now-24h\",\"lte\":\"now\"}}}],\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"term\":{\"dataObject.paymentStatus.keyword\":\"Cancelled\"}}]}},\"aggs\":{\"Todays Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}",
"requestQueryMap": "{\"wardId\" : \"dataObject.ward.name.keyword\",\"module\" : \"dataObject.paymentDetails.businessService.keyword\",\"tenantId\" : \"dataObject.tenantId\", \"district\" : \"dataObject.tenantData.city.districtCode\" }",
"dateRefField": ""
}
],
"chartType": "metric",
"valueType": "amount",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Todays Collection"
],
"insight": {
},
"_comment": "FIRE NOC todays collections "
},
"nocTotalCollection": {
"chartName": "DSS_NOC_TOTAL_COLLECTION",
"queries": [
{
"module": "FIRENOC",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}],\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"term\":{\"dataObject.paymentStatus.keyword\":\"Cancelled\"}}]}},\"aggs\":{\"Total Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}",
"requestQueryMap": "{\"wardId\" : \"dataObject.ward.name.keyword\",\"module\" : \"dataObject.paymentDetails.businessService.keyword\",\"tenantId\" : \"dataObject.tenantId\", \"district\" : \"dataObject.tenantData.city.districtCode\" }",
"dateRefField": "dataObject.paymentDetails.receiptDate"
}
],
"chartType": "metric",
"valueType": "amount",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Total Collection"
],
"insight": {
"chartResponseMap" : "nocTotalCollection",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year",
"isRoundOff": true
},
"_comment": "FIRE NOC total collections "
},
"nocTotalApplications": {
"chartName": "DSS_NOC_TOTAL_APPLICATIONS",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total Applications\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Total Applications"
],
"insight": {
"chartResponseMap" : "nocTotalApplications",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE NOC total applications "
},
"nocProvisionalIssued": {
"chartName": "DSS_NOC_PROVISIONAL_ISSUED",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Provisional Fire Nocs issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Provisional Fire Nocs issued"
],
"insight": {
"chartResponseMap" : "nocProvisionalIssued",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE NOC Provisional Issued"
},
"nocActualIssued": {
"chartName": "DSS_NOC_ACTUAL_ISSUED",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Actual Fire Nocs issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Actual Fire Nocs issued"
],
"insight": {
"chartResponseMap" : "nocActualIssued",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "Actual fire nocs Issued"
},
"nocAverageDaysToIssueProvisional": {
"chartName": "DSS_NOC_AVERAGE_DAYS_TO_ISSUE_PROVISIONAL",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Average days to issue Provisional NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Average days to issue Provisional NOC"
],
"insight": {
"chartResponseMap" : "nocAvgDayToIssueProvisional",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE Avg. days to issue Provisional"
},
"nocSLAComplianceProvisional": {
"chartName": "DSS_NOC_SLA_COMPLIANCE_PROVISIONAL",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"SLA Compliance (Provisional NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "percentage",
"action": "percentage",
"drillChart": "none",
"aggregationPaths": [
"SLA Compliance (Provisional NOC)"
],
"insight": {
"chartResponseMap" : "slaCompliance",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE NOC SLA Compliance Provisional"
},
"nocAverageDaysToIssueActual": {
"chartName": "DSS_NOC_AVERAGE_DAYS_TO_ISSUE_ACTUAL",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Average days to issue Actual NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "number",
"action": "",
"drillChart": "none",
"aggregationPaths": [
"Average days to issue Actual NOC"
],
"insight": {
"chartResponseMap" : "nocAvgDayToIssueActual",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE Avg. days to issue Actual"
},
"nocSLAComplianceActual": {
"chartName": "DSS_NOC_SLA_COMPLIANCE_ACTUAL",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"SLA Compliance (Actual NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "metric",
"valueType": "percentage",
"action": "percentage",
"drillChart": "none",
"aggregationPaths": [
"SLA Compliance (Actual NOC)"
],
"insight": {
"chartResponseMap" : "slaCompliance",
"action" : "differenceOfNumbers",
"upwardIndicator" : "positive",
"downwardIndicator" : "negative",
"textMessage" : "$indicator$value% than last $insightInterval",
"colorCode" : "#228B22",
"insightInterval" : "year"
},
"_comment": "FIRE NOC SLA Compliance Actual"
},

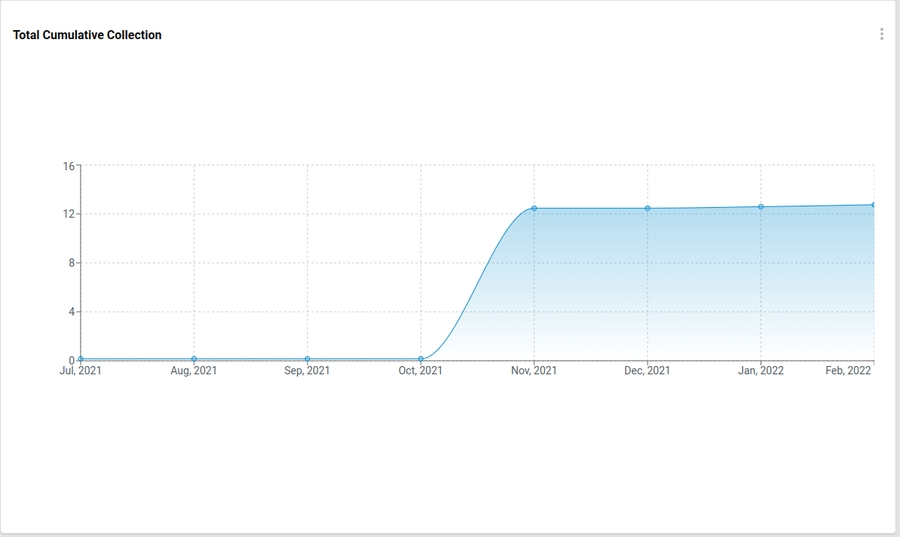

"nocCumulativeCollection": {
"chartName": "DSS_NOC_TOTAL_CUMULATIVE_COLLECTION",
"queries": [
{
"module": "FIRENOC",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"requestQueryMap": "{\"wardId\" : \"domainObject.ward.name.keyword\",\r\n \"module\" : \"dataObject.paymentDetails.businessService.keyword\", \n\"tenantId\" : \"dataObject.tenantId\"}",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}],\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}]}},\"aggs\":{\"NOC Cumulative Collections\":{\"date_histogram\":{\"field\":\"dataObject.paymentDetails.receiptDate\",\"interval\":\"intervalvalue\"},\"aggs\":{\"Sum\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}}}"
}
],
"chartType": "line",
"valueType": "amount",
"action": "",
"drillChart": "none",
"documentType": "_doc",
"aggregationPaths": [
"NOC Cumulative Collections"
],
"isCumulative": true,
"interval": "month",
"insight": {},
"_comment": ""
},

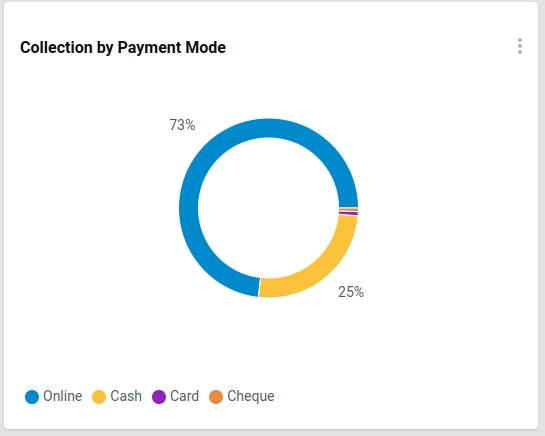

"nocCollectionByPaymentMode": {
"chartName": "DSS_NOC_COLLECTION_BY_PAYMENT_MODE",
"queries": [
{
"module": "FIRENOC",
"requestQueryMap": "{\"module\" : \"dataObject.paymentDetails.businessService.keyword\", \"tenantId\" : \"dataObject.tenantId\"}",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}],\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}]}},\"aggs\":{\"NOC Payment Mode\":{\"terms\":{\"field\":\"dataObject.paymentMode.keyword\"},\"aggs\":{\"Total Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}}}"
}
],
"chartType": "pie",
"valueType": "amount",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"NOC Payment Mode"
],
"insight": {},
"_comment": ""
},

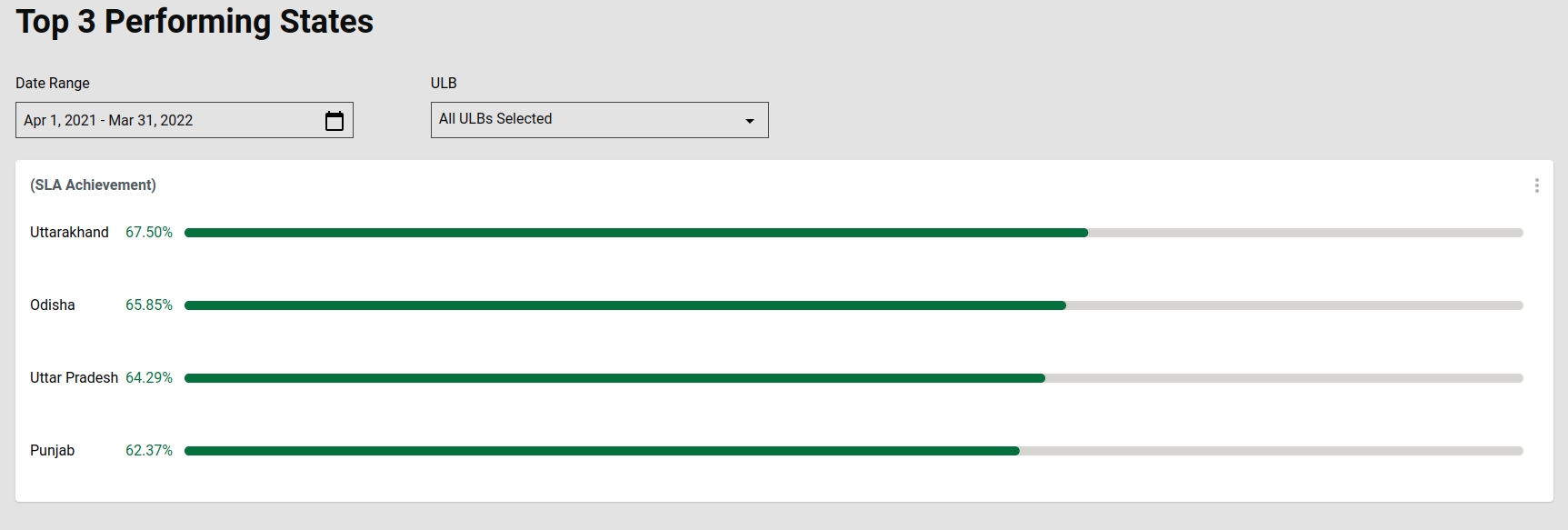

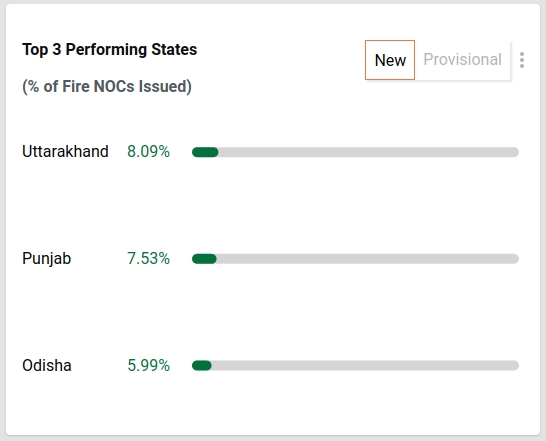

"nocActualTopPerformingUlbs": {
"chartName": "DSS_NOC_ACTUAL_TOP_3_PERFORMING_ULBS",
"queries": [
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"desc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
},
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}],\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}},\"aggs\":{\"Actual NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"desc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
}
],
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "Actual",
"order": "desc",
"limit": 3,
"aggregationPaths": [
"Actual NOCs issued",
"Total NOCs issued"
],
"insight": {
},
"_comment": "Top Performing Ulbs for actual nocs issued"
},

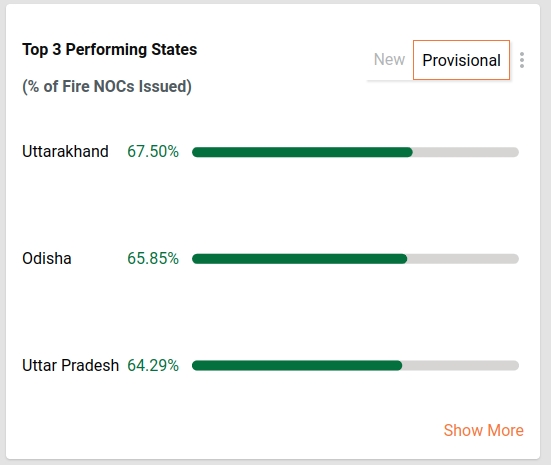

"nocProvisionalTopPerformingUlbs": {
"chartName": "DSS_NOC_PROVISIONAL_TOP_3_PERFORMING_ULBS",
"queries": [
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"desc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
},
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}],\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}},\"aggs\":{\"Provisional NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"desc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
}
],
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "Provisional",
"order": "desc",
"limit": 3,
"aggregationPaths": [
"Provisional NOCs issued",
"Total NOCs issued"
],
"insight": {
},
"_comment": "Top Performing Ulbs for provisional nocs issued"
},

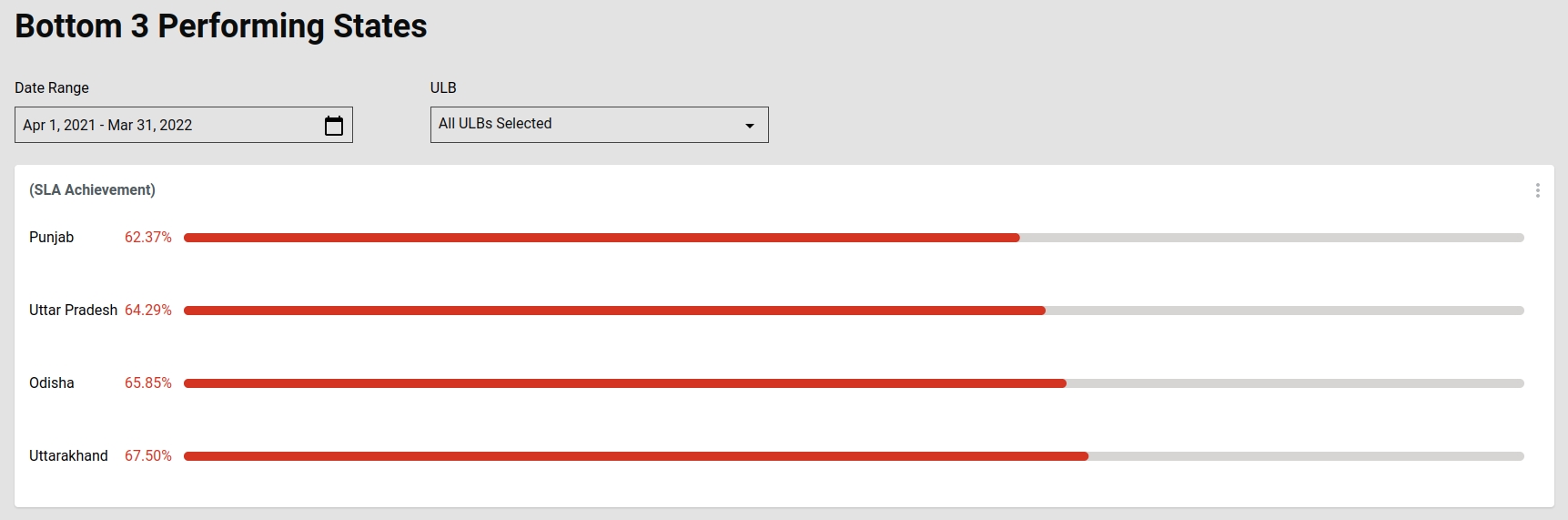

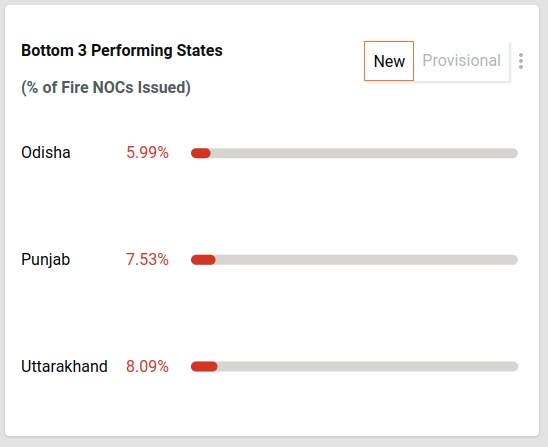

"nocActualBottomPerformingUlbs": {
"chartName": "DSS_NOC_ACTUAL_BOTTOM_3_PERFORMING_ULBS",
"queries": [
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"asc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
},
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}],\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}},\"aggs\":{\"Actual NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"asc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
}
],
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "Actual",
"order": "asc",
"limit": 3,
"aggregationPaths": [
"Actual NOCs issued",
"Total NOCs issued"
],
"insight": {
},
"_comment": "Bottom Performing Ulbs for actual nocs issued"
},
"nocProvisionalBottomPerformingUlbs": {
"chartName": "DSS_NOC_PROVISIONAL_BOTTOM_3_PERFORMING_ULBS",
"queries": [
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"asc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
},
{
"module": "FIRENOC",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"AGGR\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}],\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}},\"aggs\":{\"Provisional NOCs issued\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":\"200\",\"order\":{\"NOCs\":\"asc\"}},\"aggs\":{\"NOCs\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}}}}}}}}"
}
],
"chartType": "perform",
"valueType": "percentage",
"drillChart": "none",
"documentType": "_doc",
"action": "percentage",
"plotLabel": "Provisional",
"order": "asc",
"limit": 3,
"aggregationPaths": [
"Provisional NOCs issued",
"Total NOCs issued"
],
"insight": {
},
"_comment": "Bottom Performing Ulbs for provisional nocs issued"
},

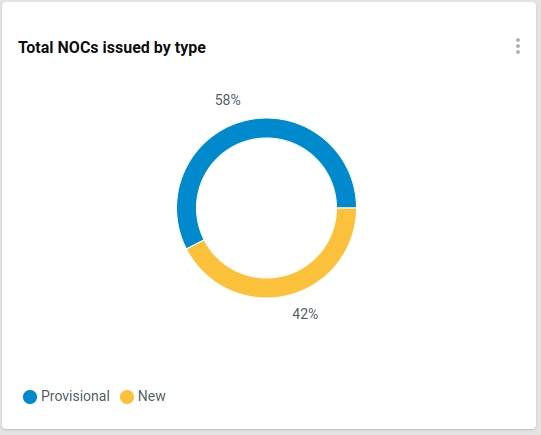

"totalNocIssuedByType": {
"chartName": "DSS_TOTAL_NOC_ISSUED_TYPE",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\": {\"fireNOC Issued\": {\"terms\": {\"field\": \"Data.fireNOCDetails.fireNOCType.keyword\"},\"aggs\": {\"total_nocs_by_type\": {\"cardinality\": {\"field\": \"_id\"}}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "pie",
"valueType": "number",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"fireNOC Issued"
],
"insight": {
},
"_comment": "Total NOCs issued by Type"
},

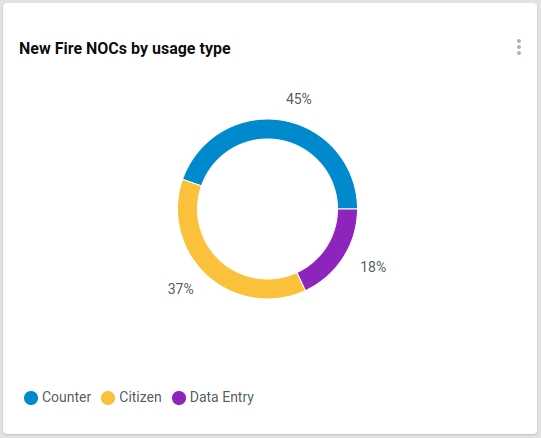

"actualNocIssuedByUsageType": {
"chartName": "DSS_ACTUAL_NOC_ISSUED_USAGETYPE",
"queries": [
{
"module": "FIRENOC",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}],\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}},\"aggs\":{\"actualNOC Issued\":{\"terms\":{\"field\":\"Data.fireNOCDetails.buildings.usageType.keyword\"},\"aggs\":{\"actual_nocs_by_usagetype\":{\"cardinality\":{\"field\":\"_id\"}}}}}}}}",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\" \r\n}",
"dateRefField": "Data.auditDetails.createdTime"
}
],
"chartType": "pie",
"valueType": "number",
"action": "",
"documentType": "_doc",
"drillChart": "none",
"aggregationPaths": [
"actualNOC Issued"
],
"insight": {
},
"_comment": "Actual NOCs Issued by usageType."
},

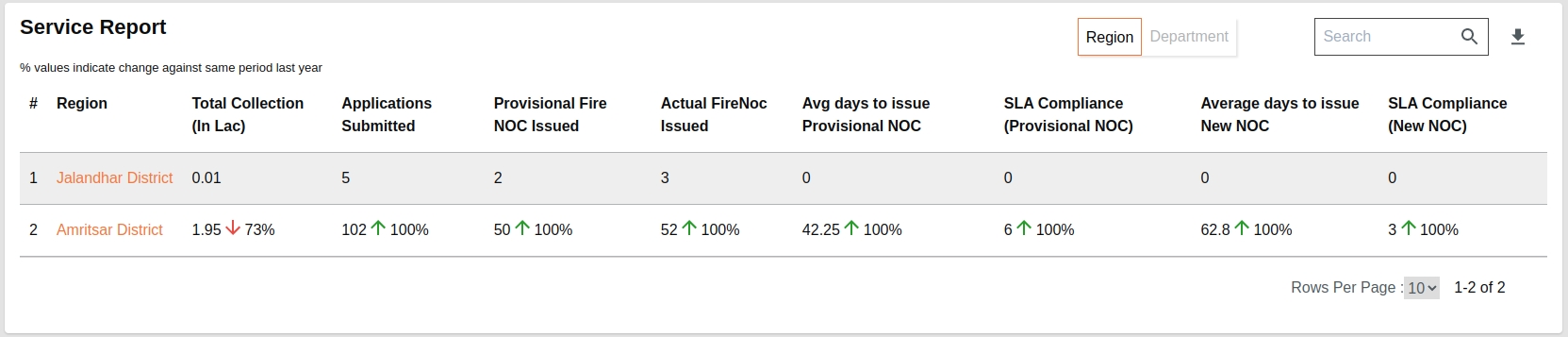

"nocServiceReportByRegion": {
"chartName": "DSS_NOC_SERVICE_REPORT_REGION",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"dataObject.ward.name.keyword\",\"module\" : \"dataObject.paymentDetails.businessService.keyword\",\"tenantId\" : \"dataObject.tenantId\", \"district\" : \"dataObject.tenantData.city.districtCode\" }",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}],\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}]}},\"aggs\":{\"firenoc_Total_Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}"
},
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Total_Applications\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}},\"Provisional_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}}},\"Actual_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}}},\"Average_days_to_issue_Provisional_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"Average_days_to_issue_Actual_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"SLA_Compliance(Actual_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}},\"SLA_Compliance(Provisional_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}"
}
],
"isMdmsEnabled": true,
"filterKeys": [
{"key": "tenantId", "column": "Region"}
],
"chartType": "xtable",
"valueType": "number",
"action": "",
"plotLabel": "Region",
"isPostResponseHandler": true,
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"documentType": "_doc",
"drillChart": "nocServiceReportDrillDown",
"aggregationPaths": [
"firenoc_Total_Collection",
"Total_Applications",
"Provisional_Fire_Nocs_issued",
"Actual_Fire_Nocs_issued",
"Average_days_to_issue_Provisional_NOC",
"SLA_Compliance(Provisional_NOC)",
"Average_days_to_issue_Actual_NOC",
"SLA_Compliance(Actual_NOC)"
],
"pathDataTypeMapping": [
{
"firenoc_Total_Collection": "amount"
},
{
"Total_Applications": "number"
},
{
"Provisional_Fire_Nocs_issued": "number"
},
{
"Actual_Fire_Nocs_issued": "number"
},
{
"Average_days_to_issue_Provisional_NOC": "number"
},
{
"SLA_Compliance(Provisional_NOC)": "number"
},
{
"Average_days_to_issue_Actual_NOC": "number"
},
{
"SLA_Compliance(Actual_NOC)": "number"
}
],
"insight": {
},
"_comment": ""
},

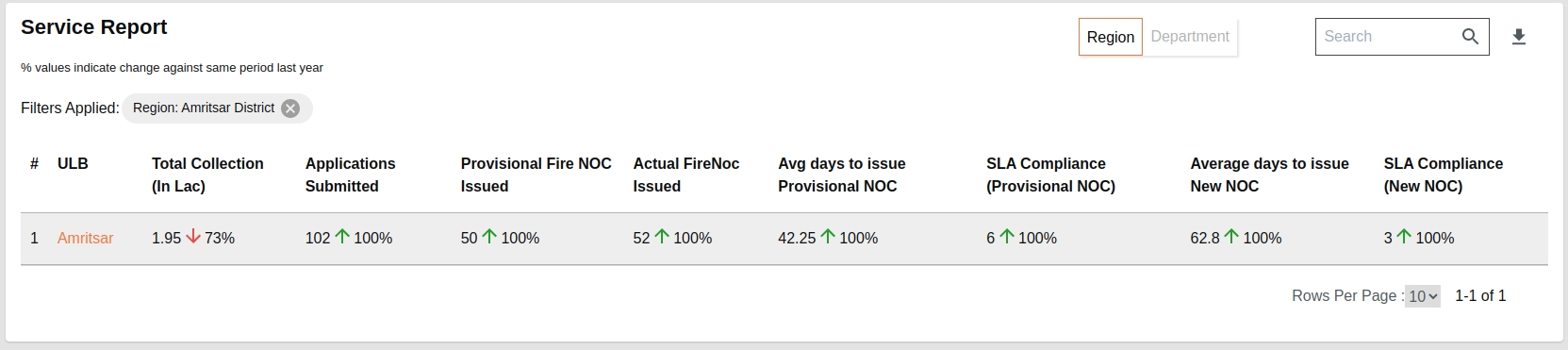

"nocServiceReportDrillDown": {
"chartName": "DSS_NOC_SERVICE_REPORT_BOUNDRY",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"dataObject.ward.name.keyword\",\"module\" : \"dataObject.paymentDetails.businessService.keyword\",\"tenantId\" : \"dataObject.tenantId\", \"ulbId\" : \"dataObject.tenantId\", \"district\" : \"dataObject.tenantData.city.districtCode\" }",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}],\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}]}},\"aggs\":{\"ULBs\":{\"terms\":{\"field\":\"dataObject.tenantId.keyword\",\"size\":1000},\"aggs\":{\"firenoc_Total_Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}}}"
},
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"ulbId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"ULBs\":{\"terms\":{\"field\":\"Data.tenantId.keyword\",\"size\":1000},\"aggs\":{\"Total_Applications\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}},\"Provisional_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}}},\"Actual_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}}},\"Average_days_to_issue_Provisional_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"Average_days_to_issue_Actual_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"SLA_Compliance(Actual_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}},\"SLA_Compliance(Provisional_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}}}"
}
],
"filterKeys": [
{"key": "tenantId", "column": "ULBs"}
],
"chartType": "xtable",
"valueType": "number",
"drillChart": "nocServiceReportBoundaryDrillDown",
"documentType": "_doc",
"action": "",
"plotLabel": "ULBs",
"postAggregationTheory" : "repsonseToDifferenceOfDates",
"aggregationPaths": [
"firenoc_Total_Collection",
"Total_Applications",
"Provisional_Fire_Nocs_issued",
"Actual_Fire_Nocs_issued",
"Average_days_to_issue_Provisional_NOC",
"SLA_Compliance(Provisional_NOC)",
"Average_days_to_issue_Actual_NOC",
"SLA_Compliance(Actual_NOC)"
],
"pathDataTypeMapping": [
{
"firenoc_Total_Collection": "amount"
},
{
"Total_Applications": "number"
},
{
"Provisional_Fire_Nocs_issued": "number"
},
{
"Actual_Fire_Nocs_issued": "number"
},
{
"Average_days_to_issue_Provisional_NOC": "number"
},
{
"SLA_Compliance(Provisional_NOC)": "number"
},
{
"Average_days_to_issue_Actual_NOC": "number"
},
{
"SLA_Compliance(Actual_NOC)": "number"
}
],
"insight": {
},
"_comment": " "
},

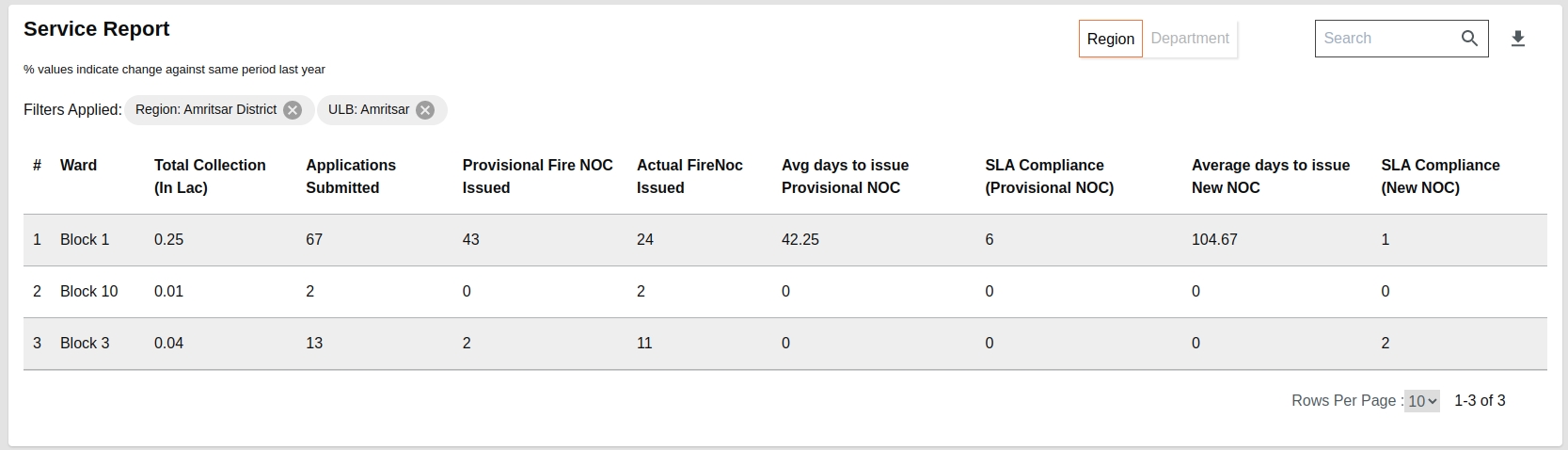

"nocServiceReportBoundaryDrillDown": {
"kind": "drillDown",
"chartName": "Boundary",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"domainObject.ward.name.keyword\",\"module\" : \"dataObject.paymentDetails.businessService.keyword\",\"tenantId\" : \"dataObject.tenantId\", \"ulbId\" : \"dataObject.tenantId\", \"district\" : \"dataObject.tenantData.city.districtCode\" }",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}],\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}]}},\"aggs\":{\"Ward \":{\"terms\":{\"field\":\"domainObject.ward.name.keyword\",\"size\":200},\"aggs\":{\"firenoc_Total_Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}}}"
},
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId\", \"ulbId\" : \"Data.tenantId\", \"district\" : \"Data.tenantData.city.districtCode\"}",
"dateRefField": "Data.auditDetails.createdTime",
"indexName": "firenoc-services",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Ward \":{\"terms\":{\"field\":\"Data.ward.name.keyword\",\"size\":200},\"aggs\":{\"Total_Applications\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}},\"Provisional_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}}},\"Actual_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}}},\"Average_days_to_issue_Provisional_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"Average_days_to_issue_Actual_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"SLA_Compliance(Actual_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}},\"SLA_Compliance(Provisional_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}}}"
}
],
"filterKeys": [
{"key": "wardId", "column": "Ward"},
{"key": "ulbId", "column": "ULB"}
],
"chartType": "table",
"valueType": "number",
"drillChart": "none",
"documentType": "_doc",
"action": "",
"plotLabel": "Ward",
"aggregationPaths": [
"firenoc_Total_Collection",
"Total_Applications",
"Provisional_Fire_Nocs_issued",
"Actual_Fire_Nocs_issued",
"Average_days_to_issue_Provisional_NOC",
"SLA_Compliance(Provisional_NOC)",
"Average_days_to_issue_Actual_NOC",
"SLA_Compliance(Actual_NOC)"
],
"pathDataTypeMapping": [
{
"firenoc_Total_Collection": "amount"
},
{
"Total_Applications": "number"
},
{
"Provisional_Fire_Nocs_issued": "number"
},
{
"Actual_Fire_Nocs_issued": "number"
},
{
"Average_days_to_issue_Provisional_NOC": "number"
},
{
"SLA_Compliance(Provisional_NOC)": "number"
},
{
"Average_days_to_issue_Actual_NOC": "number"
},
{
"SLA_Compliance(Actual_NOC)": "number"
}
],
"insight": {
},
"_comment": " "
},

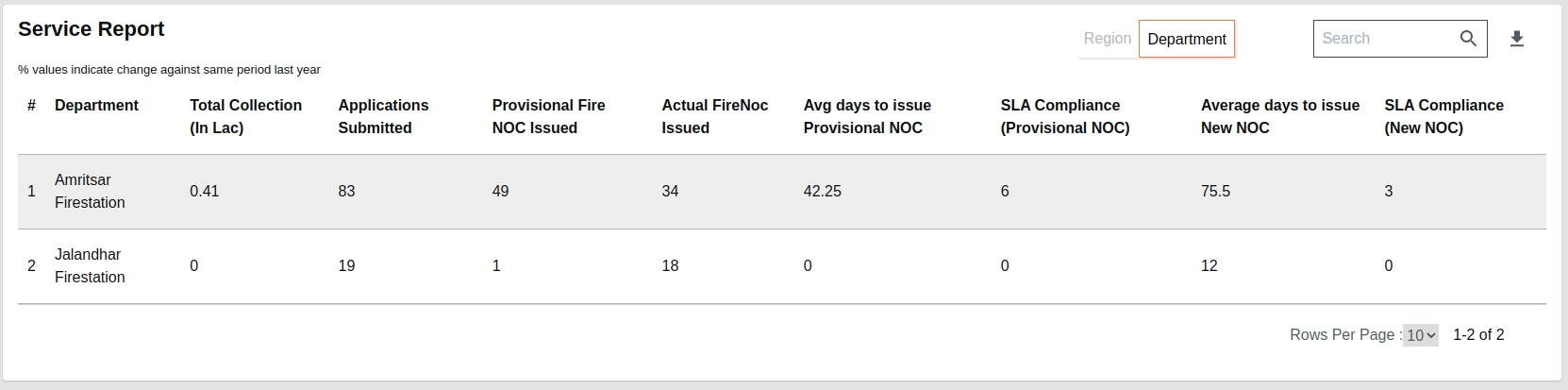

"nocServiceReportByDepartment": {
"chartName": "DSS_NOC_SERVICE_REPORT_DEPARTMENT",
"queries": [
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"dataObject.ward.name.keyword\", \"tenantId\" : \"dataObject.tenantId.keyword\"}",
"dateRefField": "dataObject.paymentDetails.receiptDate",
"indexName": "dss-collection_v2",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"dataObject.tenantId.keyword\":\"pb.testing\"}},{\"terms\":{\"dataObject.bill.status.keyword\":[\"Cancelled\"]}}],\"must\":[{\"terms\":{\"dataObject.paymentDetails.businessService.keyword\":[\"FIRENOC\"]}}]}},\"aggs\":{\"Department\":{\"terms\":{\"field\":\"domainObject.Department.keyword\",\"size\":1000},\"aggs\":{\"firenoc_Total_Collection\":{\"sum\":{\"field\":\"dataObject.paymentDetails.totalAmountPaid\"}}}}}}}}"
},
{
"module": "COMMON",
"requestQueryMap": "{\"wardId\" : \"Data.ward.name.keyword\",\"tenantId\" : \"Data.tenantId.keyword\"}",
"indexName": "firenoc-services",
"dateRefField": "Data.auditDetails.createdTime",
"aggrQuery": "{\"aggs\":{\"FireNOC\":{\"filter\":{\"bool\":{\"must_not\":[{\"term\":{\"Data.tenantId.keyword\":\"pb.testing\"}}]}},\"aggs\":{\"Department\":{\"terms\":{\"field\":\"Data.Department.keyword\",\"size\":1000},\"aggs\":{\"Total_Applications\":{\"value_count\":{\"field\":\"Data.tenantId.keyword\"}},\"Provisional_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}}]}}},\"Actual_Fire_Nocs_issued\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}}]}}},\"Average_days_to_issue_Provisional_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"Average_days_to_issue_Actual_NOC\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}}]}},\"aggs\":{\"average_days\":{\"avg\":{\"script\":{\"source\":\"(doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value)\/(86400*1000)\"}}}}},\"SLA_Compliance(Actual_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"NEW\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}},\"SLA_Compliance(Provisional_NOC)\":{\"filter\":{\"bool\":{\"must\":[{\"term\":{\"Data.fireNOCDetails.fireNOCType.keyword\":\"PROVISIONAL\"}},{\"term\":{\"Data.fireNOCDetails.status.keyword\":\"APPROVED\"}},{\"script\":{\"script\":{\"source\":\"doc['Data.auditDetails.lastModifiedTime'].value-doc['Data.auditDetails.createdTime'].value<params.threshold\",\"lang\":\"painless\",\"params\":{\"threshold\":172800000}}}}]}}}}}}}}}"
}
],
"filterKeys": [
{"key": "tenantId", "column": "Department"}
],
"chartType": "table",
"valueType": "number",
"drillChart": "none",
"documentType": "_doc",
"plotLabel": "firenoc_Department",
"aggregationPaths": [
"firenoc_Total_Collection",
"Total_Applications",
"Provisional_Fire_Nocs_issued",
"Actual_Fire_Nocs_issued",
"Average_days_to_issue_Provisional_NOC",
"SLA_Compliance(Provisional_NOC)",
"Average_days_to_issue_Actual_NOC",
"SLA_Compliance(Actual_NOC)"
],
"pathDataTypeMapping": [
{
"firenoc_Total_Collection": "amount"
},
{
"Total_Applications": "number"
},
{
"Provisional_Fire_Nocs_issued": "number"
},
{
"Actual_Fire_Nocs_issued": "number"
},
{
"Average_days_to_issue_Provisional_NOC": "number"
},
{
"SLA_Compliance(Provisional_NOC)": "number"
},
{
"Average_days_to_issue_Actual_NOC": "number"
},
{
"SLA_Compliance(Actual_NOC)": "number"
}
],
"insight": {
},
"_comment": ""
},Click here to check the complete configuration
Master Dashboard Configuration is the main configuration which defines the dashboards to be painted on the screen.
It includes all the visualizations, their groups, the charts which come within them and even their dimensions as what should be their height and width.
{
"name": "DSS_FIRE_NOC_DASHBOARD",
"id": "noc",
"isActive": "",
"style": "linear",
"visualizations": [
{
"row": 1,
"name": "DSS_OVERVIEW",
"vizArray": [
{
"id": 341,
"name": "DSS_NOC_REVENUE",
"dimensions": {
"height": 400,
"width": 5
},
"vizType": "metric-collection",
"label": "DSS_NOC_REVENUE",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nocTodaysCollection",
"name": "DSS_NOC_TODAYS_COLLECTION",
"code": "",
"chartType": "metric",
"filter": {
"title": "TODAY"
},
"headers": []
},
{
"id": "nocTotalCollection",
"name": "DSS_NOC_TOTAL_COLLECTION",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
}
]
},
{
"id": 342,
"name": "DSS_NOC_TOTAL_CUMULATIVE_COLLECTION",
"dimensions": {
"height": 190,
"width": 7
},
"vizType": "chart",
"label": "",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nocCumulativeCollection",
"name": "Monthly",
"code": "",
"chartType": "line",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 2,
"name": "DSS_OVERVIEW",
"vizArray": [
{
"id": 341,
"name": "DSS_NOC_OVERVIEW",
"dimensions": {
"height": 400,
"width": 5
},
"vizType": "metric-collection",
"label": "DSS_NOC_OVERVIEW",
"noUnit": true,
"isCollapsible": false,
"charts": [
{
"id": "nocTotalApplications",
"name": "DSS_NOC_TOTAL_APPLICATIONS",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nocProvisionalIssued",
"name": "DSS_NOC_PROVISIONAL_ISSUED",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nocActualIssued",
"name": "DSS_NOC_ACTUAL_ISSUED",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nocSLAComplianceProvisional",
"name": "DSS_NOC_SLA_COMPLIANCE_PROVISIONAL",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
},
{
"id": "nocSLAComplianceActual",
"name": "DSS_NOC_SLA_COMPLIANCE_ACTUAL",
"code": "",
"chartType": "metric",
"filter": "",
"headers": []
}
]
},
{
"id": 343,

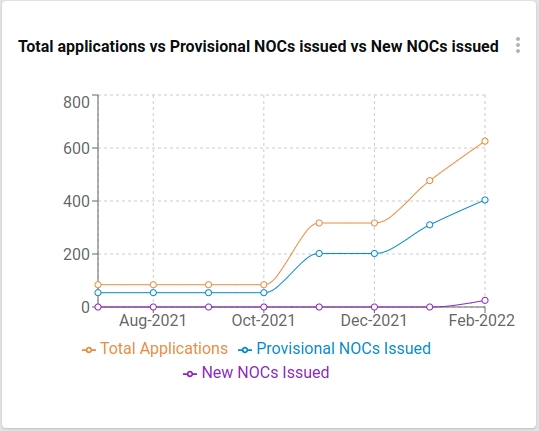

"name": "DSS_APPLICATION_VS_PROVISIONAL_VS_ACTUAL",
"dimensions": {
"height": 190,
"width": 7
},
"vizType": "chart",
"isCollapsible": false,
"label": "",
"charts": [
{
"id": "nocApplicationVsProvisionalVsActual",
"name": "Monthly",
"code": "",
"chartType": "line",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 3,
"name": "DSS_OVERVIEW",
"vizArray": [
{
"id": 210,
"name": "DSS_NOC_COLLECTION_BY_PAYMENT_MODE",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "chart",
"label": "",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nocCollectionByPaymentMode",
"name": "DSS_NOC_COLLECTION_BY_PAYMENT_MODE",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
},
{
"id": 211,
"name": "DSS_TOTAL_NOC_ISSUED_TYPE",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "chart",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "totalNocIssuedByType",
"name": "DSS_TOTAL_NOC_ISSUED_TYPE",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
},
{
"id": 212,
"name": "DSS_ACTUAL_NOC_ISSUED_USAGETYPE",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "chart",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "actualNocIssuedByUsageType",
"name": "DSS_ACTUAL_NOC_ISSUED_USAGETYPE",
"code": "",
"chartType": "donut",
"filter": "",
"headers": []
}
]
}
]
},
{
"row": 4,
"name": "DSS_OVERVIEW",
"vizArray": [
{
"id": 321,
"name": "DSS_NOC_TOP_3_PERFORMING_ULBS",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "performing-metric",
"label": "",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nocActualTopPerformingUlbs",
"name": "DSS_NOC_ACTUAL_TOP_3_PERFORMING_ULBS",
"code": "",
"chartType": "bar",
"filter": "",
"headers": [],
"tabName":"Actual"
},
{
"id": "nocProvisionalTopPerformingUlbs",
"name": "DSS_NOC_PROVISIONAL_TOP_3_PERFORMING_ULBS",
"code": "",
"chartType": "bar",
"filter": "",
"headers": [],
"tabName":"Provisional"
}
]
},
{
"id": 322,
"name": "DSS_NOC_BOTTOM_3_PERFORMING_ULBS",
"dimensions": {
"height": 250,
"width": 4
},
"vizType": "performing-metric",
"label": "",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nocActualBottomPerformingUlbs",
"name": "DSS_NOC_ACTUAL_BOTTOM_3_PERFORMING_ULBS",
"code": "",
"chartType": "bar",
"filter": "",
"headers": [],
"tabName":"Actual"
},
{
"id": "nocProvisionalBottomPerformingUlbs",
"name": "DSS_NOC_PROVISIONAL_BOTTOM_3_PERFORMING_ULBS",
"code": "",
"chartType": "bar",
"filter": "",
"headers": [],
"tabName":"Provisional"
}
]
}
]
},
{
"row": 5,
"name": "DSS_OVERVIEW",
"vizArray": [
{
"id": 231,
"name": "Service Report",
"dimensions": {
"height": 350,
"width": 12
},
"vizType": "chart",
"noUnit": false,
"isCollapsible": false,
"charts": [
{
"id": "nocServiceReportByRegion",
"name": "DSS_NOC_SERVICE_REPORT_REGION",
"code": "",
"chartType": "table",
"filter": "",
"headers": [],
"tabName": "Region"
},
{
"id": "nocServiceReportByDepartment",
"name": "DSS_NOC_SERVICE_REPORT_DEPARTMENT",
"code": "",
"chartType": "table",
"filter": "",
"headers": [],
"tabName": "Department"
}
]
}
]
}
]
}Click here for the complete configuration
Master Dashboard Configuration which was explained earlier holds the list of dashboards which are available.
Given the instance where Role Action Mapping is not maintained in the Application Service, this configuration will act as Role - Dashboard Mapping Configuration
In this, each Role is mapped against the Dashboard which they are authorized to see
This was used earlier when the Role Action Mapping of eGov was not integrated.
Later, when the Role Action Mapping started controlling the Dashboards to be seen on the client side, this configuration was just used to enable the Dashboards for viewing.
{
"_comment": "Holds mapping for each role with and its associated dashboards",
"roles" : [
{
"_comment":"This role is super role which can access all the available dashboards: [other/new roles are suppose to be added]",
"roleId": 6,
"roleName" : "Admin",
"isSuper" : "",
"orgId": "",
"dashboards": [
{
"name": "Fire Noc",
"id": "noc"
}
]
}
]
}Click here to check the configuration
MDMS Configuration to be added:common-masters/uiCommonConstants.json
"State-firenoc":{
"routePath":"/dashboard/noc",
"isOrigin":true
}Click here to check the complete configuration
roleaction.json
{
"rolecode": "STADMIN",
"actionid": {{PlaceHolder1}},
"actioncode": "",
"tenantId": "pb"
},
{
"rolecode": "STADMIN",
"actionid": {{PlaceHolder2}},
"actioncode": "",
"tenantId": "pb"
},
{
"rolecode": "EMPLOYEE",
"actionid": {{PlaceHolder2}},
"actioncode": "",
"tenantId": "pb"
},
{
"rolecode": "UC_EMP",
"actionid": {{PlaceHolder2}},
"actioncode": "",
"tenantId": "pb"
},Click here to check the complete configuration
Action test.json:
{
"id": {{PlaceHolder1}},
"name": "DSS Dashboard Config noc",
"url": "/dashboard-analytics/dashboard/getDashboardConfig/noc",
"parentModule": "",
"displayName": "DSS",
"orderNumber": 0,
"enabled": false,
"serviceCode": "DSS",
"code": "null",
"path": ""
},
{
"id": {{PlaceHolder2}},
"url": "url",
"displayName": "Firenoc",
"orderNumber": 4,
"parentModule": "dss-dashboard",
"enabled": true,
"serviceCode": "DSS",
"code": "null",
"path": "Dashboard.Firenoc",
"navigationURL": "/digit-ui/employee/dss/dashboard/noc",
"leftIcon": "places:business-center",
"rightIcon": ""
}Click here to check the complete configuration
FireNoc-State DSS Consists of multiple graphs which represent the data of FireNoc. Each graph has its own configuration which will describe the chart and its type.
State DSS consists of following charts in FireNoc:
FireNoc Page
Overview
Total Cumulative Collection
Total applications vs Provisional NOCs issued vs Actual NOCs issued
Collection by Payment Mode
Total NOCs issued by type
Actual Fire NOCs by usage type
Top 3 Performing States
Bottom 3 Performing States
Service Report
Overview
The overview graph contains multiple data information as below in the selected time period.
Today’s Collection: This represents the sum of revenue collected from the issuance of a Provisional and Actual Fire NOC which is Application fee + NOC Issuance fee.
Total Collection: Sum of revenue collected from Fire NOC for the applied date filter.
Total Applications: Total number of applications submitted for a new FireNOC.
Provisional NOCs Issued: The Provisional NOC is to be obtained to ensure that the proposed constructions meet the fire safety-compliant norms.
Actual NOCs Issued: The Actual NOC is to be obtained to ensure that the proposed constructions meet the fire safety compliant norms.
Avg. days to issue Provisional Fire NOC: Average number of days taken to issue a Provisional NOC.
Avg. days to issue Actual Fire NOC: Average number of days taken to issue an Actual NOC.
SLA Compliance (Actual FIre NOC): % of Actual NOCs issued within SLA.
SLA Compliance (Provisional FIre NOC): % of Provisional NOCs issued within SLA.
Total Cumulative Collection
This Graph contains the Fire NOC collection amount information on a monthly basis as a cumulative line graph for each Fire NOC collection separately. This will change as per the denomination amount filter selection.
line - this graph/chart is data representation on date histograms or date groupings.
Total applications vs Provisional NOCs issued vs Actual NOCs issued
This Graph contains the Fire NOC showing total applications submitted vs provisional NOCs issued vs actual NOCs issued for a given month collection separately. This will change as per the denomination amount filter selection.
line - this graph/chart is data representation on date histograms or date groupings.
Collection by Payment Mode: This will be a pie chart showing the bifurcation of total collections by payment mode (online, cash, card, cheque) which is the sum of revenue collected from Fire NOC for the applied date filter.
Total NOCs issued by type: This will be a pie chart showing the bifurcation of Total NOCs issued into Provisional and Actual Fire NOCs. Sum of Provisional and Actual Fire NOCs issued.
Actual Fire NOCs by usage type: This will be a pie chart showing a bifurcation of Actual Fire NOCs by usage type. The total number of Fire NOCs issued by the concerned authority.
Top 3 Performing States: This card will show the Top 3 Performing States/ULBs/Wards based on % NOCs issued. The number of Fire NOCs issued / Number of applications depends on whether a user selects 'Provisional' or 'Actual'.
On click of Actual it shows the % of NOCs issued for Actual FireNocs.
On click of Provisional it shows the % of NOCs issued for Actual FireNocs.
On click of Show More, it shows the information of all the states.
Bottom 3 Performing States: This card will show the Bottom 3 Performing States/ULBs/Wards based on % NOCs issued. The number of Fire NOCs issued / Number of applications depends on whether a user selects 'Provisional' or 'Actual'.
On click of Actual it shows the % of NOCs issued for Actual FireNocs.
On click of Provisional it shows the % of NOCs issued for Actual FireNocs.
On click of Show More, it shows the information of all the states.
Service Report: This tabular chart representation graph shows multiple Fire NOC information like Total Collection, Applications Submitted, Provisional FireNoc issued, New FireNOC Issued, Average days to issue Provisional NOC, SLA Compliance (Provisional NOC), Average days to issue New NOC, SLA Compliance (New NOC). And this table shows the data at the state level and also has the drill-down chart for each state to ULB and from ULB to ward level data for the same.
xtable type allows the addition of multiple computed fields with the aggregated fields dynamically added.
To add multiple computed columns, computedFields [] where actionName (IComputedField<T> interface), fields [] names as in exist in query key, newField as name to appear for computation must be defined.
Clicking on any region name provides a drill down to the specific state data.
Clicking on the ULB navigates to the wards under that specific ULB and each ward shows the specific data for that ward.
isRoundOff: This property is introduced to round off the decimal values. Ex: if the value is 25.43 by using isRoundOff property in the configuration we will get it as 25. if the value is 22.56 round of value will be 23. This can be used for insights configuration as well for overview graphs.
Key(eg: fsmTotalrequest): This is the Visualization Code. This key will be referred to in further visualization configurations.
This is the key which will be used by the client application to indicate which visualization is needed for display.
chartName: The name of the Chart which has to be used as a label on the Dashboard. The name of the Chart will be a detailed name.
In this configuration, the Name of the Chart will be the code of Localization which will be used by the Client Side.
queries: Some visualizations are derived from a specific data source. While some others are derived from different data sources and are combined together to get a meaningful representation.
The queries of aggregation which are to be used to fetch the right data in the right aggregated format are configured here.
queries.module: The module/domain level, on which the query should be applied on. Fire NOC is FIRENOC.
queries.indexName: The name of the index upon which the query has to be executed is configured here.
queries.aggrQuery: The aggregation query in itself is added here. Based on the Module and the Index name specified, this query is attached to the filter part of the complete search request and then executed against that index
queries.requestQueryMap: Client Request would carry certain fields which are to be filtered. The parameters specified in the Client Request are different from the parameters in each of these indexed documents.
In order to map the parameters of the request to the parameters of the ElasticSearch Document, this mapping is maintained.
queries.dateRefField: Each of these modules have separate indexes. And all of them have their own date fields.
When there is a date filter applied against these visualizations, each of them has to apply it against their own date reference fields.
In order to maintain what is the date field in which index, we have this configured in this configuration parameter.
chartType: As there are different types of visualizations, this field defines what is the type of chart/visualization that this data should be used to represent.
metric - this represents the aggregated amount/value for records filtered by the aggregate query
pie - this represents the aggregated data on grouping. This is can be used to represent any line graph, bar graph, pie chart or donuts
line - this graph/chart is data representation on date histograms or date groupings
perform - this chart represents groping data performance-wise.
table - represents a form of plots and values with headers as grouped on and a list of its key, values pairs.
xtable - represents an advanced feature of the table, it has addition capabilities for dynamic adding header values.
valueType : Instance of data, the values which are sent for plotting, might be a percentage, sometimes an amount and sometimes it is just a count.
In order to represent them and differentiate the numbers from the amount from the percentage, this field is used to indicate the type of value that this Visualization will be sending.
action: Some of the visualizations are not just aggregations of data sources. There might be some cases where we have to do a post-aggregation computation.
For Example, in the case of the Top 3 Performing ULBs, the Target and Total Collection are obtained and then the percentage is calculated. In these kinds of cases, the action that has to be performed on the data obtained is defined in this parameter.
documentType: The type of document upon which the query has to be executed is defined here.
drillChart: If there is a drill down on the visualization, then the code of the Drill Down Visualization is added here. This will be used by Client Service to manage drill-downs.
aggregationPaths: All the queries will be having Aggregation names in them. In order to fetch the value out of each Aggregation Response, the name of the aggregation in the query will be an easy bet. These aggregation paths will have the names of Aggregation in them.
insights: It is to show the data with the comparison of last year with arrow symbols, it will show the data in how much % is increased or decreased.
_comment: In order to display information on the “i” symbol of each visualization, Visualization Information is maintained in this field.
The index that contains data for State-FireNoc is- firenoc-services
The mapping for this index is:
"properties" : {
"Data" : {
"properties" : {
"@timestamp" : {
"type" : "date"
},
"Department" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"auditDetails" : {
"properties" : {
"createdBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"createdTime" : {
"type" : "long"
},
"lastModifiedBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"lastModifiedTime" : {
"type" : "long"
}
}
},
"channel" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fireNOCDetails" : {
"properties" : {
"action" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"additionalDetail" : {
"properties" : {
"assignee" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"comment" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"documents" : {
"properties" : {
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"link" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"linkText" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"title" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"ownerAuditionalDetail" : {
"properties" : {
"documents" : {
"properties" : {
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"institutionDesignation" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"institutionName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"telephoneNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"wfDocuments" : {
"properties" : {
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
}
}
},
"applicantDetails" : {
"properties" : {
"additionalDetail" : {
"properties" : {
"documents" : {
"properties" : {
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"institutionDesignation" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"institutionName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"telephoneNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"ownerShipMajorType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ownerShipType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"owners" : {
"properties" : {
"accountLocked" : {
"type" : "boolean"
},
"accountLockedDate" : {
"type" : "long"
},
"active" : {
"type" : "boolean"
},
"altContactNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"correspondenceAddress" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"createdBy" : {
"type" : "long"
},
"createdDate" : {
"type" : "long"
},
"dob" : {
"type" : "long"
},
"emailId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fatherOrHusbandName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"gender" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "long"
},
"lastModifiedBy" : {
"type" : "long"
},
"lastModifiedDate" : {
"type" : "long"
},
"locale" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"mobileNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ownerType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ownerUUID" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"permanentAddress" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"permanentCity" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"permanentPinCode" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"pwdExpiryDate" : {
"type" : "long"
},
"relationship" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"roles" : {
"properties" : {
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"type" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"userName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"useruuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
}
}
},
"applicationNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"buildings" : {
"properties" : {
"applicationDocuments" : {
"properties" : {
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uoms" : {
"properties" : {
"active" : {
"type" : "boolean"
},
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"isActiveUom" : {
"type" : "boolean"
},
"value" : {
"type" : "long"
}
}
},
"uomsMap" : {
"properties" : {
"BUILTUP_AREA" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"HEIGHT_OF_BUILDING" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"NO_OF_BASEMENTS" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"NO_OF_FLOORS" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"PLOT_SIZE" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"usageType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"usageTypeMajor" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"fireNOCType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"firestationId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"propertyDetails" : {
"properties" : {
"address" : {
"properties" : {
"buildingName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"city" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"doorNo" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"locality" : {
"properties" : {
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"pincode" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"street" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"propertyId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"status" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"history" : {
"properties" : {
"action" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"assigner" : {
"properties" : {
"emailId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "long"
},
"mobileNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"roles" : {
"properties" : {
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"type" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"userName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"assignes" : {
"properties" : {
"emailId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "long"
},
"mobileNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"roles" : {
"properties" : {
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"type" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"userName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"auditDetails" : {
"properties" : {
"createdBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"createdTime" : {
"type" : "long"
},
"lastModifiedBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"lastModifiedTime" : {
"type" : "long"
}
}
},
"businessId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"businessService" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"businesssServiceSla" : {
"type" : "long"
},
"comment" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"documents" : {
"properties" : {
"auditDetails" : {
"properties" : {
"createdBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"createdTime" : {
"type" : "long"
},
"lastModifiedBy" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"lastModifiedTime" : {
"type" : "long"
}
}
},
"documentType" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"fileStoreId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"escalated" : {
"type" : "boolean"
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"moduleName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"rating" : {
"type" : "long"
},
"state" : {
"properties" : {
"actions" : {
"properties" : {
"action" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"currentState" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"nextState" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"roles" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"applicationStatus" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"businessServiceId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"docUploadRequired" : {
"type" : "boolean"
},
"isStartState" : {
"type" : "boolean"
},
"isTerminateState" : {
"type" : "boolean"
},
"sla" : {
"type" : "long"
},
"state" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"uuid" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"stateSla" : {
"type" : "long"
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"id" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"tenantData" : {
"properties" : {
"OfficeTimings" : {
"properties" : {
"Mon - Fri" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"address" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"city" : {
"properties" : {
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ddrName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"districtCode" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"districtName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"districtTenantCode" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"latitude" : {
"type" : "float"
},
"localName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"longitude" : {
"type" : "float"
},
"municipalityName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"regionCode" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"regionName" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ulbGrade" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"contactNumber" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"description" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"domainUrl" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"emailId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"facebookUrl" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"imageId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"logoId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"pincode" : {
"type" : "long"
},
"twitterUrl" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"type" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
},
"tenantId" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"ward" : {
"properties" : {
"boundaryNum" : {
"type" : "long"
},
"children" : {
"properties" : {
"area" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"boundaryNum" : {
"type" : "long"
},
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"label" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"pincode" : {
"type" : "long"
}
}
},
"code" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"label" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
},
"name" : {
"type" : "text",
"fields" : {
"keyword" : {
"type" : "keyword",
"ignore_above" : 256
}
}
}
}
}
}
}
} firenoc-services/v1/_create
firenoc-services/v1/_search
firenoc-services/v1/_update
(Note: All the APIs are in the same postman collection therefore the same link is added in each row)
