Inbox/Update Tests
From the TQM card in the home screen, there is a link to the inbox.
Update Tests Flow
Tests are created through the cronjob scheduler at the backend.
These tests created have a two-step workflow: Scheduled (initial state) -> Select Lab -> Pending Results -> Submitted (final state).

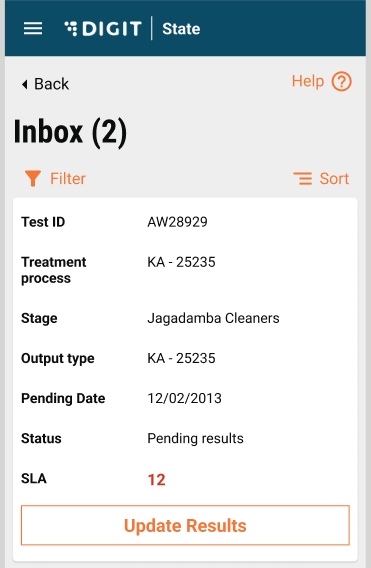

By default, tests which are in the workflow, will show up in the inbox of a plant operator. The inbox shows a list of cards corresponding to each test.
Each card contains data relevant to the test such as Test ID, Treatment Process, Stage, Output, Status, etc.
There is a dynamic action button in each card. According to the current workflow status, it will show either update status (scheduled state) or update results.

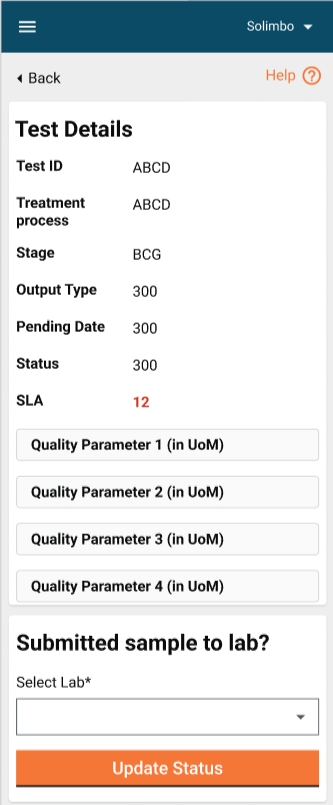

Clicking on the update status opens an update test screen which shows data about the test and a dropdown which has a list of labs configured in MDMS. A user can select one of the labs and update the test.

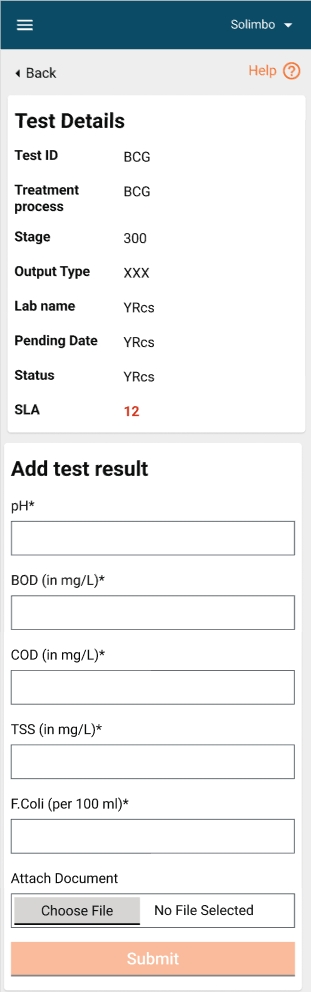

Clicking on update results opens an update test screen, which also shows the same test details, but the bottom card shows a list of benchmarks to be tested in that test. A user can enter these benchmarks and update the test. There is an option to upload a document as well, and at least one benchmark is mandatory to enter.
A success/failure toast is shown once the test is updated.
Filter and sort options are available in the inbox.
A user can filter by -> Treatment Process, Output Type, Date Range, Workflow Status.
A user can sort by date (latest first/latest last).
API Details for Update Tests :
Use the pqm-service.
URL for inbox "/pqm-service/v1/_update".
Sample request object:
Role-Action Mapping:
Role-action mapping is done for the "/pqm-service/v1/_update" endpoint for a plant operator user role, that is:
API Details for Inbox:
Use the inbox-v2 API.
URL for inbox "/inbox/v2/_search".
Sample request object:
Role-Action Mapping:
Role action mapping is done for the "/inbox/v2/_search" endpoint for a plant operator user role, that is:
