Help Section

Help Flow

• Every page in the plant operator's screen has a help button on the top right.

• Clicking on it takes the user to the help screen which shows a list of videos. Each video has a title and a description.

• Clicking on a video runs it in a media player.

• Flows in the app can be stored in a video and it can be shown in this screen.

• This page is fully configurable through MDMS.

• Refer to the following MDMS file to configure the list of videos:

egov-mdms-data/data/pg/common-masters/howItWorks.json at b7c8f264c6005b030f694ada754f0d7a52a85640 · egovernments/egov-mdms-dataGitHub

• Multiple languages can be configured. Currently, English and Hindi are the two options available.

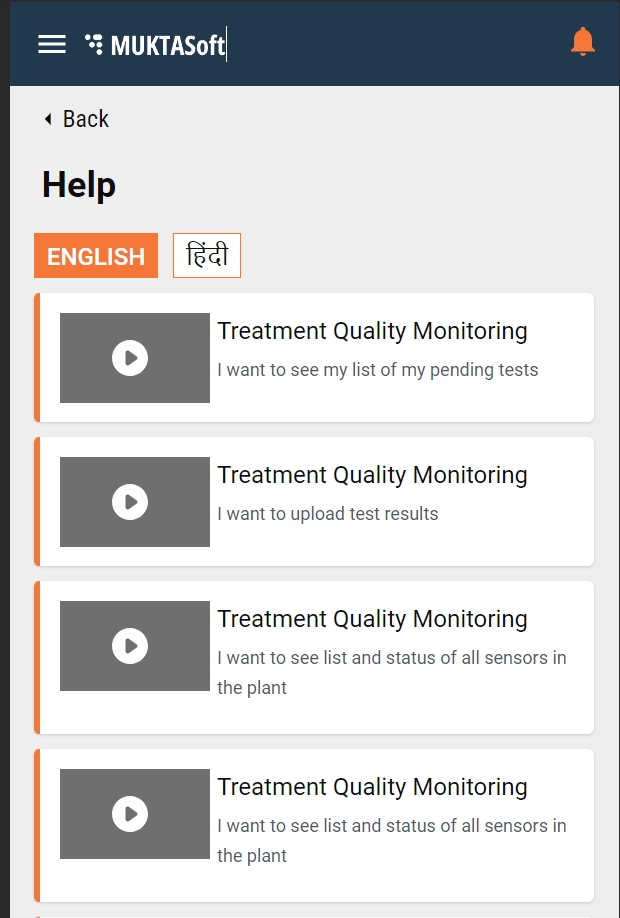

Help Section UI

• Sample configuration object:

{
          "TQM": {
              "moduleCode" : "TQM",
              "videosJson":  [
                  {
                      "headerLabel": "TQM_HELP_Q1",
                      "description": "TQM_HELP_Q1_DESC",
                      "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                      "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  },
                  {
                    "headerLabel": "TQM_HELP_Q2",
                    "description": "TQM_HELP_Q2_DESC",
                    "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                    "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  },
                  {
                    "headerLabel": "TQM_HELP_Q3",
                    "description": "TQM_HELP_Q4_DESC",
                    "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                    "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  },
                  {
                    "headerLabel": "TQM_HELP_Q4",
                    "description": "TQM_HELP_Q4_DESC",
                    "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                    "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  },
                  {
                    "headerLabel": "TQM_HELP_Q5",
                    "description": "TQM_HELP_Q5_DESC",
                    "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                    "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  },
                  {
                    "headerLabel": "TQM_HELP_Q6",
                    "description": "TQM_HELP_Q6_DESC",
                    "en_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4",
                    "hi_IN": "https://media.w3.org/2010/05/sintel/trailer.mp4"
                  }
              ],
              "screenHeader":"TQM_HELP_SECTION"
          }
      }


• The above configuration object is used to render the screen. It has a video level header and description along with URLs for Hindi and English videos. The page level header is also present.

• The module name can be configured. For example, here we have added the module name as TQM.
