FSM Employee UI

There are three main updates in FSM v1.2.1 for employee UI:

1. Application timeline

2. Photo viewed by employee/DSO

3. Payment mode while completing request

1. Application Timeline:

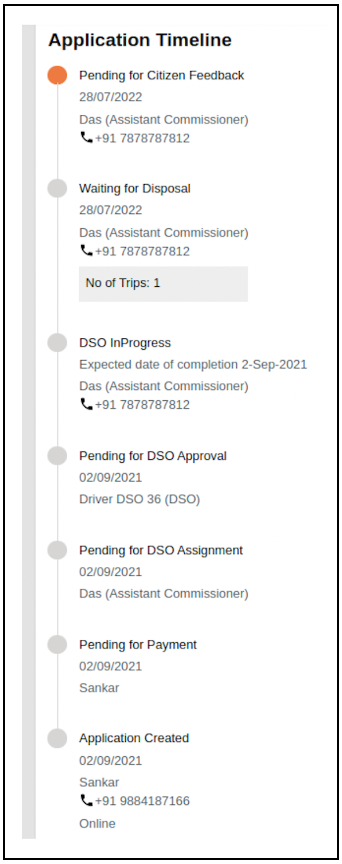

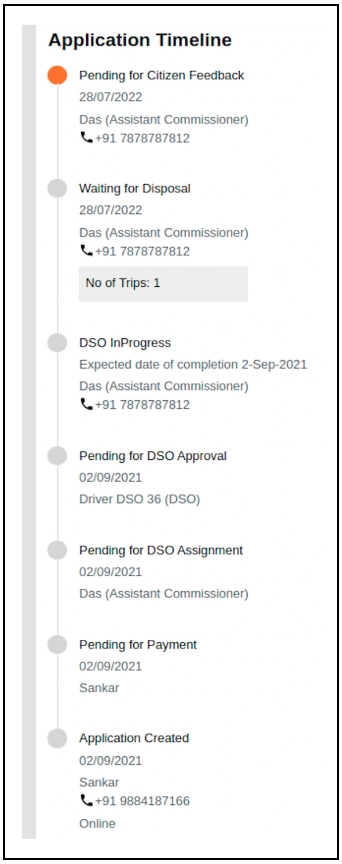

An employee can see the application status in application timeline with provider details.

Technical Implementation Details:

The path for the code:

frontend/micro-ui/web/micro-ui-internals/packages/modules/fsm/src/pages/employee/ApplicationDetails/index.js

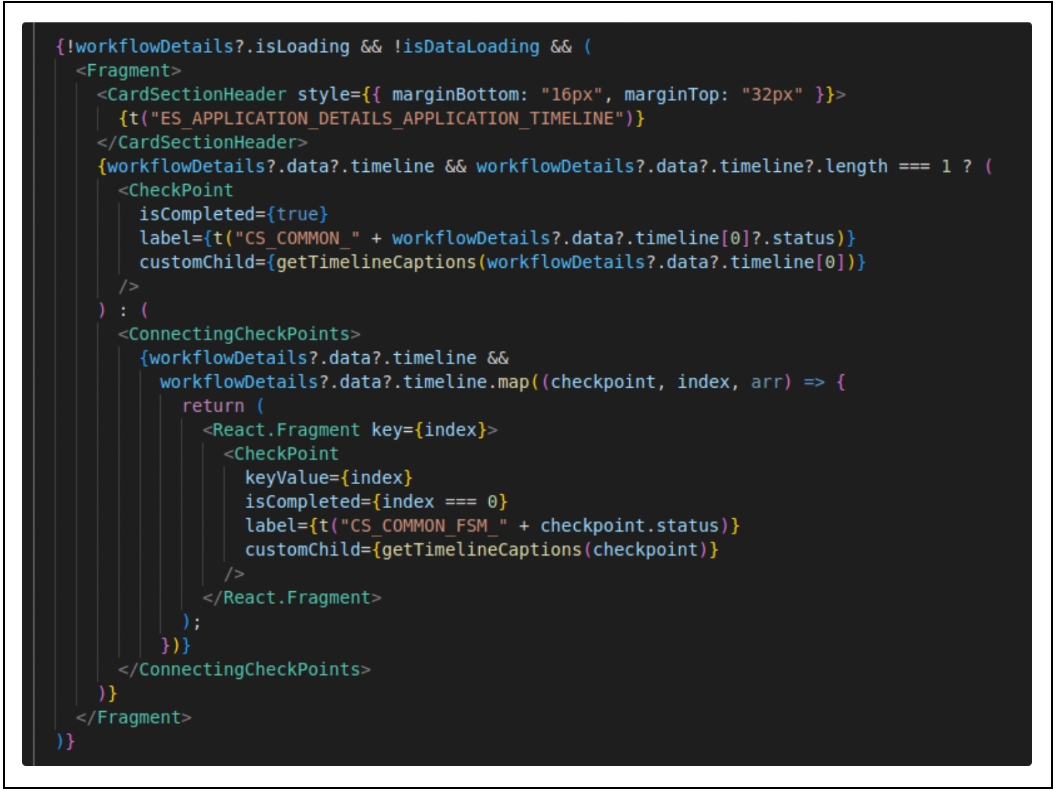

The code snippet to render application timeline:

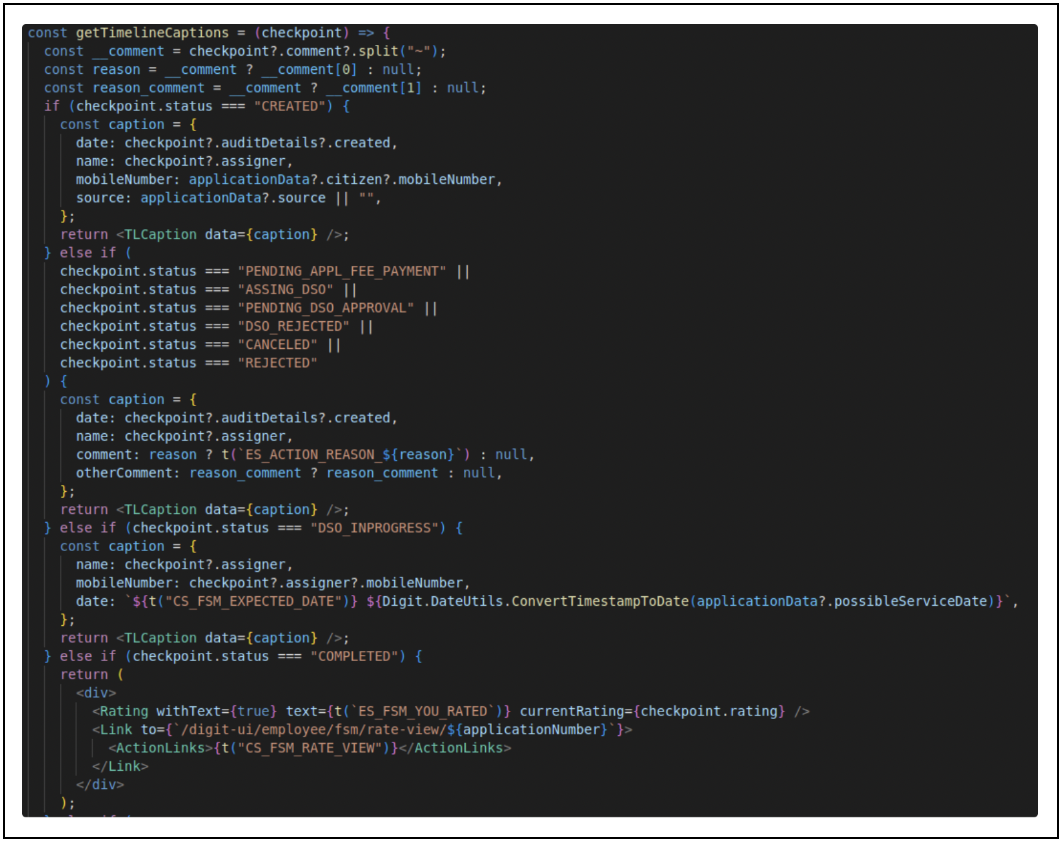

The code snippet for extracting the provider info for each status:

2. Photo viewed by employee/DSO

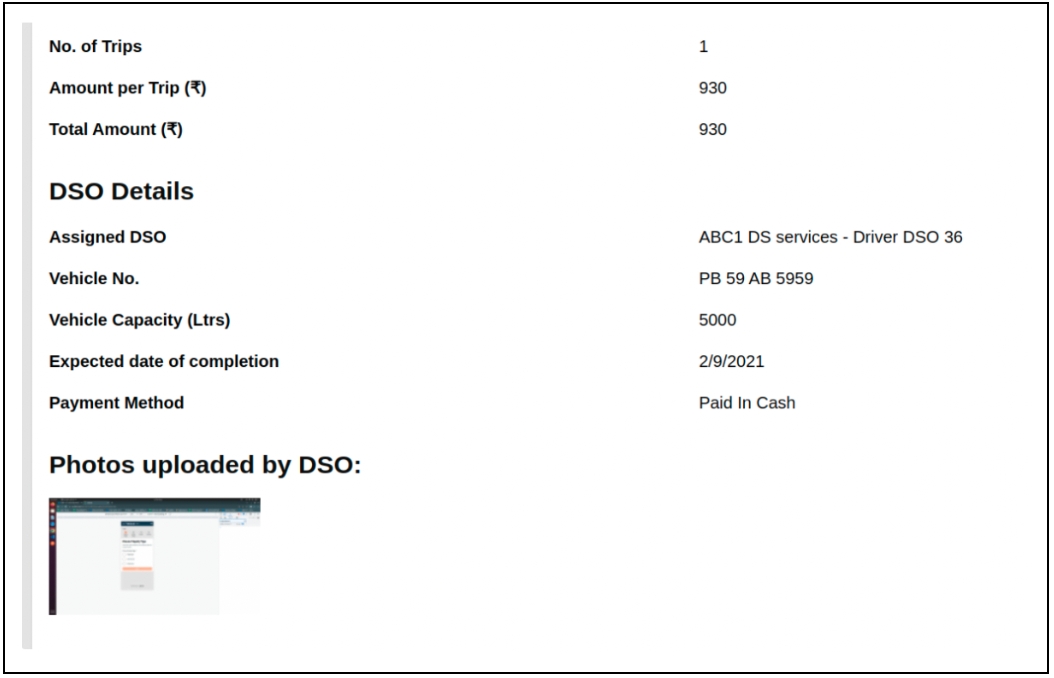

An employee/DSO can view the photo uploaded by the employee/DSO in complete request action.

Technical Implementation Details:

The path for the code:

frontend/micro-ui/web/micro-ui-internals/packages/modules/fsm/src/pages/employee/ApplicationDetails/index.js

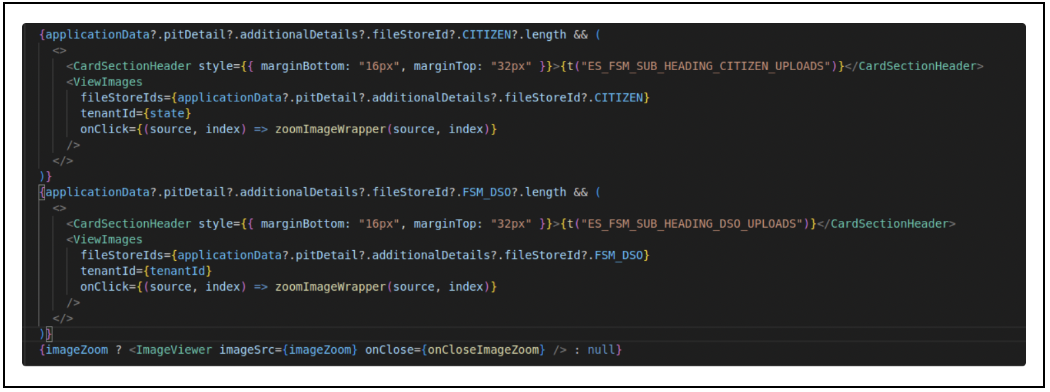

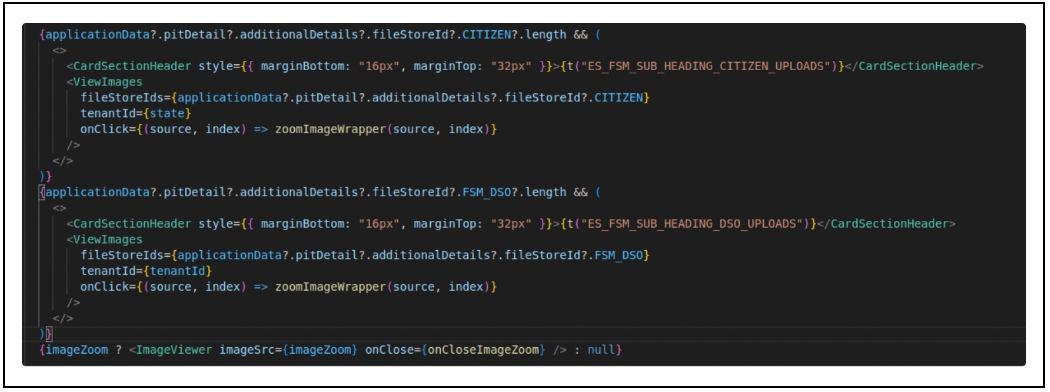

The code snippets to render the field:

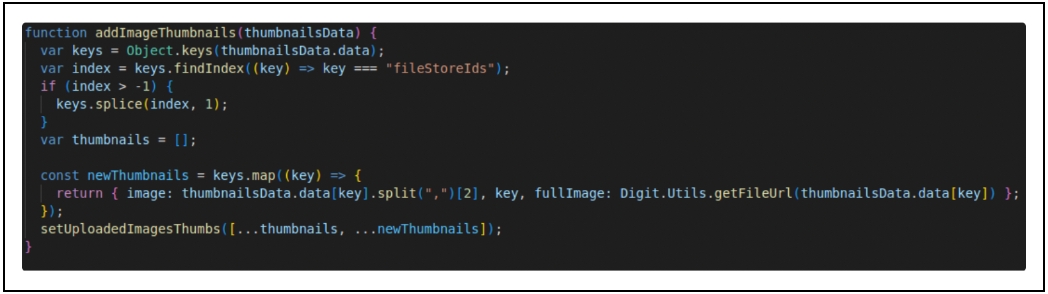

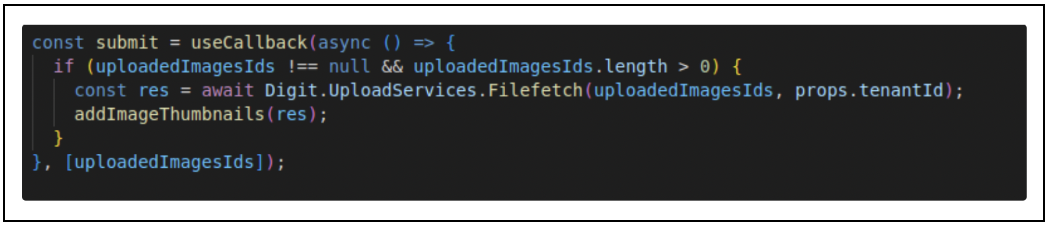

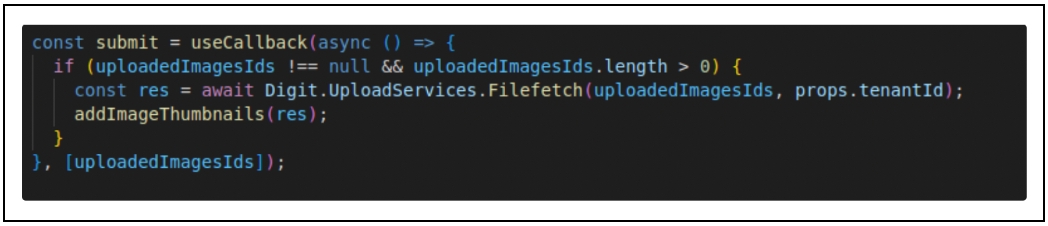

ViewImages.js are the common component used to fetch and render the Image file id. The path is shown below:

frontend/micro-ui/web/micro-ui-internals/packages/modules/fsm/src/components/ViewImages.js

3. Payment mode while completing request

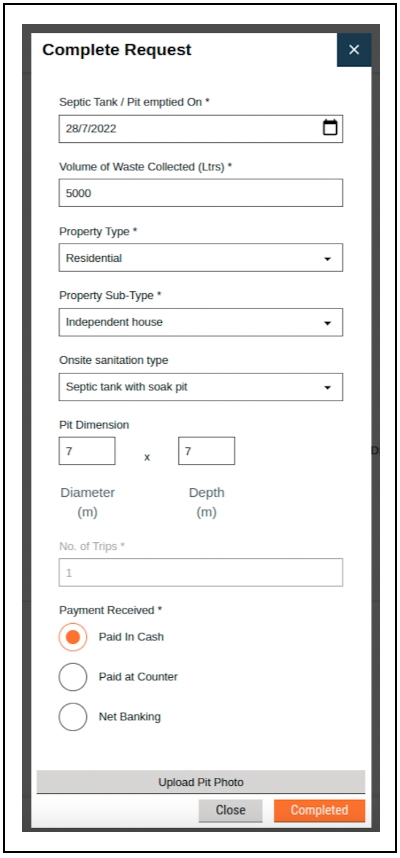

An employee has to select the payment mode while completing the request.

Technical Implementation Details:

File path:

frontend/micro-ui/web/micro-ui-internals/packages/modules/fsm/src/pages/employee/ApplicationDetails/config/CompleteApplication.js

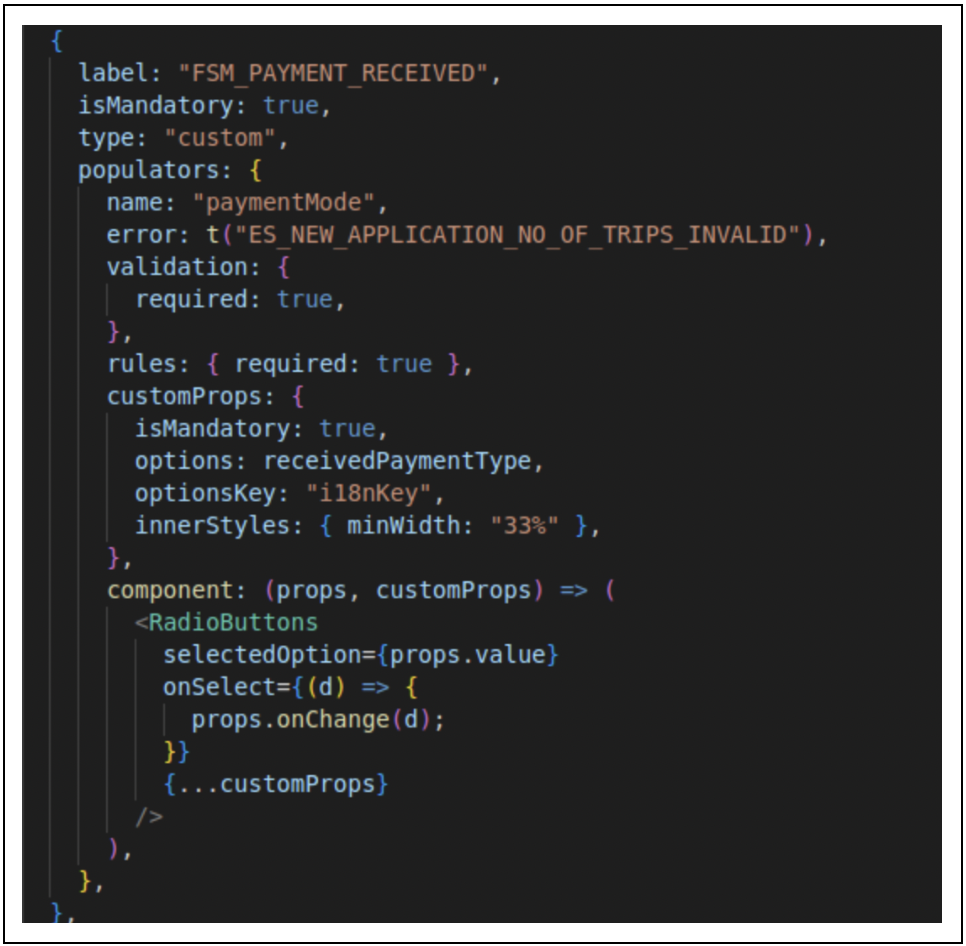

The code snippet to render the field.

MDMS file fetch for payment mode:

egov-mdms-data/ReceivedPaymentType.json at UAT · egovernments/egov-mdms-data

{
    "tenantId": "pg",
    "moduleName": "FSM",
    "ReceivedPaymentType": [
        {
            "name": "Payed in Cash",
            "code": "PAYED_IN_CASH",
            "active": true
        },
        {
            "name": "Payed in Counter",
            "code": "PAYED_IN_COUNTER",
            "active": true
        },
        {
            "name": "Netbanking",
            "code": "NETBANKING",
            "active": true
        }
    ]
}
