View Receipt - Cancel UI Flow

Overview

Provide employees with the option to Cancel a Receipt for a specific receipt number.

Workflow Details

Route - mSeva

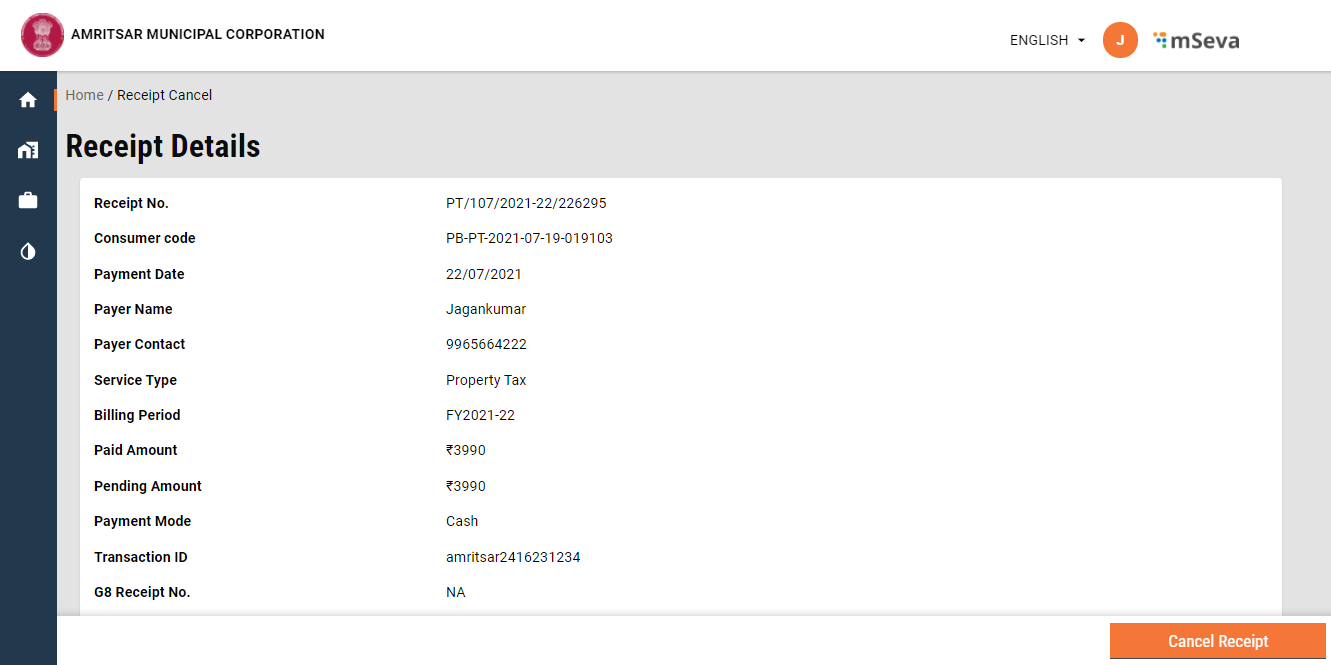

View Receipt

The search page displays the receipts. Click on the specific receipt number navigates the user to view the receipt details.

View receipt details are available here https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/receipts/src/pages/ReceiptDetails.js

Technical Implementation

The initial MDMS call is made on page load. CancelReceiptReason MDMS is used to display multiple reasons for cancelling.

     moduleDetails: [
        {
          moduleName: "common-masters",
          masterDetails: [
            {
              name: "CancelReceiptReason"
            }
          ]
        }
      ]

Cancel Receipt

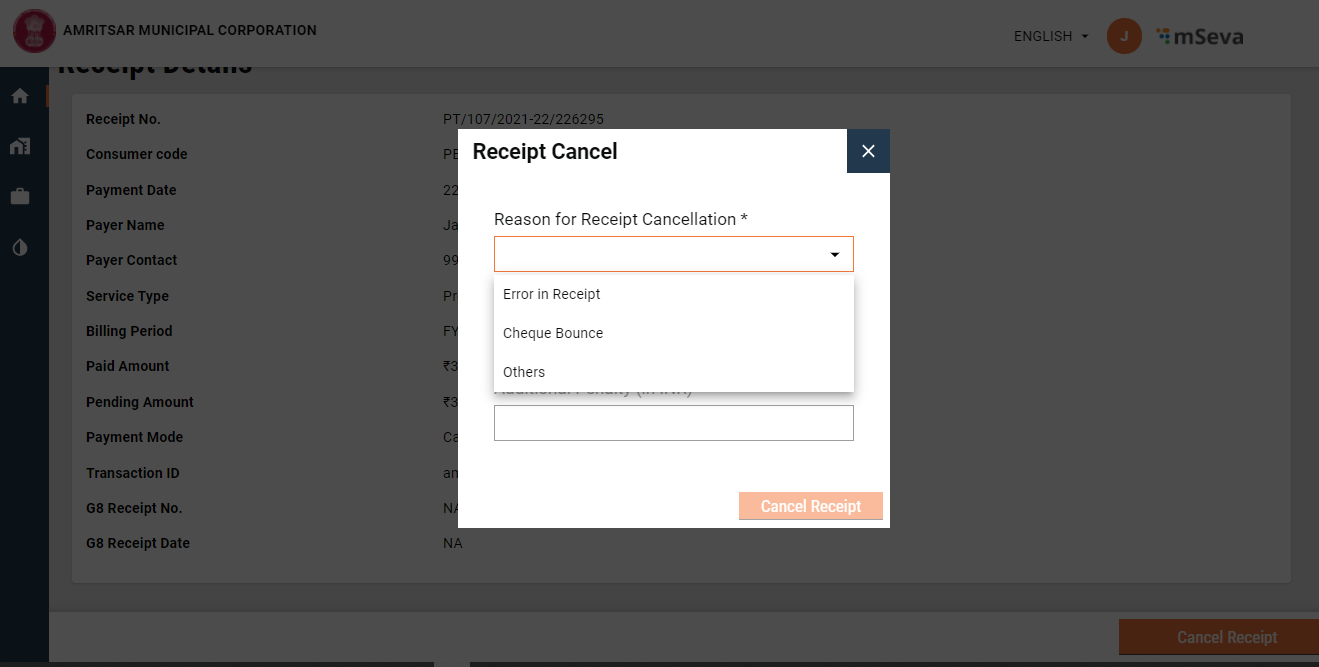

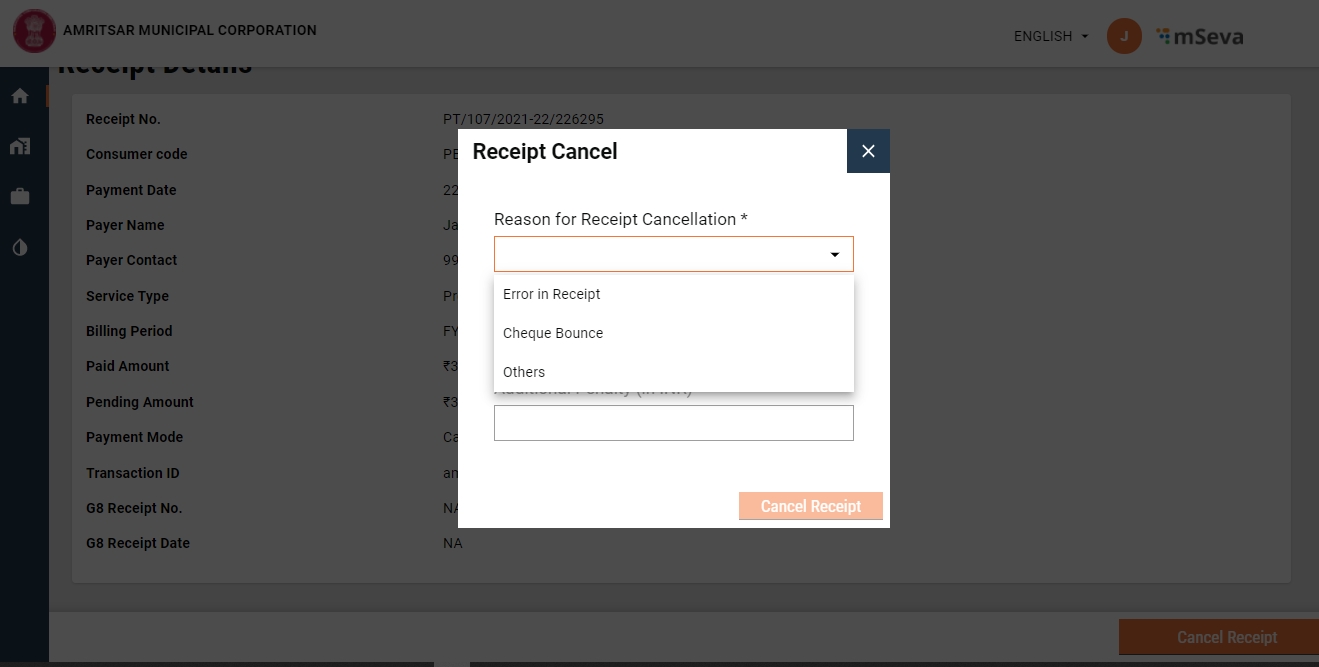

Action modal - This appears with the click of Cancel Receipt. The cancel receipt action is shown only for the following state of receipt.

Receipt?.paymentStatus !== "CANCELLED" && Receipt?.paymentStatus !== "DEPOSITED" && (Receipt?.instrumentStatus == "APPROVED" || Receipt?.instrumentStatus == "REMITTED"

Data fetch, load and render

Once the Receipt is searched using collection-services/payments/{selectedbusinessService}/_search API, the user can cancel the receipt using /collection-services/payments/{selectedbusinessService}/_workflow API

Acknowledgement screen It gets shown once the cancel receipt is clicked. File details - https://github.com/egovernments/digit-ui-internals/blob/main/packages/modules/receipts/src/pages/ReceiptAcknowledgement.js

Role Action Mapping

API
Roles
Action ID

egov-mdms-service/v1/_search

CR_PT

954

collection-services/payments/PT/_search

CR_PT

2029

/collection-services/payments/PT/_workflow

CR_PT

2028
