Employee: Disconnection Application Details
Water and Sewerage disconnection application details feature for employees - technical implementation doc
Objective: Provide employees with specific workflow actions.
This page provides the workflow details and actions for water and sewerage disconnection application details.
Workflow Details
Application Details
Clicking on the Application Number in the inbox/search screen routes users to the disconnection application details screen. A search call is made before rendering the screen and details are populated based on the search response.

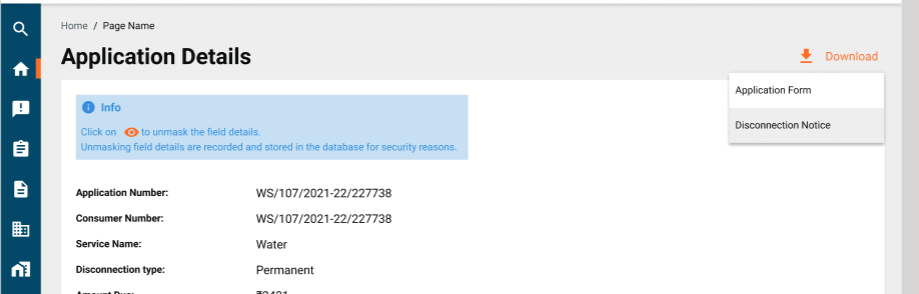

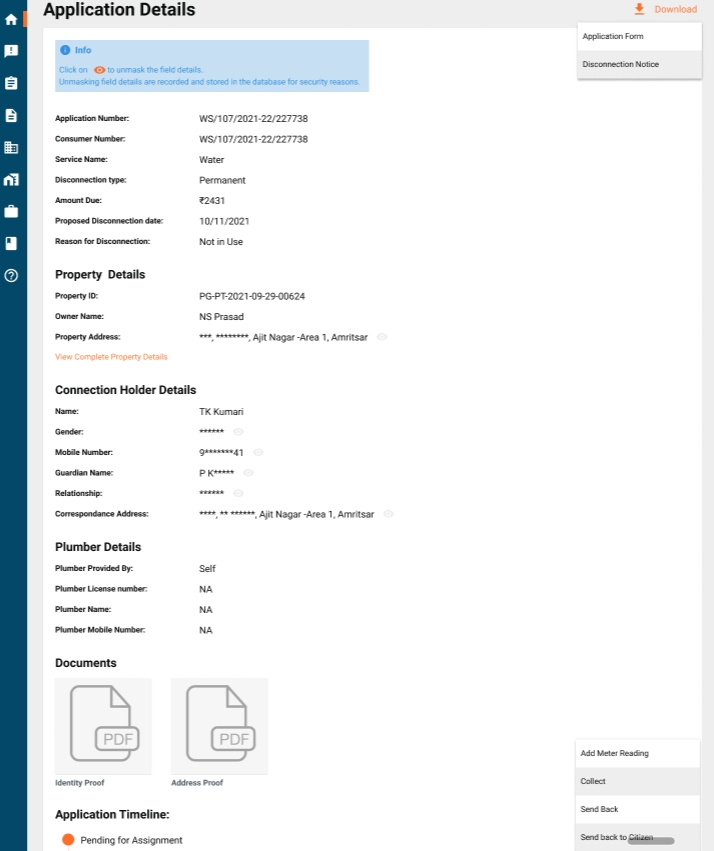

Application Details Screen

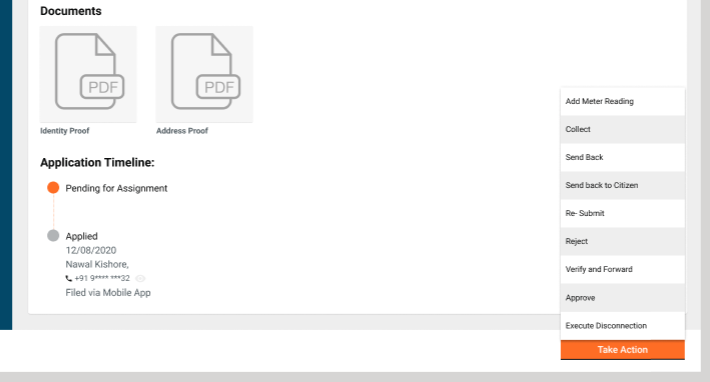

Application Timeline

Downloads
Application Form

Disconnection Notice

Water & Sewerage Disconnection Workflow Table
#
Action
Role
From State
To State
1
Initiate Application
Citizen/ Counter Employee
Initiated
2
Submit Application
Citizen/ Counter Employee
Initiated
Pending for document verification
3
Verify and Forward
Document Verifier
Pending for document verification
Pending for field inspection
4
Verify and Forward
Field Inspector
Pending for field inspection
Pending approval for disconnection
5
Send Back
Document Verifier
Pending for document verification
Pending for counter employee action
6
Send Back
Field Inspector
Pending for Field inspection
Pending for document verification
7
Send Back
Approver
Pending approval for disconnection
Pending for field inspection
8
Send Back To Citizen
<roles having access>
<Current Status>
Pending for citizen action
9
Re-submit
Citizen/ Counter Employee
Pending for citizen action
OR
Pending for counter employee action
<To the status application was sent back to citizen>
12
Approve
Approver
Pending approval for disconnection
Pending for payment
13
Reject
<roles having access>
<Current Status>
Rejected
14
Payment/ Collection
Citizen/ Counter Employee
Pending for payment
Pending for disconnection execution
15
Execute Disconnection
Clerk
Pending for disconnection execution
Disconnection Executed
Implementation Details
Application Details File Path: https://github.com/egovernments/DIGIT-Dev/blob/develop/frontend/micro-ui/web/micro-ui-internals/packages/modules/ws/src/pages/employee/ApplicationDetails.js
Hook details for application details search:
let { isLoading, isError, data: applicationDetails, error } = Digit.Hooks.ws.useDisConnectionDetails(t, tenantId, applicationNumber, serviceType);
Disconnection Notice Download File Path: https://github.com/egovernments/DIGIT-Dev/blob/develop/frontend/micro-ui/web/micro-ui-internals/packages/modules/ws/src/pages/employee/DisconnectionDetails.js
Application Form Download File Path: https://github.com/egovernments/DIGIT-Dev/blob/develop/frontend/micro-ui/web/micro-ui-internals/packages/modules/ws/src/pages/employee/DisconnectionDetails.js
The timeline view is common for all modules. Timeline view file path: https://github.com/egovernments/DIGIT-Dev/blob/develop/frontend/micro-ui/web/micro-ui-internals/packages/modules/templates/ApplicationDetails/index.js
Localisation Details
Localisation keys are added in the ‘rainmaker-ws’ locale module.
API Call Role Action Mapping
1
/access/v1/actions/mdms/_get
870
2
/user/_search
604
3
/localization/messages/v1/_search
1531
4
/egov-workflow-v2/egov-wf/businessservice/_search
1743
EMPLOYEE
5
/ws-services/wc/_search
1900
WS_CEMP
,WS_DOC_VERIFIER
,WS_FIELD_INSPECTOR
,WS_APPROVER
,WS_CLERK
6
/sw-services/swc/_search
1940
SW_CEMP
,SW_DOC_VERIFIER
,SW_FIELD_INSPECTOR
,SW_CLERK
7
/property-services/property/_search
1897
PT_CEMP
,PT_DOC_VERIFIER
,PT_FIELD_INSPECTOR
,PT_APPROVER
8
/ws-services/wc/_create
1899
WS_CEMP
9
/filestore/v1/files/url
1528
EMPLOYEE
10
/ws-services/wc/_update
1901
WS_CEMP
,WS_DOC_VERIFIER
,WS_FIELD_INSPECTOR
,WS_APPROVER
,WS_CLERK
11
/sw-services/swc/_update
1939
SW_CEMP
,SW_DOC_VERIFIER
,SW_FIELD_INSPECTOR
,SW_CLERK
12
/ws-calculator/waterCalculator/_estimate
and /sw-calculator/sewerageCalculator/_estimate
1966,
1967
WS_CEMP
,WS_DOC_VERIFIER
,WS_FIELD_INSPECTOR
,WS_APPROVER
,WS_CLERK
SW_CEMP,SW_DOC_VERIFIER,SW_FIELD_INSPECTOR,SW_CLERK
13
/egov-hrms/employees/_search
1752
Find the login credentials and details in the document here: DIGIT Login Credentials
