Product Requirements Document v2.0

Introduction

Mukhyamantri Karma Tatpara Abhiyan Yojana ( MUKTA Yojana) is a government scheme and This scheme is helpful for the poor urban people, which leads to the rising of the employment rate of the state. This document is prepared to detail out the specification MUKTASoft v2.0.

MUKTASoft aims to improve the overall scheme efficiency of MUKTA by identifying & providing equal job opportunities to the urban poor, construct environment-friendly projects, develop local communities and slums & plan better for upcoming years.

Purpose

The purpose of this document is to give a detailed description of the requirements for the MUKTASoft v2.0. It will illustrate the purpose and complete declaration for the development of the system. It will also explain system constraints, interface and interactions with other external applications. This document is primarily intended to define the scope of the version v2.0 and propose to the stakeholders for its approval and as a reference for developing the next version of the system for the development team.

Definitions, Acronyms & Abbreviations

JE	Junior Engineer
ME	Municipal Engineer
EO	Executive Officer
MC	Municipal Corporation
DDO	Drawing and Disbursing Officer
SOR	Schedule of Rates
WO	Work Order
PO	Purchase Order
MB	Measurement Book

Source of Information

1. MUKTA FRS

2. Field Visit to Dhenkanal and Jatni ULBs [21st & 22nd June 2023]

In Scope

1. Schedule of Rates

   1. Material
   2. Machinery
   3. Labour
   4. Works (Includes Material, Machinery, Labour)
2. Detailed Estimate
3. Detailed Measurement Book
4. Muster roll and purchase bill validations

Scope of v2.1, v2.2, v2.3, v2.4 and v2.5

1. Rate Analysis
2. Estimate Template
3. Analysis Statements

   1. Labour Analysis
   2. Material Analysis
   3. Machinery Analysis
4. Revise Estimate
5. Revise Work Order
6. Cancel Work Order
7. Utilization Statements

   1. Labour Utilization Statement (Quantity of Work Completed)
   2. Material Utilization Statement
   3. Machinery Utilization Statement
8. Project Closure
9. Dashboard Enhancements

Functional Details

Actors

Users/Features	State	ULB
Create SOR	Yes	No
Search SOR	Yes	Yes
View SOR	Yes	Yes
Modify SOR	Yes	No
Add/Modify Rate	No	Yes

Schedule of Rates

labourThe basic rate of material, labour, and machinery is decided by the state public works department which would be the same for a group of ULBs and then the final cost of SORs would vary from ULB to ULB based on the Conveyance and Royalty Charges applicable for the ULB.

Units of Measurement

1. CUM
2. QNTL
3. MT
4. NOs
5. KG
6. LTR
7. SQM
8. HOUR
9. EACH
10. MTR
11. KL

SOR Heads

1. Basic Rate (Material, Labour, Machinery)
2. Conveyance
3. Royalty
4. Labour Cess

SOR Type

There are a total of 4 types of SOR.

S.No.	Code	Type
1	M	Material
2	L	Labour
3	E	Machinery
4	W	Works

SOR Sub Type

sub-typesThe SOR of type works are grouped into various sub-types as given below.

S.No.	Code	Sub Type
1	EW	EARTH WORK
2	CC	CEMENT CONCRETE
3	RC	RCC WORK
4	MB	MASONRY BRICK WORK
5	MS	MASONRY STONE WORK
6	PL	PLASTERING
7	WC	WHITE & COLOUR WASHING
8	FL	FLOORING
9	PA	PAINTING
10	RD	ROAD WORK
11	WD	WOOD WORK
12	RF	ROOFING
13	DI	DISMANTLING
14	PB	PAVER BLOCK
15	SC	SITE CLEARANCE
16	PF	PILE FOUNDATION
17	IW	IRON WORK
18	BI	OTHER BUILDING ITEMS

SOR Variants

S.No.	Code	Description
1	FN	Excavation in Foundation
2	GF	Ground Floor
3	SF	Second Floor
4	TF	Third Floor
5	PL	Foundation and Plinth
6	SG	Super Structure (GF)
7	SS	Super Structure (SF)
8	ST	Super Structure (TF)
9	BS	Basic

Schedule of Rates

The scheduled items for which the works department publishes the rates are known as the schedule of rates. There are mainly 4 types of items for which schedules of rates are published.

1. Material - These are the material items which are required to accomplish a work.
2. Labour - The skilled and unskilled labourers who are required to accomplish the work.
3. Machinery - These are the equipment which are required to accomplish the work.
4. Works - The composition of material, labour, and machinery together form a building block for a work.

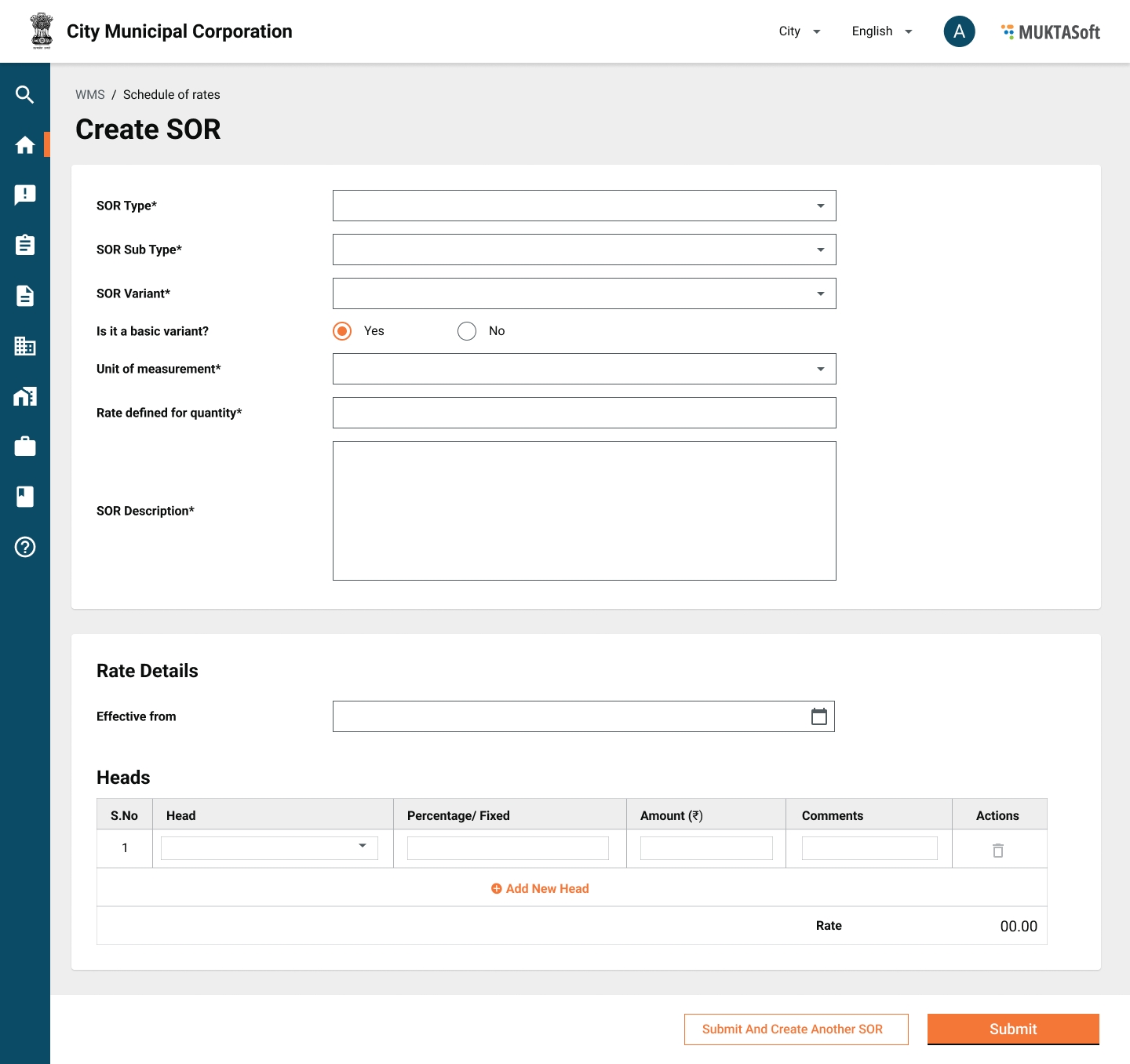

Create

In MUKTA only a limited set of SORs are being used to estimate a work and initially, only the relevant SOR items are created. The option to create an SOR is provided to help the user take any missing or new SOR into the system as and when needed.

Attributes

S.No.	Attribute Name	Is Mandatory?	Description
1	SOR Type	Yes	Material, Labour, Machinery, Works.
2	SOR Sub Type	Yes	Applicable for SOR type Works only.
3	SOR Variant	No	Applicable for SOR type Works only.
4	Unit of Measurement	Yes	Unit of measurement for the item.
5	Rate Defined for Quantity	Yes	Quantity of items for which basic rate is defined.
6	Description	Yes	Name of item as per the standard definition of OPWD
	Rate Details	Optional
7	Effective From	Yes	The date given rate will become effective, it can be a past and future date.
	Heads	Grid	To select a head whichever is applicable.
8	Basic Rate	Yes	The basic rate of the item defined by the OPWD
9	Conveyance	No	The conveyance charges applicable based on the distance item is carried.
10	Royalty	No	The royalty amount on the items as per the state mining department.
11	Labour Cess	No	It is applicable for works items only and calculated on Basic + Conveyance + Royalty.
12	Rate	Display	A calculated value.

Mockups

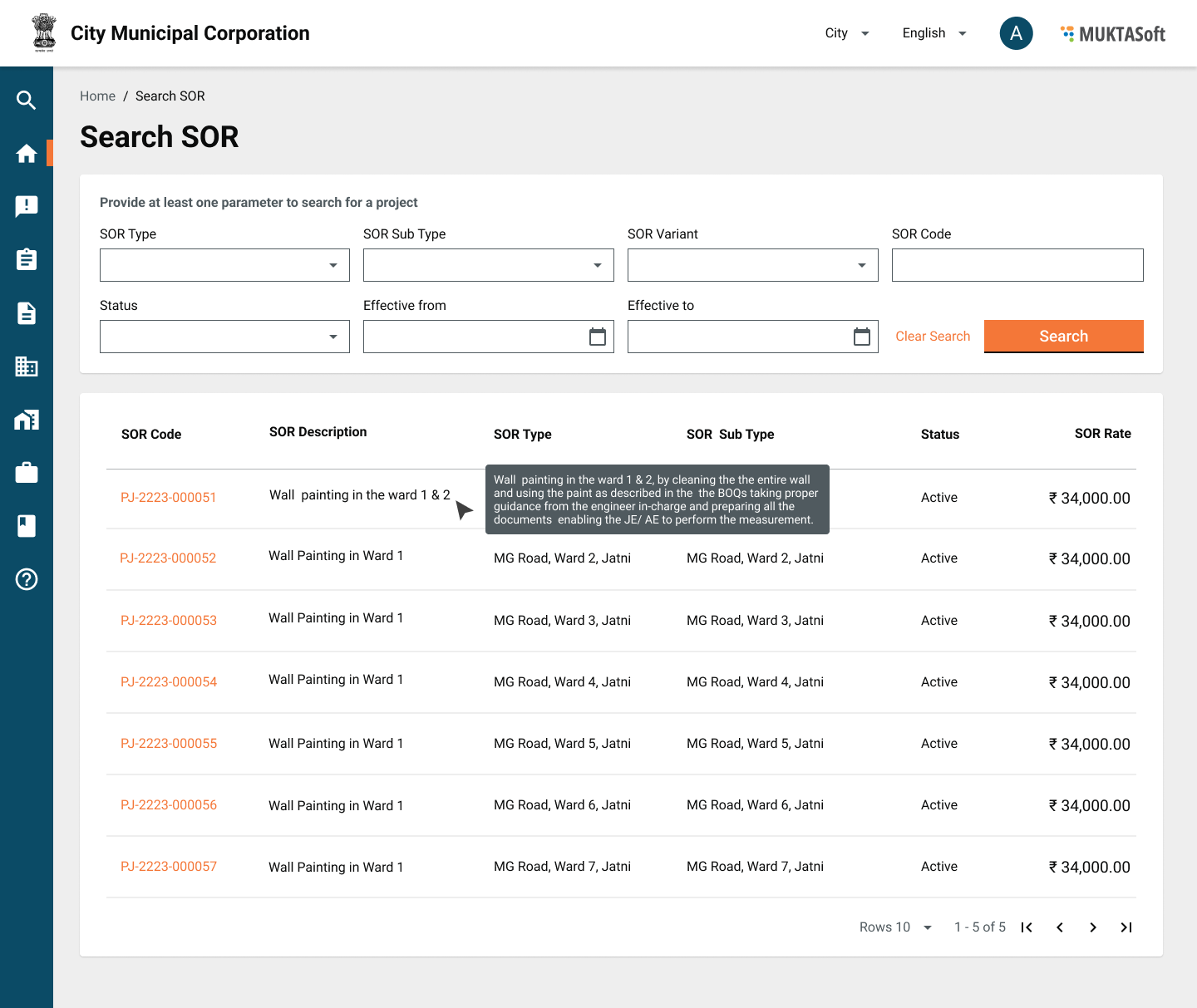

Search SOR

Search SOR provides the option to the user to search an SOR to see the details and modify it to bring the new rates into effect from a well-defined effective date.

Search Criteria

S.No.	Field Name	Data Type	Description
1	SOR Code	Text	It is system system-generated unique code to identify the SOR uniquely
2	SOR Type	Drop-down	SOR types, the values from SOR Type Master.
3	SOR Sub Type	Drop-down	SOR subtypes, the values from SOR Sub Type Master
4	SOR Variant	Drop-down	SOR variants, the values from Variant master
5	Status	Drop-down	Active/ Inactive
6	Effective From	Date	The rate effective from date
7	Effective To	Date	The rate effective from date

Search Result

The search result always displays the currently effective rates unless the search is for a different effective period.

S.No.	Field Name	Description
1	SOR Code	It is system generated unique code to identify the SOR uniquely.
2	SOR Description	It is the description of SOR to describe the SOR.
3	SOR Type	SOR types, the values from SOR Type Master.
4	SOR Sub Type	SOR sub types, the values from SOR Sub Type Master.
5	Status	The status of SOR, Active/ Inactive.
6	Rate	The current effective rate of the SOR.

Mockups

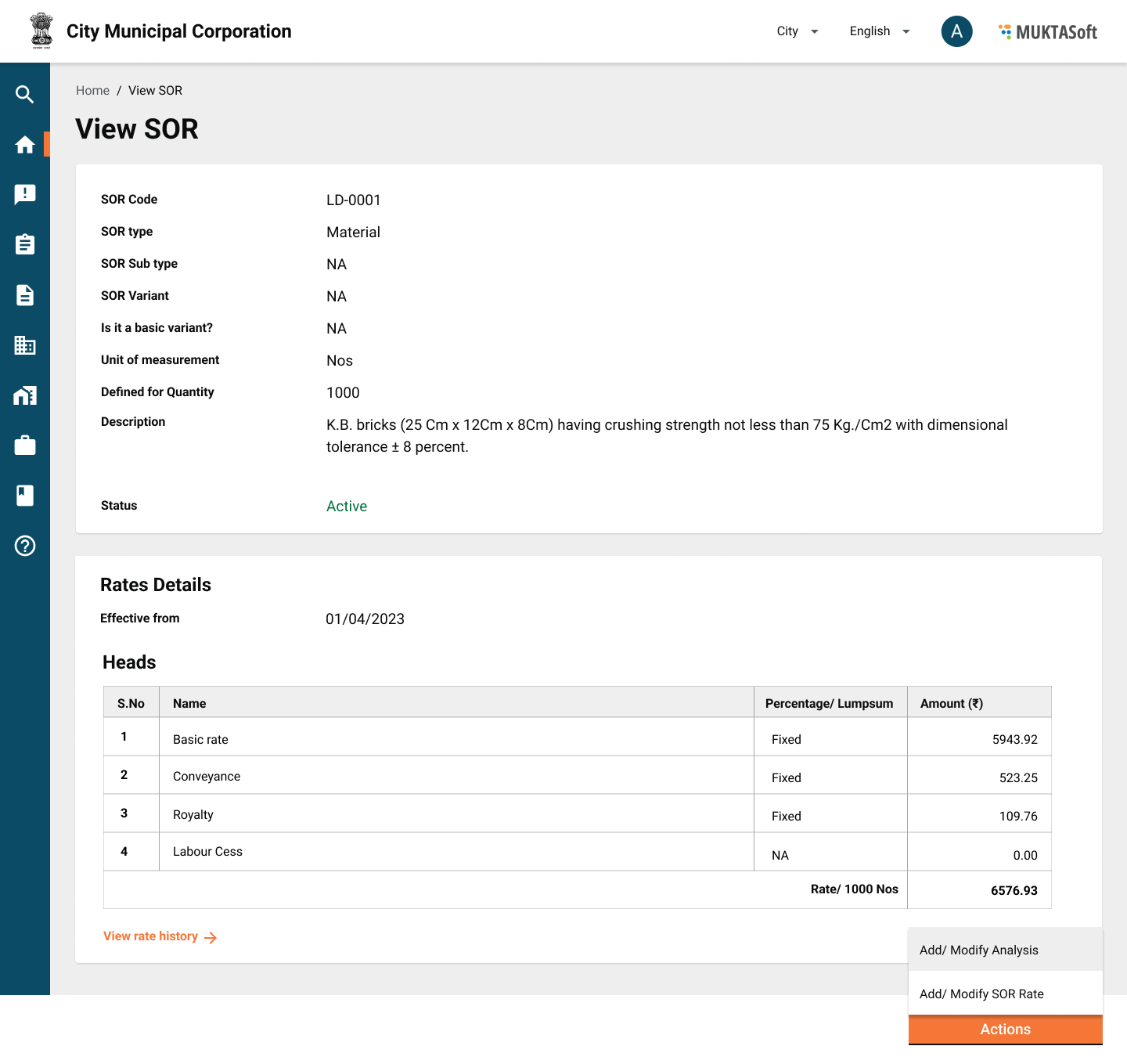

View SOR

It enables users to display the details of a SOR and then take the required action from there. E.g. Create Rate Analysis, View Rate Analysis, Modify SOR.

Attributes

S.No.	Field Name	Description
1	SOR Code	It is system generated unique code to identify the SOR uniquely.
2	SOR Type	SOR types, the values from SOR Type Master.
3	SOR Sub Type	SOR sub types, the values from SOR Sub Type Master.
4	SOR Variant	SOR variant, the values from the SOR Variant Master.
5	Unit of Measurement	The unit of measurement.
6	Rate Defined for Quantity	The quantity of SOR for which rate is provided.
7	SOR Description	It is the description of SOR to describe the SOR.
8	Status	The status of SOR Active/ Inactive. Active means active for usage.
	Rate	The rate section of SOR.
9	Effective From	The date from which the rate is effective.
	Heads
10	Basic Rate	Basic rate of the SOR, provided by the state PWD.
11	Conveyance	Conveyance cost defined for the unit of quantity given in SOR.
12	Royalty	Royalty defined for the unit of quantity given in SOR.
13	Labour Cess	The amount of labour cess
14	Total Rate	The final rate of SOR.

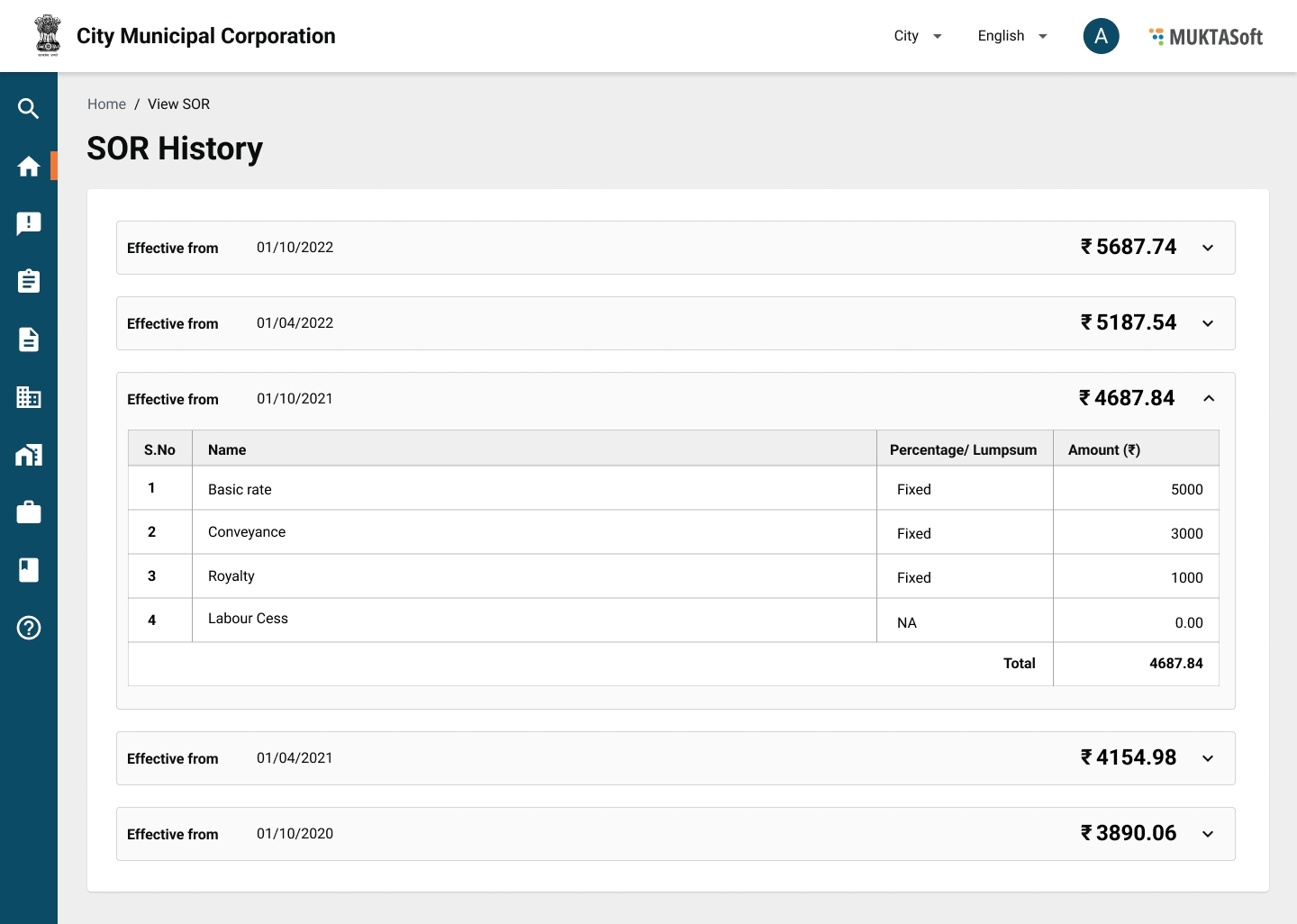

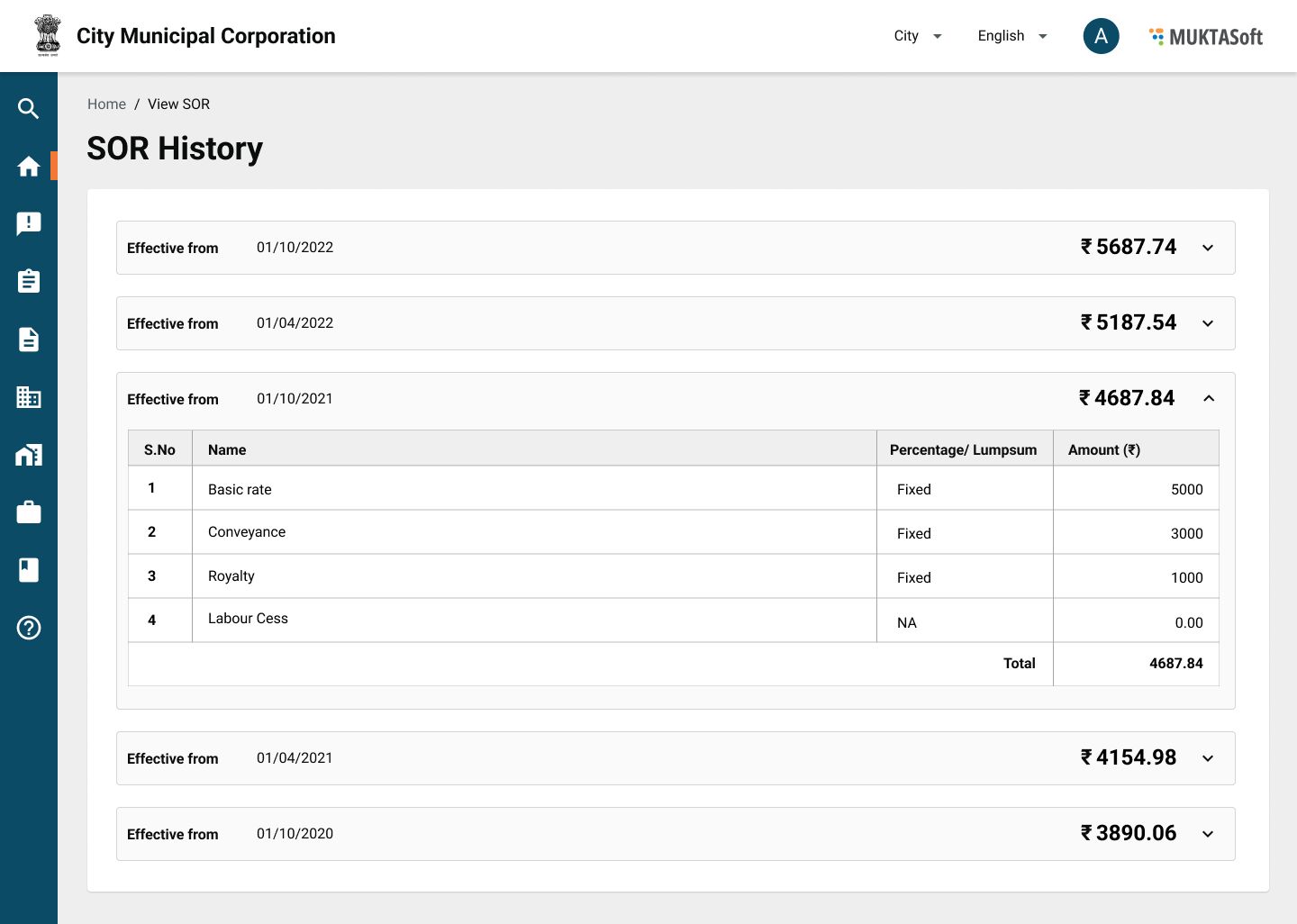

	Rate History	History of rates which were effective in the past.
15	Serial No.	Serial number of the record.
16	Effective From	The rate effective from date.
17	Rate	The net effective rate.
18	View Details	Button to view the break-up of rate.
19	Actions	Modify SOR/ Add Rate - Applicable to all types of SOR. Create Rate Analysis - Applicable to Works type of SOR. View Rate Analysis - Applicable to Works type of SOR.

Mockups

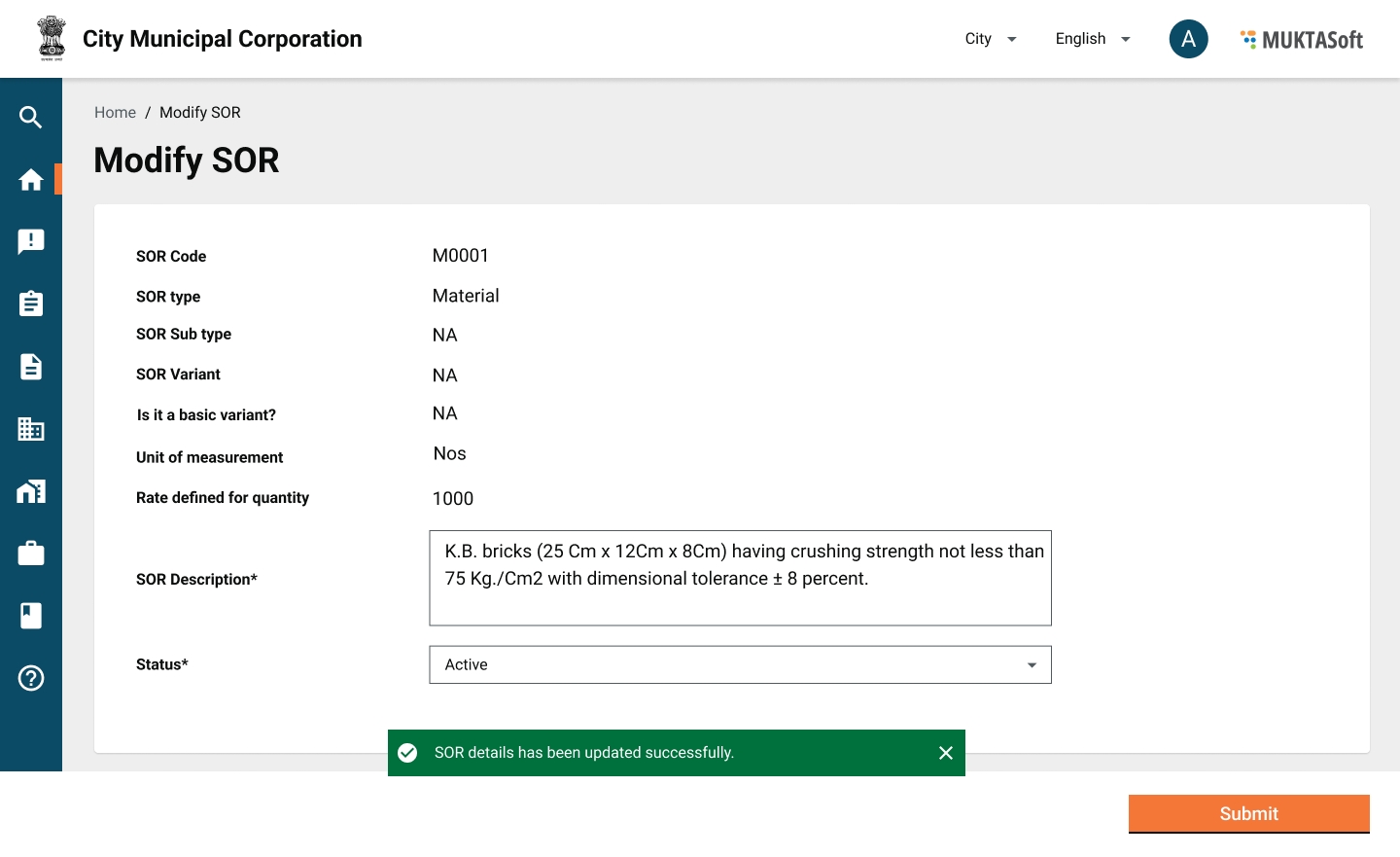

Modify SOR

Modifying SOR enables the user to make the necessary corrections in the details and add the new rate effective from a future date.

Attributes

S.No.	Field Name	Data Type	Description
1	SOR Code	Display	It is system generated unique code to identify the SOR uniquely.
2	SOR Type	Display	SOR types, the values from SOR Type Master.
3	SOR Sub Type	Display	SOR sub types, the values from SOR Sub Type Master.
4	SOR Variant	Display	SOR variant, the values from the SOR Variant Master.
5	Unit of Measurement	Display	The unit of measurement.
6	Defined for Quantity	Display	The quantity of SOR for which rate is provided.
7	SOR Description	Text	It is the description of SOR to describe the SOR.
8	Status	Drop-down	The status of SOR Active/ Inactive.

Mockups

The screen to modify SOR is almost the same as creating SOR with the limitation mentioned in the above table.

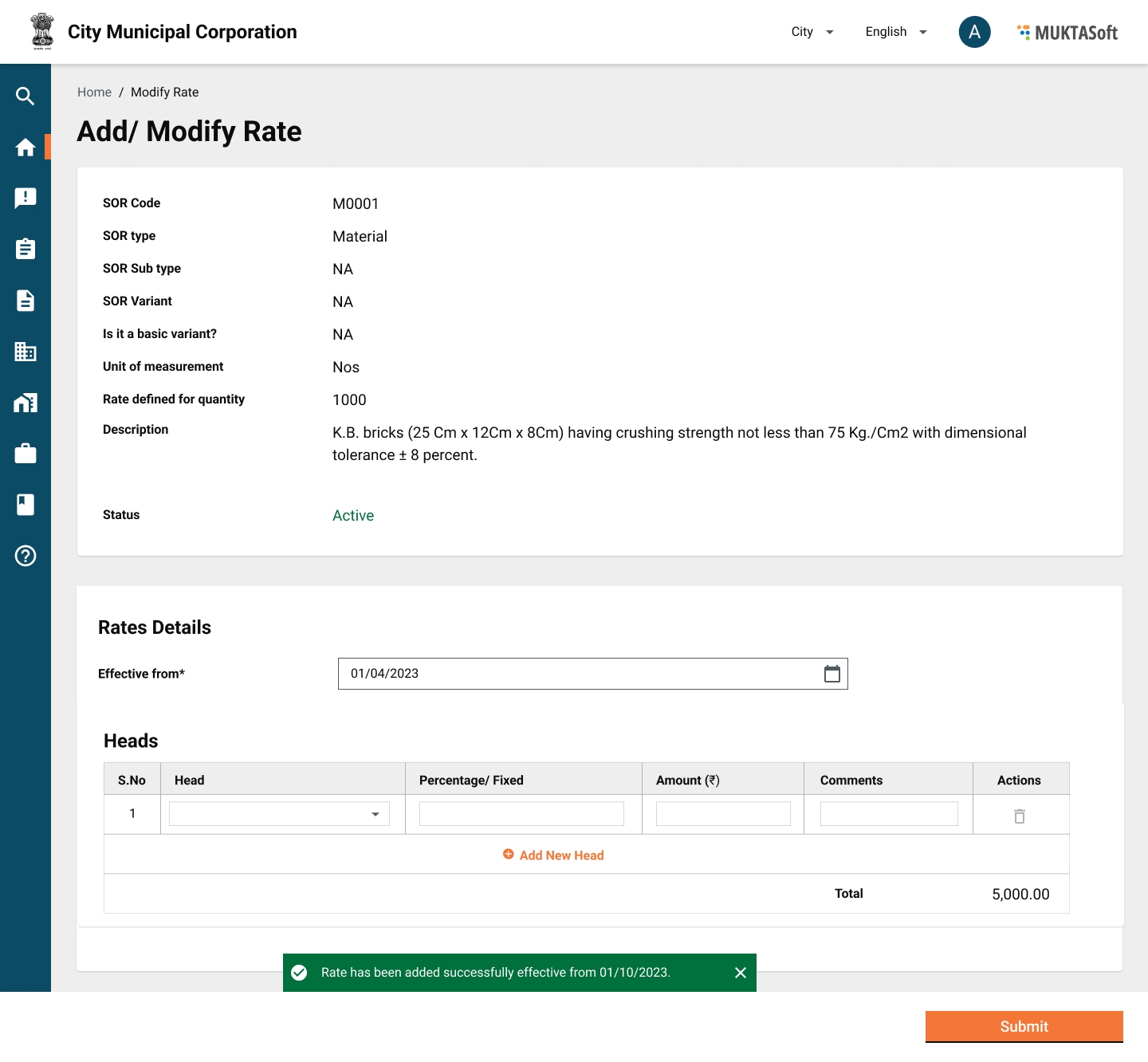

Add/ Modify Rate

Add Rate enables the user to add the new rate effective from a future date.

Attributes

S.No.	Field Name	Data Type	Description
1	SOR Code	Display	It is system generated unique code to identify the SOR uniquely.
2	SOR Type	Display	SOR types, the values from SOR Type Master.
3	SOR Sub Type	Display	SOR sub types, the values from SOR Sub Type Master.
4	SOR Variant	Display	SOR variant, the values from the SOR Variant Master.
5	Unit of Measurement	Display	The unit of measurement.
6	Defined for Quantity	Display	The quantity of SOR for which rate is provided.
7	SOR Description	Display	It is the description of SOR to describe the SOR.
8	Status	Display	The status of SOR Active/ Inactive.
	Rate Details
9	Effective From	Date	The date from which the rate is effective. A future date.
	Heads	Grid	It will enable the user to select and add a head applicable.
10	Basic Rate	Text	Basic rate of the SOR, provided by the state PWD.
11	Conveyance	Text	Conveyance cost defined for the unit of quantity given in SOR.
12	Royalty	Text	Royalty defined for the unit of quantity given in SOR.
13	Labour Cess	Display	The amount of labour cess, non editable.
14	Total Rate	Display	The final rate of SOR.

Mockups

The screen to modify SOR is almost the same as creating SOR with the limitation mentioned in the above table.

Detailed Estimate

After getting administrative approval on pre-estimation, a detailed estimate is prepared. In this, the estimate is divided into SOR, Non-SOR and Other Expenses and the quantities of various items are calculated individually by recording the detailed measurement of each activity. A detailed estimate is more accurate in terms of predicting the cost, material, labour, and machinery required to complete the work. It is also used for tendering and contracting the work.

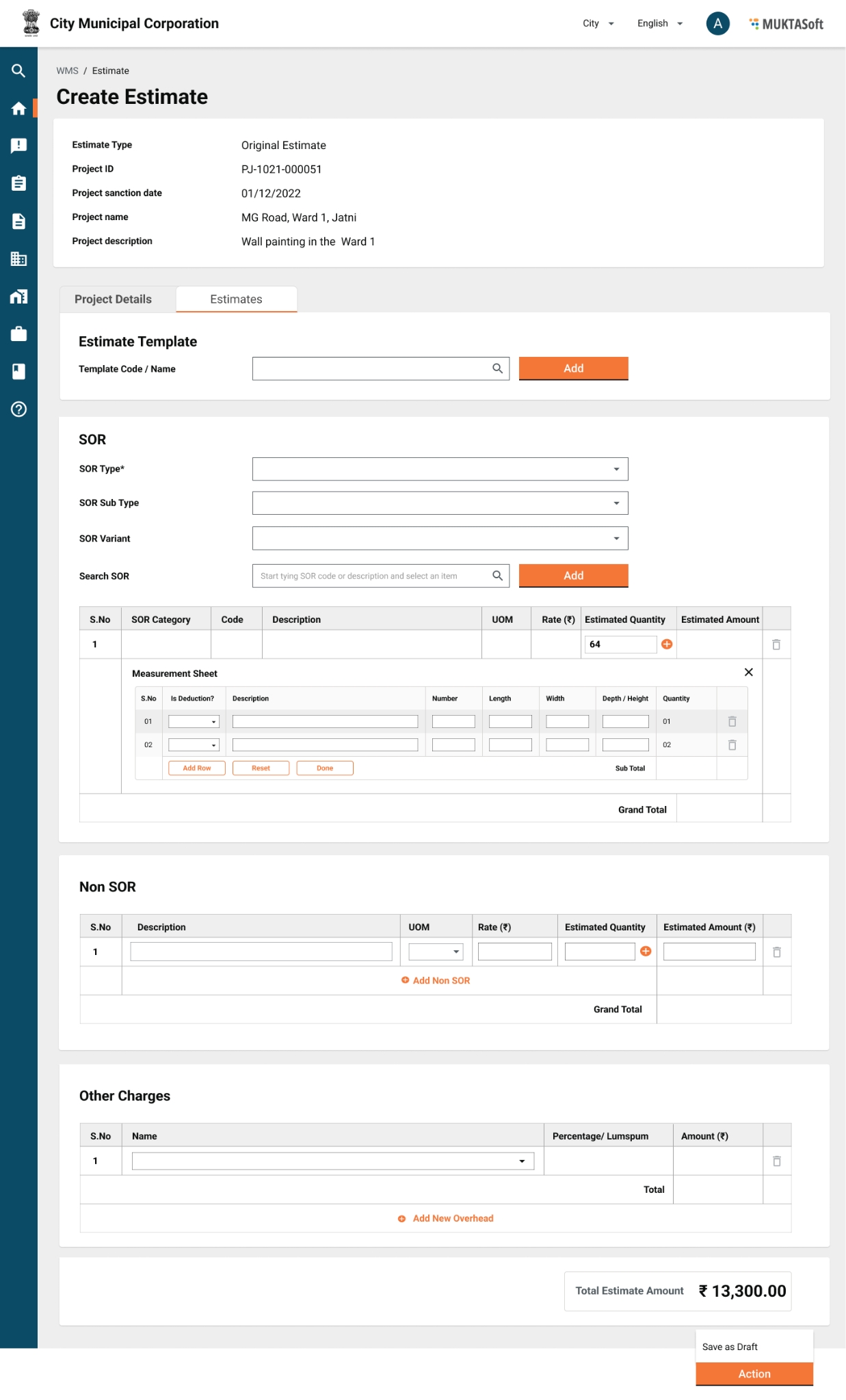

Create Estimate

Create estimate enables users to create a detailed estimate using the measurements taken from ground. The options of searching a template, and adding SOR using SOR search is provided on the create estimate page.

Search SOR

1. SOR Type - Drop-down to select a value for SOR type.
2. SOR Sub Type - Drop-down to select a value for the SOR sub type.
3. SOR Variant - Drop-down to select a value.
4. SOR - Drop-down with incremental/ fuzzy search on code or description.

Plus Measurements

These are the measurements which are added to the measurement to calculate the quantity of a particular SOR.

Minus Measurements

These are the measurements which are subtracted from the measurement to calculate the quantity of a particular SOR.

Attributes

S.No.	Field Name	Data Type	Is Mandatory?	Description
1	Estimate Type	Display	Yes	Estimate type, Original/ Revised.
2	Project ID	Display	Yes	Project ID
3	Project Sanction Date	Display	Yes	Project sanction date
4	Project Name	Display	Yes	Project name
5	Project Description	Display	Yes	Project description
	Search SOR - It provides the option to search a SOR and add to the estimate.
	SORs
1	Code	Display	Yes	SOR code, unique identifier for each SOR.
2	SOR Description	Display	Yes	SOR description from the SOR master for the selected SOR.
3	Unit	Display	Yes	Unit of measurement
4	Rate	Display	Yes	The rate defined and effective currently.
5	Quantity	Display	Yes	Calculated value out of measurements.
6	Amount	Display	Yes	Calculated value and equal to Qty*Amount.
	Measurements
1.1	Sr. No.	Display	Auto	Measurement serial number.
1.2	Type	Drop-down	Yes	Plus/ Minus measurements.
1.3	Name	Text	Yes	The name of the measurement.
1.4	Number (Nos)	Numeric (6,2)	Yes	No. of items.
1.5	Length (L)	Numeric (6,2)	Yes	Length measured
1.6	Breadth (B)	Numeric (6,2)	Yes	Width measured
1.7	Height/ Depth	Numeric (6,2)	Yes	Depth measured
1.8	Quantity	Display	Yes	Qty = N* L*B*D;
1.9	Total	Display	Yes	Grid total for the quantities of measurements
	Analysis
1	Material Cost	Display	Yes	Cost of material out of SORs.
2	Labour Cost	Display	Yes	Cost of labours out of SORs.
3	Machinery Cost	Display	Yes	Cost of machinery out of SORs.
	Action
1	Save	Button	Yes	Save the estimate as a draft.
2	Generate Analysis	Button	Yes	Generates the analysis and populates the figures.
3	Submit	Button	Yes	Submit the estimate for verification.

Mockups

Workflow

One additional step of adding and saving the estimate as a draft with the creator of the estimate is incorporated.

#	Action	Role	From State	To State	Status
1	Save as Draft	Estimate Creator		Saved as draft	Drafted
2	Submit	Estimate Creator	Saved as draft	Pending for verification	Submitted
3	Verify and Forward	Estimate Verifier	Pending for verification	Pending for technical sanction	Verified
4	Technical Sanction	Technical Sanctioner	Pending for technical sanction	Pending for approval	Technically Sanctioned
5	Send Back	Estimate Verifier	Pending for verification	Pending for correction	Sent Back
6	Send Back
